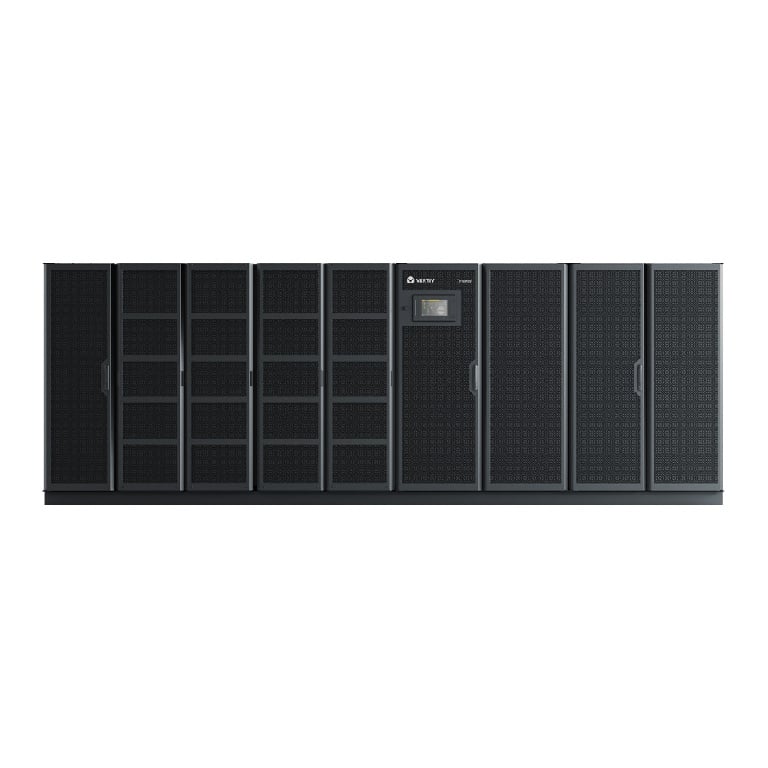

Vertiv™ Trinergy™ UPS 2000 kW UL 415V 4W 3-Phase Modular Large UPS
The Vertiv™ Trinergy™ UPS is a 4W, high-capacity UPS with maximized reliability and resilience, modular architecture, and high efficiency. It is ideal for the demanding requirements of large-scale applications such as artificial intelligence (AI). It can handle rapid load changes without performance degradation, providing continuous operation. Available in UL and CE configurations, it provides innovative features for AI loads such as Input Power Smoothing, Battery Shield, and Fault Ride Through (FRT) capability. It comes in 3-wire or 4-wire distribution options.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Data Center/Colocation/Hosting
- Manufacturing
- Telecom

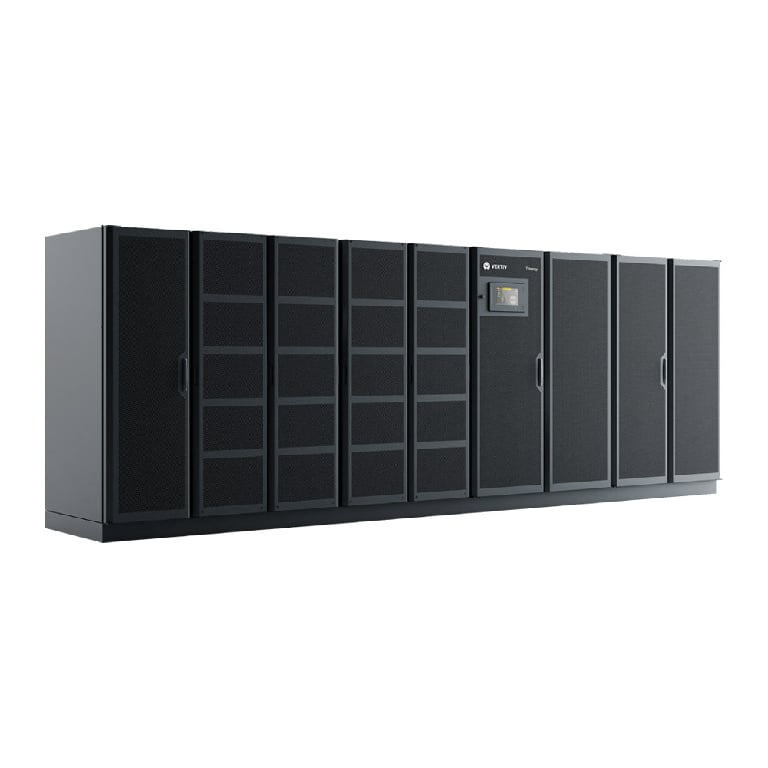

Vertiv™ Trinergy™ UPS 2000 kW UL 415V 4W 3-Phase Modular Large UPS
The Vertiv™ Trinergy™ UPS is a 4W, high-capacity UPS with maximized reliability and resilience, modular architecture, and high efficiency. It is ideal for the demanding requirements of large-scale applications such as artificial intelligence (AI). It can handle rapid load changes without performance degradation, providing continuous operation. Available in UL and CE configurations, it provides innovative features for AI loads such as Input Power Smoothing, Battery Shield, and Fault Ride Through (FRT) capability. It comes in 3-wire or 4-wire distribution options.
- Data Center/Colocation/Hosting
- Manufacturing
- Telecom
Benefits
- NO SYSTEM DOWNTIME: It facilitates maintenance and power upgrades without interruption, leading to enhanced operational availability and preventing unplanned outages.
- 4-WIRE DISTRIBUTION: This functionality removes the need for step-down transformers downstream of the PDU to reduce energy losses, power train complexity, and footprint.
- DISTRIBUTED BATTERIES: This enhances fault tolerance and system availability by improving performance with various failure modes.
- CAPACITY & INSTALLATION FLEXIBILITY: From 1.5MW up to 20MW, this power solution can adapt to your system needs across power capacity, redundancy, and design.
- ENERGY SAVINGS & MANAGEMENT: This compact, optimized power solution with a simple interface offers maximum energy savings and rapid return on investment.
- RICH DIGITAL EXPERIENCE: It offers services empowered by data across the entire lifecycle, with optional Vertiv™ Life™ Advances Incident Management and Condition-Based Maintenance.
Features
- BATTERY SHIELD: This allows data centers to preserve backup energy and extend battery life by reducing micro-cycling caused by AI load variability.
- INPUT POWER SMOOTHING (IPS): It delivers controlled and predictable power by using UPS energy storage system for balancing AI load variability.
- TRANSFORMER-FREE DESIGN WITH FULL IGBT THREE-LEVEL DOUBLE CONVERSION TECHNOLOGY: Vertiv™ Trinergy™ UPS meets the volatile demands of next-generation AI systems.
- UNITY POWER FACTOR: This UPS operates with an output power factor up to 1.
- ADVANCED DIAGNOSTIC AND USER INTERFACE: It helps prevent issues with enhanced event analysis and a colored, multi-language touch-screen display.
- EASY DEPLOYMENT: This skid-mounted and containerized power solution allows for quick setup.
Specifications
The Vertiv™ Trinergy™ UPS delivers reliable power to maintain optimal performance of large-scale data centers such as AI systems. It is a modular, scalable, and sustainable solution available globally. By integrating advanced power management and supporting new energy sources, this UPS ensures data centers can handle dynamic and intensive workloads of the future.
- Product Overview
- Power Rating
- 2000kVA/2000kW
- Input Voltage Range
- 415 (353 to 477) 3Ph+PE+N
- Output Voltage Range
- 415 (353 to 477) 3Ph+PE+N
- Efficiency
- ≥ 97% Double Conversion VFI ≥ 99% Dynamic Online Mode
- Wiring
- Four wire electrical compatibility
- Weight
- 5540 kgs
- Height
- 2010 mm
- Width
- 5700 mm
- Depth
- 1050 mm
- Interfaces/Ports
- Control Panel
- Vertiv™ standard touchscreen control panel
- Cable Access
- Top/Bottom
- Service Access
- Front and Top
- Operational Conditions
- Operating Temperature
- 0 to 50 with automatic derating from 40°C
- Listings
- UL Standards
- Topology
- Full IGBT three-level NPC2
- Miscellaneous
- Listings
- UL Standards
- Topology
- Full IGBT three-level NPC2
