Product Family
Warranty:
Vertiv™ PowerIT Basic Rack PDU comes with a standard five-year limited warranty.

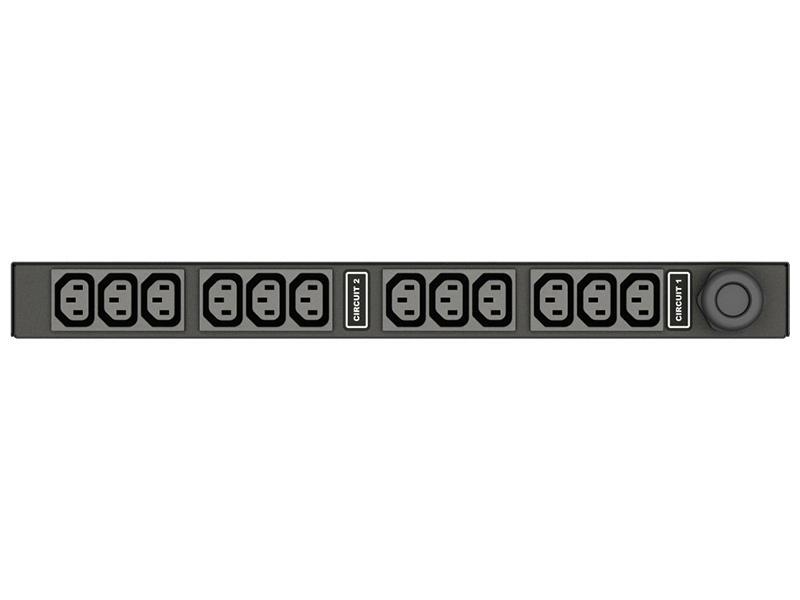

Vertiv™ PowerIT Basic rPDU – Configurable Rack Power
The Vertiv™ PowerIT Basic rack PDUs (rPDUs) deliver reliable, space-saving power distribution for a wide range of IT environments, with configurations supporting standard, high-density, and high-capacity applications. These high-capacity models provide significantly greater power delivery for racks supporting advanced compute, AI, or other growing power demands. Every unit is 100% tested for functionality and reliability and comes with a standard five-year limited warranty.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Healthcare
- Retail and Wholesale
- Transportation
Product Family
Warranty:
Vertiv™ PowerIT Basic Rack PDU comes with a standard five-year limited warranty.
Vertiv™ PowerIT Basic rPDU – Configurable Rack Power
The Vertiv™ PowerIT Basic rack PDUs (rPDUs) deliver reliable, space-saving power distribution for a wide range of IT environments, with configurations supporting standard, high-density, and high-capacity applications. These high-capacity models provide significantly greater power delivery for racks supporting advanced compute, AI, or other growing power demands. Every unit is 100% tested for functionality and reliability and comes with a standard five-year limited warranty.
Best Suited For:
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Healthcare
- Retail and Wholesale
- Transportation
Tools & Selectors
Select, compare, or configure PDUs
Use the rPDU Finder
Find the PDU you require based on a variety of configurations
Configure your own rPDU
Engineered solutions delivered in record time
Specifications
Vertiv™ PowerIT Basic rPDUs are built for adaptable deployment, offering diverse outlet types, plug options, chassis colors, and cord lengths to accommodate a wide range of rack environments. Designed to support an extensive spectrum of power architectures, models include standard configurations, high density options, and high-capacity units. With broad global voltage compatibility and durable construction, it’s easy to align each rack with the right power configuration.
|
Vertiv™ PowerIT Basic rPDU – 277/480V, 30A VP1N30AT
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 30A | 277/480V | 277V | 36 Saf-D-Grid Series 400 | Vertical | 2.6 in | 2 in | 30 lb | |
| See more product information | ||||||||
|
Vertiv™ PowerIT Basic rPDU – 277/480V, 30A VP1N30AU
|
||||||||
| 30A | 277/480V | 277V | 24 Saf-D-Grid Series 400 | Vertical | 2.6 in | 2 in | 27 lb | |
| See more product information | ||||||||
|
Vertiv™ PowerIT Basic rPDU – 277/480V, 30A VP1N31A6
|
||||||||
| 30A | 277/480V | 277V | 12 Saf-D-Grid Series 400 | Horizontal | 1.75 in | 17.12 in | 30 lb | |
| See more product information | ||||||||
|
Vertiv™ PowerIT Basic rPDU – 277/480V, 60A VP1N60AJ
|
||||||||
| 60A | 277/480V | 277V | 36 Saf-D-Grid Series 400 | Vertical | 3 in | 2.1 in | 34 lb | |
| See more product information | ||||||||
|
Vertiv™ PowerIT Basic rPDU – 277/480V, 60A VP1N60AK
|
||||||||
| 60A | 277/480V | 277V | 24 Saf-D-Grid Series 400 | Vertical | 2.6 in | 2.1 in | 31 lb | |
| See more product information | ||||||||
|
Vertiv™ PowerIT Basic rPDU – 277/480V, 60A VP1N62A3
|
||||||||
| 60A | 277/480V | 277V | 24 Saf-D-Grid Series 400 | Horizontal | 3.49 in | 17.12 in | 31 lb | |
| See more product information | ||||||||
|
Vertiv™ PowerIT Basic rPDU – 277/480V, 80A VP1NA0A3
|
||||||||
| 80A | 277/480V | 277V | 30 Saf-D-Grid Series 400 | Vertical | 3 in | 2.5 in | 19 lb | |
| See more product information | ||||||||
|
Vertiv™ PowerIT Basic rPDU – 277/480V, 100A VP1NC0A0
|
||||||||
| 100A | 277/480V | 277V | 30 Saf-D-Grid Series 400 | Vertical | 3 in | 3 in | 31 lb | |
| See more product information | ||||||||
|
Vertiv™ PowerIT Basic rPDU – 277/480V, 80A VP1NA0A4
|
||||||||
| 80A | 277/480V | 277V | 18 Saf-D-Grid Series 400 | Vertical | 3 in | 2.5 in | 20 lb | |
| See more product information | ||||||||
|
Vertiv™ PowerIT Basic rPDU – 277/480V, 100A VP1NC0A1
|
||||||||
| 100A | 277/480V | 277V | 18 Saf-D-Grid Series 400 | Vertical | 3 in | 3 in | 30 lb | |
| See more product information | ||||||||
|
Vertiv™ PowerIT Basic rPDU – 277/480V, 80A VP1NA2A0
|
||||||||
| 80A | 277/480V | 277V | 15 Saf-D-Grid Series 400 | Horizontal | 3.49 in | 17.12 in | 20 lb | |
| See more product information | ||||||||
|
Vertiv™ PowerIT Basic rPDU – 277/480V, 100A VP1NC2A0
|
||||||||
| 100A | 277/480V | 277V | 15 Saf-D-Grid Series 400 | Horizontal | 3.49 in | 17.12 in | 31 lb | |
| See more product information | ||||||||
|
VP9562
|
||||||||
| 15A | 120V | 120V | (10) 5-15R | Rack | ||||
| See more product information | ||||||||
|
VP9563
|
||||||||
| 20A | 120V | 120V | (10) 5-20R | Rack | ||||
| See more product information | ||||||||
|
VP9571A
|
||||||||
| 30A | 208V | 208V | (12) C13 | Rack | ||||
| See more product information | ||||||||
|
VP7541
|
||||||||
| 30A | 208V | 208V | (20) C13 / (4) C19 | Rack | ||||
| See more product information | ||||||||
|
VP9567
|
||||||||
| 15A | 120V | 120V | (14) 5-15R | Rack | ||||
| See more product information | ||||||||
|
VP1U60A2
|
||||||||
| 63A | 3P + N + E (IP44) | 240/415V WYE | (36) Combination Outlet C13/C19 | Vertical | 2 | 2.6 | 19 | |
| See more product information | ||||||||
|
VP1U62A1
|
||||||||
| 63A | 3P + N + E (IP44) | 240/415V WYE | (24) Combination Outlet C13/C19 | Horizontal | 3.48 | 17.12 | 12 | 19 |
| See more product information | ||||||||
|
VP1UA0A1
|
||||||||
| 80A | Hardwired Input | 240/415V WYE | (36) Combination Outlet C13/C19 | Vertical | 3.8 | 3 | 19 | |
| See more product information | ||||||||
|
VP1U60A0
|
||||||||
| 63A | 2P + E (IP44) | 240V | (36) Combination Outlet C13/C19 | Vertical | 3.5 | 2.6 | 19 | |
| See more product information | ||||||||
|
VP1U60A1
|
||||||||
| 63A | 2P + E (IP44) | 240V | (24) Combination Outlet C13/C19 | Vertical | 2 | 2.6 | 19 | |
| See more product information | ||||||||
|
VP1U62A0
|
||||||||
| 63A | 2P + E (IP44) | 240V | (24) Combination Outlet C13/C19 | Horizontal | 3.48 | 17.12 | 12 | 19 |
| See more product information | ||||||||
|
VP0G7200
|
||||||||
| 11.5kW (208V) | 240V | 240V | Hardwire: L1, L2/N, G | |||||
| See more product information | ||||||||
|
VP0N3223
|
||||||||
| 5kW (208V) | 240V | 240V | L6-30P | |||||
| See more product information | ||||||||
|
VP0N6242
|
||||||||
| 11.5kW (208V) | 240V | 240V | Hardwire: L1, L2, G | |||||
| See more product information | ||||||||
|
VP0N6263
|
||||||||
| 11.5kW (208V) | 240V | 240V | Hardwire: L1, L2, G | |||||
| See more product information | ||||||||
|
VP0N6281
|
||||||||
| 11.5kW (208V) | 240V | 240V | Hardwire: L1, L2, G, N | |||||
| See more product information | ||||||||
|
VP0N3242
|
||||||||
| 5kW (208V) | 240V | 240V | L14-30P | |||||
| See more product information | ||||||||
|
VP0N6222
|
||||||||
| 11.5kW (208V) | 240V | 240V | Hardwire: L1, L2, G, N | |||||
| See more product information |
Benefits
- STABLE CRITICAL POWER: The Vertiv™ PowerIT basic rPDU provides stable, continuous power delivery to keep mission-critical IT equipment systems operating without interruption.
- 100% TESTED: Each unit is individually tested for full functionality and adherence to ETL, RoHS, and TAA.
- SAFETY COMPLIANCE: North American units are UL listed in accordance with common data center and insurance provider requirements.
- RAPID DEPLOYMENT: Save time and money by pre-integrating Vertiv™ PowerIT rPDUs with the VR Rack. Contact your local sales representative to get started.
Features
- HIGH-DENSITY READINESS: Select Vertiv™ PowerIT basic rPDUs are designed for IT, AI, and HPC loads up to 66.4 kVA.
- FLEXIBLE CONFIGURATION OPTIONS: It delivers versatile power distribution with a broad range of outlet types (C13, C19, C13/C19, NEMA) and comes in both horizontal and vertical form factors.
- UPGRADABLE DESIGN: Basic upgradable rPDUs allow you to add monitoring capabilities, leveraging Vertiv’s upgradable architecture to adapt as requirements evolve.
- QUICK SETUP: It enables simple, fast installation in any standard rack or cabinet using the included mounting brackets.
- WARRANTY & CERTIFICATIONS: Each Vertiv basic rPDU includes a 5-year limited warranty and is TAA-compliant.
- BROAD COMPATIBILITY: The Vertiv basic rPDUs fit all industry-standard racks and support major global volage and amperage combinations for easy integration with Vertiv’s wider power chain.
Manuals
- Vertiv™ PowerIT Basic Rack PDU - Installer User Guide - English
- Vertiv™ PowerIT Power Distribution Unit - Quick Installation Guide - English
- Vertiv™ PowerIT Upgradeable PDU and Universal PDU - Quick Installation Guide - English
- Vertiv™ PowerIT IMD-5M - Replacement Guide - English
- Vertiv™ PowerIT HM-Series rPDUs - Safety and Quick Installation Guide - English
Brochures and Data Sheets
- Vertiv™ PowerIT Rack PDU for high density applications - Brochure - English
- Vertiv™ PowerIT Custom Rack PDUs - Data Sheet - English
- Vertiv™ PowerIT Product Overview - Brochure - English
- Vertiv™ Data Center Infrastructure Solutions - Channel Products Catalog - English
- Vertiv™ Distribution Assurance Package - Data Sheet - English
Software
Warranties
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Vertiv™ Services
Email Contact
+1 800 543 2378
610 Executive Campus Drive
Westerville Ohio 43082
USA
Product areas of focus:
Uninterruptible Power Supplies (UPS), Power Distribution, Thermal Management, Integrated Solutions, Racks and Containment
Geist Support - Americas (Rack PDU and Watchdog)
Email Contact
+1 888 630 4445
1777 Yolande Avenue
Lincoln Nebraska
USA
Product areas of focus:
Power Distribution, Monitoring
Vertiv (Customer Service for DC Power Systems & Outdoor Enclosures)
Email Contact
+1 800 800 1280
USA
Product areas of focus:
DC Power Systems, Power Distribution, Outdoor Enclosures
Change
Frequently Asked Questions
- Q
- Are Vertiv Geist Basic rPDUs UL/CE Listed?
- A
- Yes, all Vertiv Geist rPDU products carry a UL and/or CE Listed mark. If you’re looking for countries outside North America and the EU then please contact Vertiv Geist.
- Q
- Can I add a local meter or remote power monitoring to a Basic rPDU in the future?
- A
- Yes, the Basic Upgradeable rPDUs can be upgraded to have a local meter or additional intelligence in the future by replacing the IMD or Interchangeable Monitoring Device.
- Q
- Can I upgrade the Basic Upgradeable unit without removing power from the unit?
- A
- Yes, the rPDU power can remain on during the removal and/or installation of the Interchangeable Monitoring Device.
- Q
- Can I get a basic rPDU without an on/off switch?
- A
- Most Basic rPDUs have the option to have the on/off switch removed. However, some basic rPDUs utilize hydraulic-magnetic circuit breakers which can be manually shut off, therefore acting as a primary disconnect. These breakers have a guard to help prevent accidental disconnects. Vertiv Geist also offers an option to have a switch cover installed on a basic rPDU with an on/off switch. This switch cover must be installed when the unit is manufactured. Please contact Vertiv Geist for a part number.
- Q
- Is there a way to protect an on/off switch from being used?
- A
- Vertiv Geist offers an option to have a switch cover installed on a basic rPDU with an on/off switch. This switch cover must be installed when the unit is manufactured. Please contact Vertiv Geist for a part number.
