Product Model

NetSure 8200 (582140000)

The NetSure™ 8200 Series offers compact combination bays, complementary distribution bays, and stand-alone power bays that integrate easily with existing AC infrastructure. Designed to provide reliable -48 VDC power and distribution at core facilities, the digital NetSure 8200 plant leverages high-efficiency 200 amp rectifiers powered from 480 VAC or 208 VAC. This series offers versatile solutions to meet the needs of your central office, mobile switching office, cable headend, or data center deployment.

Get Brochure Get Manual
Best Suited For:
  • Government
  • Data Center/Colocation/Hosting
  • Military, Defense, Aerospace and Missile
  • Telecom
  • Oil and Gas


Free up floor space with a design that delivers power conversion, distribution, and control and monitoring in a single bay
Dedicate existing cabling and breakers to a single rectifier via an integrated AC distribution panel.
Minimize installation time with built-in monitoring for all distribution devices
Advanced security features available including HTTPS/SSL, complex login credentials, or Radius user authentication
Numerous connectivity options support integration into a wide variety of networks – IPv4, IPv6, SNMP V2c and V3, Modbus, TL1 and multi-browser compatibility

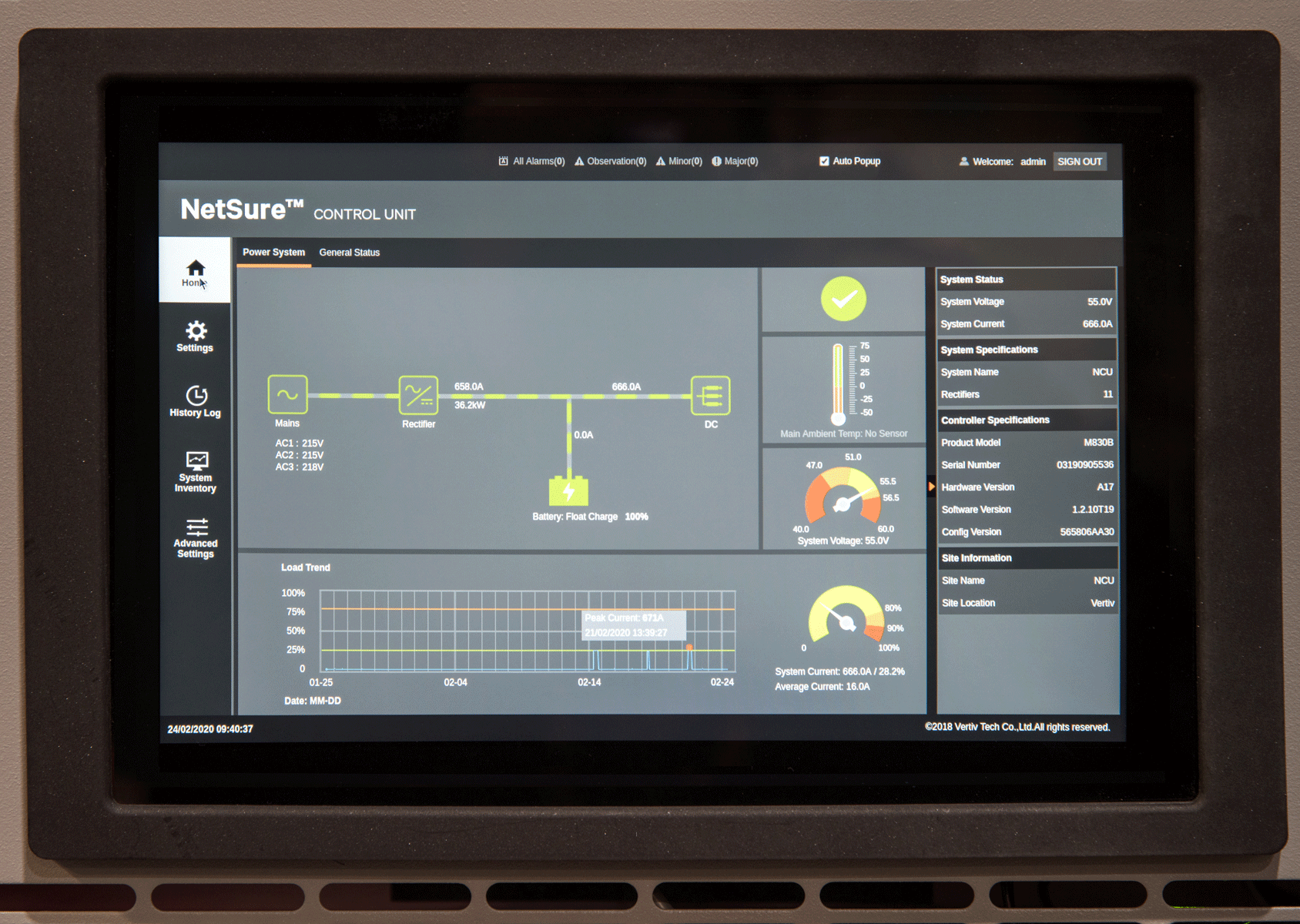

Easily monitor and adjust system parameters through an intuitive user interface available remotely and locally on a 10-in touchscreen display
NEBS Level 3 certified

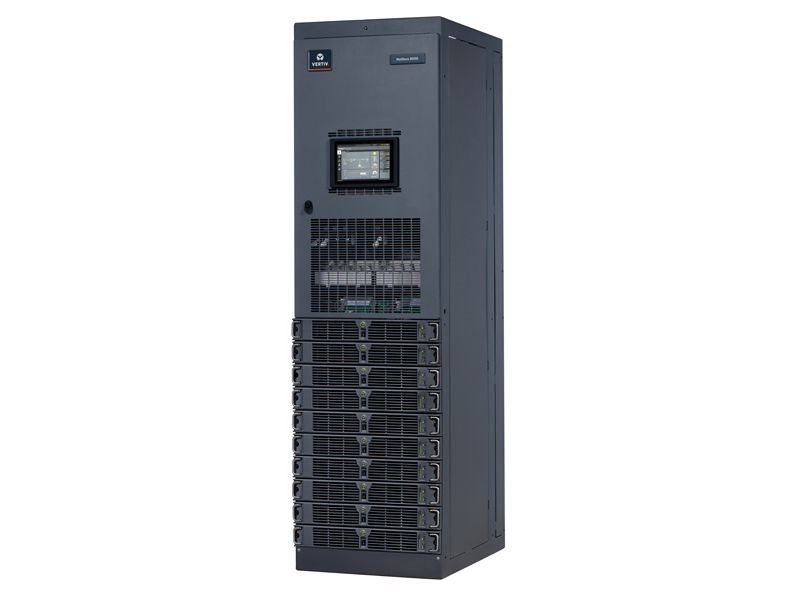

Single frame design provides power conversion, distribution, control and monitoring in a small footprint

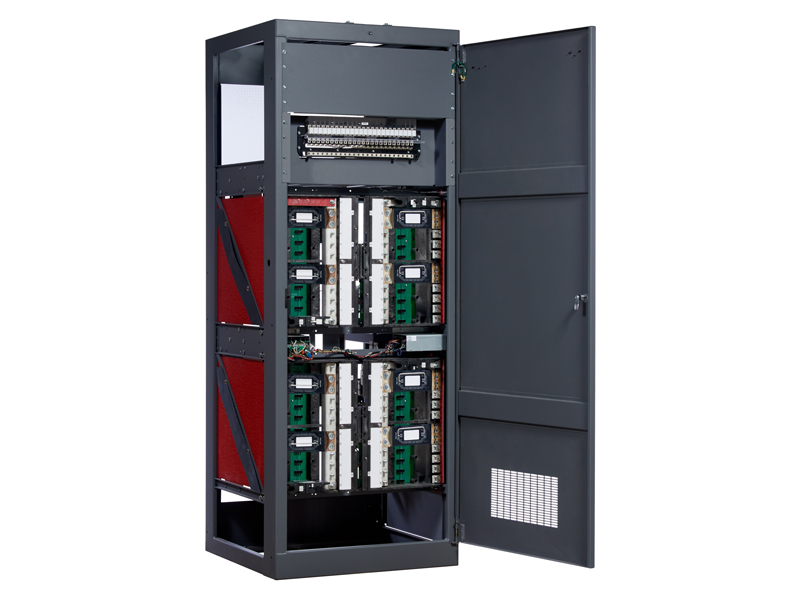

Modular distribution design includes built-in automatic monitoring for all distribution devices

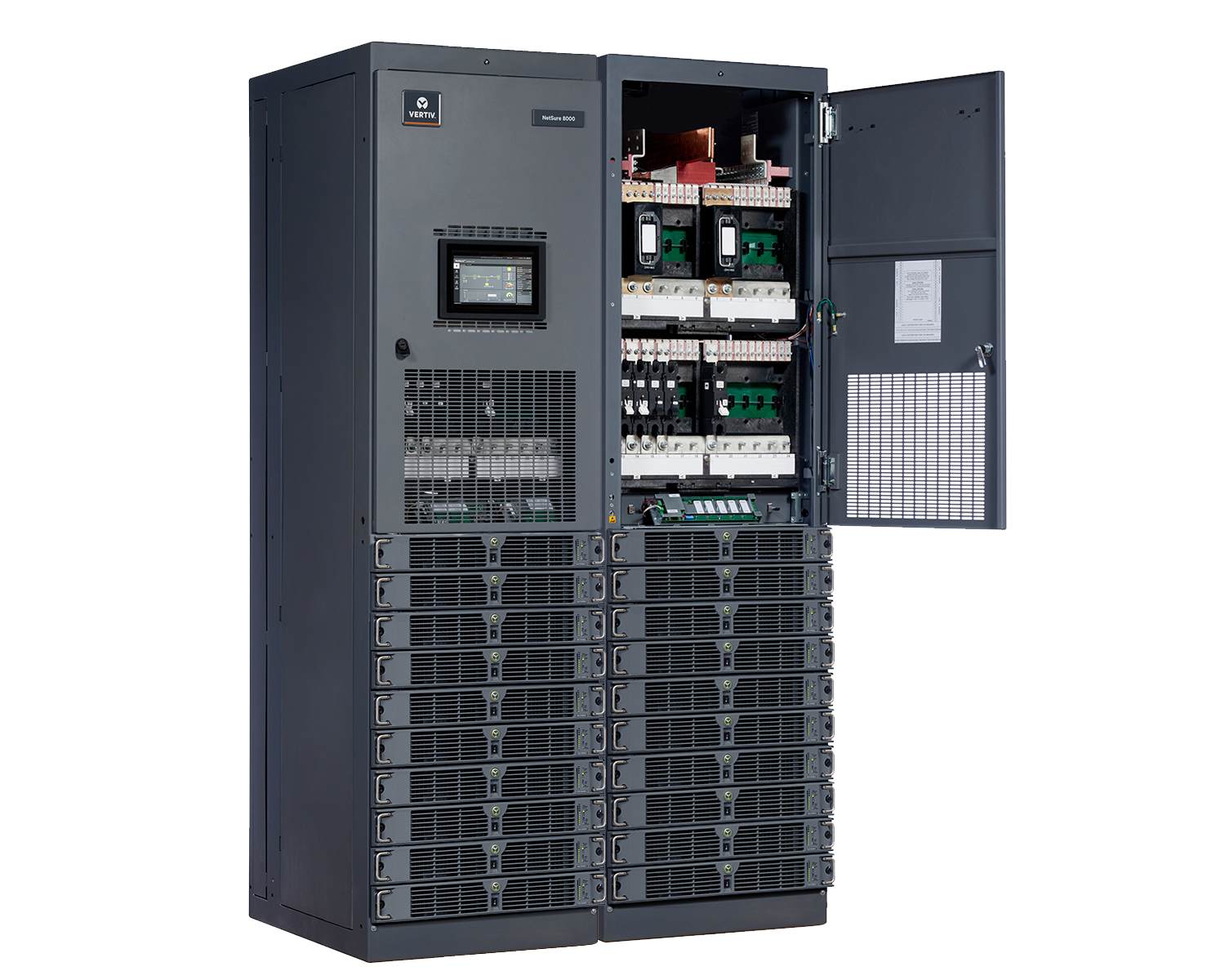

Integrated internal DC bus, in combination bays, eliminates costly overhead busses and eases plant expansion
Optional integrated AC
Power Distribution Service Cabinet (PDSC) for protected bulk AC service feeds with 22 or 65 kAIC breakers
Supports distributed and bulk plant architectures

NetSure 8200 (582140000)
Product Overview
Power Capacity
1 MW
Current Capacity
20,000 A
System Type
Power Bay
Input Voltage, Nominal
208 or 480 VAC, 3-phase
Input Voltage, Operational
408-528 VAC to 176-264 VAC
Equipment Dimensions (H x W x D)
Combo Bay List 101 and List 111 93.5"x24"x30",830 lbs., Combo Bay List 102 and List 112 84"x24"x 30", 830 lbs., AC Distribution Bay (PDSC): 84" x 1
Front and rear
Output Voltage, Nominal
48 VDC
Output Voltage, Operational
42.0 VDC to 58.0 VDC
Output Capacity
12,000 W rectifier

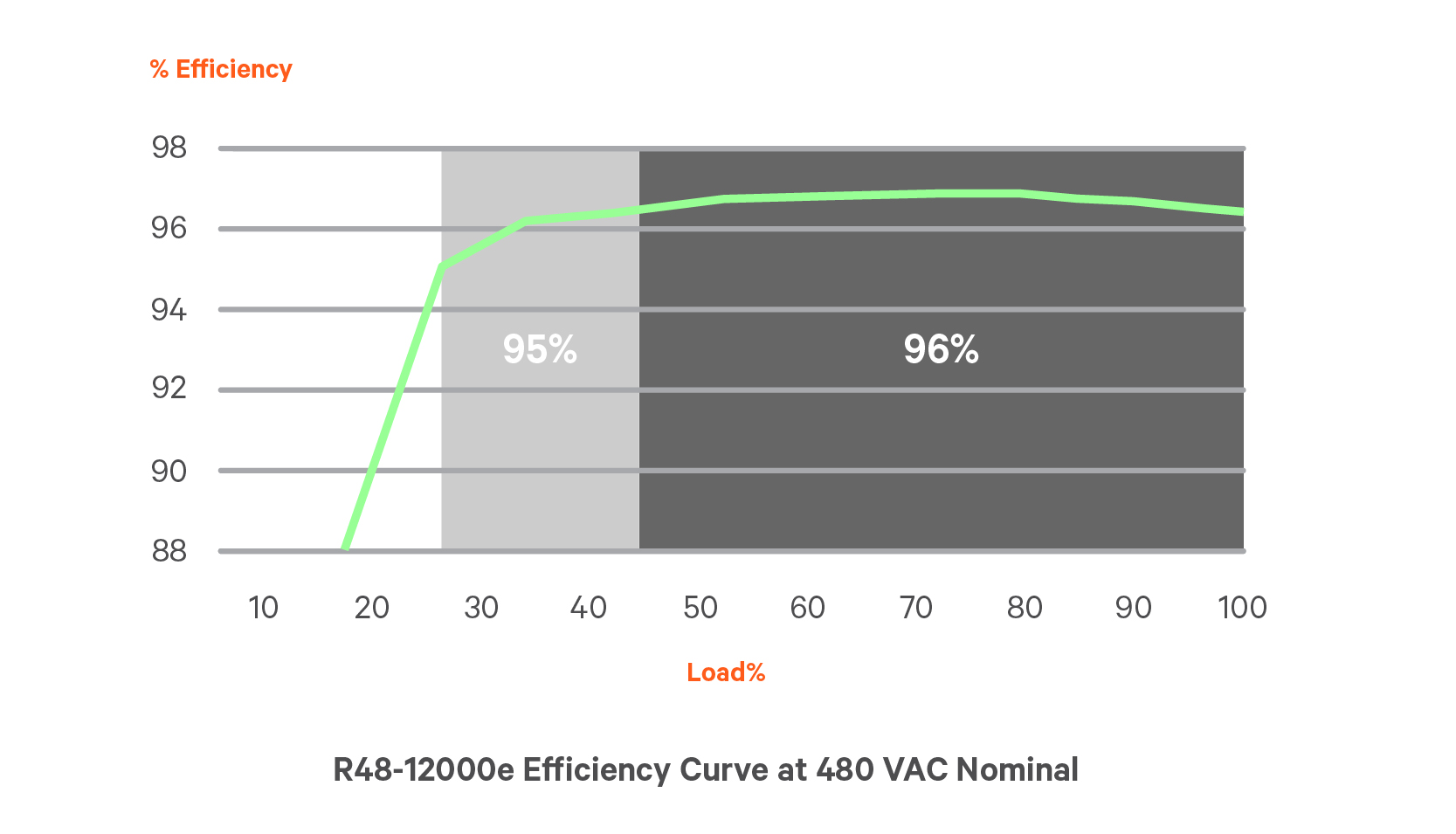

Peak Efficiency
96.1% (480 VAC), 95.7% (208 VAC)
Load Circuit Breakers / Fuses
TPS/TLS, TPL Fuses or GJ/218-Style breakers
Environmetal & Standard Compliance
Control and Monitoring
NCU controller
Operating Temperature
0 °C to +40 °C (+32 °F to +104 °F)
Safety Compliance
UL Listed (UL1801), CSA 22.2 (No. 225), c UL, NEBS Level 3
