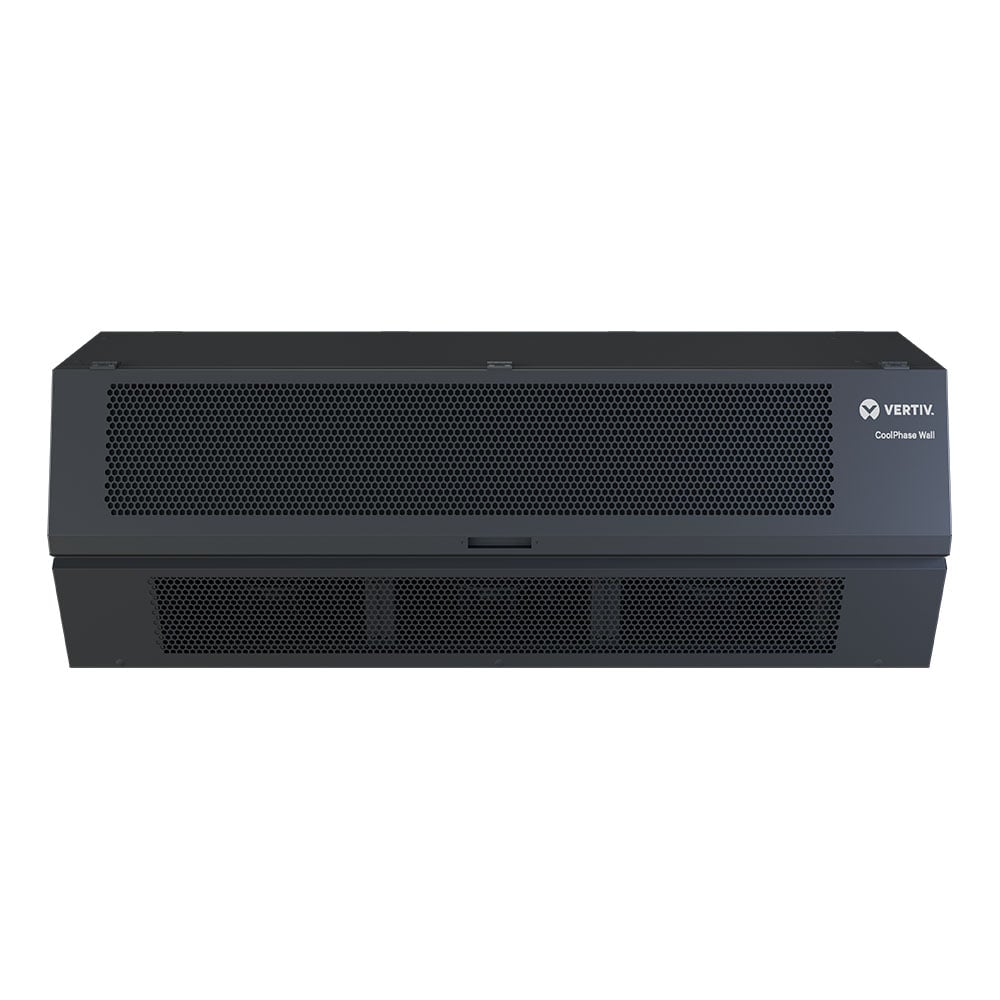

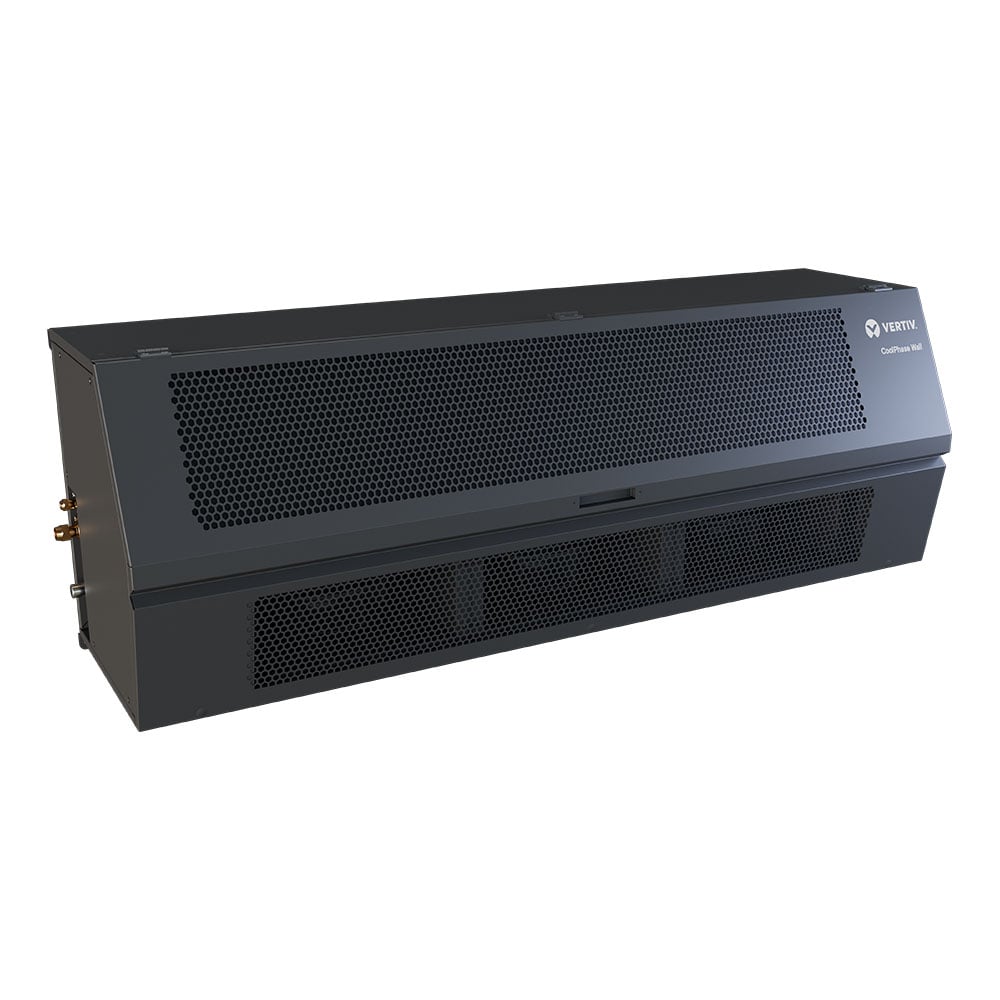

Vertiv™ CoolPhase Wall WLM0110A, 11.0kW Wall-Mount Split System Cooling for Small IT Rooms
The Vertiv™ CoolPhase Wall WLM0110A is a wall-mount split system cooling solution for small technical rooms, server rooms, and edge computing applications. This reliable IT thermal management equipment provides 11.0kW of dedicated cooling capacity even in extreme conditions and without the need for ducted air handling, reducing the risk of overheating and equipment failure. By taking up zero floor space and utilizing a low GWP refrigerant, this compact unit meets the constant data center cooling and energy efficiency demands of increasing equipment load and can be scaled for redundancy.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking, Financial and Insurance
- Broadcast and Entertainment
- Chemical/Petrochemical (excl. Oil & Gas)
- Construction and Engineering
- Education
- Government
- Healthcare
- Manufacturing
- Military, Defense, Aerospace and Missile
- Nuclear Power
- Oil and Gas
- Power Generation
- Power/Gas Transmission and Distribution
- Professional Services
- Retail and Wholesale
- Telecom
- Transportation
Vertiv™ CoolPhase Wall WLM0110A, 11.0kW Wall-Mount Split System Cooling for Small IT Rooms
The Vertiv™ CoolPhase Wall WLM0110A is a wall-mount split system cooling solution for small technical rooms, server rooms, and edge computing applications. This reliable IT thermal management equipment provides 11.0kW of dedicated cooling capacity even in extreme conditions and without the need for ducted air handling, reducing the risk of overheating and equipment failure. By taking up zero floor space and utilizing a low GWP refrigerant, this compact unit meets the constant data center cooling and energy efficiency demands of increasing equipment load and can be scaled for redundancy.
- Banking, Financial and Insurance
- Broadcast and Entertainment
- Chemical/Petrochemical (excl. Oil & Gas)
- Construction and Engineering
- Education
- Government
- Healthcare
- Manufacturing
- Military, Defense, Aerospace and Missile
- Nuclear Power
- Oil and Gas
- Power Generation
- Power/Gas Transmission and Distribution
- Professional Services
- Retail and Wholesale
- Telecom
- Transportation
Benefits

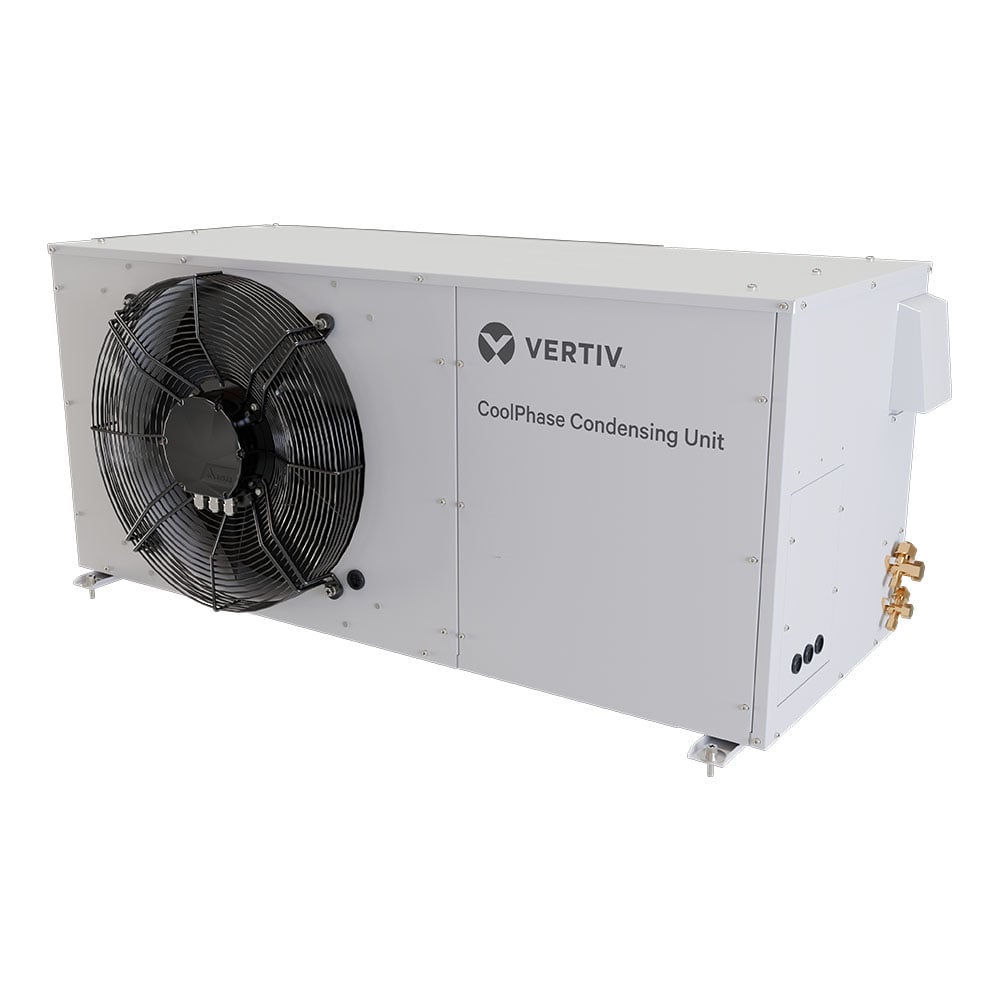

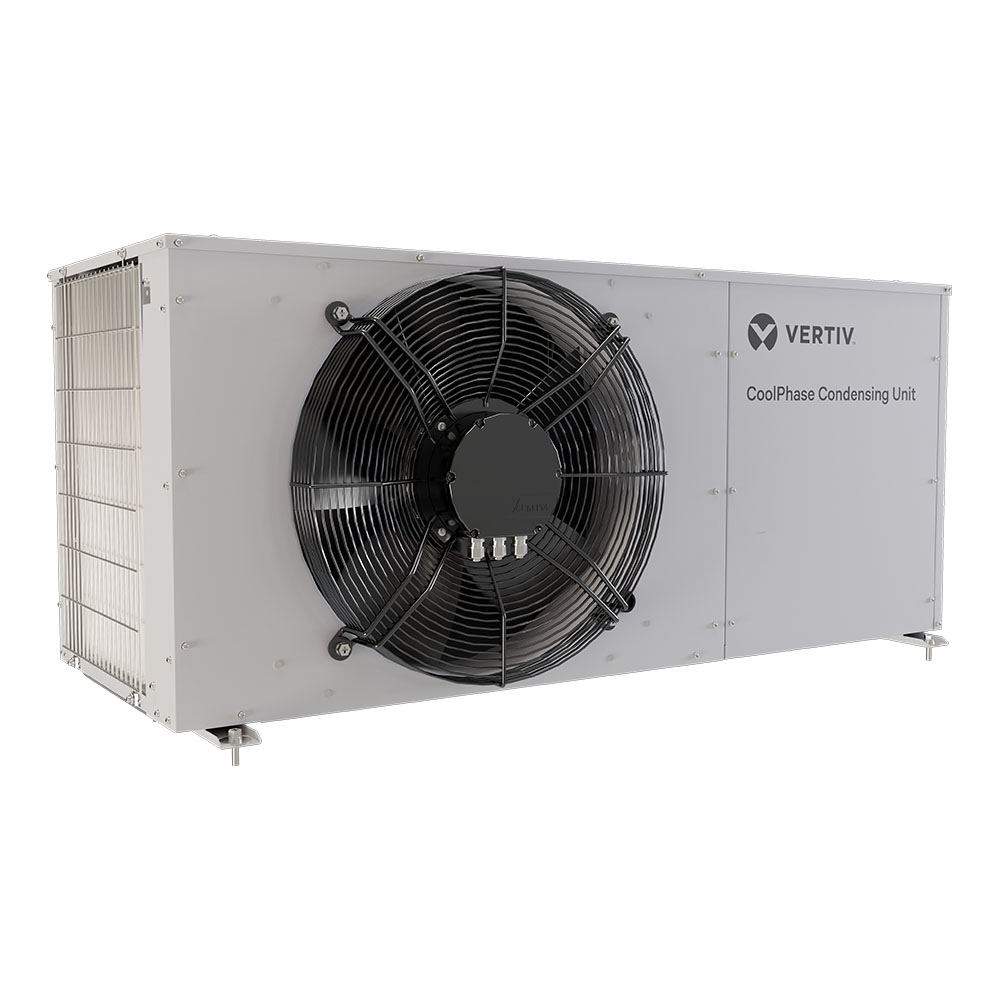

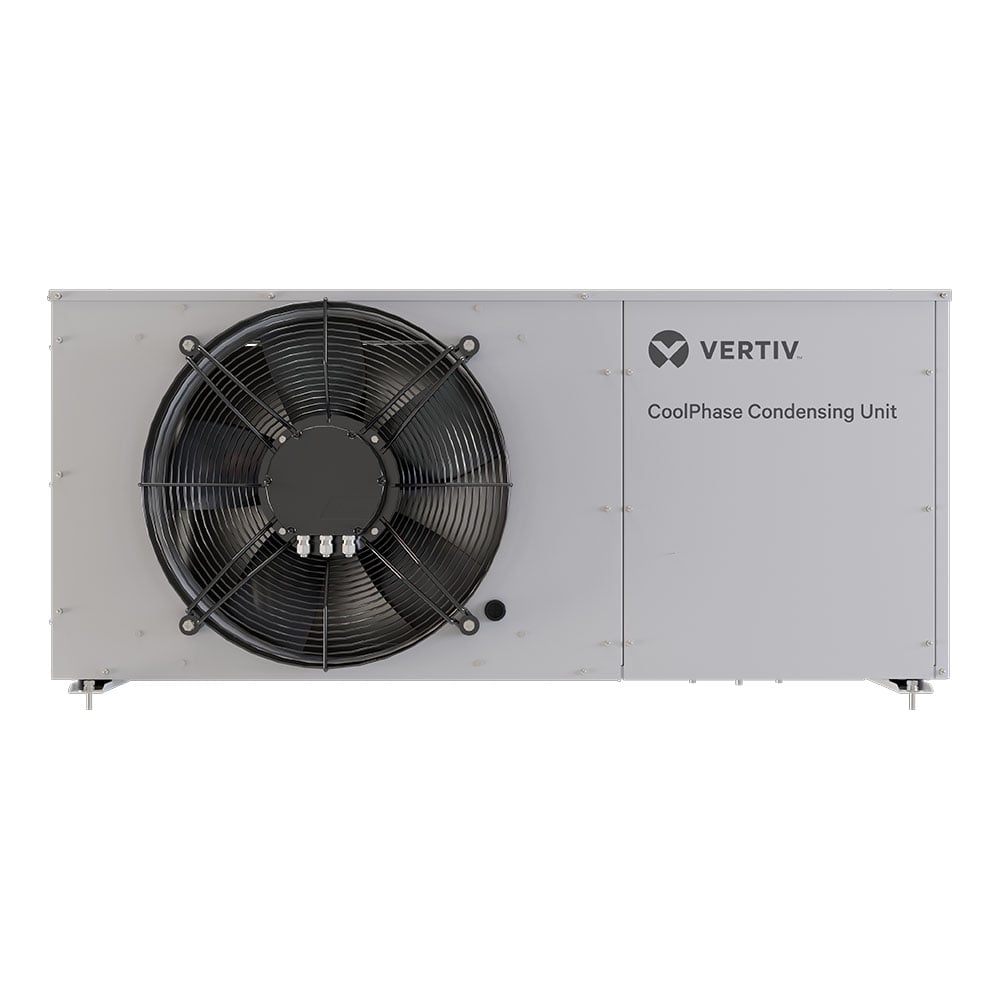

- FLEXIBLE INSTALLATION OPTIONS: It offers indoor or outdoor installation choices for the condensing unit, giving you greater deployment flexibility.
- QUICK DEPLOYMENT & REDUNDANT SCALING: It is designed to meet growing equipment demands and can be scaled for redundancy.
- MULTIUNIT CONNECTION: It enables collaborative operation between multiple units for active standby lead/lag control.
Features
- HIGH SENSIBLE HEAT RATIO (SHR): It has an SHR of ≥0.9 that provides dedicated IT heat removal for optimal cooling and enhanced performance.
- RELIABLE CAPACITY: It delivers 11.0kW of dedicated cooling to meet your data center cooling requirements.
- PLENUM-APPROVED HEAT REJECTION: It offers outdoor heat rejection from -31°F to 118°F, enabling safe installation and effective cooling in a wide range of working environments, including plenum spaces.
Specifications
The Vertiv™ CoolPhase Wall is a wall-mount split system providing dedicated cooling from 3.5kW to 11kW for increasing equipment loads in small technical rooms, server rooms, and edge computing applications. It enables effective cooling across diverse environments with its heat rejection capability. Equipped with remote monitoring features and intelligent Vertiv™ controls, it also optimizes thermal management for critical equipment. By supporting consistent temperature control, it enhances system reliability even in extreme conditions.
- Technical Specifications
- Total Nominal Capacity kBtuh [kW]
- 37,500 BTUH (11.0kW)
- Net Sensible Capacity kBtuh [kW]
- 34,120 BTUH (10kW)
- Nominal Airflow [CFM]
- 1,825 CFM
- Total Capacity
- 37,500 BTUH (11.0kW)
- Net Sensible Capacity
- 34,120 BTUH (10kW)
- Input Voltage (V/Phase/Frequency Hz)
- 208–230V / 1Ph / 50–60Hz
- Nominal Airflow
- 1,825 CFM
- Controls and Monitoring
- Vertiv™ Liebert® iCOM™ Edge Controller, Automatic startup HTTP, SNMP, Modbus Remote Monitoring
- Key Components
- R-32 Refrigerant, Touchscreen Display, Alarms, Remote Monitoring
- Allowable Heat Rejection
- -4°F to 118°F (Standard), -31°F to 118°F (Low Ambient)
- Physical Characteristics
- Height
- 19.29in
- Height
- 490mm
- Width
- 56.1in
- Width
- 1425mm
- Depth
- 15.35in
- Depth
- 390mm
- Vertiv™ CoolPhase Condensing Unit 3.5-11 - Installer User Guide - English
- Vertiv™ CoolPhase Wall - Installation, Maintenance and User Manual - English
- Vertiv™ CoolPhase Condensing Unit 3.5-11 - Wind Baffle Quick Installation Guide
- Vertiv™ CoolPhase Condensing Unit 3.5-11 - Hail Guards Quick Installation Guide
- Vertiv™ CoolPhase Condensing Unit 3.5-11 - Duct Kit Quick Installation Guide - English
- Vertiv™ CoolPhase Condensing Unit 3.5-11 - Handling and Unpacking Instructions - English
- Vertiv™ CoolPhase Wall Condensate Pump Kit Quick Installation Guide SL-71205
- Vertiv™ CoolPhase Wall Handling and Unboxing Instructions SL-71244
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
