Product Model

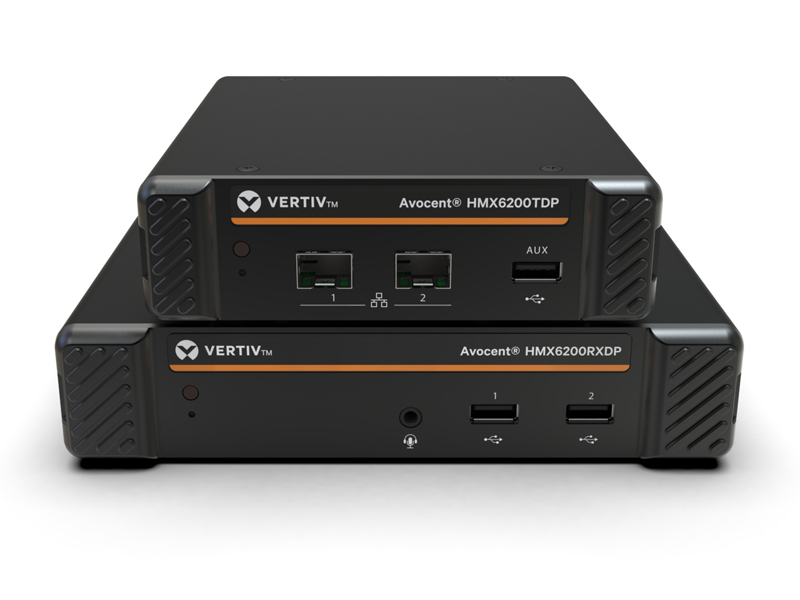

Avocent HMX 6210T High Performance KVM System
Digital Extension and Matrix Switching for Any Environment
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Broadcast and Entertainment
- Data Center/Colocation/Hosting
- Healthcare
- Telecom
- Banking
- Financial and Insurance
- Manufacturing
Product Model
Avocent HMX 6210T High Performance KVM System
Digital Extension and Matrix Switching for Any Environment
Best Suited For:
- Broadcast and Entertainment
- Data Center/Colocation/Hosting
- Healthcare
- Telecom
- Banking
- Financial and Insurance
- Manufacturing
Benefits
Truly unlimited extension distances - Extension distance is not limited to a single 100 meter cable length - If you need to
extend further, simply add a 1GbE network switch to achieve even greater distances.The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances. Single CATx cable or fiber for greater flexibility - This significant asset is what gives you the freedom to use the full variety of cable links that you typically find within an average structured cabling system. The result is that you can achieve reliable links, regardless of whether the cables are CAT5e, CAT6 or CAT7. Real time control with perfect digital video - Using a spatially-lossless encoding system, with 1:1 pixel mapping. The digital
video you receive is the same as the digital video leaving the remote computer. Security - For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.
extend further, simply add a 1GbE network switch to achieve even greater distances.The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances. Single CATx cable or fiber for greater flexibility - This significant asset is what gives you the freedom to use the full variety of cable links that you typically find within an average structured cabling system. The result is that you can achieve reliable links, regardless of whether the cables are CAT5e, CAT6 or CAT7. Real time control with perfect digital video - Using a spatially-lossless encoding system, with 1:1 pixel mapping. The digital
video you receive is the same as the digital video leaving the remote computer. Security - For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.
Features
USB 2.0 with Class Control
Enables connection of USB devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices.
Redundant Network Operation
The units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure.
High Video Performance over VNC
The VNC server can be accessed by a standard web browser but for superior graphical performance, a Real VNC viewer should be used.
View 2560 x 1600 or two 1920 x 1200 sessions
Real VNC server with RFB 3.3 support
Up to 256bit AES and RSA 2048 encryption
VM support and RS232 for power control
Supports 16 users simultaneously
Out of band BIOS level access
Ideal for Control Rooms
Plug and play
100m extension distance on single Catx unlimited using standard IP network
500m to 10km over fiber
Single link or single head configuration
Resolutions up to 2560x1600 @60hz
USB mass storage supported plus keyboard, mouse tablet and touch screen
Redundant network operation
Manuals
Brochures and Data Sheets
- Vertiv™ Avocent® HMX 5000 6000 & 8000 Data Sheet
- Avocent HMX 5000 6000 Series System Overview Data Sheet
- Government Application Brief: Access to Multiple-Classification Environments at Any Distance
- Avocent Broadcast Solutions Brochure AV-11104
- Avocent HPKVM Enhanced Emergency Management Application Brief AV-11124
- Vertiv™ Avocent® USB6000 Data Sheet AV-11402
- Data Center Infrastructure Solutions-Channel Products Catalog VR-01407
