Product Family
NetSure 5000 Series
Discretely power critical infrastructure at the edge of your network with optimized management, security, and control. This series of flexible DC power systems is designed for wireless access and fixed network applications offering unmatched temperature performance and high power density.
Best Suited For:
- Telecom
Specifications
|
NetSure 5100 582137100
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 18-28.8kW / 1.5-19.2kW | 40-600A / 50-400A | -48 VDC, +24 VDC, -58 VDC | Single phase: 120VAC, 208VAC to 240VAC | Standard system | 8.75" | 19" or 23" | 23.04" with batteries | Up to 600 lbs. |
| See more product information | ||||||||
|

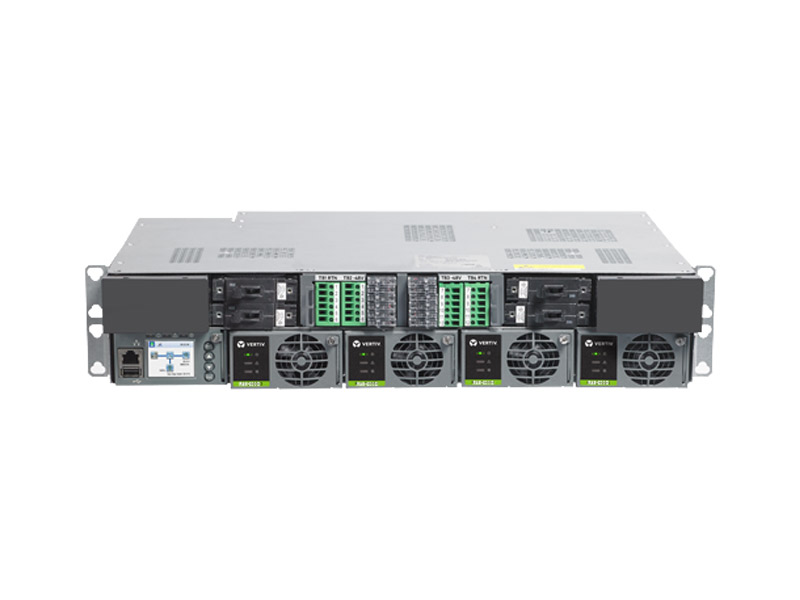

NetSure 5100 582137200
|
||||||||

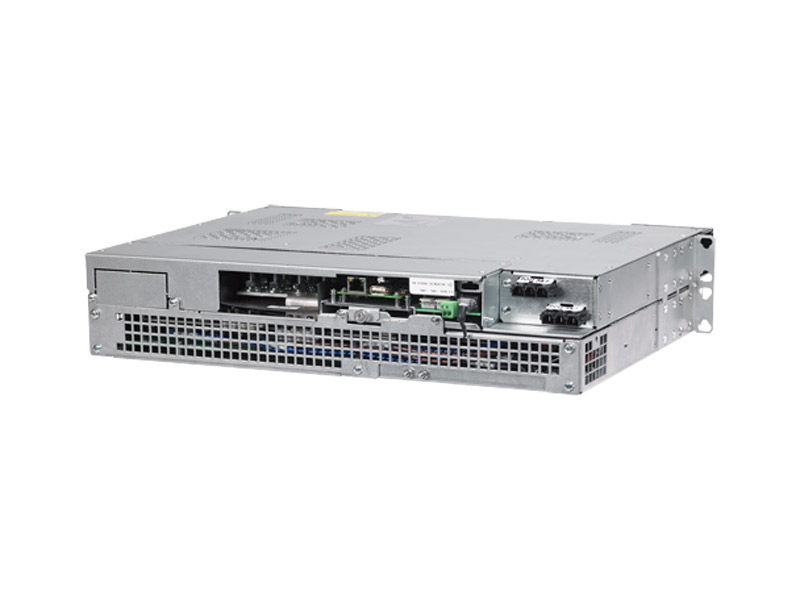

| 2-7.2kW | 40-150A | -48VDC | Single phase: 120VAC, 208VAC to 240VAC | Integrated system | Up to 5.25" | 19" or 23" | 14.7" | Up to 48 lbs. |
| See more product information | ||||||||
|
NetSure 5100 58870530036
|
||||||||
| 8kW | Up to 160A | -48VDC | 120VAC, 208VAC, 240VAC | Bulk subrack | 1 RU | 19" or 23" rack | 15" | 25 lbs. |
| See more product information |
Benefits
Minimize total cost of ownership with high efficiency eSure rectifiers
Reduce the need for specialized cooling with high temperature operation
Deploy the power system where 120VAC is the only input option
Keep your network power source secure with encrypted controller communication
Extend the life of your batteries with the available battery management tools
Achieve energy savings with ECO mode, even at low loads
Have peace of mind with this UL and NEBS power system
Minimize installation time and drive planned network conformity with custom configuration files
Reduce your off-grid generator runtime with solar / hybrid input
Optimize your battery capacity with priority and non priority load shedding
Solar / hybrid capability – reduces grid dependency
Features

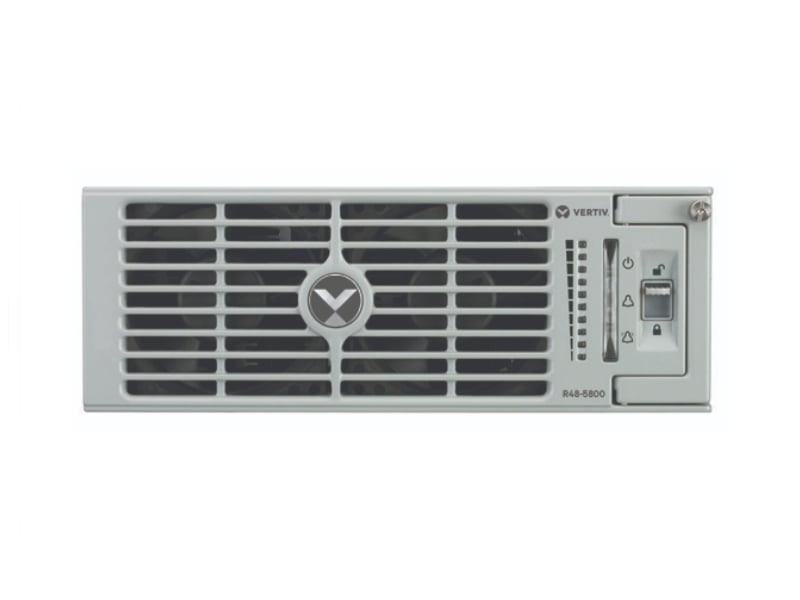

High efficiency – 96.2% efficient eSure rectifiers
Wide operating temperature range – rectifiers function at -40 °C to +80 °C (up to +65 °C without de-rating)
Selectable AC input - 120VAC, 208 to 240 VAC
Supports Ethernet, SNMP V2 & SNMP V3, ModBus and RS485 communication interfaces
Battery management capability
ECO energy savings mode
NEBS Level 3 compliance and UL Listed
Custom configuration file capability
Solar / hybrid capability
Up to two disconnect levels (LVD)
Manuals
- NetSure 5100 582137200 - User Manual - English
- NetSure 5100 Series -48 VDC Power System 582137100 - User Manual - English
- NetSure 5100 Series -48 VDC Power System 582137200 - Installation Manual
- NetSure™ - Control Unit (NCU) Controller - User Manual - NA English
- NetSure -48 VDC Bulk Output Rectifier System Installation and User Manual
- eSure +27 VDC Bullet Converter Installation and User Manual UM60147273
- UM1R482000E3 eSure Rectifier User Manual
- UM582137200 Netsure 5100 Series User Manual
- NetSure 5100 Series 582137100 - Installation Manual
- 1C24481500 Converter User Manual
- IM588820200SK001 Vertiv -48V Netsure Battery Tray Kit
Brochures and Data Sheets
- DAS Solutions Brochure
- NetSure 5100 Data Sheet with eSure Power Extend Converters DC-00104
- Vertiv-DC-Power-Pre-Quote-Form
- Vertiv NetSure NCU Controller – Data Sheet
- Vertiv™ NetSure™ DC Power Services Maintenance Data Sheet
- NetSure 5100 DC Power System – 2 kW to 28.8 kW - Data Sheet - English - 2020
- Vertiv™ NetSure™ DC Power Services Test & Turn-Up Data Sheet
Technical Specifications
- Vertiv™ NetSure™ 5100 DC Power System - Application Guide - English
- NetSure™ 5100 -48V DC Power System, Integrated582137200 - Ordering Guide - English
- Vertiv™ NetSure 5100 Integrated - System Application Guide
- NetSure™ 5100 -48V DC Power System, Integrated 582137200 - Ordering Guide - English
- Vertiv™ NetSure™ 512NGBB DC Power System Application Guide SAG582137000
