Product Model

58870530036

The NetSure 5100 bulk DC power system provides -48VDC at up to 160A and is ideal for legacy power retrofit applications or when overcurrent protection is unnecessary. This cost-effective solution does not include distribution or the provision for battery strings.

Get Brochure Get Manual
Best Suited For:
  • Telecom

Benefits

Minimize total cost of ownership with high efficiency eSure rectifiers
Reduce the need for specialized cooling with high temperature operation
Deploy the power system where 120VAC is the only input option
Keep your network power source secure with encrypted controller communication
Extend the life of your batteries with the available battery management tools
Achieve energy savings with ECO mode, even at low loads
Have peace of mind with this UL and NEBS power system
Minimize installation time and drive planned network conformity with custom configuration files
Reduce your off-grid generator runtime with solar / hybrid input
Optimize your battery capacity with priority and non priority load shedding
Solar / hybrid capability – reduces grid dependency

Features

High efficiency – 96.2% efficient eSure rectifiers
Wide operating temperature range – rectifiers function at -40 °C to +80 °C (up to +65 °C without de-rating)
Selectable AC input - 120VAC, 208 to 240 VAC
Supports Ethernet, SNMP V2 & SNMP V3, ModBus and RS485 communication interfaces
Battery management capability
ECO energy savings mode
NEBS Level 3 compliance and UL Listed
Custom configuration file capability
Solar / hybrid capability
Up to two disconnect levels (LVD)

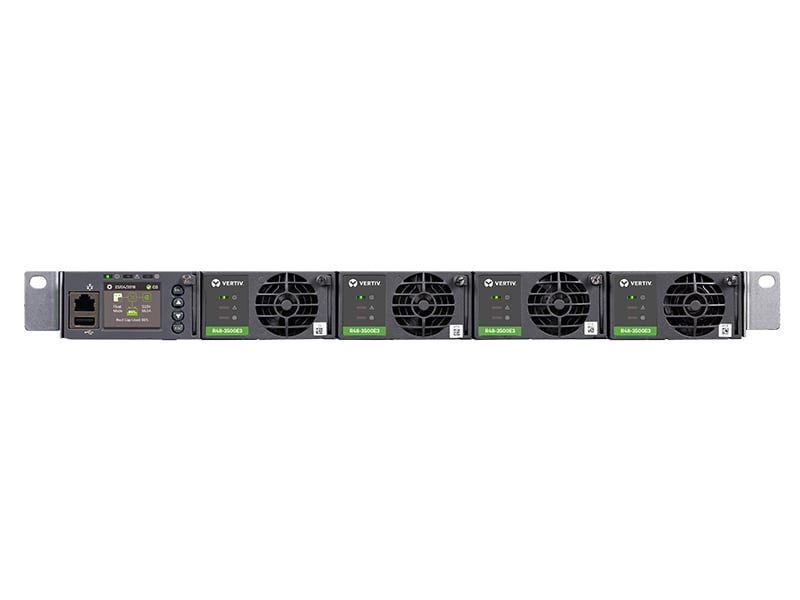

The NetSure 5000 Series, a compact -48 volt 160 A DC power solution, features an advanced control unit, up to (4) positions for 2000 W high-efficiency eSure rectifiers. The power system supports 19"W and 23"W rack mounting and is designed to work with a wide range of applications.

58870530036
Product Overview
Power Capacity
8kW
Current Capacity
Up to 160A
System Type
Bulk subrack
Input
Input Voltage, Nominal
120VAC, 208VAC, 240VAC
Input Voltage, Operational
85 VAC to 300 VAC
Input Connections
Molex cords
Equipment Dimensions (H x W x D)
1RU H x 19"W X 15"D
Access
Front for Control, Rear for AC IN and DC Out
Output
Output Voltage, Nominal
-48VDC
Output Voltage, Operational
-42 VDC to 58 VDC
Output Capacity
160A
Peak Efficiency
96.2%
Physical Characteristics
Weight
25 lbs.
Height
1 RU
Width
19" or 23" rack
Depth
15"

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
