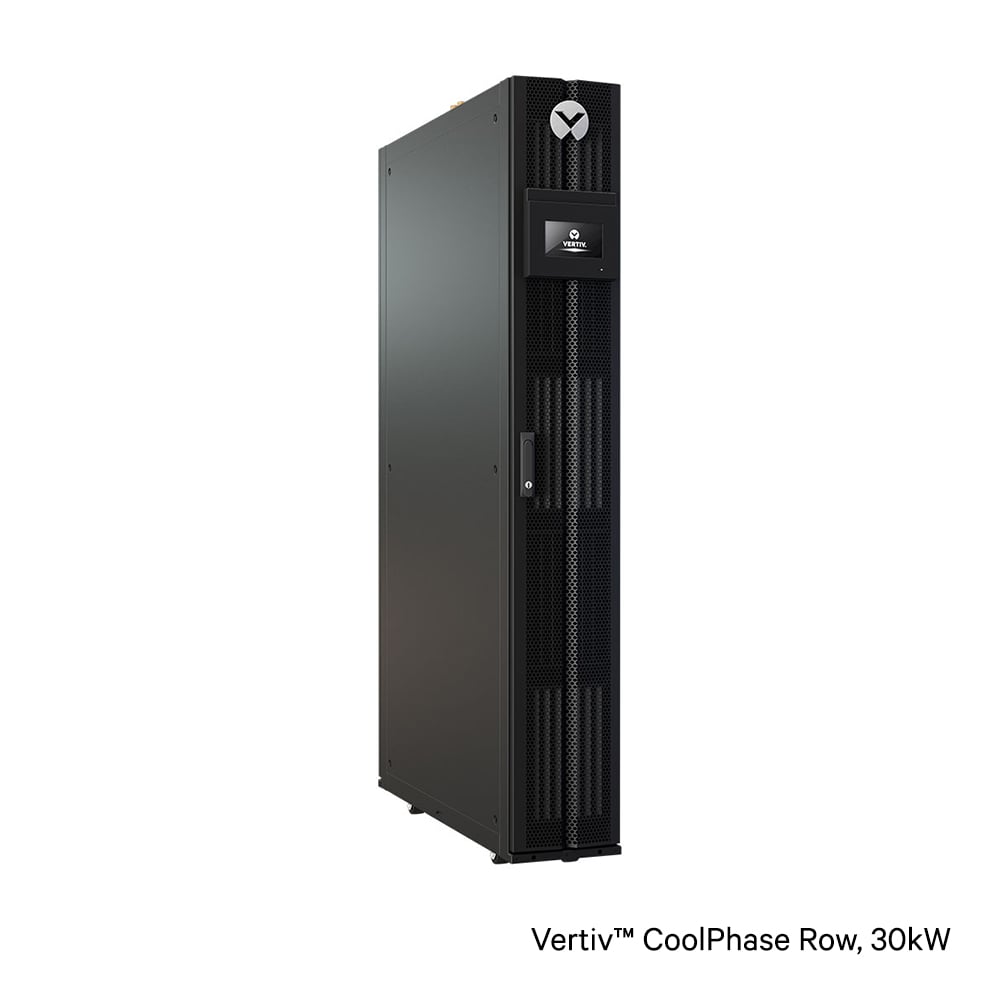

Vertiv™ CoolPhase Row, Row-Based Cooling, 30kW

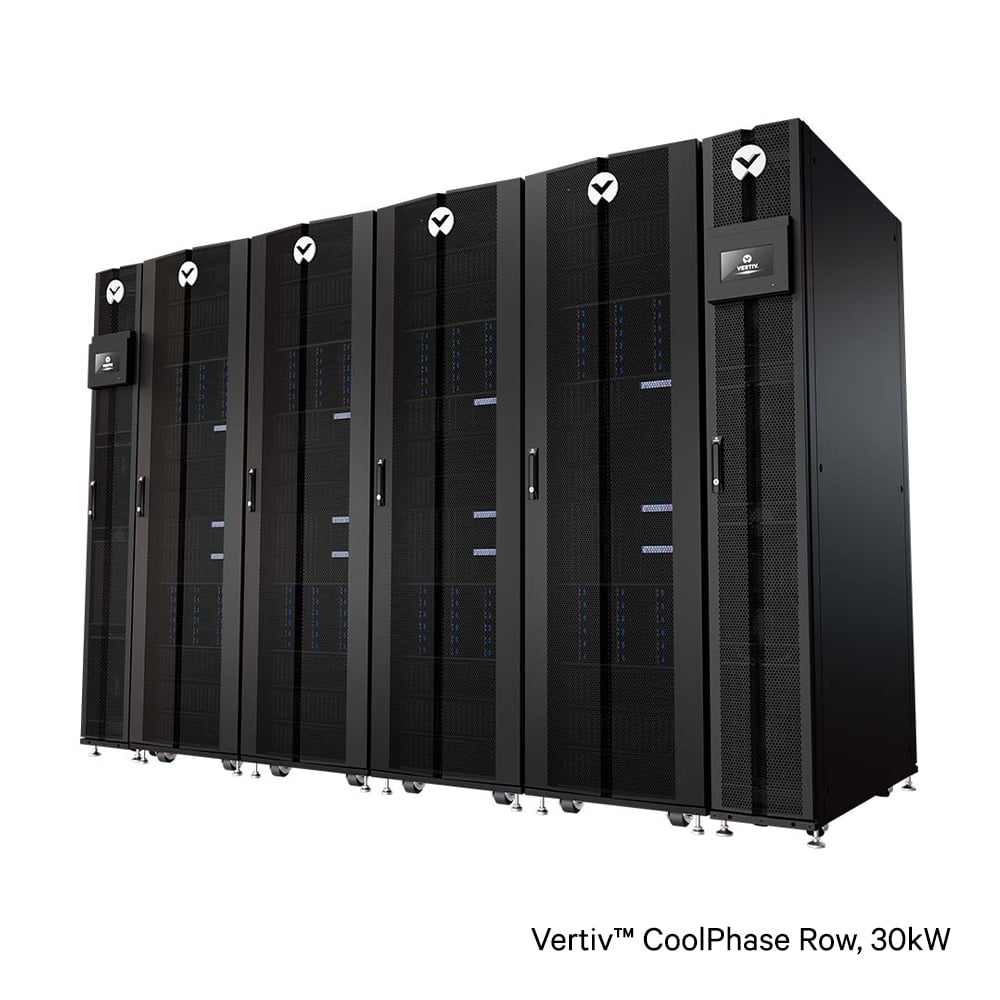

The Vertiv™ CoolPhase Row is a high‑efficiency, row‑based 30kW cooling solution for high‑density data centers. It is integrated within a row of racks, delivering precise IT cooling while optimizing floor space. Its inverter‑driven compressors and variable‑speed fans also provide advanced, continuous temperature control. These adjust cooling output to match dynamic heat loads, improve energy efficiency, and lower operating costs. Its refreshed design and standardized models enable compatibility with global data center standards.
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Government
- Healthcare
- Retail and Wholesale
Benefits
- ENERGY-EFFICIENT COOLING: Its advanced modulation adjusts cooling from 20-100% to match actual heat loads, delivering optimized efficiency and reduced operating costs.
- MULTI-UNIT TEAMWORKING: It allows multiple units to operate as one in a teamwork mode to boost efficiency and reliability, reduce wear, extend system life, and lower overall operating costs.
- REDUCED LEAD TIME: It is delivered as a pre‑configured unit that minimizes complexity and accelerates deployment, cutting lead times to as little as 4-6 weeks.
- COMPACT FOOTPRINT: It saves valuable floor space while accommodating a wide range of IT rack sizes, enabling seamless in‑row integration without compromising performance.
- WIDE RANGE OF WORKING ENVIRONMENTS: It delivers dependable cooling from ‑31°F to 126°F, offering flexible installation and reliable performance across diverse climates and extreme conditions.
Features
- FULLY STOCKED UNIT: It is pre-stocked in key regions for faster shipment, reducing wait times and accelerating installation to get systems up and running sooner.
- DUAL POWER SUPPLY: It has a redundant power supply option that automatically switches to a backup source during an outage, minimizing downtime and providing greater operational reliability.

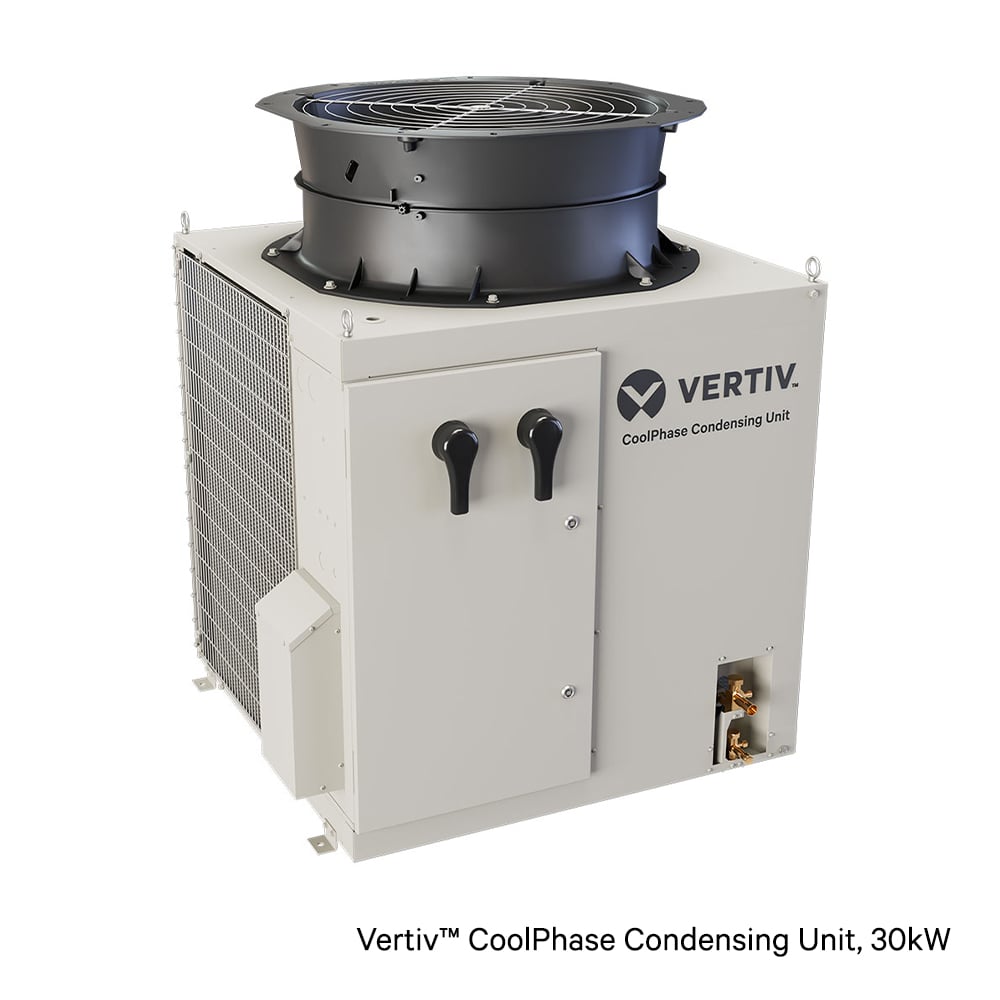

- LONGER PIPE RUNS: It offers condenser pipe runs of up to 390 ft., enabling greater installation flexibility across a wide range of applications.
- INVERTER-DRIVEN COMPRESSOR: It dynamically adjusts cooling output to match actual heat load, improving energy efficiency, reducing power consumption, and lowering operating costs.
- OPTIONAL HUMIDIFIER AND ELECTRIC REHEAT: It enhances system control and efficiency, helping maintain optimal conditions while improving overall system performance.
Specifications
The Vertiv™ CoolPhase Row delivers reliable, energy‑efficient cooling for high‑density environments across critical industries including healthcare, finance, government, and colocation. It uses low‑GWP R‑32 refrigerant, reducing environmental impact while maintaining performance. It also features dual power supply for improved reliability, remote monitoring for real-time system insights, and regional stock availability for accelerated deployment.
- Technical Specifications
- Total Nominal Capacity kBtuh [kW]
- 102,000 BTUH (30kW)
- Nominal Airflow [CFM]
- 3900 CFM
- Total Capacity
- 30kW
- Input Voltage (V/Phase/Frequency Hz)
- 460V/3ph/60Hz, 65kAIC 230V/3ph/60Hz, 65kAIC (optional dual power feed)
- Heat Rejection Medium
- Air cooled (OHE)
- Controls and Monitoring
- SNMP, Modbus, Liebert® iCOM™
- Allowable Heat Rejection
- -31° F to 126° F
- Physical Characteristics
- Height
- 43.3in
- Height
- 1100mm
- Width
- 11.8in
- Width
- 300mm
- Depth
- 47.2in
- Depth
- 1200mm
