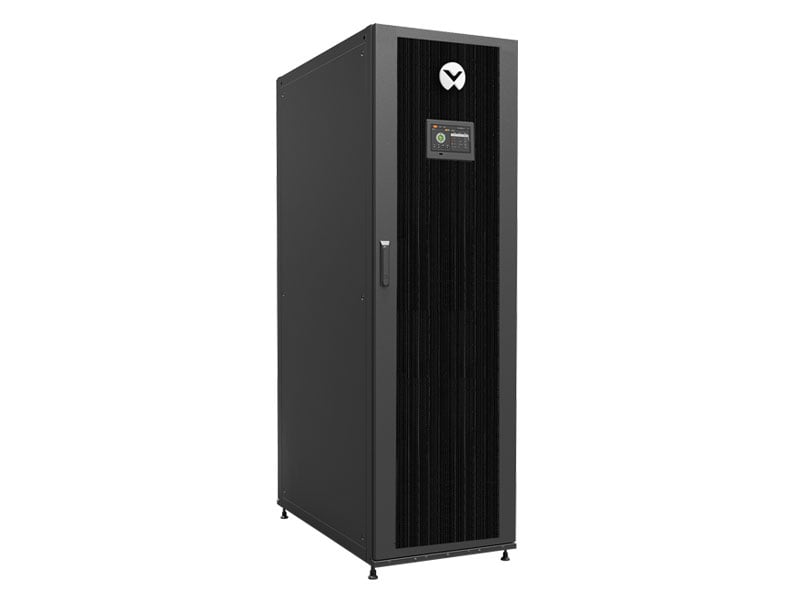

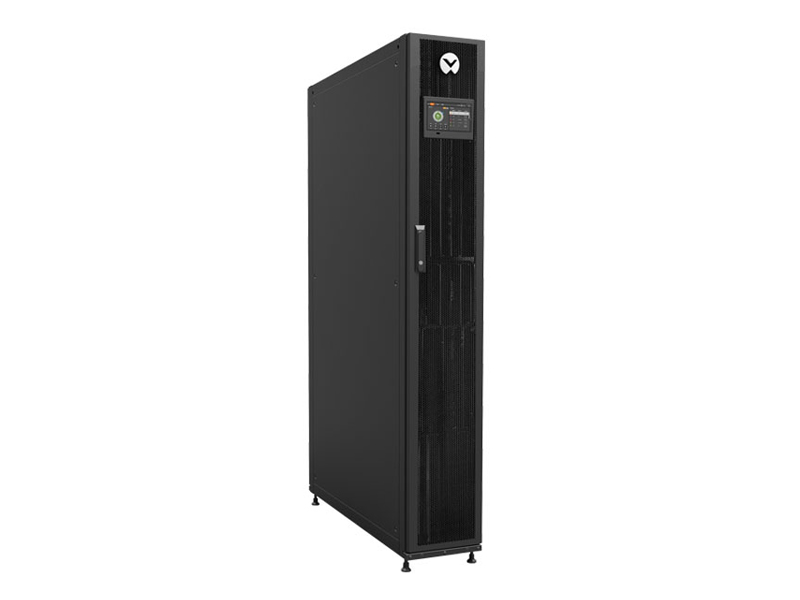

Liebert® CRV In Row Cooling System, 10-40kW
The Vertiv™ Liebert® CRV is a precision data center cooling solution, integrated within a row of data center racks and was designed to address some of the major challenges seen in high density applications. With adjustable airflow baffles and controls that independently manage airflow and temperature, the Liebert CRV can precisely deliver highly efficient cooling in the row where it’s needed. The system is available in multiple options, providing flexibility for any installation.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Liebert® CRV In Row Cooling System, 10-40kW
The Vertiv™ Liebert® CRV is a precision data center cooling solution, integrated within a row of data center racks and was designed to address some of the major challenges seen in high density applications. With adjustable airflow baffles and controls that independently manage airflow and temperature, the Liebert CRV can precisely deliver highly efficient cooling in the row where it’s needed. The system is available in multiple options, providing flexibility for any installation.
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Specifications

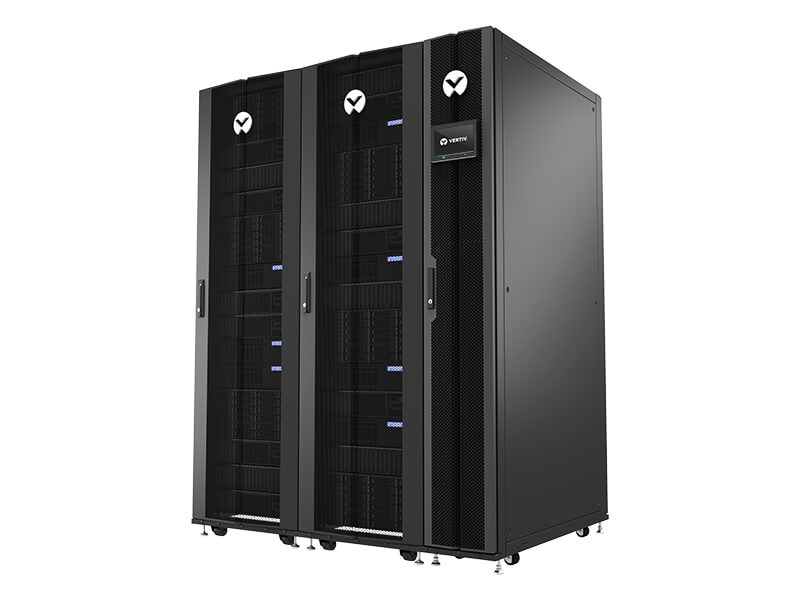

The Vertiv™ Liebert® CRV is a precision data center cooling solution providing temperature and humidity control to manage your critical IT environments. It integrates within a row of data center racks, providing cooling close to the IT heat load. The Liebert® CRV, when used with Liebert® Optimized Aisle Controls, independently manages airflow and temperature, greatly improving efficiency and supporting higher rack densities. Adjustable airflow baffles allow you to more precisely direct airflow within the row, improving efficiency and extending the life of your data center equipment. The Liebert® CRV uses environmentally friendly R410A refrigerant. The system is available in multiple capacities and in two widths, 300mm and 600mm, and is available as an air, water/glycol, or chilled water cooling system.
CRD100, Air-Cooled, 300mm, 10kW, 208-230V/1PH/60Hz
|
||
---|---|---|
35.8 [10.5] | 34.1 [10] | 1960 [3030] |
See more product information | ||
CRD101, Air-Cooled, 300mm, 10kW, 208-230V/3PH/60Hz
|
||
35.8 [10.5] | 34.1 [10] | 1960 [3030] |
See more product information | ||
CR019RA, Air-Cooled, 300mm, 19kW
|
||
64.8 [19] | 79.8 [23.4] | 2250 |
See more product information | ||
CR019RW, Water/Glycol Cooled, 19kW
|
||
64.8 [19.0] | 81.4 [23.9] | 2250 |
See more product information | ||
CR020RA, Air-Cooled, 20kW
|
||
68.2 [20] | 82.9 [24.3] | 2454 |
See more product information | ||
CR032RC, Chilled Water, 32kW
|
||
109.1 [32.0] | 97.7 [28.6] | 2250 |
See more product information | ||
CR035RA, Air-Cooled, 35kW
|
||
119.4 [35.0] | 129 [37.8] | 3260 |
See more product information | ||
CR035RW, Water/Glycol Cooled, 35kW
|
||
119.4 [35.0] | 128.9 [37.7] | 2454 |
See more product information | ||
CR040RC, Chilled Water, 40kW
|
||
119.4 [40.0] | 146.4 [42.9] | 3325 |
See more product information |
- Liebert® CRV Row Based Cooling System User Manual SL-11975
- Liebert® CRV Row-Based Cooling System Design Manual (SL-11978)
- Liebert® iCOM™ Installer User Guide Intelligent Communication and Monitoring for Liebert® CRV SL-11987
- Liebert® CRV Row Based Cooling CRD10 User Manual
- Liebert® CRV CCD10 Condenser User Manual
- Vertiv™ Liebert® CRV 10 to 46 kW Brochure SL-11999
- Liebert® CRV DX & CW Cooling Brochure
- Vertiv™ Liebert® CRV™ Data Sheet (SL-71133)
- Liebert® CRV DX Cooling Brochure
- Liebert® CRV Chilled Water Cooling Brochure
- Liebert® CRV Row-Based Cooling Data Sheet
- Liebert® Cooling Systems AHRI Certified Data Sheet (SL-19826)
- Data Center Infrastructure Solutions-Channel Products Catalog VR-01407.pdf
- Liebert® 10kW CRV Row-Based Cooling Data Sheet SL-70512
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
