Vertiv™ Edge Lithium-Ion Line-Interactive UPS, 1500-3000VA – Critical IT and Network Protection
The Vertiv™ Edge Lithium-Ion Line-Interactive UPS (1500VA to 3000VA) provides network-grade uninterruptible power protection. Its pure sinewave output and Automatic Voltage Regulation (AVR) help enable availability of critical systems and information. With Vertiv™ lithium-ion batteries, it offers 3x longer battery life, faster recharge, better high-temperature performance, lighter weight, and higher power density. This makes it ideal for servers, network equipment, medical devices, point-of-sale (POS) systems, and security systems.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Education
- Healthcare
- Retail and Wholesale
- Government
- Banking, Financial and Insurance
Vertiv™ Edge Lithium-Ion Line-Interactive UPS, 1500-3000VA – Critical IT and Network Protection
The Vertiv™ Edge Lithium-Ion Line-Interactive UPS (1500VA to 3000VA) provides network-grade uninterruptible power protection. Its pure sinewave output and Automatic Voltage Regulation (AVR) help enable availability of critical systems and information. With Vertiv™ lithium-ion batteries, it offers 3x longer battery life, faster recharge, better high-temperature performance, lighter weight, and higher power density. This makes it ideal for servers, network equipment, medical devices, point-of-sale (POS) systems, and security systems.
- Education
- Healthcare
- Retail and Wholesale
- Government
- Banking, Financial and Insurance
Specifications
The Vertiv™ Edge Lithium-Ion UPS features lithium-ion batteries with an 8–10 year lifespan—up to 3x longer than VRLA—helping reduce maintenance and replacement costs. This design can lower total cost of ownership by up to 50%. Select 2U models offer remote monitoring, system visibility, up to 98% efficiency, and a 5-year factory warranty.
Benefits
- Programmable outlet groups
Configurable outlets for load management. Cycle power to hung devices and load shed connected equipment, prioritizing critical devices to extend availability while on battery backup power. - User-replaceable, hot-swappable batteries
User-replaceable batteries may be swapped out quickly and safely without disruption and without having to turn off connected equipment. - Input circuit breaker
Re-settable breaker protects against equipment damage from a short circuit or overload. - Network grade surge protection
Network grade surge protection protects connected equipment from power surge damage. - Emergency Power Off (EPO)
Remote UPS shutoff in the event of a fire or other onsite emergency. - USB management port
USB port to support monitoring and management requirements of the UPS. - Optional management and communication cards
Vertiv™ Liebert® IntelliSlot™ RDU120 enables network integration connectivity and allows remote monitoring, start-up or restart of the connected equipment. SNMP, Modbus, BACnet and environmental sensor options are available. - Free management software
Vertiv™ Power Assist software for local management via USB. Easy to install and allows for simple configuring, monitoring, alarm notifications and management of the UPS. Automatic shutdown options protect connected equipment during an extended power loss and guard against data loss.
Vertiv™ Power Insight software for on-premise and remote UPS monitoring and management with notifications and control of network connected devices. Configurable, automatic shutdown for physical and virtual servers. Includes integrations with VMWare vCenter, Dell VXRail Manager, and Nutanix Prism Central. Provides a single dashboard view of the UPS status, alarms, notifications, and summary data. - Equipment Protection Plan (EPP)
$400,000 Equipment Protection Plan provides reimbursement or replacement of any connected equipment that is damaged by a power surge while connected to your Vertiv™ UPS.
Features
- 1500VA – 3000VA Wide range of available sizes to allow you to select the capacity and runtime that best meet your needs.

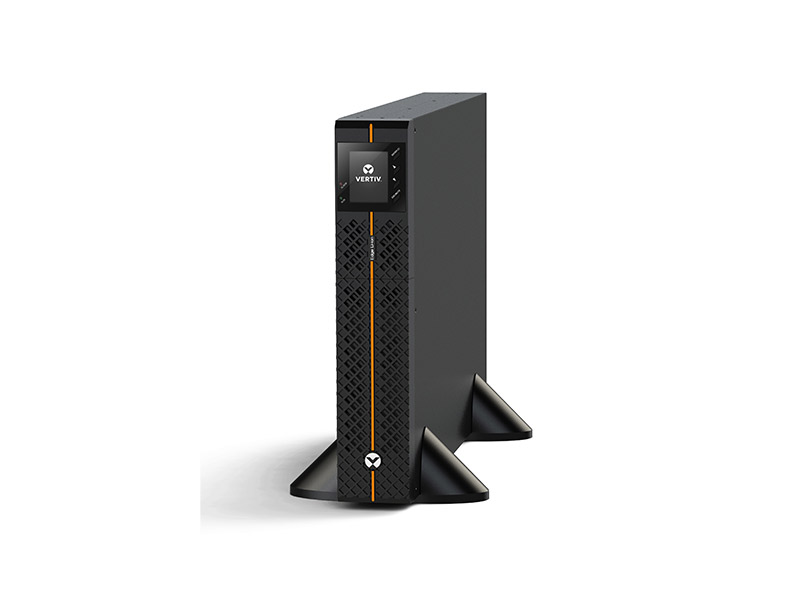

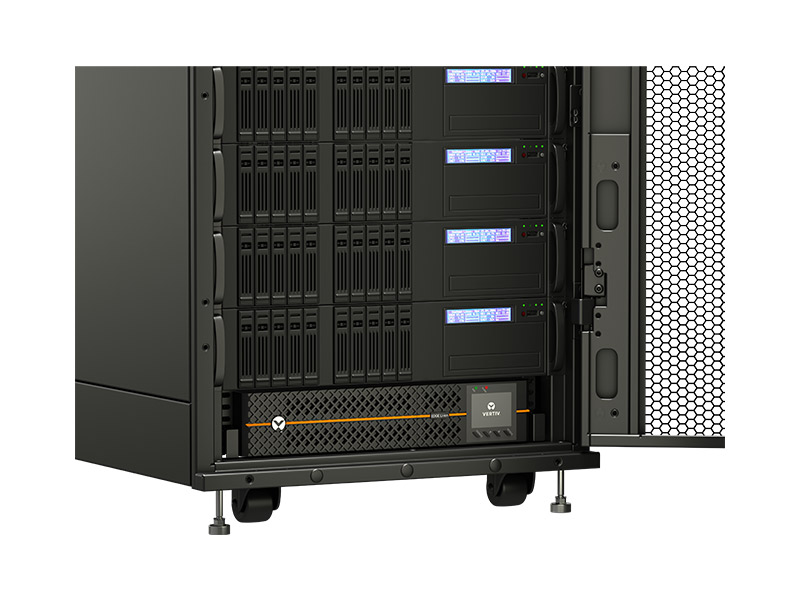

- Optimized form factors Multiple form factors to suit all site requirements, including tower and 2U Rack/Tower convertible form factors to provide flexibility at sites with variable installation needs.

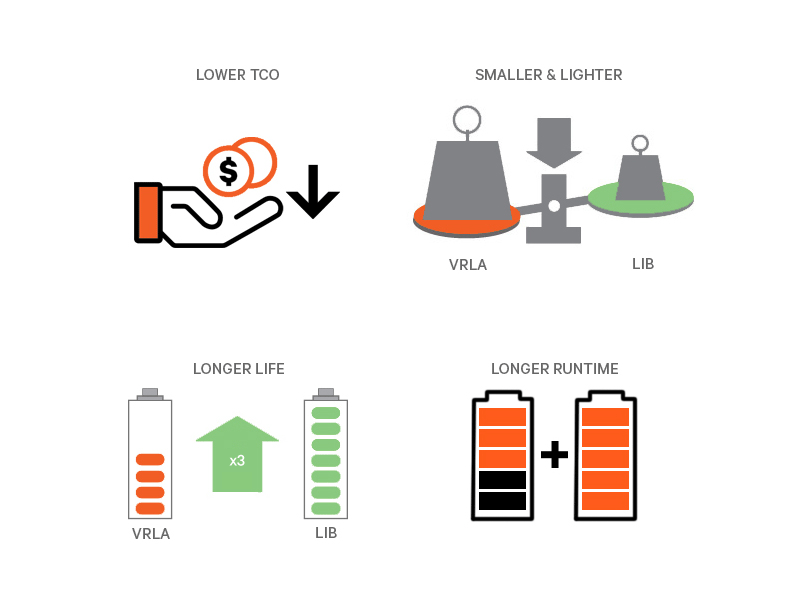

- Lithium-ion batteries Vertiv™ lithium-Ion batteries provide longer runtime, up to 3 times longer life expectancy than Valve-Regulated-Lead-Acid (VRLA), batteries, recharge more quickly, endure up to 10X more discharge cycles and perform better in higher temperatures.
- Lowest Total Cost of Ownership (TCO) The longer life expectancy of lithium-ion batteries reduces maintenance, labor, and replacement costs, making it the lowest TCO UPS solution.
- Environmentally Responsible Lithium-ion batteries use less material for equal output and up to 99% of the battery elements are recyclable. The longer lifespan of a lithium-ion battery reduces waste and material consumption.
- Safety Conscious Safest lithium-ion (LiFePO4) battery chemistry and integrated Battery Management System (BMS) provides safe and reliable operation.
- Battery Management System (BMS) The BMS monitors the lithium-ion battery health at the cell level. It manages the charging, depth of discharge, temperature, and voltage of the battery. The BMS prevents overcharging, provides safe operation, and preserves the battery throughout its life.
- Automatic Voltage Regulation (AVR)
When incoming utility power fluctuates, AVR stabilizes the output power without needing to go to battery, which extends the life of your battery and preserves your UPS battery for an outage. - Pure sinewave output
Pure sinewave output while on battery to simulate utility power and is compatible with active power factor corrected power supplies. - High power factor
0.9 Power Factor provides more actual power to the load increasing power density.
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
