Product Model

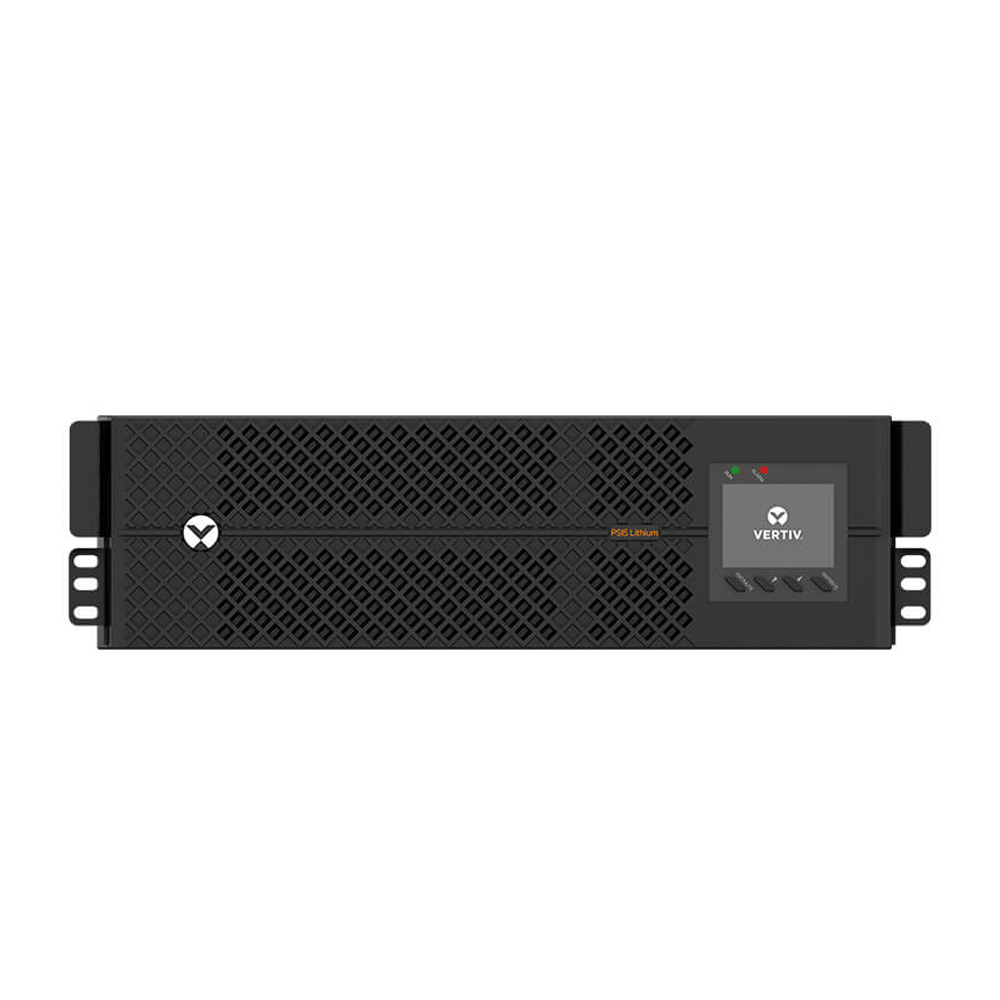

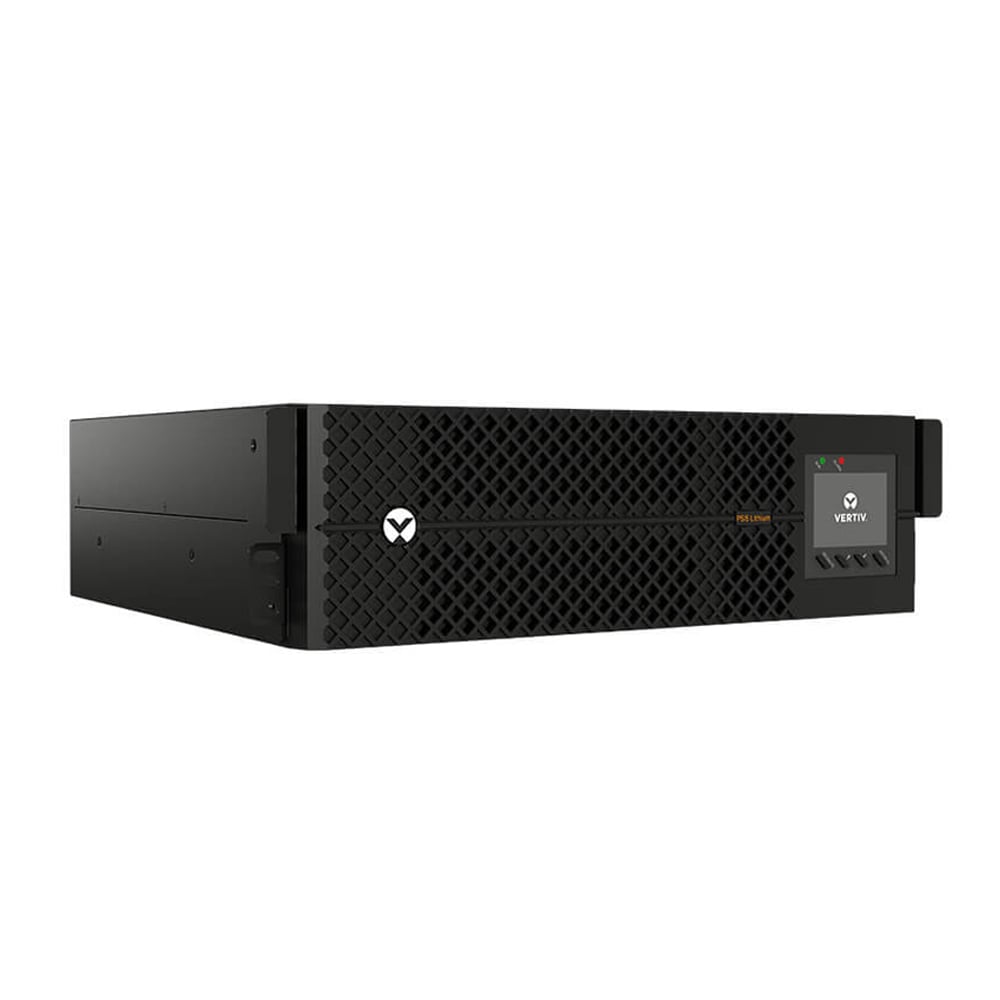

PSI5-3000SRT120LI

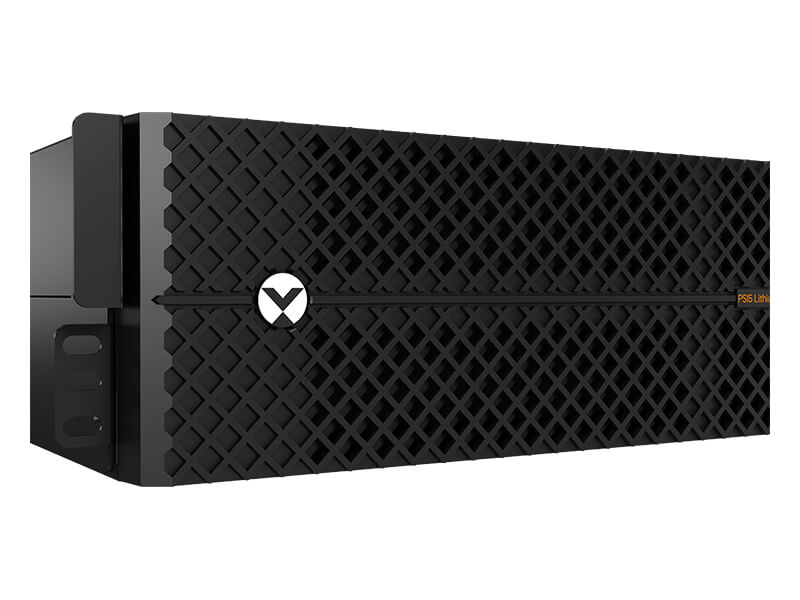

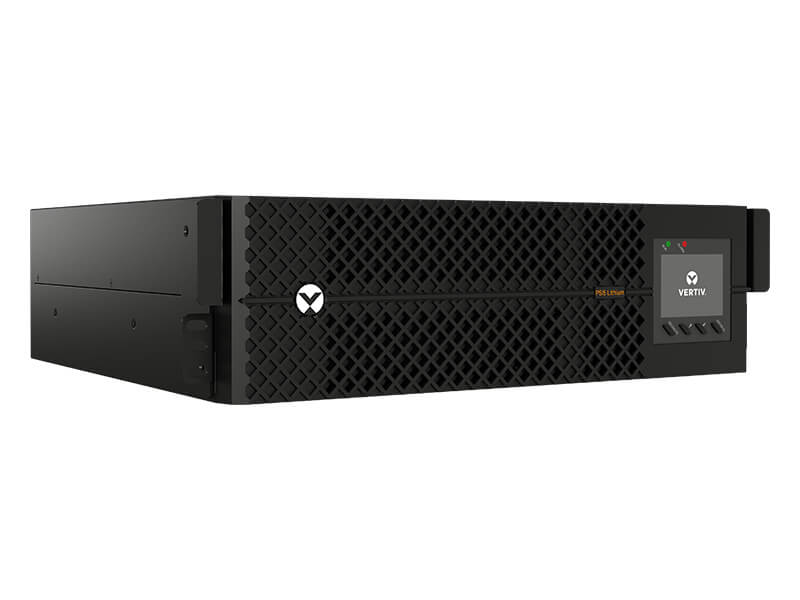

At 3000VA/2700W capacity, the Liebert® PSI5 Lithium-Ion short depth UPS provides the greatest power capacity with the shortest depth chassis in the market. The chassis is 16.9 inches total depth and only 15.7 rackmount depth which makes it ideal for smaller installations with wall mount and 2-Post racks. This compact UPS is also suited for 4-Post racks which frees up space behind the UPS to be used for other networking gear in the same U space. It is ideal when you have non-standardized install locations.

Get Brochure Get Manual
Login to Save for Later
Key Benefits
 LITHIUM-ION BATTERIES: Liebert PSI5 Lithium-ion batteries last up to three times longer than traditional VRLA batteries.
 COMPACT SHORT-DEPTH CHASSIS: The shortest depth 3kVA UPS available, designed for wall-mount and 2-post racks
 RACK/TOWER CONVERTIBLE: This feature makes it ideal when you have non-standardized install locations.
 5-YEAR STANDARD WARRANTY: Vertiv backs this 3kVA UPS system with a 5-year warranty including batteries.
10 Total Outlets: Distribute power to more devices
Best Suited For:
  • Education
  • Banking, Financial and Insurance
  • Government
  • Healthcare
  • Retail and Wholesale
Warranty: Vertiv backs all Liebert® PSI5 Lithium-Ion UPS systems with 5-year advanced replacement warranty including battery. This covers all shipping fees and includes next-day delivery, which ensures customers will receive their replacement unit prior to returning their aged unit.

Benefits

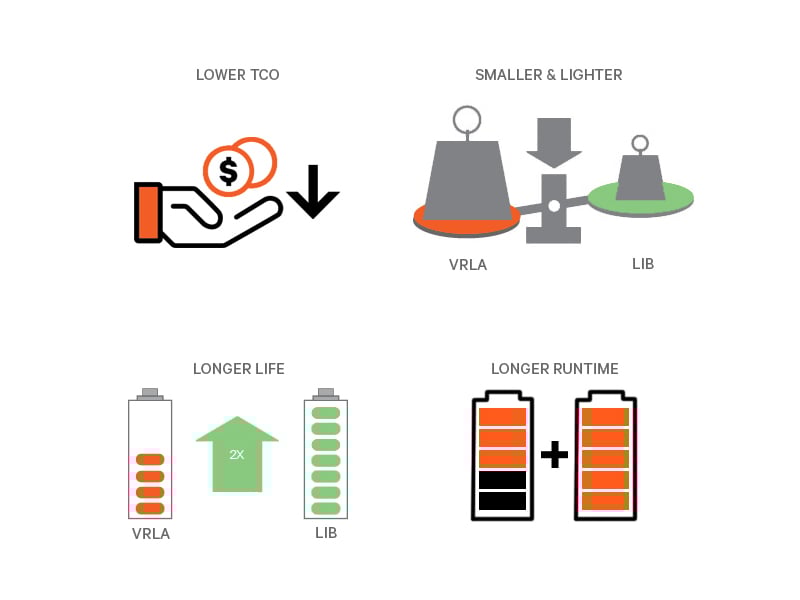

Lower Total Cost of Ownership (TCO), PSI5-Lithium-Ion batteries last up to three times as long resulting in fewer battery replacements
5 year standard warranty on the UPS and batteries
Longer battery runtime and quicker battery recharge times
Eligible for the Vertiv™ Trade-In Program. Contact a Vertiv partner for discount rates and to calculate your savings

Features

0.9 Output Power Factor delivers more usable power, saving space and costs
Tower, 2U Rack/Tower and 3U Short Depth Rack/Tower models available
Up to ten battery-backed outlets
Pure Sinewave Output
Programmable outlets
 Hot-swappable, user-replaceable batteries
Plug and Play installation
Wide input voltage window to prolong battery life
Advance early warning of UPS system status issues
USB communications for UPS status monitoring and management
SNMP support

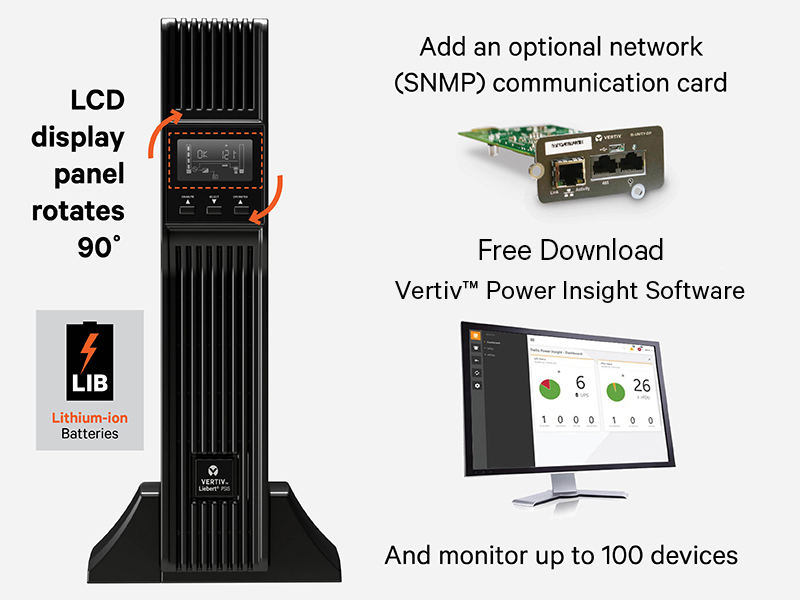

Optional Liebert® IntelliSlot™ IS-UNITY communications card for remote monitoring and control
Remote emergency shut down capability via EPO port

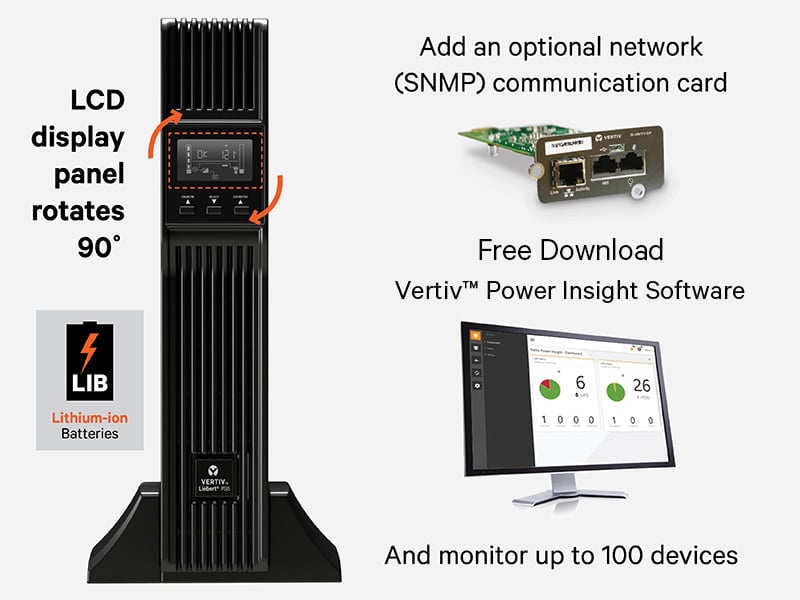

The Vertiv™ Liebert® PSI5 Lithium-Ion UPS provides power protection for critical equipment in edge and distributed IT applications. Lithium-ion batteries provide more than double the useful life of traditional VLRA batteries, resulting in up to 60% TCO savings or more. The UPS uses AVR technology to further extend battery life and offers 2-4 times the runtime of comparable UPS systems at full load. It also comes with a rotating LCD display to allow both rack and tower configurations.

PSI5-3000SRT120LI
Product Overview
Power Rating
3000VA / 2700W
Input Voltage
Nominal: 120VAC / Range: 75-146VAC
Output Voltage
120VAC Default; 100/110/115/125VAC User Selectable
Efficiency
Up to 97.3% (Normal Mode)
Wiring

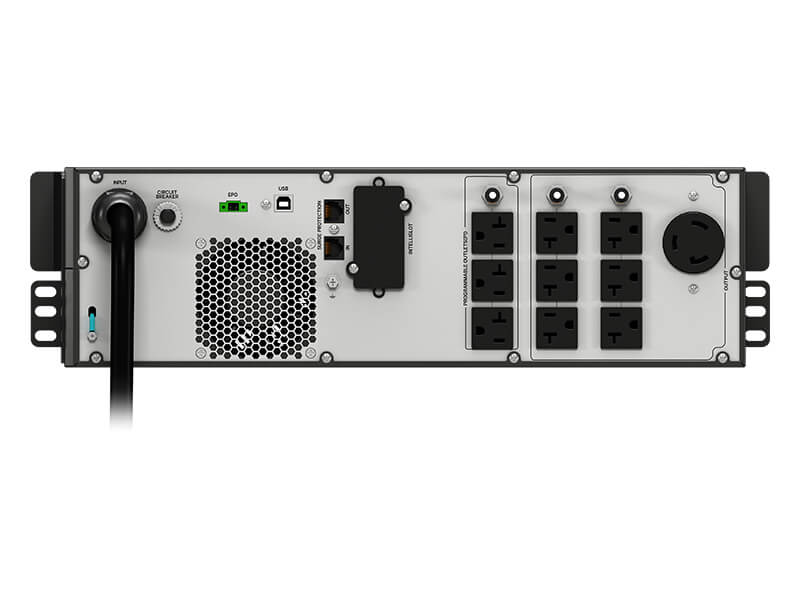

Input: L5-30P; Output: 9 x 5-20R, 1 x L5-30R
Interfaces/Ports
Interface Options
Optional communications card (Liebert® IntelliSlot UNITY), USB, EPO connector
Protocols
SNMP and web management enabled with optional Liebert® IntelliSlot UNITY communications card
Control Panel

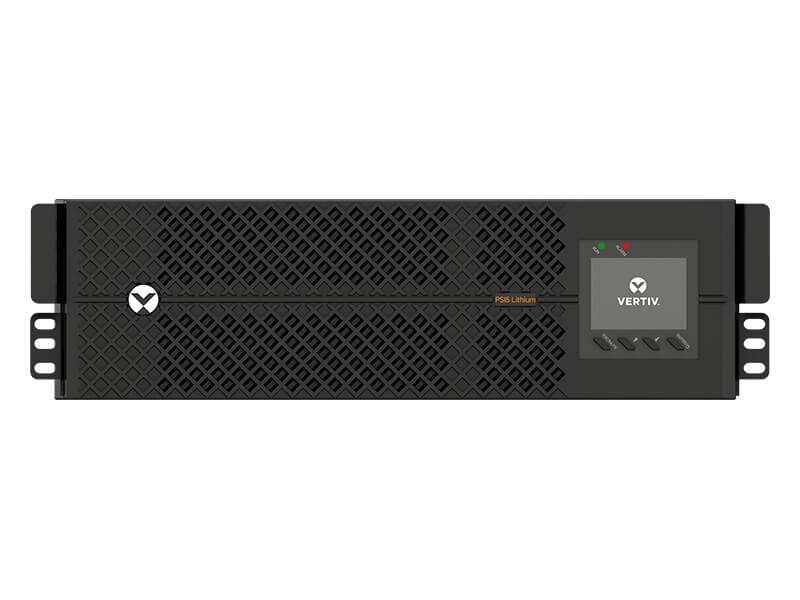

Rotatable LCD display provides flexible installation options (rack/tower)
Service Access
Front Access (hot-swappable battery kits)
Operational Conditions
Operating Temperature
32° to 104° F (0° to 40° C)
Miscellaneous
General
Pure sinewave output on battery
Listings
UN38.3, UL 1778, c-UL-us Listed, NOM, FCC Part 15, Class B
Topology
Line-interactive (automatic voltage regulation)

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
