Product Model

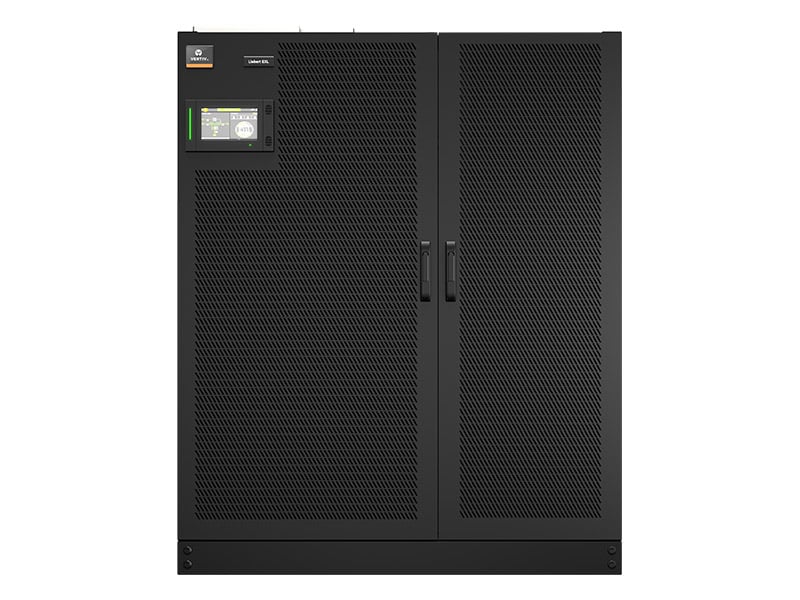

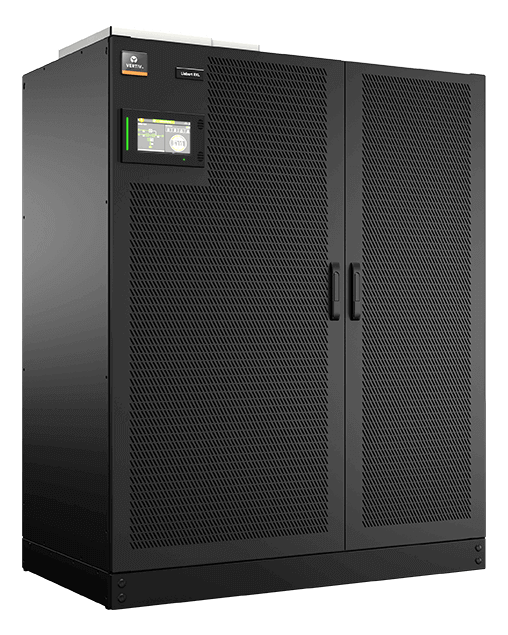

Vertiv™ EXL S1 500-600 kW

The Vertiv™ EXL S1 UPS delivers secure power while providing premium load protection and maximum energy saving for large scale applications such as AI. Its Dynamic Grid Support feature can provide frequency regulation by controlling the input power to support services such as frequency regulation-up, regulation-down, or both via charging and discharging of the battery. At Dynamic Online mode, the UPS can have operating efficiency of up to 99% without sacrificing availability.

Get Brochure Get Manual
Key Benefits
  • DYNAMIC GRID SUPPORT: With this feature, the UPS provides a fast response to react to the grid services commands in just 0.5 seconds
  • POWER PROTECTION FOR HIGH-DENSITY APPLICATIONS: It offers reliable power supply to AI power loads across multiple scenarios, including operation under generator, utility, and transition conditions
  • SPACE-SAVING DESIGN: Small footprint and high energy density allow optimal space

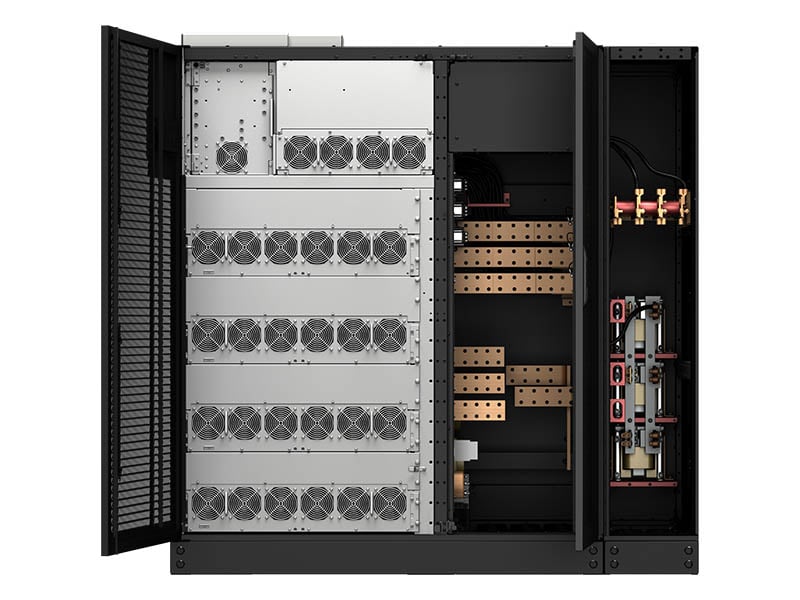

  • EASY TO SERVICE AND INSTALL: Easy, top and front access to key components; no need to go into bypass or shutdown power to access
  • Best Suited For:
    • Banking
    • Financial and Insurance
    • Data Center/Colocation/Hosting
    • Healthcare
    • Government
    Warranty: One Year Limited Warranty Against Defects in Material and Workmanship

    Benefits

  • MORE SPACE: Minimized UPS footprint allows more space for revenue-generating IT equipment
  • RESILIENT POWER PROTECTION: The UPS provides high level of efficiency, power quality and availability
  • UP TO 8 UNITS IN PARALLEL: It can support distributed and centralized parallel configurations
  • INSTALLATION FLEXIBILITY: It is compatible to VRLA and Lithium-Ion batteries
  • PROACTIVE REMOTE SERVICES: Have options for remote diagnostics and preventive monitoring services for UPS
  • Features

    Liebert EXL S1 data center UPS benefits and features

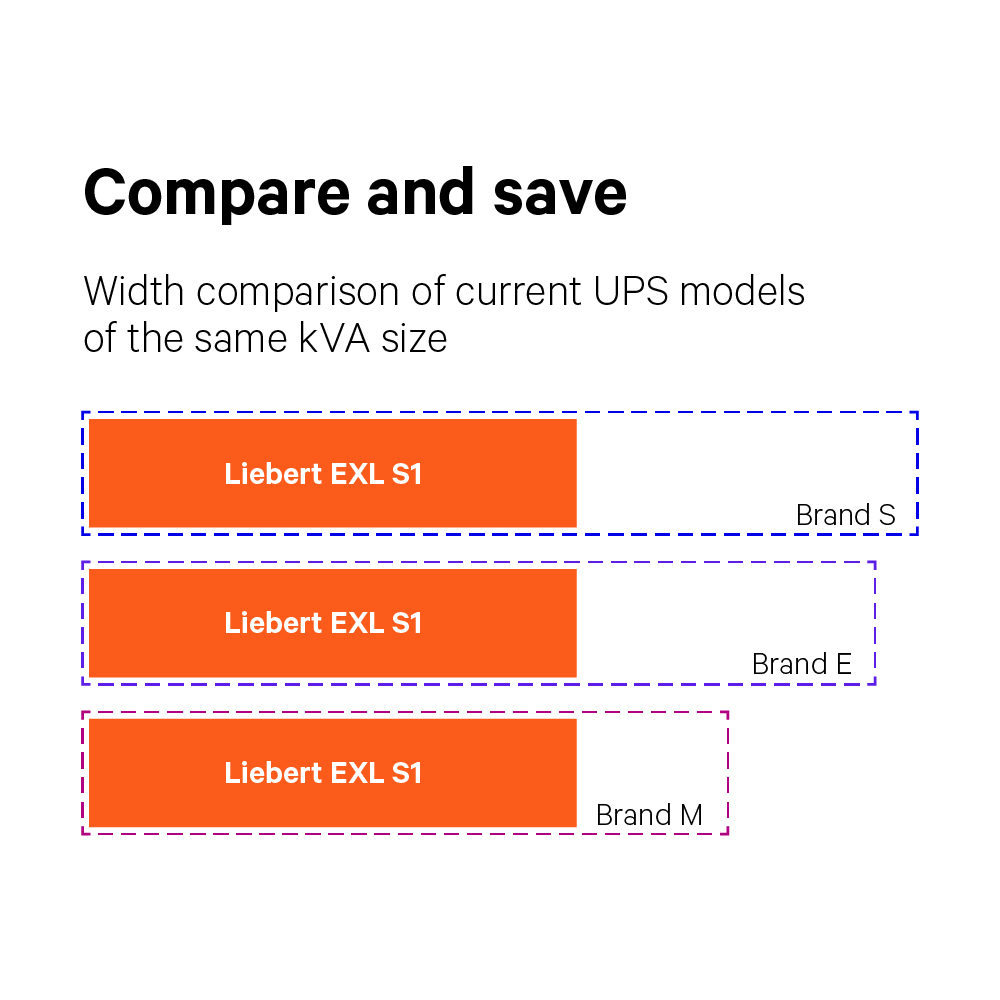

  • COMPACT SIZE: Smallest footprint among all competitors at this kVA size
  • 3 MODES OF OPPERATING EFFICIENCY: Double Conversion (97%), Dynamic Online (99%) and ECO Mode (>99%)
  • ADVANCED TOUCHSCREEN CONTROL PANEL: Customer can configure data and views
  • 2014 NEC COMPLIANCE: High Impedance DC Ground Fault detection for 2014 NEC compliance
  • FLEXIBLE CONFIGURATIONS: Dual asynchronous source/dual input capable
  • The Vertiv EXL S1 UPS, with capacity of 250-1200kW, is optimized for maximum efficiency and power density. It has a small footprint, lower than similar UPS in its class or in its kVA size range. It is ideal for customers who need every square foot to offer a positive ROI, such as colocation providers, hosting and cloud businesses. This UPS allows customers to either redeploy the saved space to implement more revenue generating IT equipment or reduce the actual design size of their equipment rooms, thus saving construction costs. At Dynamic Online mode, the UPS can have operating efficiency of up to 99% without sacrificing availability. Its touchscreen control panel provides status-at-a-glance convenience, flexible views and multiple security options. With Vertiv™ LIFE™ Services, get 24x7 remote monitoring by our expert staff to improve availability and lower labor costs.

    Vertiv™ EXL S1 500-600 kW
    Product Overview
    Power Rating
    500, 600 kVA/kW
    Input Voltage Range
    480 volts
    Output Voltage Range
    480 volts
    Efficiency
    Up to 97% double conversion
    Wiring
    3-wire
    Interfaces/Ports
    Control Panel
    Liebert standard touchscreen control panel
    Cable Access
    Top or bottom
    Service Access
    Front and top only
    Operational Conditions
    Operating Temperature
    32 F - 104 F / 0 C - 40 C
    Miscellaneous
    General
    FCC Part 15, Class A, IEC 62040-2, ANSI C624.41
    Listings
    UL 1778 5th Edition, CSA 22.2 NO 107.3
    Topology
    Transformer Free
