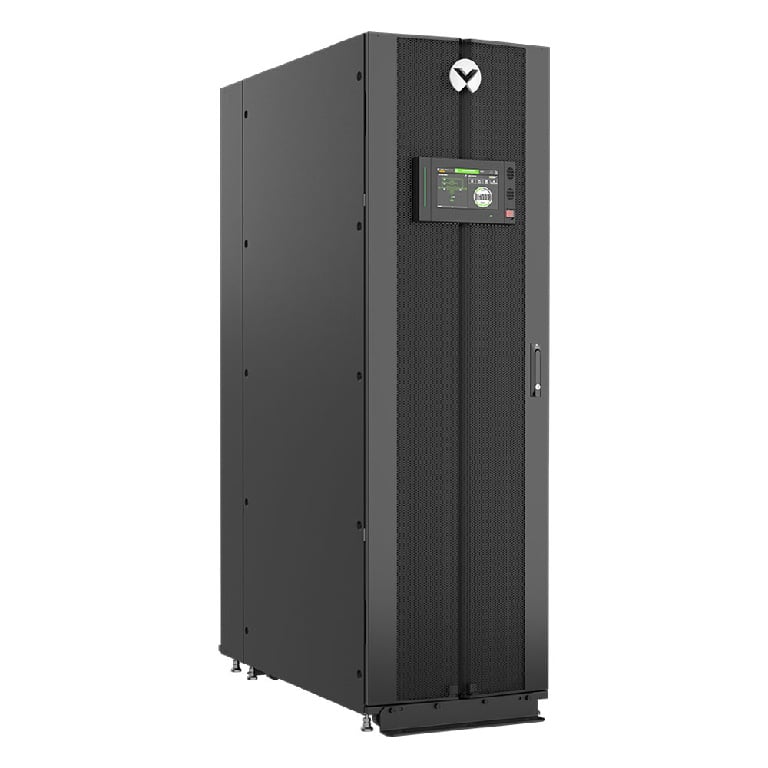

Liebert® APM2 UL UPS 480V/415V
Introducing a next-generation modular and transformerless UPS design, Vertiv™ Liebert® APM2, a feature-rich high-density UPS that brings exceptional and innovative features for mission-critical applications. Powered by latest generation three-level IGBT topology in conjunction with Silicon Carbide converter, it delivers an extraordinary double conversion efficiency of up to 97.5% that ensures remarkable operational cost savings, reducing both the Total Cost of Ownership (TCO) and the environmental impact.
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Government
- Healthcare
- Retail and Wholesale
Benefits
- EFFICIENCY-WINNING PERFORMANCE: Operating efficiencies remain high across multiple load scenarios.
- TRANSFORMER-FREE DESIGN: Saves space, capital, weight, and shipping costs.

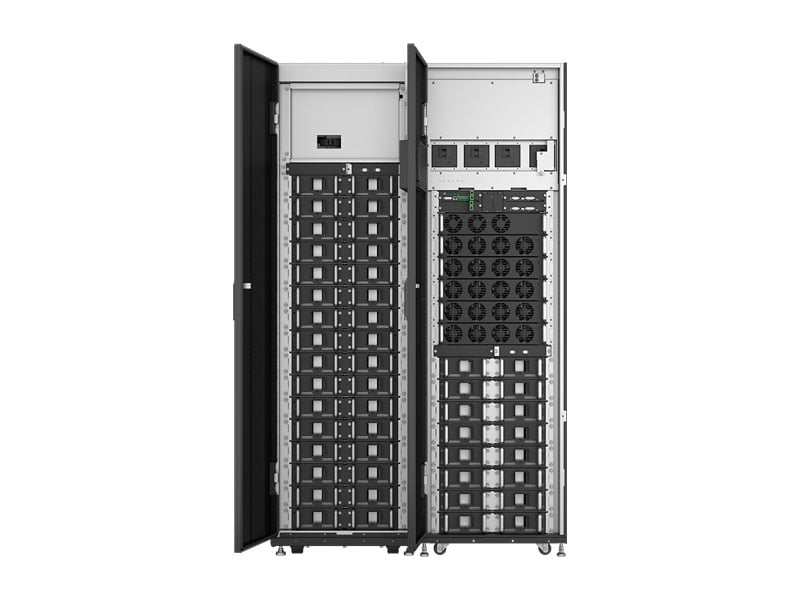

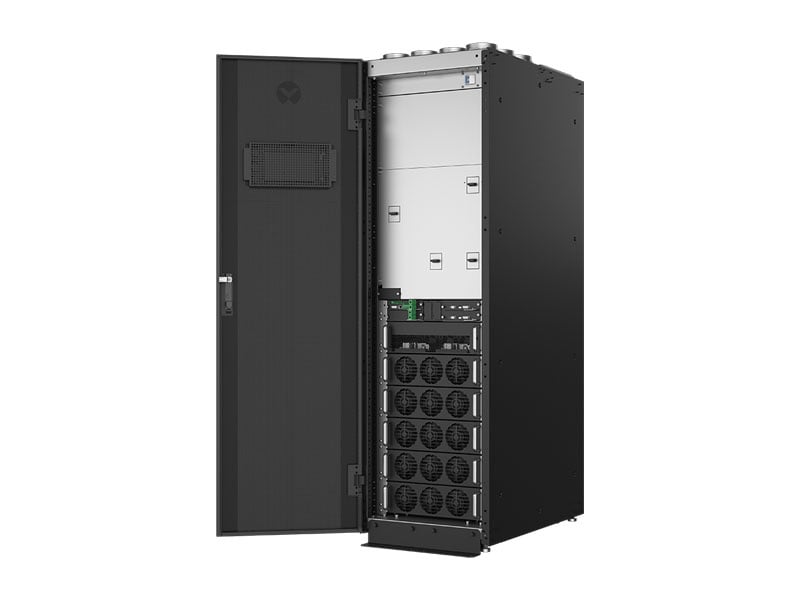

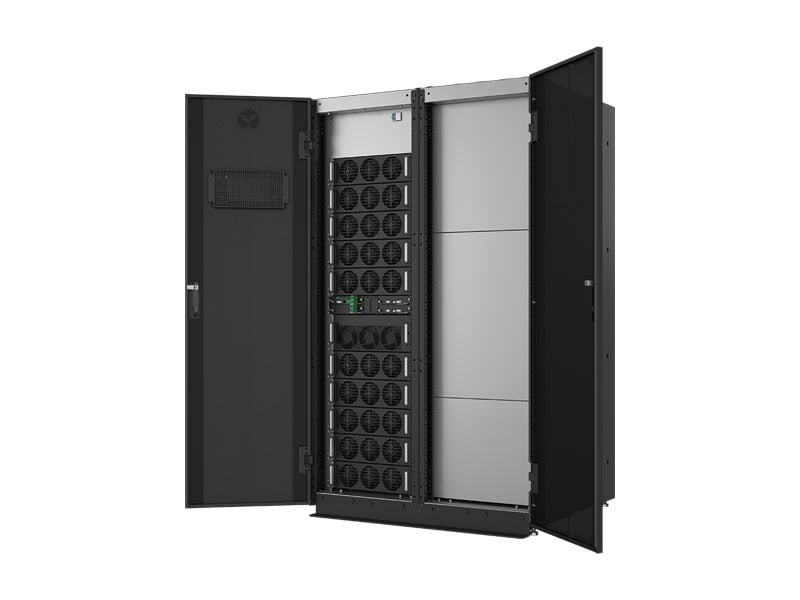

- MODULAR & SCALABLE DESIGN: High-density yet compact, with hot-swappable modules—internal modular batteries (VRLA/Li-Ion), power, bypass, HMI, and communication modules—resulting in easy serviceability and optimized MTTR < 0.5h.
- BATTERY CABINET OPTIONS: External matching Li-Ion and VRLA battery cabinet solutions across all ratings and voltages to meet capacity and runtime demands.
- INTELLIGENT PARALLELING: Supports up to 4 units to obtain more capacity or add system-level redundancy.

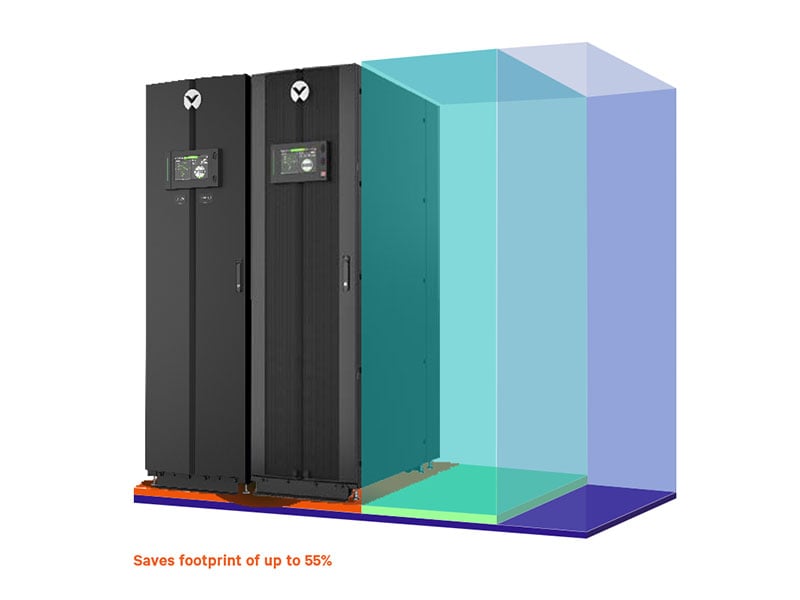

- OPTIMIZED ANCILLARIES: Provides small footprints for better space utilization and lower installation costs.
- BYPASS CABINET OPTION: Allows maintenance without shutting down the critical load.
- DISTRIBUTION PANEL BOARD OPTION: Enables addition of more circuits.
- DCIM & BMS READY: Fully compatible with DCIM and Building Management Systems.
Features
- AVAILABLE POWER CAPACITY: 10–150 kVA at 208/220V and 20–600 kVA at 480/415V.
- WIRING CONFIGURATION: Available in 4-wire configuration for 208/220V and 415V, and in 3- or 4-wire configuration for 480V.
- DOUBLE CONVERSION EFFICIENCY: Remarkable efficiency up to 97.5% with unity output factor.
- MODULAR BATTERIES: Internal modular batteries available in either VRLA or Lithium-Ion.
- INTUITIVE INTERFACE: Large, 9-inch full-color touchscreen HMI with real-time waveform monitoring and predictive maintenance notifications.
- THERMAL RESILIENCE: Seamlessly operates up to 50°C with auto-derating above 40°C.
- SELF-CAPACITY TEST: Supports self-capacity testing.
- ENERGY STAR: ENERGY STAR qualified.
Specifications
The Liebert® APM2 UPS is based on a reliable, double conversion power topology that uses an efficient transformer-free design. Excellent efficiencies of 97.5% are generated and can be enhanced to 99% using our unique Eco Mode. A unity power factor delivers more capacity in a smaller footprint. Available in fixed capacity or as a scalable, redundant configuration from 10-150kVA/kW in 208V and 20-600kVA/kW in 480/415V, each utilizes a modular construction design with optimized ancillary cabinets designed to save the customer footprint and cost. The new touchscreen control panel ensures Status At-A Glance convenience, flexible views and multiple security options. Intelligent controls and communications integrate with Vertiv™ Power Insight as well as 3rd party BMS and DCIM systems. Vertiv™ LIFE Services provides 24x7 remote monitoring by our expert staff to improve availability and lower labor costs.
- Product Overview
- Power Rating
- 20-600kVA/kW
- Input Voltage Range
- 480V/415V Input
- Output Voltage Range
- 480V/415V Output
- Efficiency
- 99% Efficiency
- Weight
- Frame Weight: 328-638.5kg | Power Module Weight: 26.4-35.5kg
- Height
- 78.7 in
- Width
- 23.6-39.4
- Depth
- 40.5 in
