Vertiv™ PowerDirect 3000 33kW, OCP ORV3 HPR

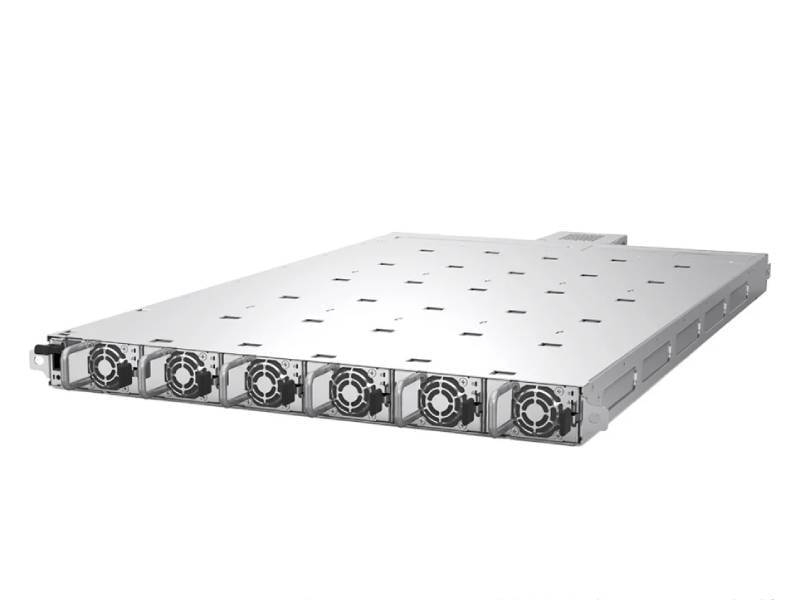

Vertiv™ PowerDirect 3000 33kW, OCP ORV3 HPR is a scalable DC power system designed for modern data centers and Open Compute ORV3 environments. This modular system offers up to 198kW per rack with efficient power supply units (PSUs). The flexible design allows live addition of power shelves for life maintenance for efficient expansion as power needs increase. It has a Power Management Module (PMM) and Power Management Controller (PMC) that support 6 PSUs in each shelf, totally up to 48 PSUs via 8 shelves. Ideal for high-capacity server setups, it maximizes power efficiency and minimizes space requirements.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Telecom
Vertiv™ PowerDirect 3000 33kW, OCP ORV3 HPR
Vertiv™ PowerDirect 3000 33kW, OCP ORV3 HPR is a scalable DC power system designed for modern data centers and Open Compute ORV3 environments. This modular system offers up to 198kW per rack with efficient power supply units (PSUs). The flexible design allows live addition of power shelves for life maintenance for efficient expansion as power needs increase. It has a Power Management Module (PMM) and Power Management Controller (PMC) that support 6 PSUs in each shelf, totally up to 48 PSUs via 8 shelves. Ideal for high-capacity server setups, it maximizes power efficiency and minimizes space requirements.
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Telecom
Benefits
- INTEGRATED WITH OCP STANDARDS: It is built on Open Compute Project ORV3 High Power Rack specifications, fitting into your infrastructure with no customization needed.
- ON-DEMAND SCALABILITY: It enables the addition of power shelves without disrupting system operation as your power needs grow over time.
- GLOBAL DEPLOYMENT: With universal AC input acceptance from 200 to 480 VAC, it supports flexible deployment across global data center sites.
- CENTRALIZED POWER MANAGEMENT: It allows control of up to 48 PSUs and optimization of rack-wide power distribution from a single management interface.
- REMOTE MONITORING: It offers real-time tracking of power system status with telemetry and remote monitoring through your management portal.
Features
- REDUNDANT POWER CONFIGURATION: It supports N+1, N+N, and 3+1 redundancy for continuous power availability.
- SIX HOT-SWAPPABLE PSUs: Each 33kW shelf houses six 5.5kW power supply units that can be swapped without powering down your running system or interrupting the load.
- DUAL CONTROLLER OPTIONS: It allows you to choose between PMM (Modbus via RS485) or PMC (Redfish via Ethernet) to manage your shelf, monitor alarms, and oversee system performance.
- CONTROLLED POWER SEQUENCING: It supports equipment safety and aligns with your site operational procedures and startup protocols.
- COMPACT & LIGHTWEIGHT ARCHITECTURE: It maximizes rack space utilization while preserving a low-profile form factor.
Specifications
Vertiv™ PowerDirect 3000 33kW, OCP ORV3 HPR provides 33 kW power shelves, each delivering 673.5 A at 49 VDC through six hot-swappable 5.5KW PSUs. With peak efficiency of up to 97.5%, it helps reduce energy consumption and cooling costs. The shelves accept 200 to 277 VAC single-phase and 200 to 480 VAC three-phase input power, supporting global deployment. This system also offers overvoltage, overcurrent, and temperature protection to keep your equipment safe.
- Product Overview
- Power Capacity
- 33kW per shelf, up to 198kW per rack with 8 shelves in 3+1 redundancy
- Current Capacity
- Shelf: 673.5A at 49.0 VDC, Power supply unit: 112.2A at 49.0 VDC, 5,500W maximum
- Output Voltage, Nominal
- 50.0 VDC at no load, 49.0 VDC at 100% load
- Input Voltage, Nominal
- 3P+N+PE, 230/400 VAC to 277/480 VAC, range 195/338 VAC to 305/528 VAC, 3P+PE, 200 VAC to 240 VAC, range 176 VAC to 264 VAC, L+N+PE, 200 VAC to 277 VAC, range 176 VAC to 305 VAC
- Input
- Input Voltage, Nominal
- 3P+N+PE, 230/400 VAC to 277/480 VAC, range 195/338 VAC to 305/528 VAC, 3P+PE, 200 VAC to 240 VAC, range 176 VAC to 264 VAC, L+N+PE, 200 VAC to 277 VAC, range 176 VAC to 305 VAC
- Output
- Output Voltage, Nominal
- 50.0 VDC at no load, 49.0 VDC at 100% load
