Product
Warranty:
2 year Standard Warranty

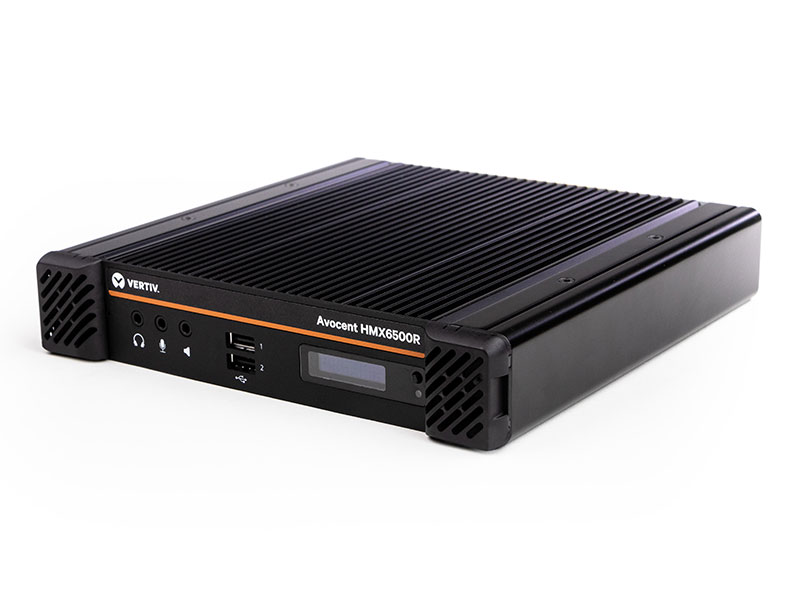

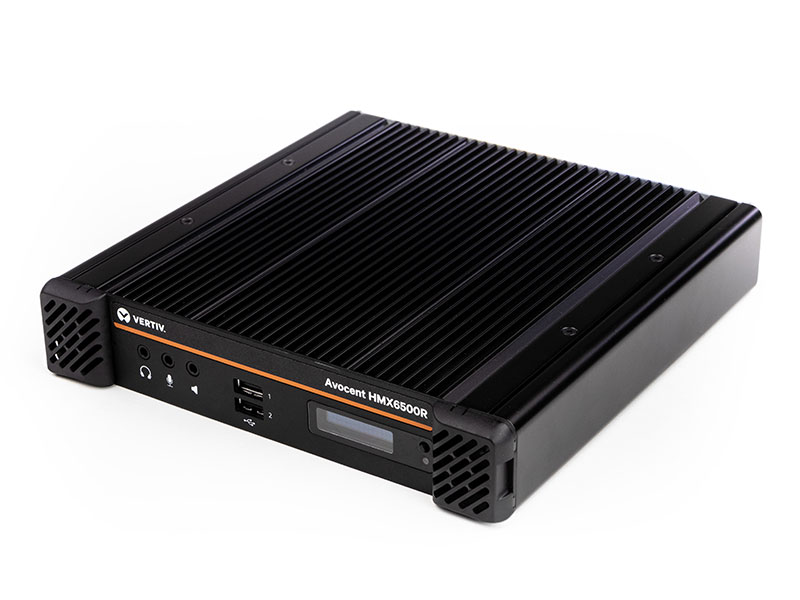

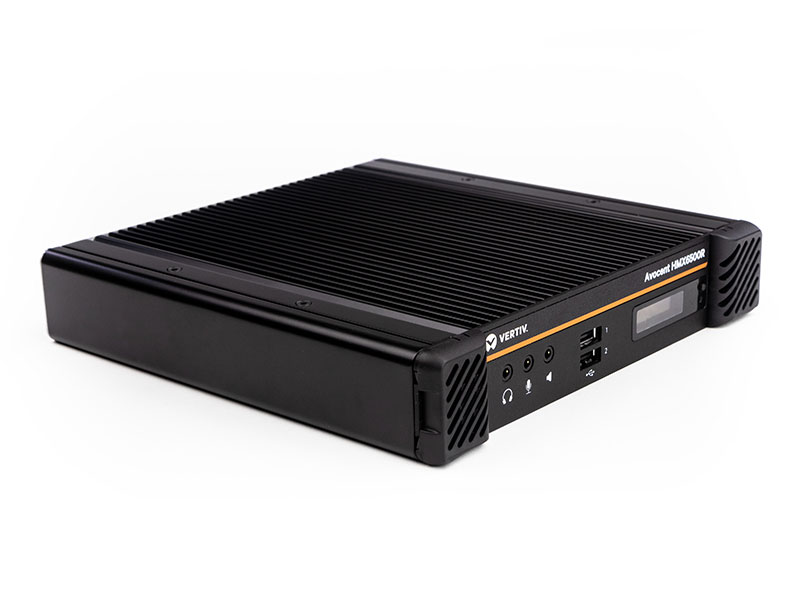

Vertiv™ Avocent® HMX 6500R | High Performance KVM Receiver (HMX6500R)
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Broadcast and Entertainment
- Banking, Financial and Insurance
- Education
- Government
- Healthcare
- Military, Defense, Aerospace and Missile
Product
Warranty:
2 year Standard Warranty
Vertiv™ Avocent® HMX 6500R | High Performance KVM Receiver (HMX6500R)
Best Suited For:
- Broadcast and Entertainment
- Banking, Financial and Insurance
- Education
- Government
- Healthcare
- Military, Defense, Aerospace and Missile
Benefits
- Accessibility: Ensure quality and security of critical devices when accessing them remotely.
- Quality: Crisp and clear picture quality, audio, and flexibility in graphical/image output and USB 2.0 to single/dual screens over a single 1GbE link.
- Options: Dual-head displays for physical machines or Single-head display for virtual machines (not both) provides options to view content
Features
- VDI/VM Support via Remote Desktop Protocol (RDP)
- Dual Head 1920x1200 @60 Hz or Single 2560x1600
- Dual Head Physical or Single Head Virtual
Specifications
Vertiv™ Avocent® HMX 6500R | High Performance KVM Receiver (HMX6500R)
- Product Overview
- Type
- HPKVM
- Input Ports
- 5 X USB A
- Output Ports
- Speaker, Microphone
- Video Connection
- 2 X Display Port
- Video Resolution
- 2560 X 1600
- Graphic Mode
- Extension Distance
- 100 Meters
- Interfaces/Ports
- Network Interface(s)
- 1x RJ45 ( 1 Gbe), 2x SFP+ cages (1 Gbe)
- USB ports
- 4 ports of USB 2.0 with USB True Emulation
- Miscellaneous
- Authentication Supported
- Requires Manager
- Agency Approvals
- CE and FCC
- Operational Conditions
- Operating Temperature
- 0 to 40°C / 32 to 104°C
- Humidity
- 10-90% non-condensing
- Storage Temperature
- 0 to 60°C / 32 to 140°C
- Physical Characteristics
- Depth
- 1.6 in
- Power Description
- Power Supply(s)
- External 12VDC, 5A
- Input Power (Maximum)
- 20W
Manuals
- Vertiv™ Avocent® HMX High Performance KVM Extender System Installer User Guide
- Vertiv™ Avocent® HMX High Performance KVM Extender System Guide Specifications
- Vertiv™ Avocent® HMX High Performance KVM Extenders Network Recommendations Technical Note
- 590-2318-501B_WEB
- Vertiv™ Avocent® HMX 8000 6500 and Advanced Manager Rack Mount Installation Guide
- Vertiv Avocent HMX 6500 High Performance KVM Receiver Configuring Access to a Virtual Machine Technical Note
