Vertiv™ EXL S1 500-600 kW
The Vertiv™ EXL S1 UPS delivers secure power while providing premium load protection and maximum energy saving for large scale applications such as AI. Its Dynamic Grid Support feature can provide frequency regulation by controlling the input power to support services such as frequency regulation-up, regulation-down, or both via charging and discharging of the battery. At Dynamic Online mode, the UPS can have operating efficiency of up to 99% without sacrificing availability.
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Healthcare
- Government
Benefits
- MORE SPACE: Minimized UPS footprint allows more space for revenue-generating IT equipment
- RESILIENT POWER PROTECTION: The UPS provides high level of efficiency, power quality and availability
- UP TO 8 UNITS IN PARALLEL: It can support distributed and centralized parallel configurations
- INSTALLATION FLEXIBILITY: It is compatible to VRLA and Lithium-Ion batteries
- PROACTIVE REMOTE SERVICES: Have options for remote diagnostics and preventive monitoring services for UPS
Features

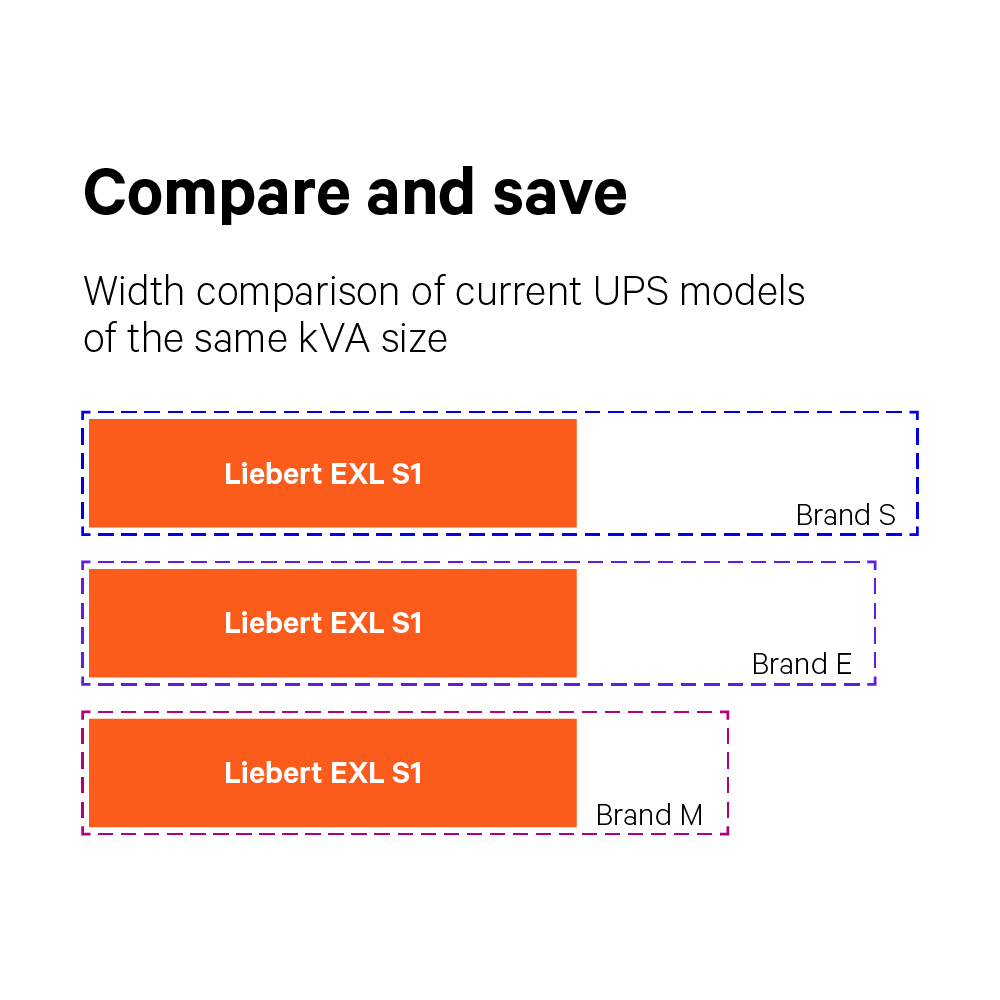

- COMPACT SIZE: Smallest footprint among all competitors at this kVA size
- 3 MODES OF OPPERATING EFFICIENCY: Double Conversion (97%), Dynamic Online (99%) and ECO Mode (>99%)
- ADVANCED TOUCHSCREEN CONTROL PANEL: Customer can configure data and views
- 2014 NEC COMPLIANCE: High Impedance DC Ground Fault detection for 2014 NEC compliance
- FLEXIBLE CONFIGURATIONS: Dual asynchronous source/dual input capable
Specifications
The Vertiv™ EXL S1 UPS, with capacity of 250-1200kW, is optimized for maximum efficiency and power density. It has a small footprint, lower than similar UPS in its class or in its kVA size range. It is ideal for customers who need every square foot to offer a positive ROI, such as colocation providers, hosting and cloud businesses. This UPS allows customers to either redeploy the saved space to implement more revenue generating IT equipment or reduce the actual design size of their equipment rooms, thus saving construction costs. At Dynamic Online mode, the UPS can have operating efficiency of up to 99% without sacrificing availability. Its touchscreen control panel provides status-at-a-glance convenience, flexible views and multiple security options. With Vertiv™ LIFE™ Services, get 24x7 remote monitoring by our expert staff to improve availability and lower labor costs.
- Product Overview
- Power Rating
- 500, 600 kVA/kW
- Input Voltage Range
- 480 volts
- Output Voltage Range
- 480 volts
- Efficiency
- Up to 97% double conversion
- Wiring
- 3-wire
- Interfaces/Ports
- Control Panel
- Liebert standard touchscreen control panel
- Cable Access
- Top or bottom
- Service Access
- Front and top only
- Operational Conditions
- Operating Temperature
- 32 F - 104 F / 0 C - 40 C
- Miscellaneous
- General
- FCC Part 15, Class A, IEC 62040-2, ANSI C624.41
- Listings
- UL 1778 5th Edition, CSA 22.2 NO 107.3
- Topology
- Transformer Free
