Product Family

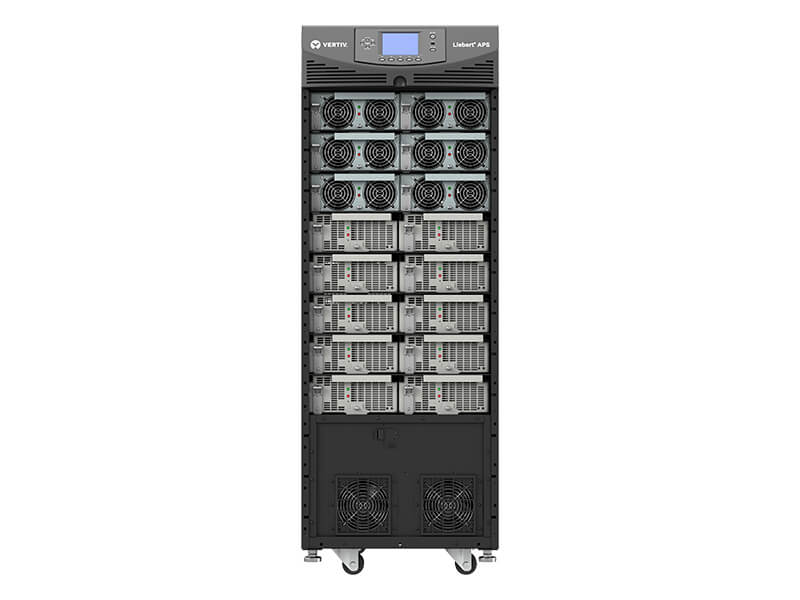

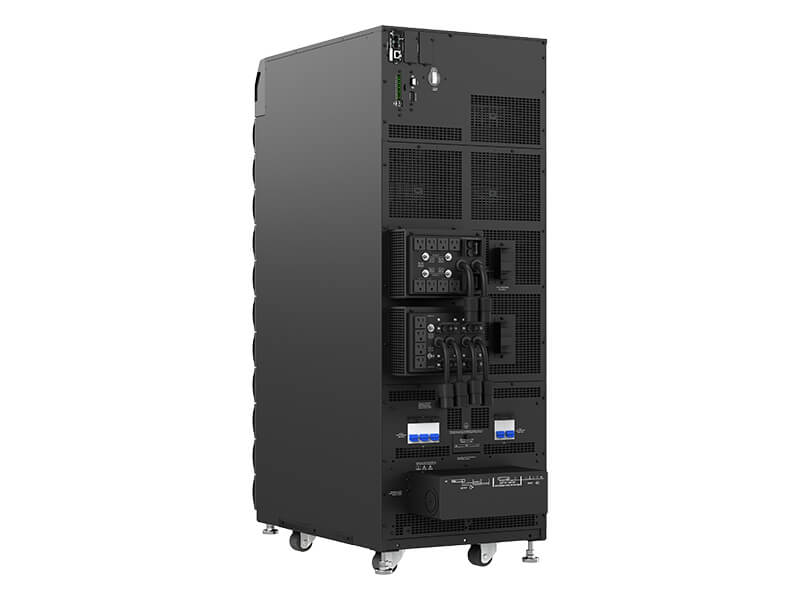

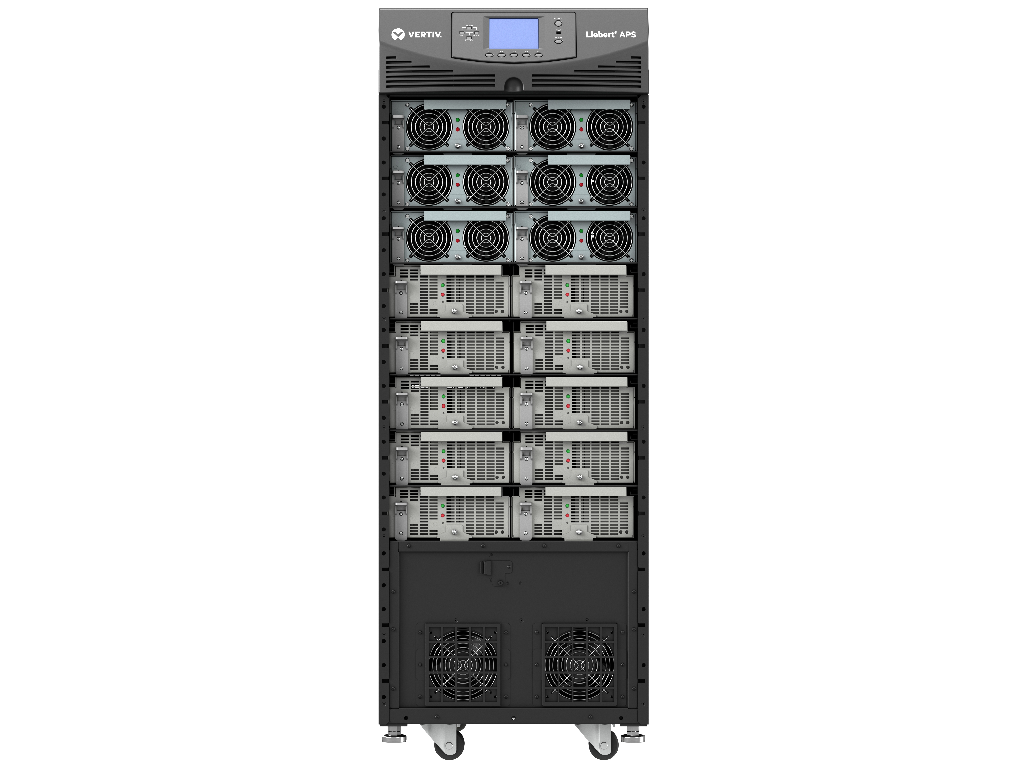

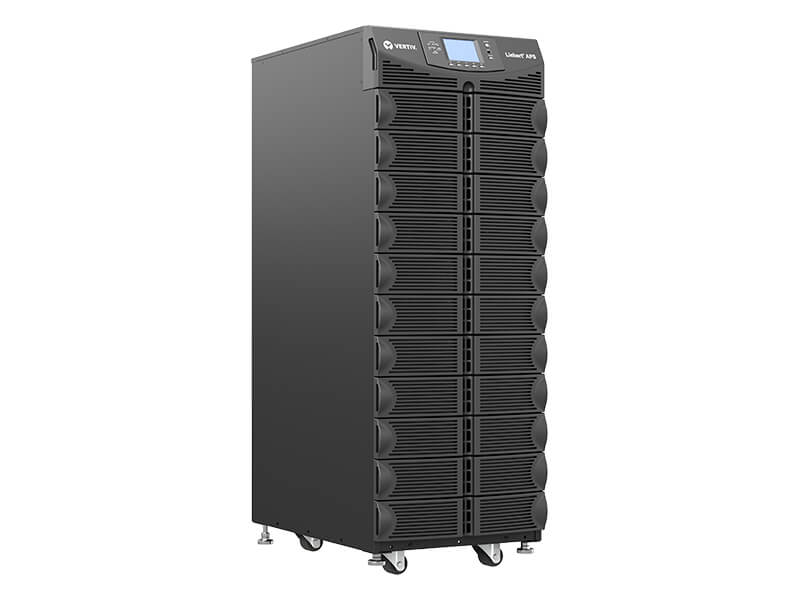

Vertiv™ Liebert® APS Modular UPS, 5kVA – 20kVA N+1, Double Conversion Rack/Tower VRLA 208V UPS

The Vertiv Liebert APS is a modular online double conversion UPS, offering the highest level of power conditioning and power protection for critical IT systems. Continuous power conditioning, zero transfer time, pure sinewave output and scalable runtime make it ideally suited to protect critical infrastructure in both centralised and edge network applications. The modular design offers maximum power availability with built-in redundancy for fault tolerance.

Get Brochure Get Manual
Key Benefits
5kVA – 20kVA Rack/Tower form factor Scalable from 5kVA to 20kVA N+1 for optimal power availability Pre-installed Unity card for free remote management. Hot swappable power, battery and control modules allows for maintenance on the system without disturbance to attached loads. Multiple output configurations for ultimate installation flexibility.
Best Suited For:
  • Government
  • Healthcare
  • Retail and Wholesale
  • Transportation
Warranty: TWO YEAR LIMITED WARRANTY AGAINST DEFECTS IN MATERIAL AND WORKMANSHIP

The Liebert APS is a modular, single phase output UPS, with both single and three phase input options to provide both high availability and flexibility. The Liebert APS adapts efficiently and effectively to both immediate and evolving power requirements, offering capacity on demand with flexible power modules which allow capacity upgrades in 5 kVA/4.5kW increments up to 20 kVA N+1.

Model Specifications Overview

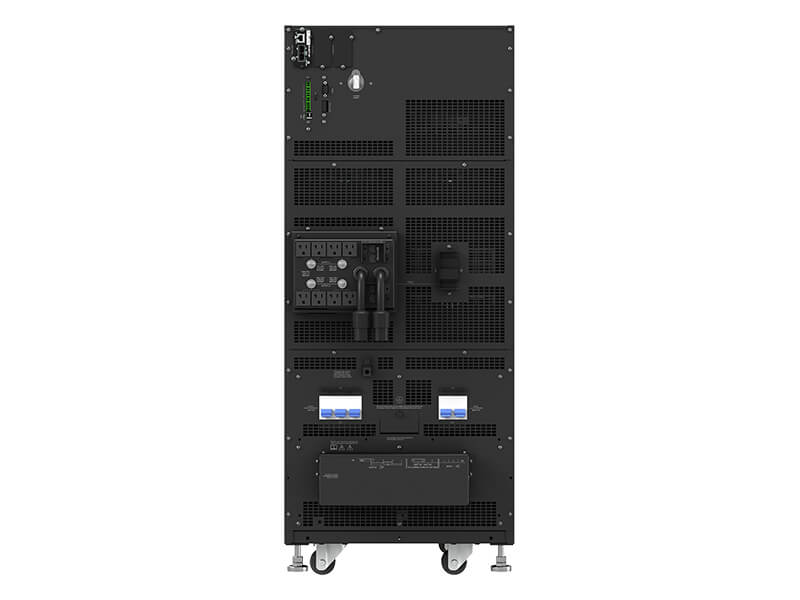

Liebert® APS AS3 Series
Up to 15kVA/13.5kW N+1   208VAC   208/120VAC   Up to 91%   3-Wire (L-L-G)   42 in   17 in   32 in   Up to 795 lbs

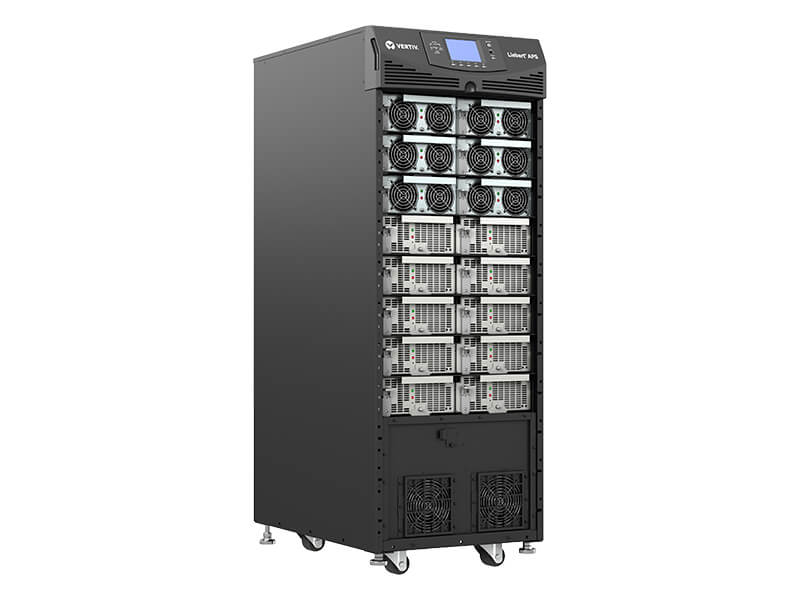

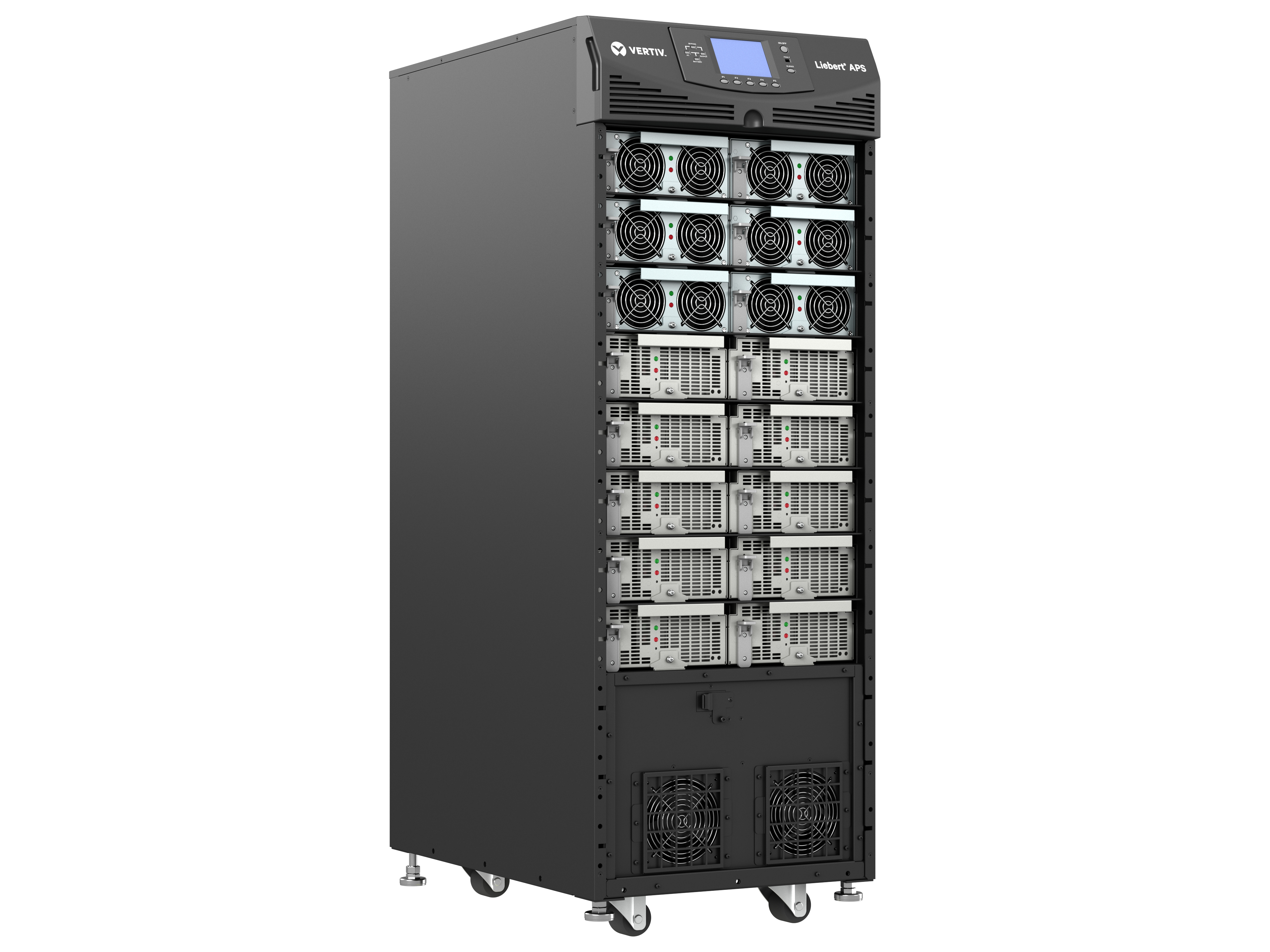

Liebert® APS AS4 Series
Up to 20kVA/18kW N+1   208VAC   208/120VAC   Up to 91%   3-Wire (L-L-G)   49 in   17 in   34 in   Up to 920 lbs

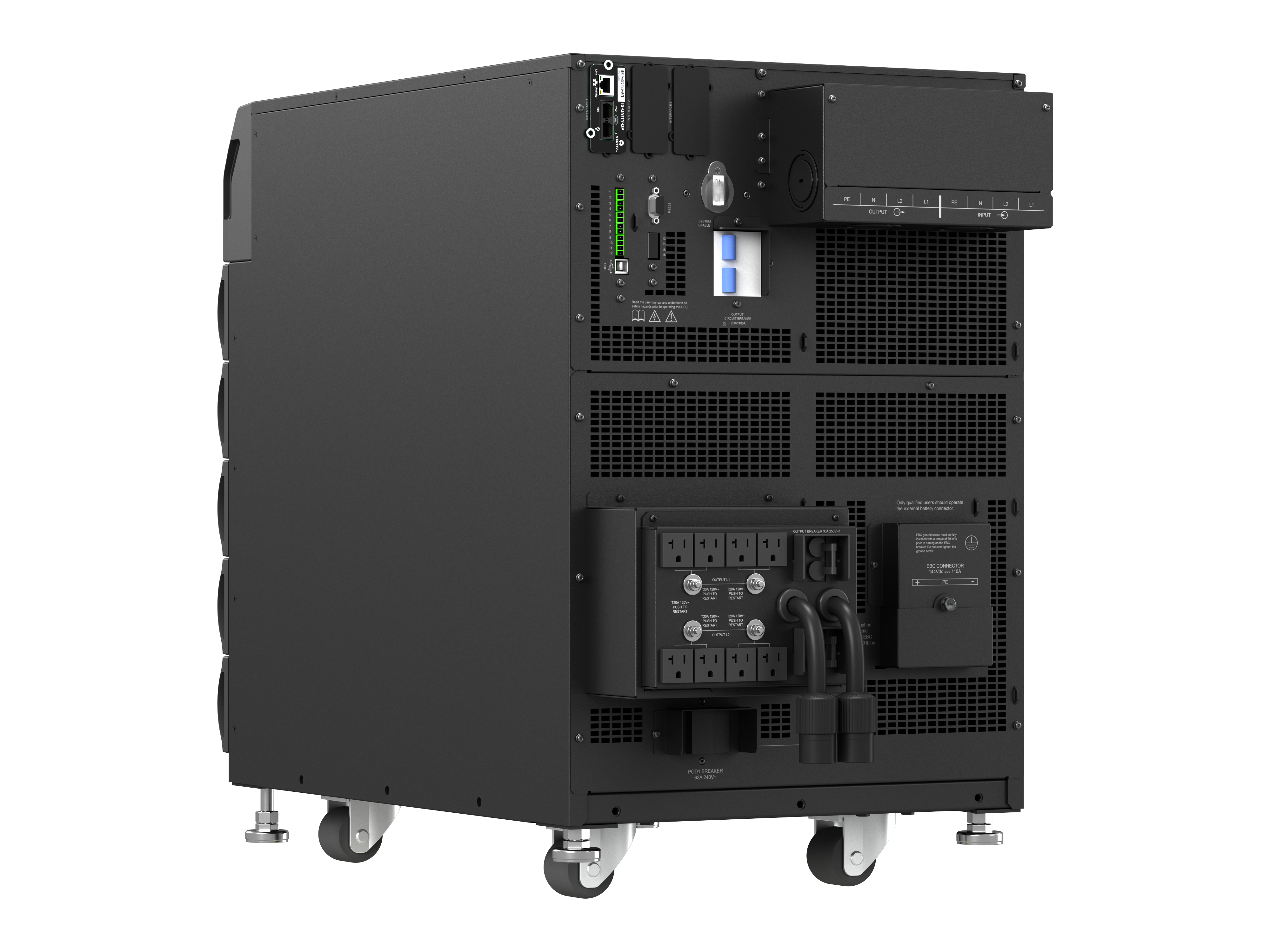

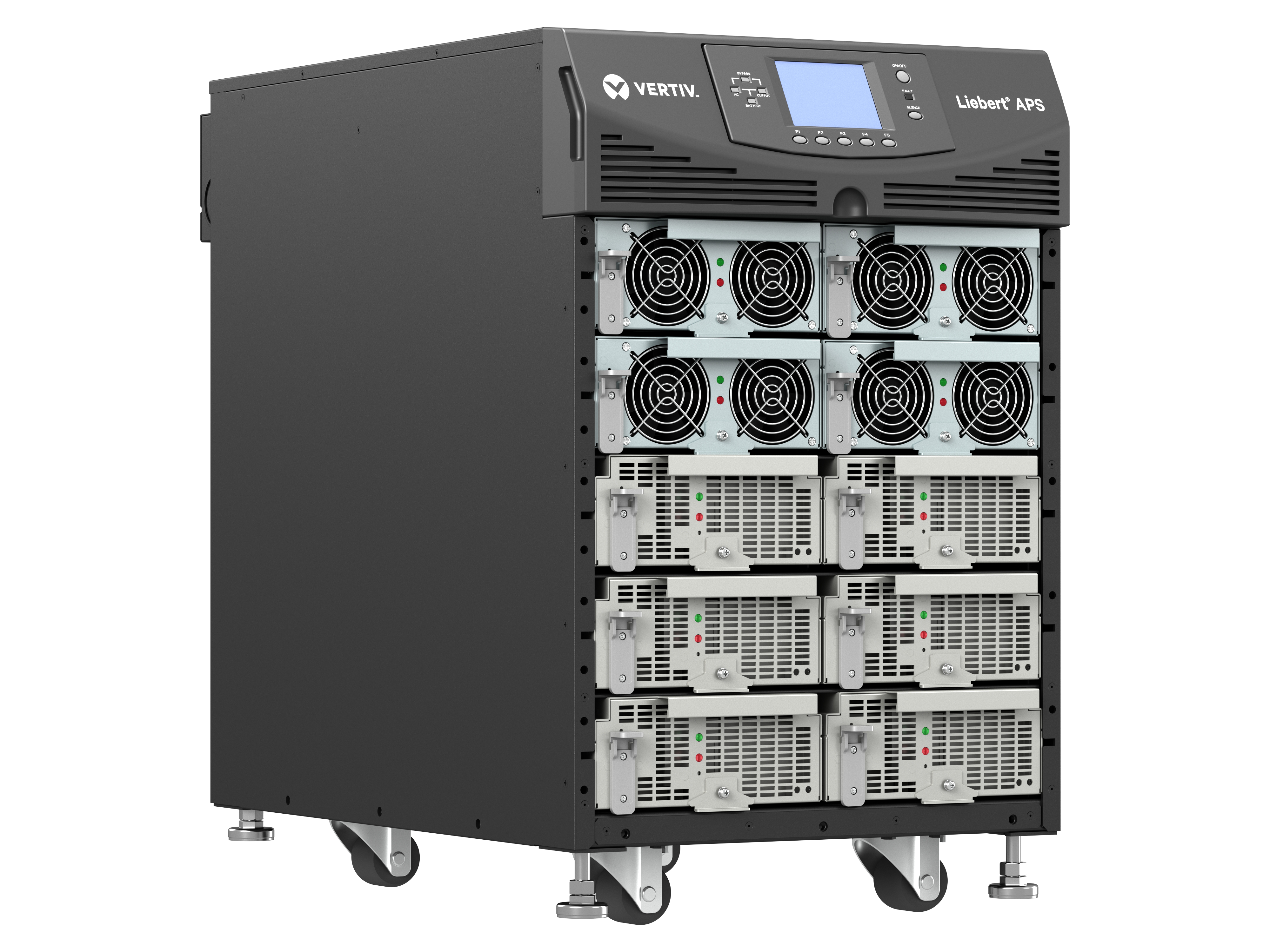

Liebert® APS AS5 Series
Up to 15kVA/13.5kW N+1   208/120VAC   208/120VAC   Up to 92%   4-Wire (L-L-N-G)   27 in   17 in   32 in   Up to 565 lbs

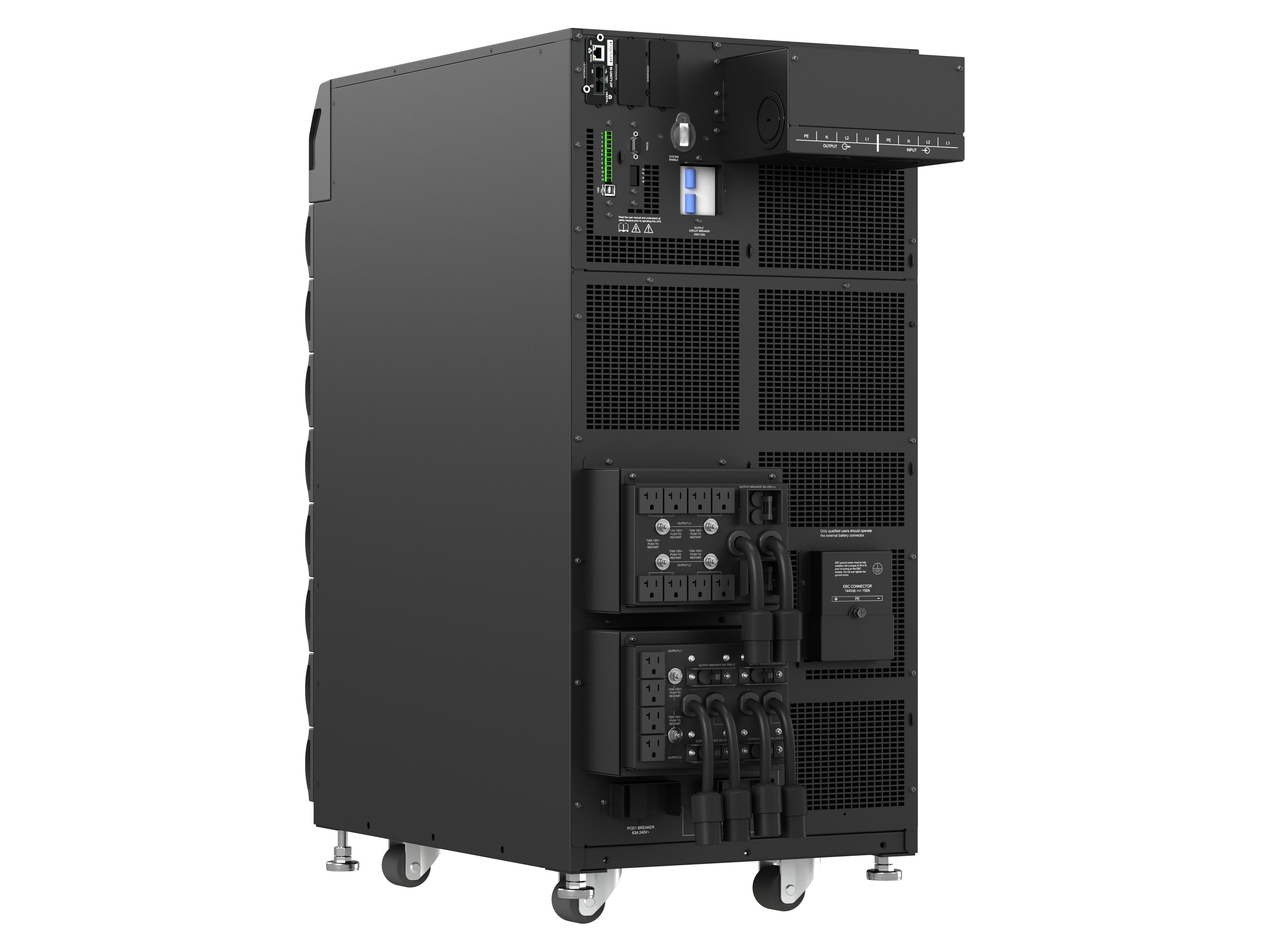

Liebert® APS AS6 Series
Up to 20kVA/18kW N+1   208/120VAC   208/120VAC   Up to 92%   4-Wire (L-L-N-G)   38 in   17 in   34 in   Up to 700 lbs

Benefits

5 kVA/4.5 kW power modules deliver enhanced active power Scalable, pay as you growarchitecture optimizesinitial investment Integral battery monitoring and temperature compensated charging for extended battery life and fewer replacements Fault-tolerant design allows the critical load to run on conditioned power in the unlikely event of component failure. Hot-swappable power, control and battery modules allow replacement to be carried out without distrubingthe load. Intelligent Battery System provides continuous battery monitoring and protection Offers LIFE™ Services, real-time remote diagnosticsforproactive maintenance, decreasing the average Mean Time to Repair (MTTR) Upgradeable, even while operating in double conversion mode Configurable input: one or three phase Designed for standalone or rack mount installation Multiple Power Output Distribution (POD) boxes allows for specific application connections

Features

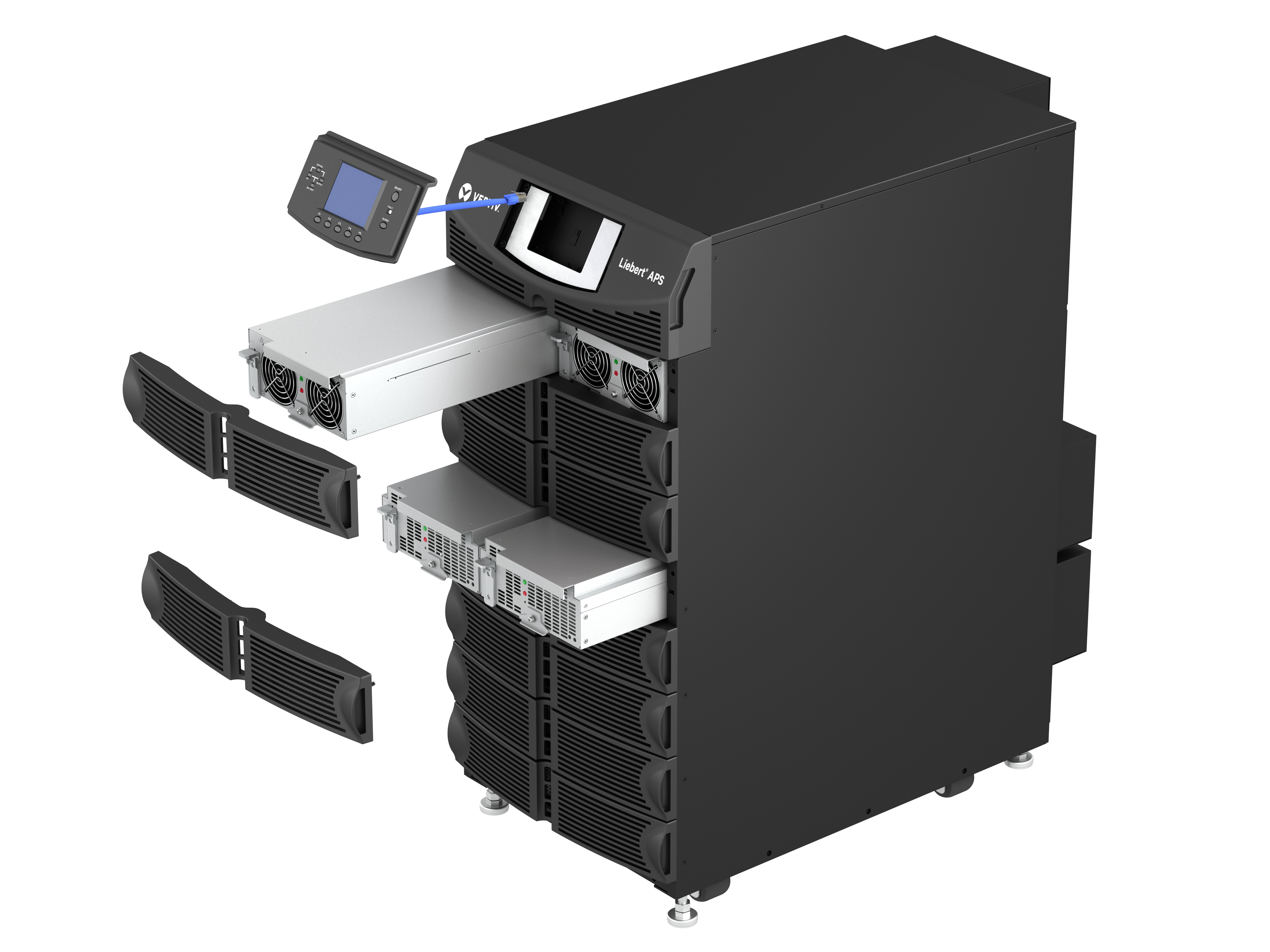

REMOTE MANAGEMENT & ENVIRONMENTAL MONITORING: Factory installed Intellislot Unity Card and three total intellislot ports for FREE remote management, and support for environmental sensors True on-line double conversion UPS Hot-swappable power and battery modules High power factor 5 kVA / 4.5 kW power modules Site configurable as single phase or three phase input Scalable up to 20 kVA N+1 Fully rated @ 40°C Stand alone or rack mountable Intelligent battery modules with automatic offline capability for anomalous events Double conversion efficiency: > 92% Optional 10 A charger module Terminal block or optional distribution moduleoutput socket
Drawings

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
