Liebert DataMate Mission Critical Cooling System, 5-10.5kW

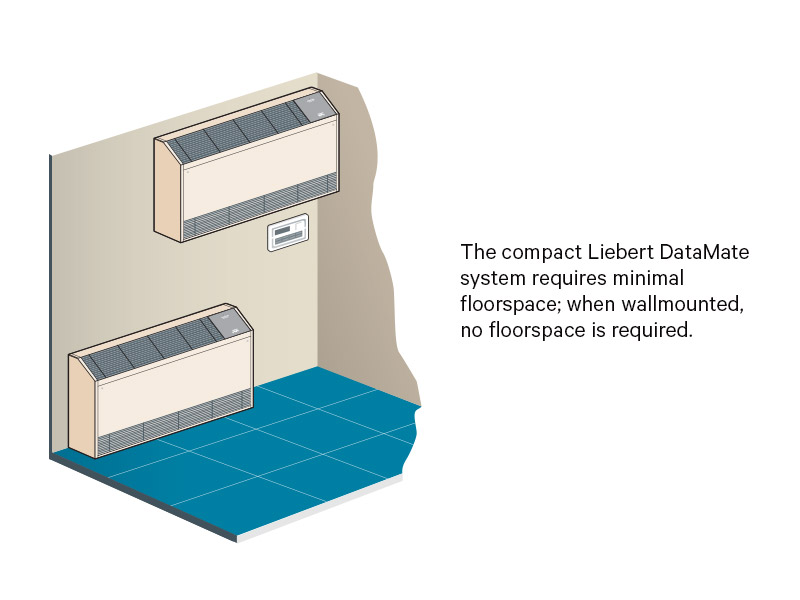

Liebert DataMate is a small footprint cooling system for 7x24 temperature and humidity control in network closets, computer rooms and other small spaces. Its low profile permits floor-mount or wall-mount installation, and requires little or no floor space.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking, Financial and Insurance
- Education
- Government
- Healthcare
- Retail and Wholesale
- Professional Services
Liebert DataMate Mission Critical Cooling System, 5-10.5kW
Liebert DataMate is a small footprint cooling system for 7x24 temperature and humidity control in network closets, computer rooms and other small spaces. Its low profile permits floor-mount or wall-mount installation, and requires little or no floor space.
- Banking, Financial and Insurance
- Education
- Government
- Healthcare
- Retail and Wholesale
- Professional Services
Specifications
The Liebert DataMate is a split-system evaporator available in combination with a remote air-, water- or glycol-cooled condensing unit or a close-coupled water/glycol-cooled condensing unit, or as a self-contained, chilled water unit. Models are available to fit small computer rooms, requiring only five quare feet or less of floor space, or can be mounted on a wall. Each split system has thermostat-type wiring to controls and condensing unit. System components are pre-charged with refrigerant using quick-connect fittings for fast installation. The unit is designed for front service access.
|
DME020E, 20kW
|
||||||
|---|---|---|---|---|---|---|
| 17.2 [5.05] | 17.2 [5.05] | 870 | 32 | 46 1/2 | 11 7/8 | 230 |
| See more product information | ||||||
|
DME027E, 6.65kW
|
||||||
| 22.7 [6.65] | 22.7 [6.65] | 1230 | 32 | 64 1/8 | 11 7/8 | 330 |
| See more product information | ||||||
|
DME037E, 8.9kW
|
||||||
| 30.3 [8.9] | 30.3 [8.9] | 1320 | 32 | 64 1/8 | 11 7/8 | 365 |
| See more product information |
Benefits
Features
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Change
Related Products And Services
The Liebert Mini-Mate is a zero footprint computer room cooling system for 7x24 temperature and humidity control and air filtration. It installs above a dropped ceiling and is easy to service, requiring only front access for maintenance.

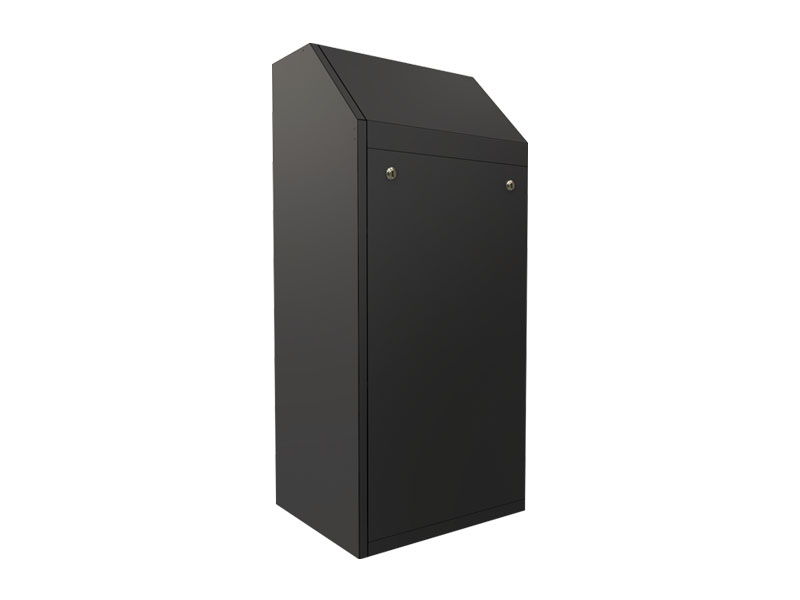

The Liebert DMC is an indoor, water/glycol condenser designed for the Liebert Datamate cooling system.
