Product Model
NetSure 8100DB (582140600)
The NetSure 8100DB distribution bay features high capacity, modularity, and simplified installation.
Best Suited For:
- Government
- Data Center/Colocation/Hosting
- Military
- Defense
- Aerospace and Missile
- Telecom
- Oil and Gas
Benefits
Efficiently address power demand today and tomorrow with scalable power systems that can be safely adjusted during live operation
Reduce unnecessary travel to site with remote services that enable you to identify issues and take corrective actions
Safely and easily adapt to new load requirements with live distribution and circuit breaker changes
Features
Power supply and load distribution optimization
Safe system expansion with live distribution and circuit breaker changes
NEBS Level 3 certified
Specifications
NetSure 8100DB (582140600)
- Input
- Input Voltage, Operational
- 42.0 VDC to 58.0 VDC
- Access
- Top and bottom
- Output
- Output Voltage, Operational
- 42.0 VDC to 58.0 VDC
- Load Circuit Breakers / Fuses
- TPS/TLS, TPL, GMT Fuses or Bullet Circuit Breakers
- Physical Characteristics
- Weight
- 73 - 193
- Height
- 2134
- Width
- 660 - 762
- Depth
- 406 -609
- Environmetal & Standard Compliance
- Control and Monitoring

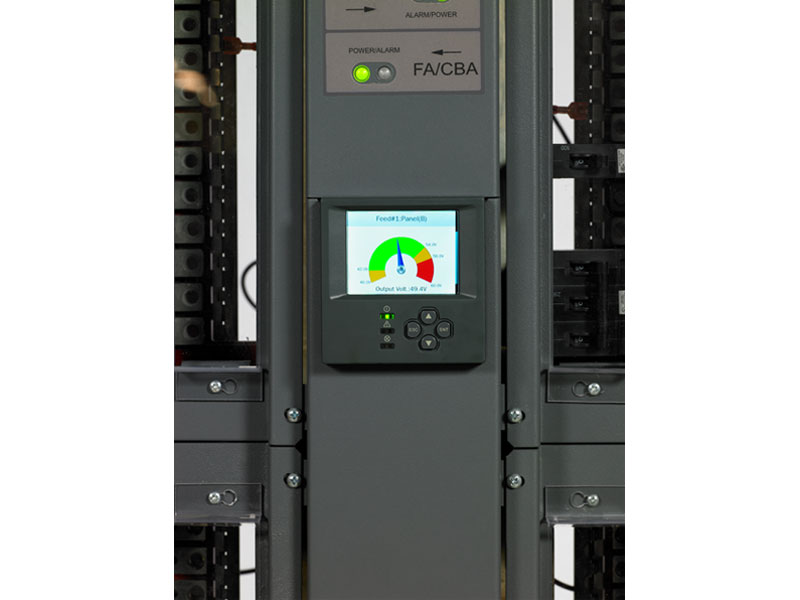

- Digital metering with remote control over Modbus or SNMP
- Operating Temperature
- 0 °C to +40 °C (+32 °F to +104 °F)
- Safety Compliance
- NEBS level 3 compliance, meets or exceeds all relevant GR1089, GR63, UL, cUL specifications
