NetSure 5100 582137200

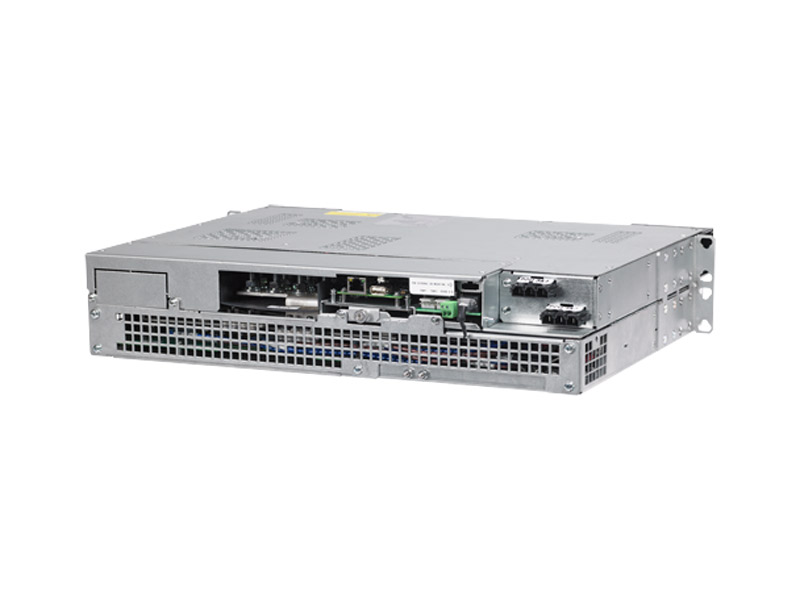

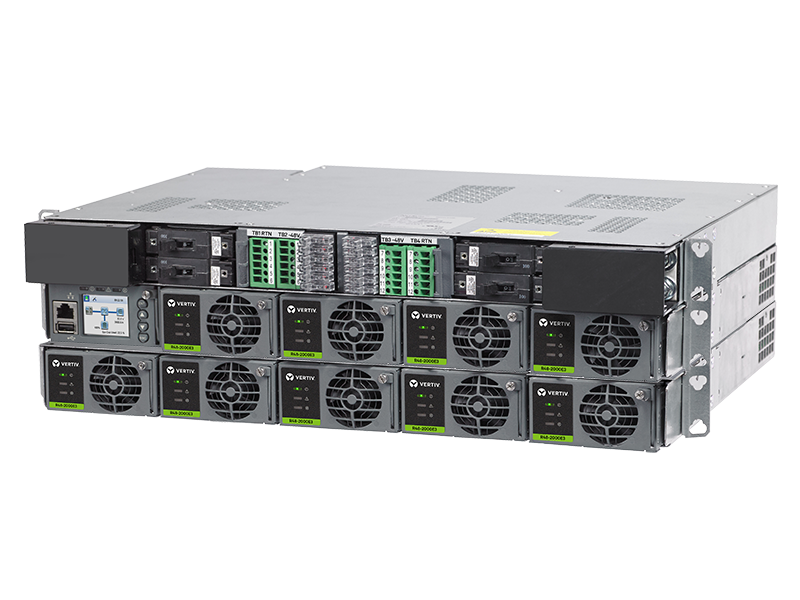

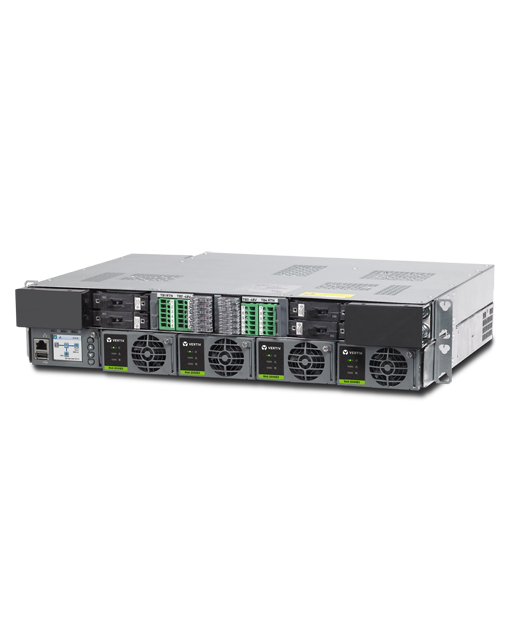

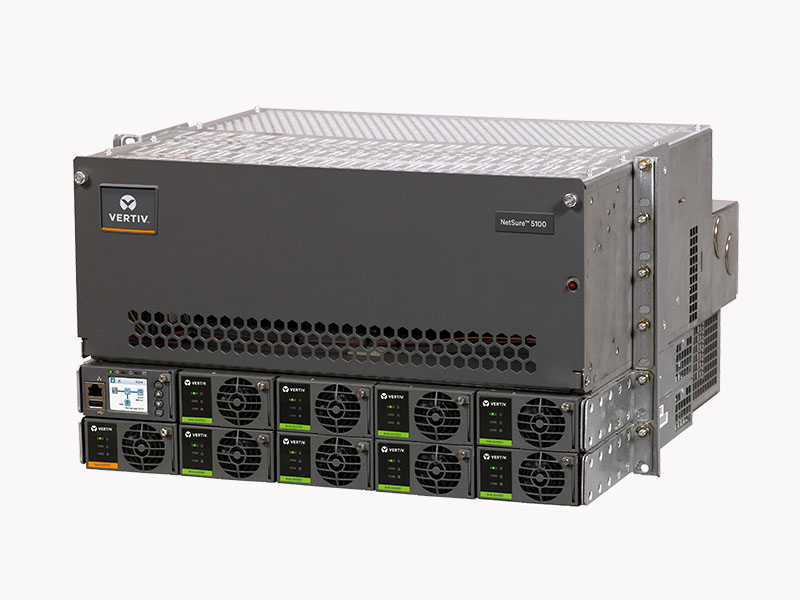

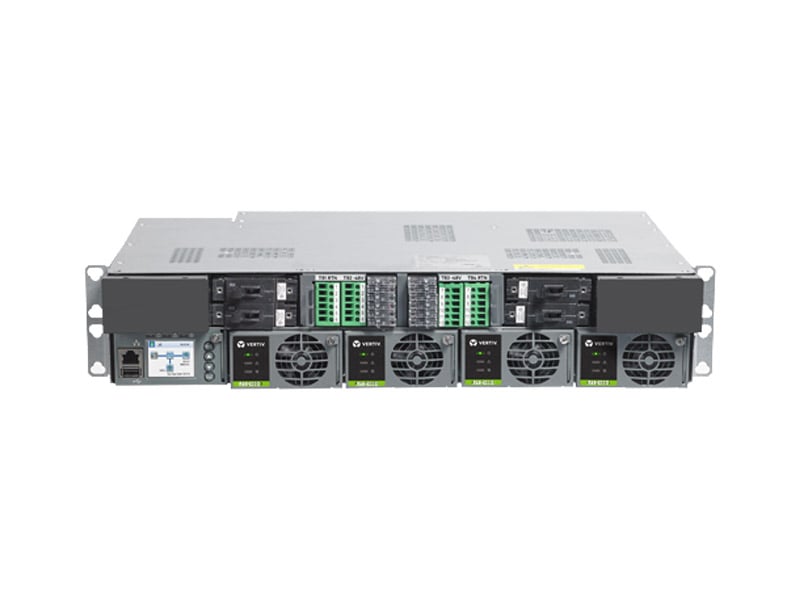

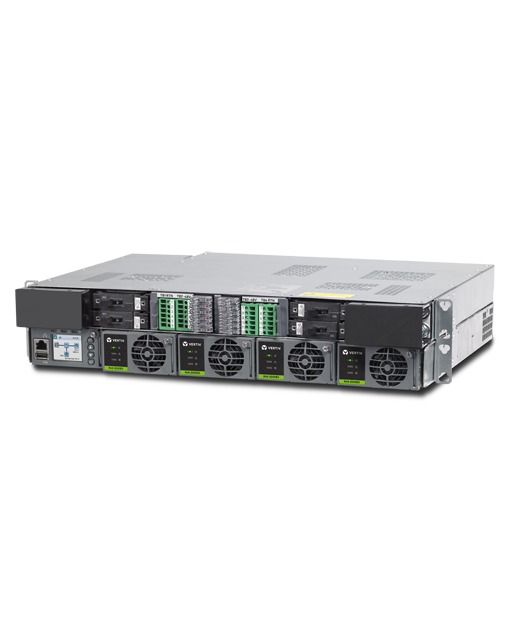

The NetSure 5100 Series, a compact -48 volt 150 A DC power solution, features an advanced control unit, up to (4) positions for 2000 W high-efficiency eSure rectifiers, and integrated distribution options. [Spec #582137200]
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Telecom
NetSure 5100 582137200
The NetSure 5100 Series, a compact -48 volt 150 A DC power solution, features an advanced control unit, up to (4) positions for 2000 W high-efficiency eSure rectifiers, and integrated distribution options. [Spec #582137200]
- Telecom
Benefits
Features
Specifications
- Product Overview
- Power Capacity
- 2-7.2kW
- Current Capacity
- 40-150A
- System Type
- Integrated system
- Input
- Input Voltage, Nominal
- Single phase: 120VAC, 208VAC to 240VAC
- Input Voltage, Operational
- Rectifier: (Single Phase) 85 VAC to 300 VAC
- Input Connections
- Molex for AC cords or hardwiring
- Equipment Dimensions (H x W x D)
- up to 3U x (19" or 23") x 14.7"
- Access
- Front and Rear access
- Output
- Output Voltage, Nominal
- -48VDC
- Output Voltage, Operational
- Rectifier: -42 VDC to -58 VDC
- Output Capacity
- Up to 150 amps at -48 VDC plus redundancy
- Peak Efficiency
- Rectifier: 96%
- Load Circuit Breakers / Fuses
- 1-150 A E/M or E bullet nose breakers or 1-15A GMT fuses
- Physical Characteristics
- Battery Circuit Breakers / Fuses
- 1A to 150 A E/M or E breakers
- Options
- Optional Battery Trays, SM-Temp, BAU, Relay racks
- Environmetal & Standard Compliance
- Control and Monitoring
- NCU with remote access via web browsers, TCP/IP & SNMP as standard
- Operating Temperature
- -40 °C to +65 °C ( 40 °F to +149 °F)
- Safety Compliance
- UL Recognized (cUL)
- EMC Compliance
- Conforms to FCC rules Part 15, Subpart B, Class B; EN55022 Class B, radiated and conducted; GR-1089 Issue 4
- NetSure 5100 Data Sheet with eSure Power Extend Converters
- Small NetSure Battery Cabinets Data Sheet
- Vertiv™ NetSure™ NCU Controller Data Sheet
- Vertiv-eSure-Rectifier-R48-2000E3-DS-EN-GL-DC
- PSD_Vertiv-NetSure-DC-Power-Services-Maintenance_NA-ENG_Datasheet
- Vertiv™ NetSure™ DC Power Services Test & Turn-Up Data Sheet
