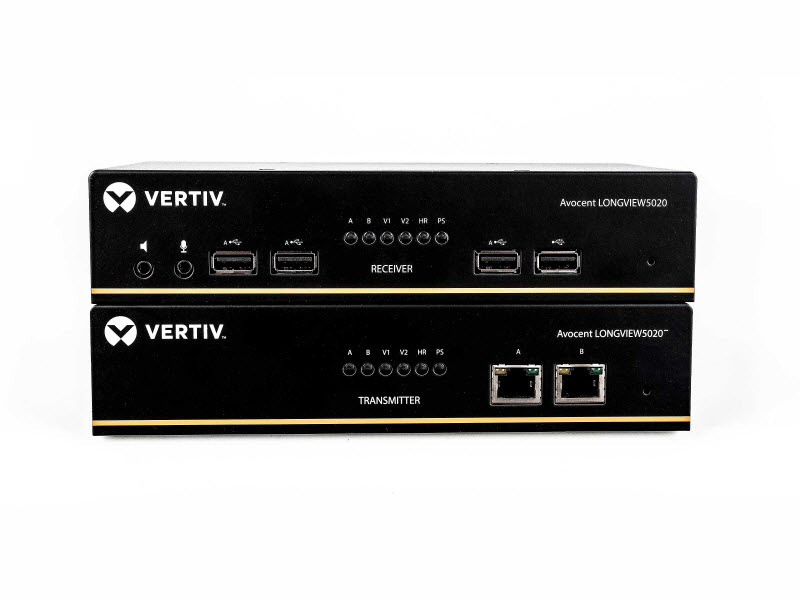

Avocent LV 5020P KVM Extender
Avocent LongView extension solutions enable you to increase the distance between the user and the target system. Extension solutions are ideal for broadcast, IT, industrial, transportation, emergency management and defense/military applications.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking
- Financial and Insurance
Avocent LV 5020P KVM Extender
Avocent LongView extension solutions enable you to increase the distance between the user and the target system. Extension solutions are ideal for broadcast, IT, industrial, transportation, emergency management and defense/military applications.
- Banking
- Financial and Insurance
Benefits

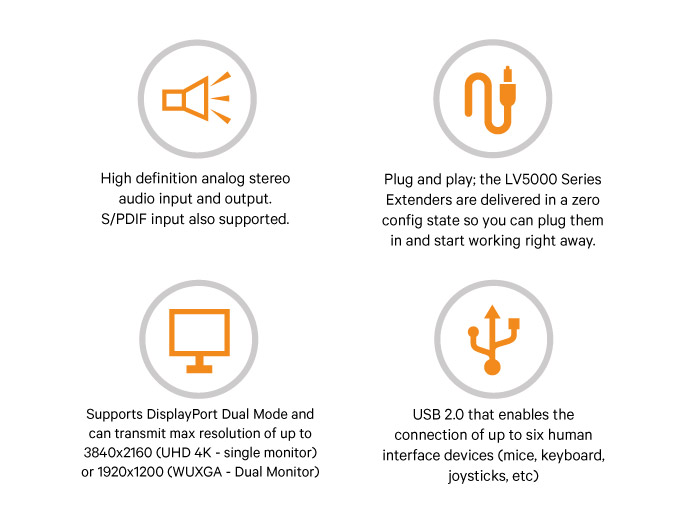

The LV5000 series support DisplayPort Dual Mode video and offers pixel-perfect
video resolutions for demanding applications. Users can choose to have a maximumresolution of 3840x2160 (UHD 4K) with a single monitor or 1920 x 1200 (WUXGA)
resolution in a dual monitor configuration. Extension, Not Exclusion
The LV5000 does more than just extend system control. It provides a full-function
connection that enables up to six USB 2.0 human interface devices.High-definition audio recording andplayback is also supported.
Features
Specifications
The LV 5000 series support DisplayPort Dual Mode video and offers pixel-perfect video resolutions for demanding applications. Users can choose to have a maximum resolution of 3840x2160 (UHD 4K) with a single monitor or 1920 x 1200 (WUXGA) resolution in a dual monitor configuration. Picture quality is delivered through an uncompressed system whereby every pixel of every frame is sent without loss.
- Product Overview
- Video Connection
- LV5020 Transmitter 2 x DisplayPort
- Video Resolution
- Up to 4032x216 @ 30Hz / 4K
- Power Description
- Power Supply(s)
- 2 x Power Supply
- Input Power (Maximum)
- .8 A
- Interfaces/Ports
- USB ports
- 2 x USB type B
- USB Hub Support
- USB 1.1 and USB 2.0
- Operational Conditions
- Operating Temperature
- 32° to 104°F (0° to 40°C)
- Physical Characteristics
- Weight
- 1.65 lbs
- Weight
- .75 kgs
- Height
- 1.76 in
- Height
- 44 mm
- Width
- 7.92 in
- Width
- 198 mm
- Depth
- 4.8 in
- Depth
- 120 mm
- Miscellaneous
- Agency Approvals
- CE, FCC, UL
- Vertiv™ Avocent® LongView™ 5020 HPKVM Extender System Quick Installation Guide
- Vertiv™ Avocent® LongView™ 5020 HPKVM Extender System Installer User Guide
- Vertiv™ Avocent® HMX DVI-D and LongView™ 5020 Rack Mount Installation Guide
- Vertiv™ Avocent® HPKVM HMX 6200 DP Receiver and LongView™ 5500 5520 Rack Mount Installation Guide.pdf
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
