Product Family

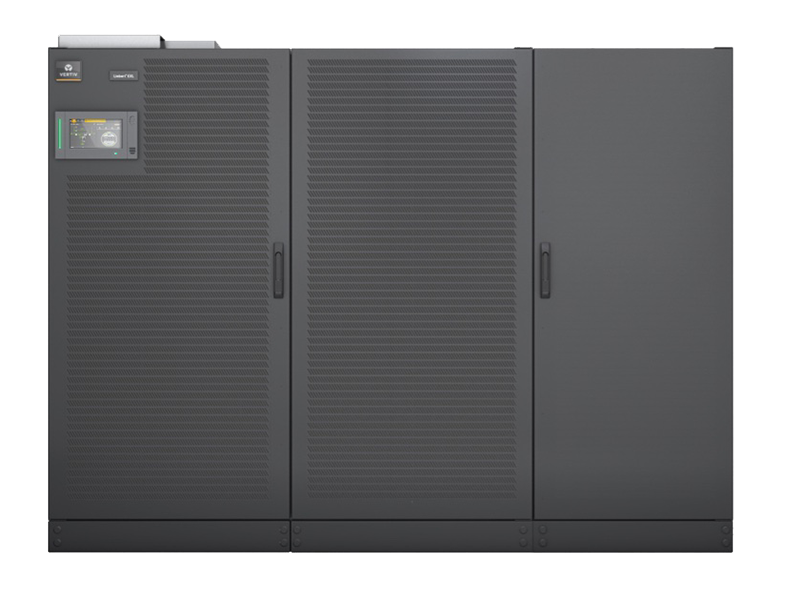

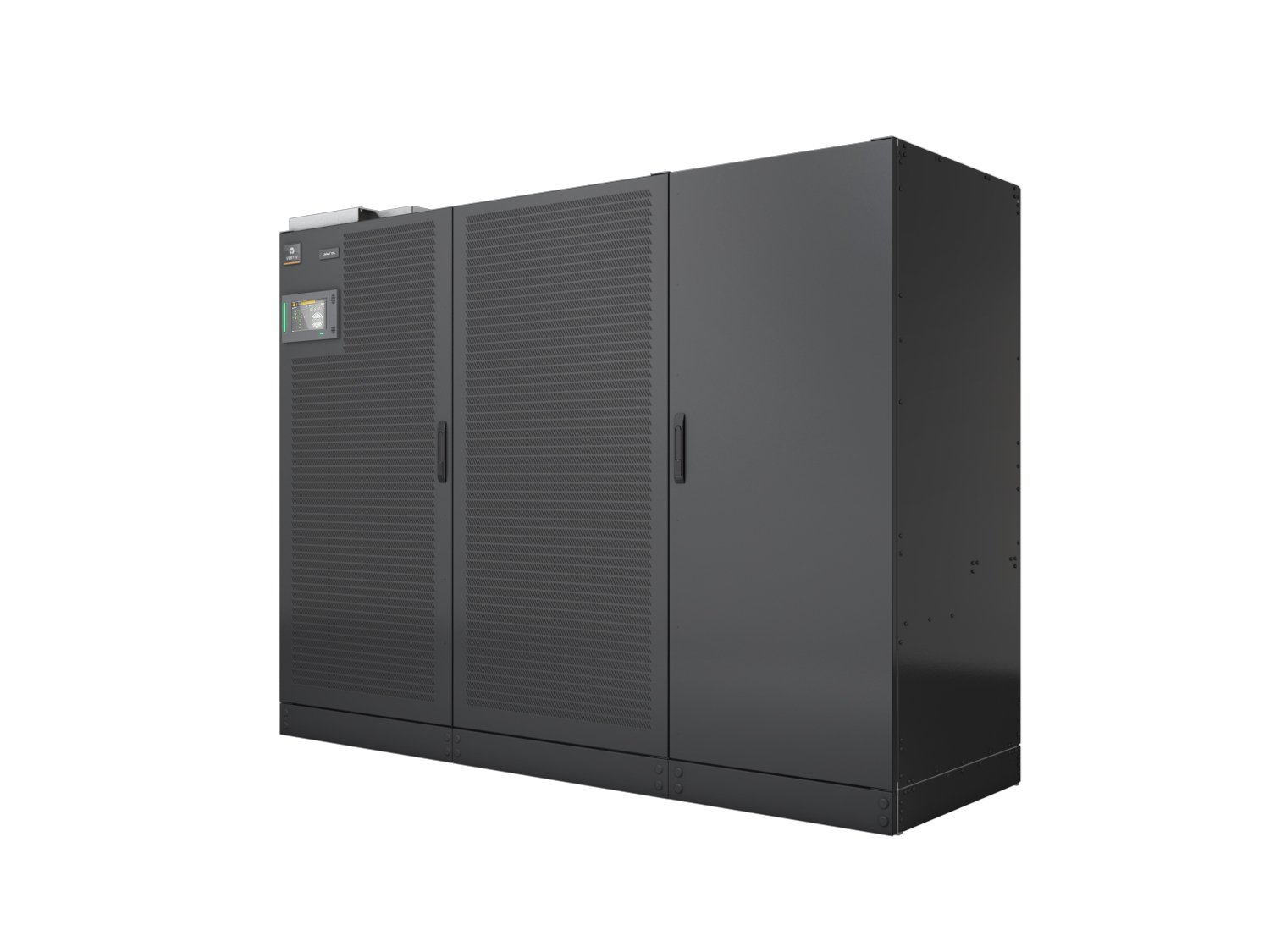

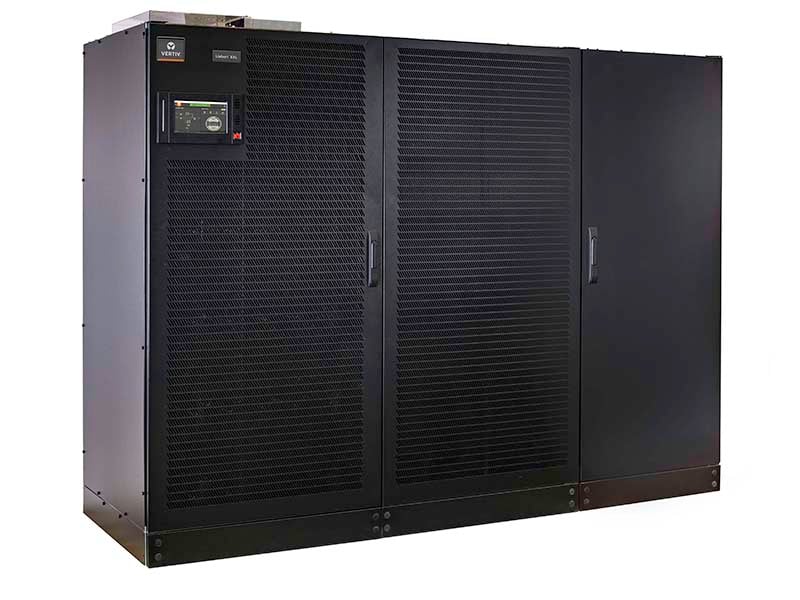

Vertiv™ Liebert® EXL S1 UPS

The Liebert® EXL S1 is a monolithic, transformer-free UPS that features optimized, industry leading footprint and power per square foot, excellent operating efficiency, robust electrical protection and intelligent paralleling that optimizes performance at partial load to achieve superior cost savings. Available in single module and distributed bypass configurations. Compatible with lithium ion battery systems. EXL S1 features safe capacity testing mode. This mode allows UPS load and battery discharge testing without an external load bank.

Get Brochure Get Manual
Key Benefits
See the Digital Infographic that overviews primary benefits
Space-saving design minimizes footprint
Maximizes active power capacity
Reduces operating expenses
Easy to service and install
Flexible configurations
Eliminates upstream electrical disturbances
Ensures robust power protection
Compatible with modern electrical loads
Intelligent and secure control is customizable by user
Flexible energy store options
EXL S1 safe capacity mode feature now available providing UPS load and battery discharge testing without an external load bank
Best Suited For:
  • Banking
  • Financial and Insurance
  • Data Center/Colocation/Hosting
  • Healthcare
  • Government
Warranty: One Year Limited Warranty Against Defects in Material and Workmanship

The Vertiv™ Liebert® EXL S1 UPS is available in 250-1200 kVA ratings and is optimized for maximum efficiency and power density. It offers the smallest footprint available for its kVA size range and is up to 60% smaller than some competitors. It is also significantly smaller than similar class UPS systems. For the conscientious buyer who needs every square foot to offer a positive ROI, such as for colocation providers, hosting and cloud businesses, the Liebert® EXL S1 UPS allows customers to either redeploy the saved space to implement more revenue generating IT equipment or reduce the actual design size of their equipment rooms, thus saving construction costs. Plus, the new Dynamic Online mode enables operating efficiency up to 99% without sacrificing availability. While in this mode, the inverter can instantaneously assume the load and maintain the output voltage within the IEC 62040 Class 1 specification, thus offering the same level of availability typically achieved in a double conversion operating mode. The new touchscreen control panel ensures Status At A Glance convenience, flexible views and multiple security options. Intelligent controls and communications integrate with Liebert® Nform, Liebert® SiteScan™ and the Liebert® Trellis™ Platform as well as 3rd party BMS and DCIM systems. LIFE™ Services provides 24x7 remote monitoring by our expert staff to improve availability and lower labor costs. The Liebert® EXL S1 UPS is fully compatible with the lithium ion battery solutions offered by Vertiv.

Model Specifications Overview

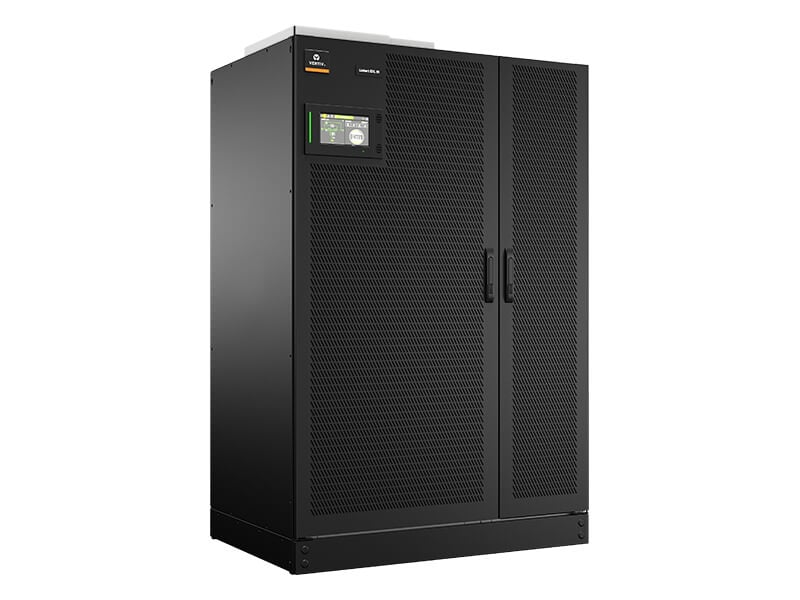

Liebert® EXL S1 250-400 kVA/kW
250, 300, 400 kVA/kW   480 volts   480 volts   Up to 97% double conversion   3-wire   79.1 in   51.3 in   36.0 in   1970 lbs
Liebert® EXL S1 500-600 kVA/kW
500, 600 kVA/kW   480 volts   480 volts   Up to 97% double conversion   3-wire   79.1 in   63.0 in   36.0 in   2750 lbs
Liebert® EXL S1 UPS 625-800 kVA
625, 750, 800 kVA/kW   480 volts   480 volts   Up to 97% double conversion   3-wire   79.1 in   78.8 in   36.0 in   3508 lbs
Liebert® EXL S1 1000-1200 kVA/kW
1000, 1100, 1200 kVA/kW   480 volts   480 volts   Up to 97% double conversion   3-wire   79.1 in   104.5 in   36.0 in   4667 lbs

Benefits

Allows more space for revenue generating I.T. equipment by minimizing UPS footprint
Maximizes active power at unity power factor
Reduces operating expenses
Installation flexibility
Reduces total cost of ownership
Zero impact on upstream infrastructure
Compatiblewith modern mission critical loads
Delivers proactive remote services
EXL S1 safe capacity mode feature now available providing UPS load and battery discharge testing without an external load bank

Features

Smallest footprint among all competitors at this kVA size
Three modes of operating efficiency,Double Conversion (97%), Dynamic Online (99%) and ECOMode (99%)

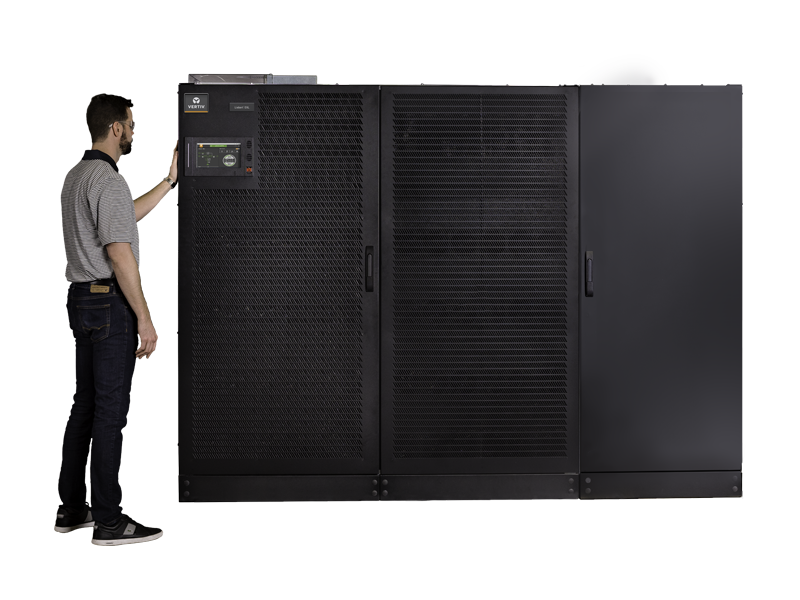

Advanced touchscreen control panel
Lithium ion battery compatible
Up to 8 units can be paralleled
Intelligent paralleling option
High Impedance DC Ground Fault detection for 2014 NEC compliance
Dual asynchronous source / dual input capable

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.

Find Your Area Contact

Products Support Contacts

Showing contacts for Virginia, 20149, USA Change
Vertiv (Liebert Services)
+1 800 543 2378
610 Executive Campus Drive Westerville Ohio 43082 USA
Product areas of focus: Uninterruptible Power Supplies (UPS), Power Distribution, Thermal Management, Integrated Solutions, Racks and Containment

Frequently Asked Questions

Q
Is this UPS configurable?
A
Yes, the UPS is fully configurable at time of order.
Q
Does this UPS work with lithium ion batteries?
A
Yes, it works with all manufacturers of lithium ion batteries sold by Vertiv.
Q
Does this UPS come with a communications card?
A
Yes, we provide a standard LIFE Services card or you may choose an optional Unity dual simultaneous protocol card.
Q
Does this UPS offer Eco-mode?
A
Yes, it offers Vertiv's unique Eco-mode which maintains battery charging and inverter readiness.
Q
Can I change display and alarm values or does a service technician have to do it?
A
Yes, our standard touchscreen control panel is fully user configurable for type of information displayed, security access codes and warning & alarm parameters.
