Product Model

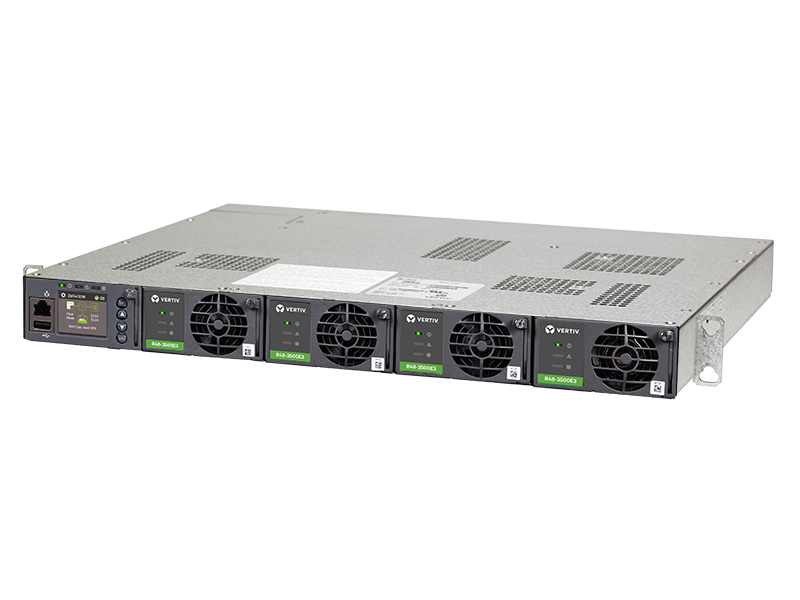

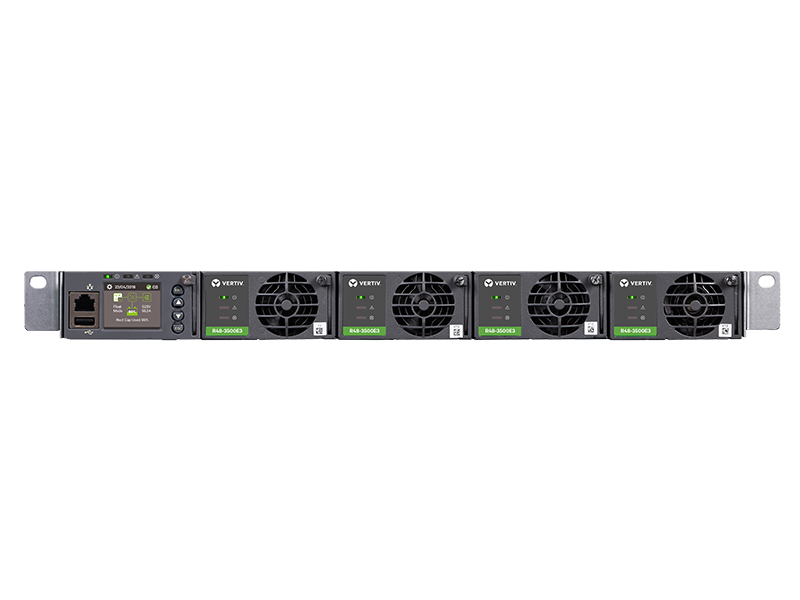

NetSure 5100 58870530036

The NetSure 5100 bulk DC power system provides -48VDC at up to 160A and is ideal for legacy power retrofit applications or when overcurrent protection is unnecessary. This cost-effective solution does not include distribution or the provision for battery strings.

Get Brochure Get Manual
Best Suited For:
  • Telecom


Minimize total cost of ownership with high efficiency eSure rectifiers
Reduce the need for specialized cooling with high temperature operation
Deploy the power system where 120VAC is the only input option
Keep your network power source secure with encrypted controller communication
Extend the life of your batteries with the available battery management tools
Achieve energy savings with ECO mode, even at low loads
Have peace of mind with this UL and NEBS power system
Minimize installation time and drive planned network conformity with custom configuration files
Reduce your off-grid generator runtime with solar / hybrid input
Optimize your battery capacity with priority and non priority load shedding
Solar / hybrid capability – reduces grid dependency


High efficiency – 96.2% efficient eSure rectifiers
Wide operating temperature range – rectifiers function at -40 °C to +80 °C (up to +65 °C without de-rating)
Selectable AC input - 120VAC, 208 to 240 VAC
Supports Ethernet, SNMP V2 & SNMP V3, ModBus and RS485 communication interfaces
Battery management capability
ECO energy savings mode
NEBS Level 3 compliance and UL Listed
Custom configuration file capability
Solar / hybrid capability
Up to two disconnect levels (LVD)

The NetSure 5000 Series, a compact -48 volt 160 A DC power solution, features an advanced control unit, up to (4) positions for 2000 W high-efficiency eSure rectifiers. The power system supports 19"W and 23"W rack mounting and is designed to work with a wide range of applications.

NetSure 5100 58870530036
Product Overview
Power Capacity
Current Capacity
Up to 160A
System Type
Bulk subrack
Input Voltage, Nominal
120VAC, 208VAC, 240VAC
Input Voltage, Operational
85 VAC to 300 VAC
Input Connections
Molex cords
Equipment Dimensions (H x W x D)
1RU H x 19"W X 15"D
Front for Control, Rear for AC IN and DC Out
Output Voltage, Nominal
Output Voltage, Operational
-42 VDC to 58 VDC
Output Capacity
Peak Efficiency
Environmetal & Standard Compliance
Control and Monitoring
NCU Controller
Operating Temperature
-40C to 65C
Safety Compliance
UL 60950 Recognized
EMC Compliance
FCC Class B
