Product Overview
SKU VP7NA001
(Coming soon, please contact your local support)		 SKU
(Coming soon, please contact your local support)		 VP7N6017
(Coming soon, please contact your local support)		 VP7N3020 VP7N6019 VP7N3021 VP7N3022
Model Number MNU5MPW1-48CF13-8PS56D0D10-S MNU5MP1-48CF13-8HW56A9DXX-S MNU5MPW1-48CF13-6PS56D0D10-S MNU5MGW1-36CF13-3PS56D0D10-S-A MNU5MHB1-36CF18-6PS15D0D10-S-A MNU5MGW1-36CF18-3PS15D0D10-S-A MNU5MGB1-24CF18-3TL6A0D10-S
Input Voltage Range 200-240/346-415 WYE 200-240/346-415 WYE 200-240/346-415 WYE 200-240/346-415 WYE 208V Delta 208 Delta 208
Amperage 80 80 60 30 60 30 30
Dimensions: Inches (mm) LxWxD - - - 72in x 2in x 3in /  1829mm x 51mm x 76mm  66.25in x 3.8in x 3in / 1683mm x 97mm x 76mm 72in x 2in x 3in  / 1829mm x 51mm x 76mm  66.25in x 2in x 3in / 1829mm x 51mm x 76mm
Orientation Vertical Horizontal Vertical Vertical Vertical Vertical Vertical
Compliance Marks - - - UL & c-UL 62368-1, TAA, FCC, RoHS UL & c-UL 62368-1, TAA, FCC, RoHS UL & c-UL 62368-1, TAA, FCC, RoHS UL & c-UL 62368-1, TAA, FCC, RoHS
Input Parameters
Feeder Breaker Size 100 - - 30 60 30 30
Phases 3 3 3 3 3 3 1
kW 48 - 57.6 48 - 57.6 28.8 - 34.6 14.4 - 17.28 16.6 - 19.9 8.3 - 9.9 4.8 - 5.7
Plug Type Hardwired Hardwired IEC 60309 IEC 60309 IEC 60309 IEC 60309 L6-30P
Number of Breakers - - - 6 6 3 2
Output Parameters
C13/C19 Combination Outlet Count 48 24 48 36 36 36 24
Voltage Output - - - 240V 208V 208V 208V
Miscellaneous
Feed Location Top End Rear Top End Top End Top End Top End Top End
Region Availability Region Exclusive Region Exclusive Region Exclusive Region Exclusive Region Exclusive Region Exclusive Region Exclusive
Product Overview
SKU VP7N3023 VP7N32A0 VP7N2006 VP7N2007 VP7N2100 VP7N2008
Model Number MNU5MGB1-24CF18-3TL6A0B10-S MNU5MDR6-24CF18-3TL6A0H10-S MNU5MGM0-12CF13-2TL5A0B10-S MNU5MGB0-24CF13-2TL5A0B10-S MNU5M1R5-12CF13-2TL5A0H10-S MNU5MGA0-12MCM3-2TL5A0B10-S
Input Voltage Range 208 208 120 120 120 120
Amperage 30 30 20 20 20 20
Dimensions: Inches (mm) LxWxD 66.25in x 2in x 2.6in / 1683mm x 51mm x 66mm 3.44in x 17in x 12in / 87mm x 432mm x 305mm 34in x 2in x 2.6in / 864mm x 51mm x 66mm 66.25in x 2in x 2.6in / 1683mm x 51mm x 66mm 1.72in x 17in x 12in / 44mm x 432mm x 305mm 34in x 2in x 2.6in / 864mm x 51mm x 66mm
Orientation Vertical Horizontal Vertical Vertical Horizontal Vertical
Compliance Marks UL & c-UL 62368-1, TAA, FCC, RoHS UL & c-UL 62368-1, TAA, FCC, RoHS UL & c-UL 62368-1, TAA, FCC, RoHS UL & c-UL 62368-1, TAA, FCC, RoHS UL & c-UL 62368-1, TAA, FCC, RoHS UL & c-UL 62368-1, TAA, FCC, RoHS
Input Parameters
Feeder Breaker Size 30 30 20 20 20 -
Phases 1 1 1 1 1 1
kW 4.8 - 5.7 4.8 - 5.7 1..6 - 1.92 1..6 - 1.92 1..6 - 1.92 1..6 - 1.92
Plug Type L6-30P L6-30P L5-20P L5-20P L5-20P L5-20P
Number of Breakers 2 2 0 0 0 0
Output Parameters
C13/C19 Combination Outlet Count 24 24 12 24 12 6 Combo / 6 NEMA
Voltage Output 208V 208V 120V 120V 120V 120V
Miscellaneous
Feed Location Top End Rear Bottom End Bottom End Rear Bottom End
Engineering Lead time Sample Region Exclusive Region Exclusive Region Exclusive Region Exclusive Region Exclusive Region Exclusive

Product legend

Available

Coming Soon

End of Life

Document
Product Overview
SKU VP7P3005
(Coming soon, please contact your local support)		 VP7P3006
(Coming soon, please contact your local support)		 VP7P3002 VP7P3003 VP7P2000 VP7P2001 VP7P2100
Model Number MPU5MHW1-48CF18-3JL15A5D10-S-A MPU5MHW1-48CF18-3JL15A5B10-S-A MPU5MGB1-24CF18-3JL6A5D10-S MPU5MGB1-24CF18-3JL6A5B10-S MPU5MGM0-12CF13-2JL5A5B10-S MPU5MGB0-24CF13-2JL5A5B10-S MPU5M1R5-12CF13-2JL5A5H10
Input Voltage Range 200 200 200 200 100 100 100
Amperage 30 30 30 30 20 20 20
Dimensions: Inches (mm) LxWxD - - 66.25in x 2in x 3in / 1829mm x 51mm x 76mm 66.25in x 2in x 2.6in / 1683mm x 51mm x 66mm 34in x 2in x 2.6in / 864mm x 51mm x 66mm 66.25in x 2in x 2.6in / 1683mm x 51mm x 66mm 1.72in x 17in x 12in / 44mm x 432mm x 305mm
Orientation Vertical Vertical Vertical Vertical Vertical Vertical Horizontal
Compliance Marks - - TAA, RoHS, METI DENAN TAA, RoHS, METI DENAN TAA, RoHS, METI DENAN TAA, RoHS, METI DENAN TAA, RoHS, METI DENAN
Input Parameters
Feeder Breaker Size 30 30 30 30 20 20 20
Phases 3 3 1 1 1 1 1
kW 10.38 10.38 6.00 6.00 2.00 2.00 2.00
Plug Type IEC 60309 IEC 60309 L6-30P L6-30P L5-20P L5-20P L5-20P
Number of Breakers 3 3 2 2 0 0 0
Output Parameters
C13/C19 Combination Outlet Count 48 48 24 24 12 24 12
Voltage Output - - 200V 200V 100V 100V 100V
Miscellaneous
Feed Location Top End Bottom End Top End Bottom End Bottom End Bottom End Rear
Region Availability Region Exclusive Region Exclusive Region Exclusive Region Exclusive Region Exclusive Region Exclusive Region Exclusive

Product legend

Available

Coming Soon

End of Life

Document
Product Overview
SKU VP7G7007
(Coming soon, please contact your local support)		 VP7G3000 VP7U3003 VP7G7008 VP7G7009

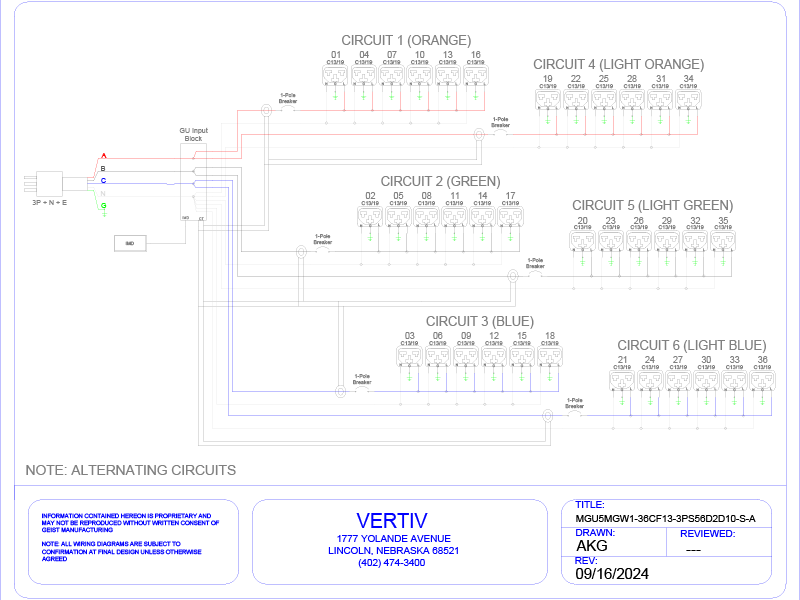

Model Number MGU5MPW1-48CF13-6PS56D2D10-S MGU5MGW1-36CF13-3PS56D2D10-S-A MUU5MGW1-36CF13-3PS56D4D10-S-A MGU5MGW1-36CF13-6PS6D2D10-S-A MGU5MGW1-36CF13-6PS6D2B10-S-A
Input Voltage Range 200-240/346-415 WYE 200-240/346-415 WYE 200-240/346-415 WYE 230 230
Amperage 63 32 32 63 63
Dimensions: Inches (mm) LxWxD - 72in x 2in x 3in / 1829mm x 51mm x 76mm 66.25in x 2in x 3in / 1829mm x 51mm x 76mm 75in x 2.2in x 3in / 1905mm x 56mm x 76mm 75in x 2.2in x 2.6in / 1905mm x 56mm x 66mm
Orientation Vertical Vertical Vertical Vertical Vertical
Compliance Marks - IEC 62368-1, TAA, CE, UKCA, RCM Mark, C Mark, RoHS, EN 55032, EN 55024 METI DENAN, TAA, RoHS IEC 62368-1, CE, RoHS, EN 55032, EN 55024 IEC 62368-1, CE, UKCA, RCM Mark, C Mark, RoHS, EN 55032, EN 55024, China RoHS
Input Parameters
Feeder Breaker Size - 32 - 63 63
Phases 3 3 3 1 1
kW 37.8 - 45.4 19.2 - 23 19.2 - 24 12.6 - 14.4 12.6 - 14.4
Plug Type IEC 60309 IEC 60309 IEC 60310 IEC 60309 IEC 60309
Number of Breakers - 6 6 4 4
Output Parameters
C13/C19 Combination Outlet Count 48 36 36 36 36
Voltage Output - 240V 240V 230V 230V
Miscellaneous
Feed Location Top End Top End Top End Top End Bottom End
Region Availability APAC APAC APAC APAC APAC
Product Overview
SKU VP7G9029 VP7G9030 VP7G9200 VP7G8020 VP7G8101

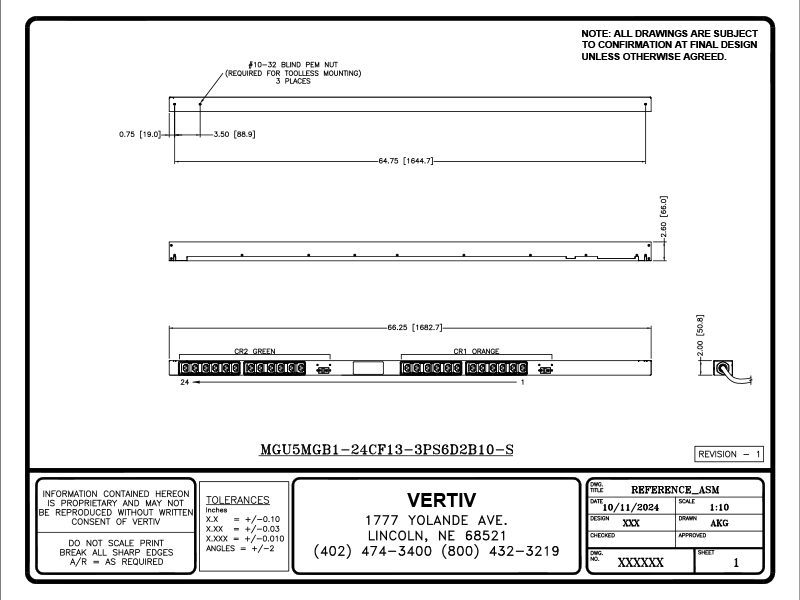

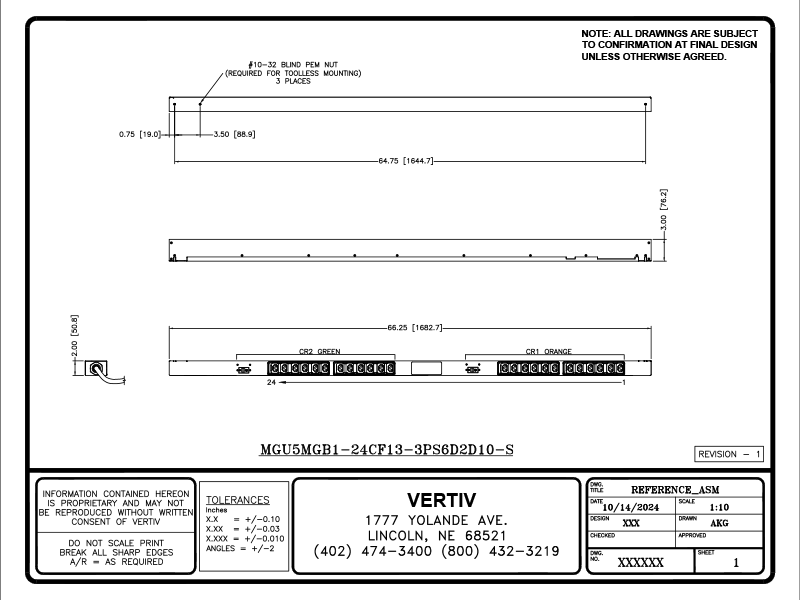

Model Number MGU5MGB1-24CF13-3PS6D2D10-S MGU5MGB1-24CF13-3PS6D2B10-S MGU5MDR6-24CF13-3PS6D2H10-S MGU5MGM0-12CF13-2PS6B2B10-S MGU5M1R5-12CF13-2PS6B2H10-S
Input Voltage Range 230 230 230 230 230
Amperage 32 32 32 16 16
Dimensions: Inches (mm) LxWxD 66.25in x 2in x 3in / 1829mm x 51mm x 76mm 66.25in x 2in x 2.6in / 1683mm x 51mm x 66mm 3.44in x 17in x 12in / 87mm x 432mm x 305mm 34in x 2in x 2.6in / 864mm x 51mm x 66mm 1.72in x 17in x 12in / 44mm x 432mm x 305mm
Orientation Vertical Vertical Horizontal Vertical Horizontal
Compliance Marks IEC 62368-1, TAA, CE, UKCA, C Mark, RoHS, EN 55032, EN 55035 IEC 62368-1, CE Mark, UKCA, EN 55032, EN 55035, RoHS, C Mark IEC 62368-1, CE Mark, UKCA, EN 55032, EN 55035, RoHS, C Mark, RCM, China RoHS IEC 62368-1, CE Mark, UKCA, EN 55032, EN 55035, RoHS, C Mark, RCM, China RoHS IEC 62368-1, CE Mark, UKCA, EN 55032, EN 55035, RoHS, C Mark, RCM, China RoHS
Input Parameters
Feeder Breaker Size 32 32 - 16 16
Phases 1 1 1 1 1
kW 6.4 - 7.36 6.4 - 7.36 6.4 - 7.36 3.2 - 3.68 3.2 - 3.69
Plug Type IEC 60309 IEC 60309 IEC 60309 IEC 60309 IEC 60309
Number of Breakers 2 2 2 0 0
Output Parameters
C13/C19 Combination Outlet Count 24 24 24 12 12
Voltage Output 230V 230V 230V 230V 230V
Miscellaneous
Feed Location Top End Bottom End Rear Bottom End Rear
Region Availability APAC APAC APAC APAC APAC

Product legend

Available

Coming Soon

End of Life

Document
Product Overview
SKU VP7G7007
(Coming soon, please contact your local support)		 VP7G3000 VP7U3003 VP7G7008 VP7G7009
Model Number MGU5MPW1-48CF13-6PS56D2D10-S MGU5MGW1-36CF13-3PS56D2D10-S-A MUU5MGW1-36CF13-3PS56D4D10-S-A MGU5MGW1-36CF13-6PS6D2D10-S-A MGU5MGW1-36CF13-6PS6D2B10-S-A
Input Voltage Range 200-240/346-415 WYE 200-240/346-415 WYE 200-240/346-415 WYE 230 230
Amperage 63 32 32 63 63
Dimensions: Inches (mm) LxWxD - 72in x 2in x 3in / 1829mm x 51mm x 76mm 66.25in x 2in x 3in / 1829mm x 51mm x 76mm 75in x 2.2in x 3in / 1905mm x 56mm x 76mm 75in x 2.2in x 2.6in / 1905mm x 56mm x 66mm
Orientation Vertical Vertical Vertical Vertical Vertical
Compliance Marks - IEC 62368-1, TAA, CE, UKCA, RCM Mark, C Mark, RoHS, EN 55032, EN 55024 METI DENAN, TAA, RoHS IEC 62368-1, CE, RoHS, EN 55032, EN 55024 IEC 62368-1, CE, UKCA, RCM Mark, C Mark, RoHS, EN 55032, EN 55024, China RoHS
Input Parameters
Feeder Breaker Size - 32 - 63 63
Phases 3 3 3 1 1
kW 37.8 - 45.4 19.2 - 23 19.2 - 24 12.6 - 14.4 12.6 - 14.4
Plug Type IEC 60309 IEC 60309 IEC 60310 IEC 60309 IEC 60309
Number of Breakers - 6 6 4 4
Output Parameters
C13/C19 Combination Outlet Count 48 36 36 36 36
Voltage Output - 240V 240V 230V 230V
Miscellaneous
Feed Location Top End Top End Top End Top End Bottom End
Region Availability EMEA EMEA EMEA EMEA EMEA
Product Overview

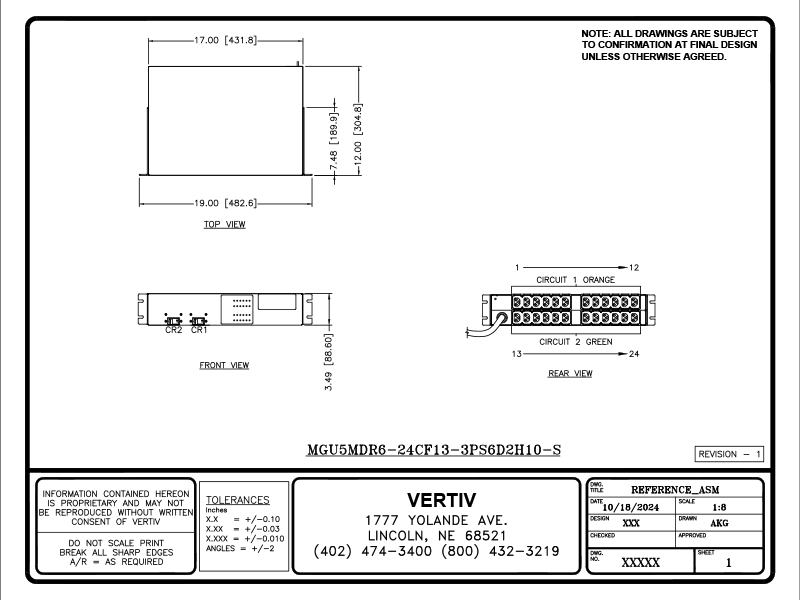

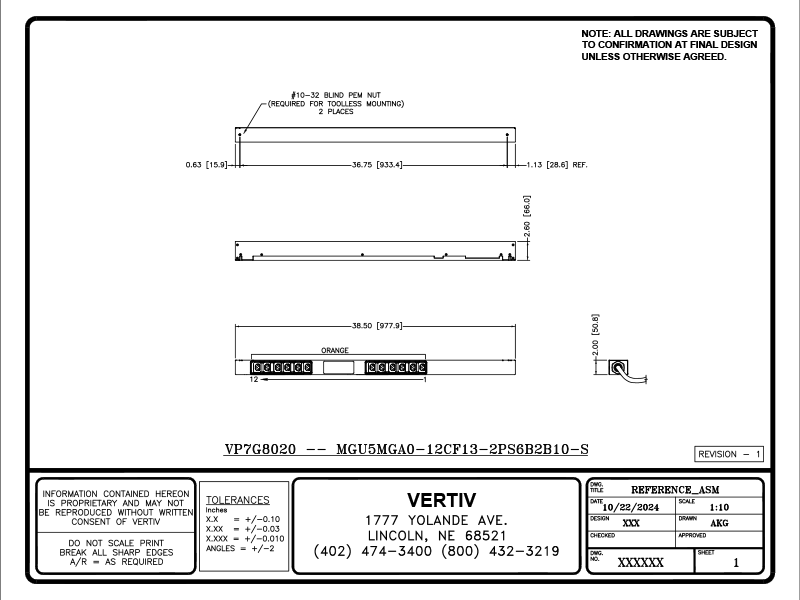

SKU VP7G9029 VP7G9030 VP7G9200 VP7G8020 VP7G8101
Model Number MGU5MGB1-24CF13-3PS6D2D10-S MGU5MGB1-24CF13-3PS6D2B10-S MGU5MDR6-24CF13-3PS6D2H10-S MGU5MGM0-12CF13-2PS6B2B10-S MGU5M1R5-12CF13-2PS6B2H10-S
Input Voltage Range 230 230 230 230 230
Amperage 32 32 32 16 16
Dimensions: Inches (mm) LxWxD 66.25in x 2in x 3in / 1829mm x 51mm x 76mm 66.25in x 2in x 2.6in / 1683mm x 51mm x 66mm 3.44in x 17in x 12in / 87mm x 432mm x 305mm 34in x 2in x 2.6in / 864mm x 51mm x 66mm 1.72in x 17in x 12in / 44mm x 432mm x 305mm
Orientation Vertical Vertical Horizontal Vertical Horizontal
Compliance Marks IEC 62368-1, TAA, CE, UKCA, C Mark, RoHS, EN 55032, EN 55035 IEC 62368-1, CE Mark, UKCA, EN 55032, EN 55035, RoHS, C Mark IEC 62368-1, CE Mark, UKCA, EN 55032, EN 55035, RoHS, C Mark, RCM, China RoHS IEC 62368-1, CE Mark, UKCA, EN 55032, EN 55035, RoHS, C Mark, RCM, China RoHS IEC 62368-1, CE Mark, UKCA, EN 55032, EN 55035, RoHS, C Mark, RCM, China RoHS
Input Parameters
Feeder Breaker Size 32 32 - 16 16
Phases 1 1 1 1 1
kW 6.4 - 7.36 6.4 - 7.36 6.4 - 7.36 3.2 - 3.68 3.2 - 3.69
Plug Type IEC 60309 IEC 60309 IEC 60309 IEC 60309 IEC 60309
Number of Breakers 2 2 2 0 0
Output Parameters
C13/C19 Combination Outlet Count 24 24 24 12 12
Voltage Output 230V 230V 230V 230V 230V
Miscellaneous
Feed Location Top End Bottom End Rear Bottom End Rear
Region Availability EMEA EMEA EMEA EMEA EMEA

Product legend

Available

Coming Soon

End of Life



Documents and Downloads

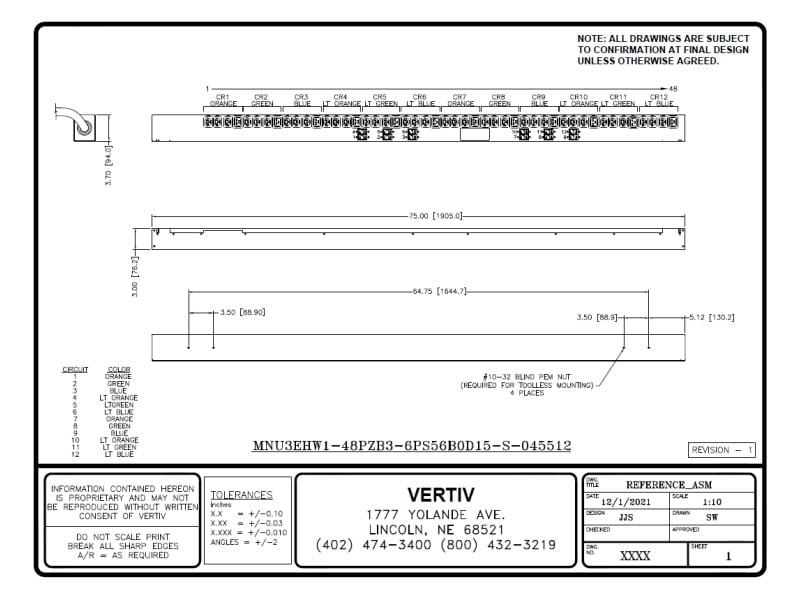

VP7N6009

Manuals

Firmwares1

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7GA000

Manuals

Firmwares1

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

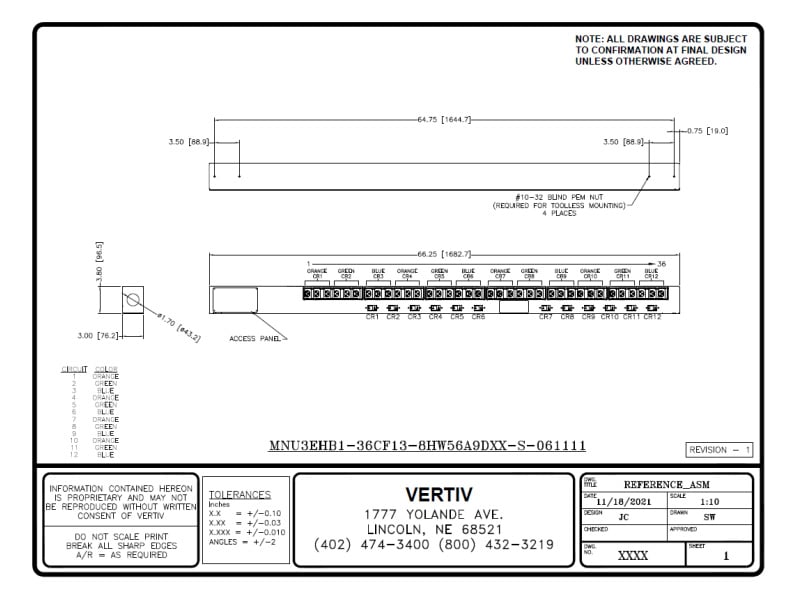

VP7UA000

Manuals

Firmwares1

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

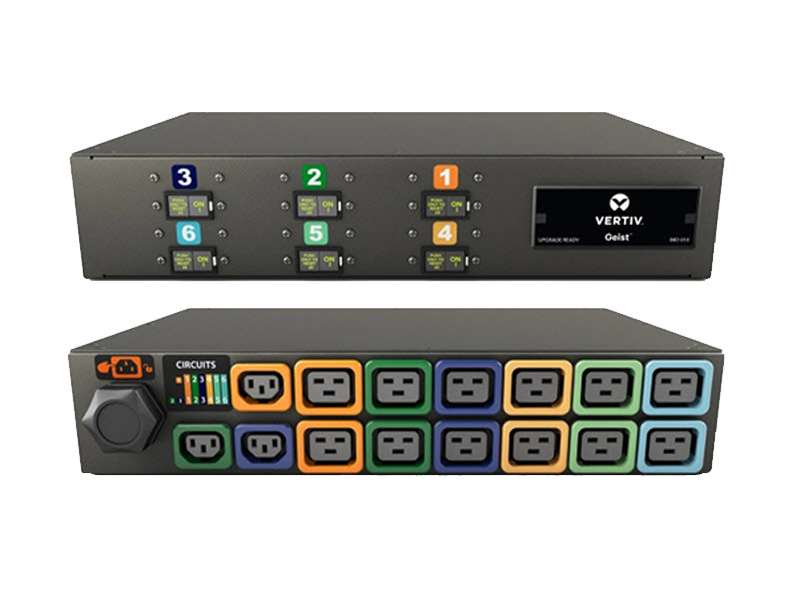

I10047L

Manuals

Firmwares1

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

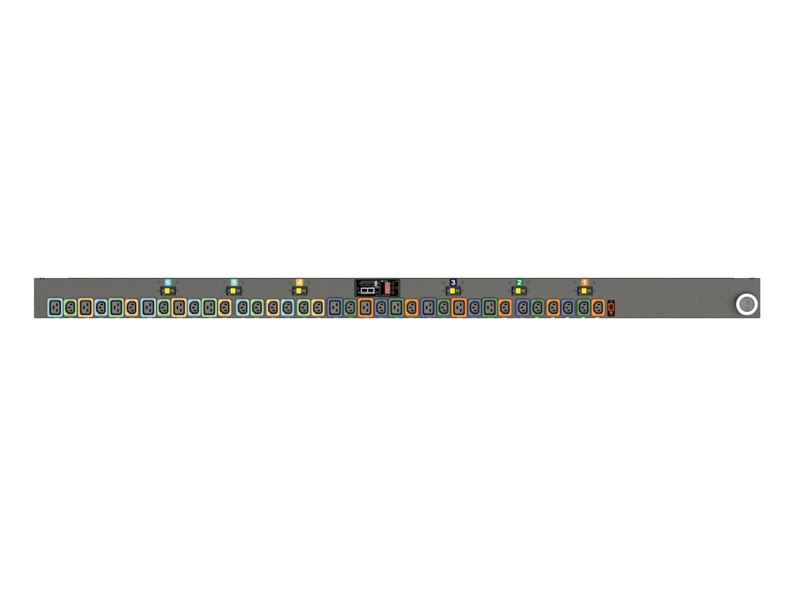

NS30045L

Manuals

Firmwares1

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

NU30212

Manuals

Firmwares1

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7N3020

@Model.DocumentTitle

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7N6019

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7N3021

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7N3022

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7N3023

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7N32A0

Manuals

Firmwares1

!--Start of Data Sheets-->

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7N2006

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7N2007

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7N2100

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7N2008

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7P3002

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

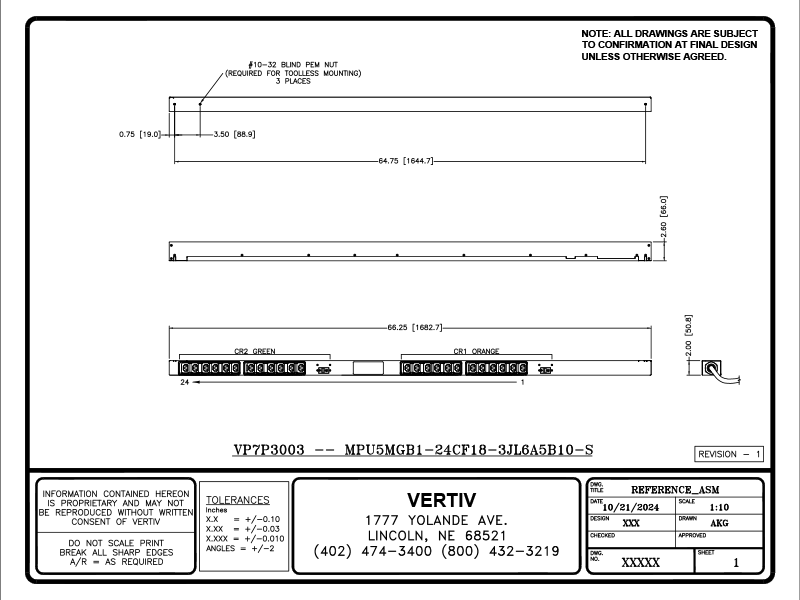

VP7P3003

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7P2000

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

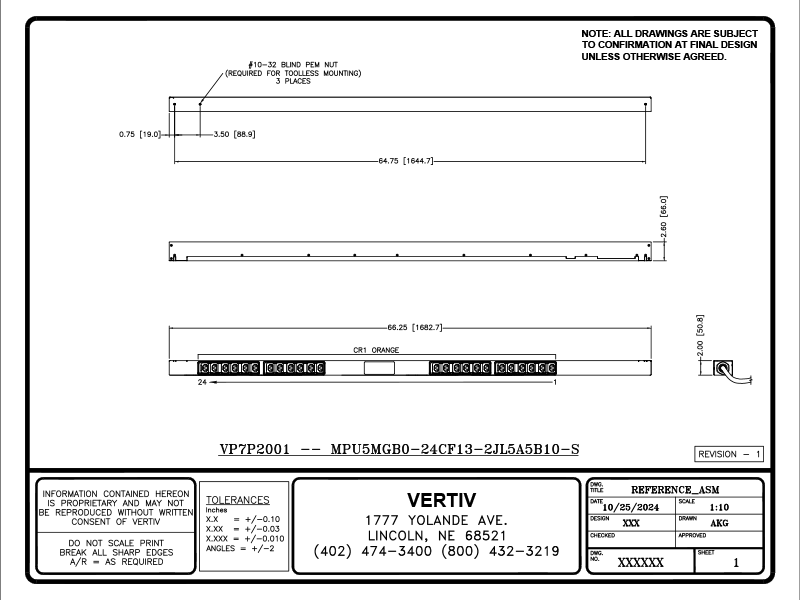

VP7P2001

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7P2100

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7G3000

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

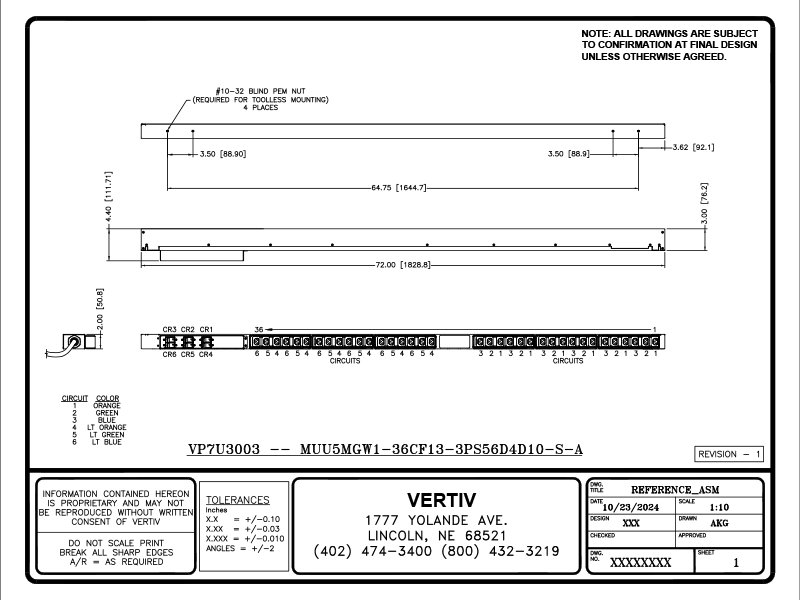

VP7U3003

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

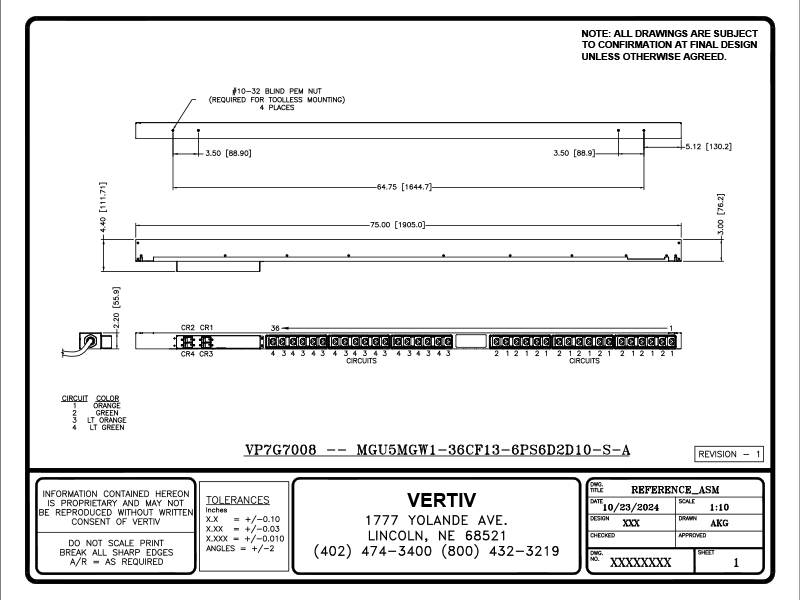

VP7G7008

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7G7009

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7G9029

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7G9030

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7G9200

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7G8020

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP7G8101

Manuals

Firmwares1

DATA SHEET

ELECTRICAL MODEL

DRAWING

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v6 Firmware series.

VP5665V

Manuals

Firmwares1

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v5 Firmware series.

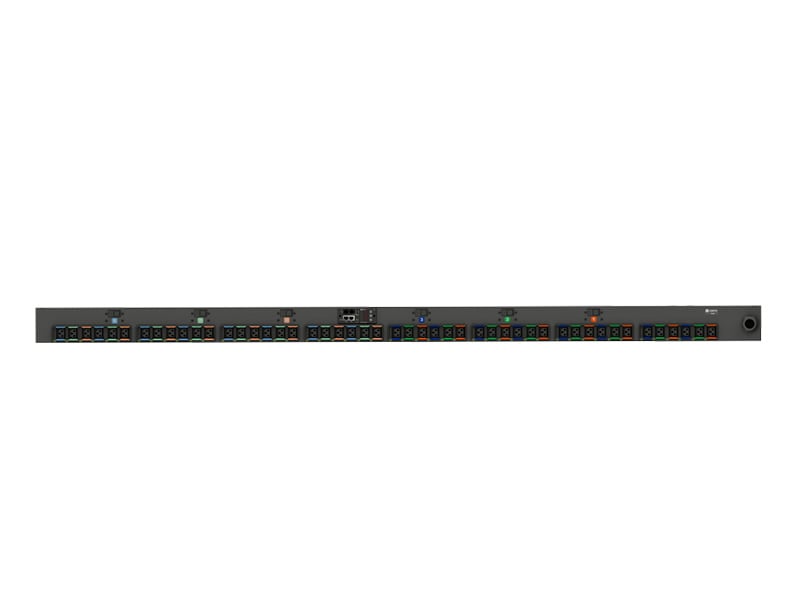

VP7G9007

Manuals

Firmwares1

1 NVIDIA intelligent rack PDUs fall under Geist Upgradable v5 Firmware series.

Vertiv Rack PDU Warranty Claim & RMA procedure

Upon the user’s discovery of a suspected defect, user must contact Vertiv via the following numbers with the description of defect, unit serial number, model number, and firmware version.

Upon receipt of user’s call, Vertiv Technical Support will provide remote support and attempt to resolve the issue in real time, if possible; or otherwise confirm unit defect.

Upon conformation of defect, Vertiv shall either repair or replace defective product. For products to be repaired, Vertiv will issue a Return Materials Authorization (RMA) number. Vertiv will designate a shipping address for each authorized return when RMA is generated.

Vertiv Toll-free Support Contacts

AMERICAS

800-222-5877 option 2

EMEA

+00 800 1155-4499

APAC

+1 888 630 4445

EMAIL

geistsupport@vertiv.com or
liebert.monitoring@vertiv.com

Vertiv Quality Root Cause Analysis Report (RCAR) request processes contacts

Contact Vertiv Applications Engineering & Tech Support

Rack PDU, Cards, Sensors, Software:
Monitoring Applications Engineering

geistsupport@vertiv.com or
liebert.monitoring@vertiv.com

Phone:
Americas: 800-222-5877 option 2
EMEA: +00 800 1155-4499
APAC: +1 888 630 4445

Single Phase UPS, Racks/Row:
Channel Applications Engineering

Phone: 800-222-5877 option 1
liebert.upstech@vertiv.com

Phone:
Americas: 800-222-5877 option 2
EMEA: +00 800 1155-4499
APAC: +1 888 630 4445

How we process your request

Request flowchart_1500.png
PRODUCTS & SERVICES
Overview
Critical Power
Overview Uninterruptible Power Supplies (UPS) Energy Storage System DC Power Systems Power Distribution Static Transfer Switches Switchgear and Switchboard Busway and Busduct
Thermal Management
Overview Liquid Cooling Solutions Enclosure Cooling Room Cooling In-Row Cooling Rack Cooling Evaporative Free Cooling Free Cooling Chillers Heat Rejection Thermal Control and Monitoring
Racks & Enclosures
Overview Integrated Solutions Racks & Containment Outdoor Enclosures
Monitoring & Management
Overview Digital Infrastructure Solutions Embedded Device Management Serial Console IP KVM Switches High Performance KVM LCD Tray Desktop KVM and KM Secure KVM Software Monitoring
Services
Overview Project Services UPS & Battery Services Digital Services Thermal Services DC Power Services Software Switchgear and Busway Services Liquid Cooling Services
Tools and Product Registration
AI Reference Design Selector Vertiv Modular Designer Use the rPDU Finder Compare UPS Products Consultants Corner Compare IT Management Products Compare Racks Products Product Registration Download the Vertiv™ XR App Download the Vertiv™ Virtual Showroom App Virtually Test Cooling Systems in our Labs’ Digital Twins
SOLUTIONS
Overview
Artificial Intelligence
Overview AI Hub Vertiv™ 360AI
Industries
Colocation & Cloud Government Healthcare Manufacturing Retail Education Telecom
Offerings
Overview Chilled Water Solutions Dynamic Power Prefabricated Modular Solutions Edge Data Center
Learn About
Overview Data Center Liquid Cooling Battery Energy Storage System Hydrogen Fuel Cells
Vertiv Guides
AI Hub Data Center Sustainability Edge Computing Mission-Critical Facility Services
SUPPORT
Overview
Self-help tools
Overview Product Documentation Software/Firmware Updates Warranty Information Quality Policy & Certifications Information and Product Security Report a Security Concern Register Your Product Tools & Applications Discontinued Products Frequently Asked Questions Open Source Software Information
Submit a support request
Overview General Inquiry/Issue Resolution Hardware Software Returns (RMA)
Support for Vertiv brands
Avocent maintenance program overview Avocent support contacts Busway and Busduct BIM library
ABOUT
Overview
About Vertiv
Overview Executives Fact Sheet Fact Sheet Ethics & Compliance Responsible Business Sustainability Spotlight Awards and Recognition Become a Supplier Connect With Us
News & Insights
Overview News Releases Vertiv Blog Analyst Reports In the News Events Media & Analyst Contacts Webcasts Podcasts Customer Case Studies
Career Center
Overview View all jobs Working at Vertiv Start your journey
Trusted names
Overview Alber™ Avocent® Energy Labs Geist™ Liebert® NetSure™
PARTNERS
Overview
Partner Portal
Overview Partner Login Apply Now Find an IT Distributor Service Partner Programs
INVESTORS
CONTACT
Partner Login

Language & Location
