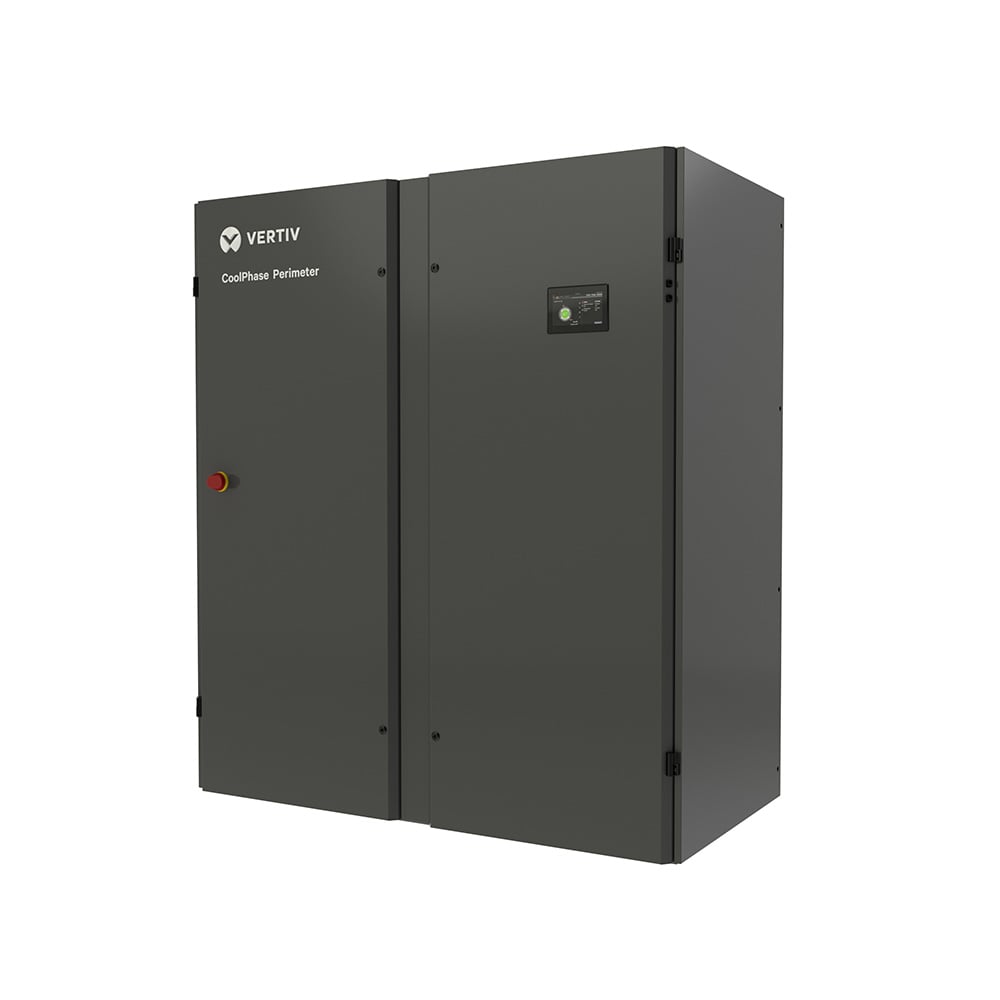

Vertiv™ CoolPhase Perimeter - DX Floor Mount, PAM010-140, R513A

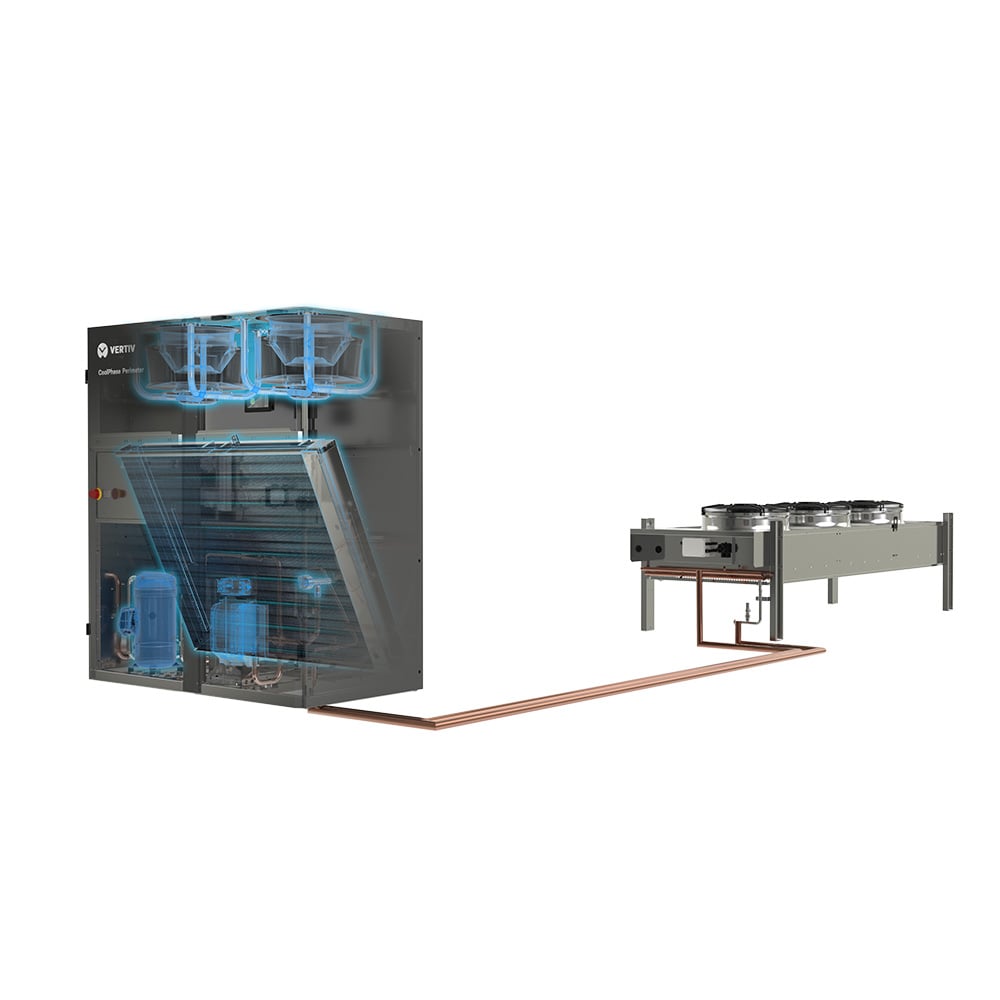

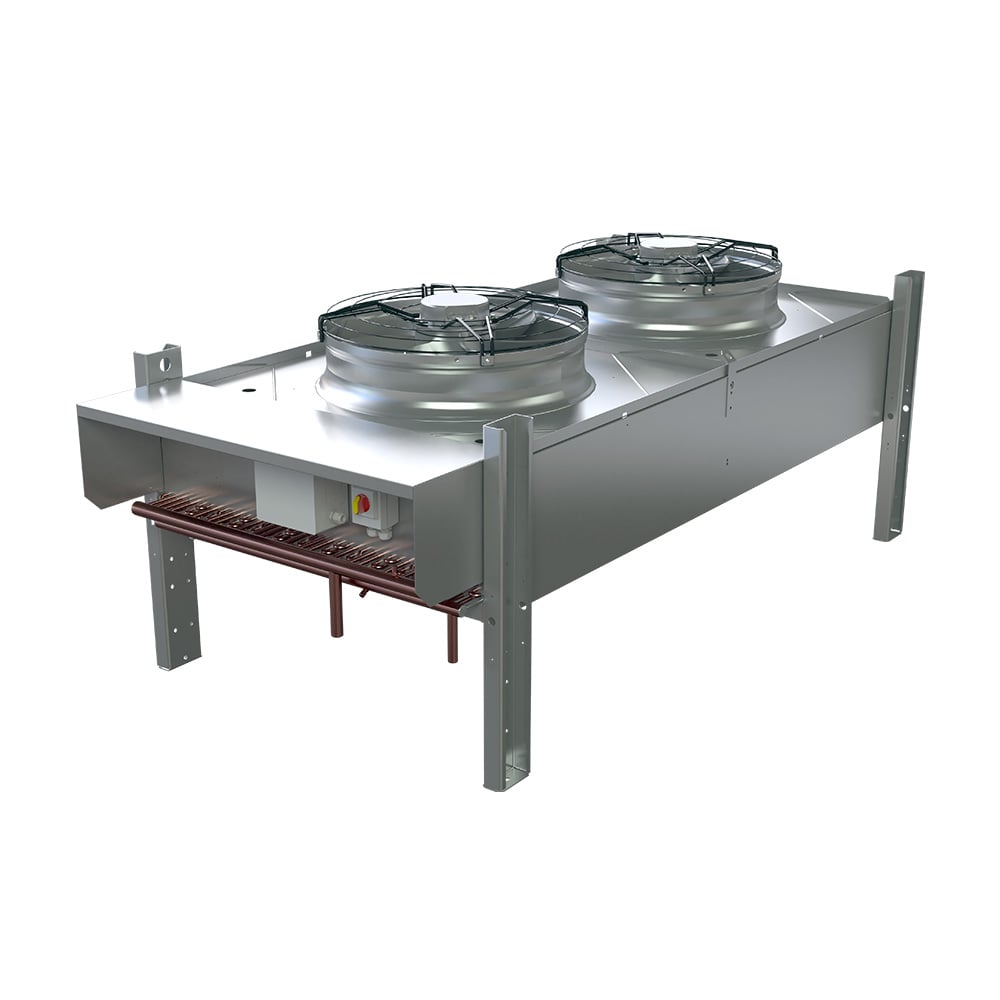

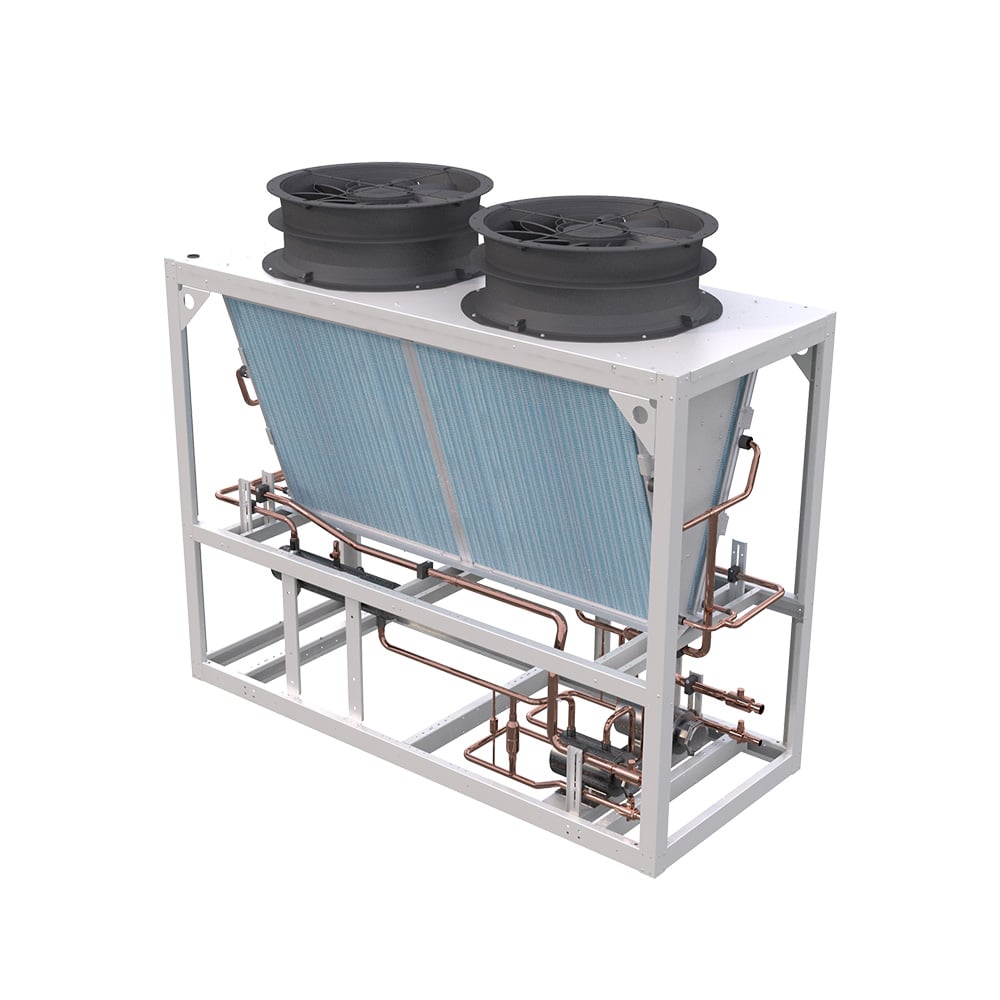

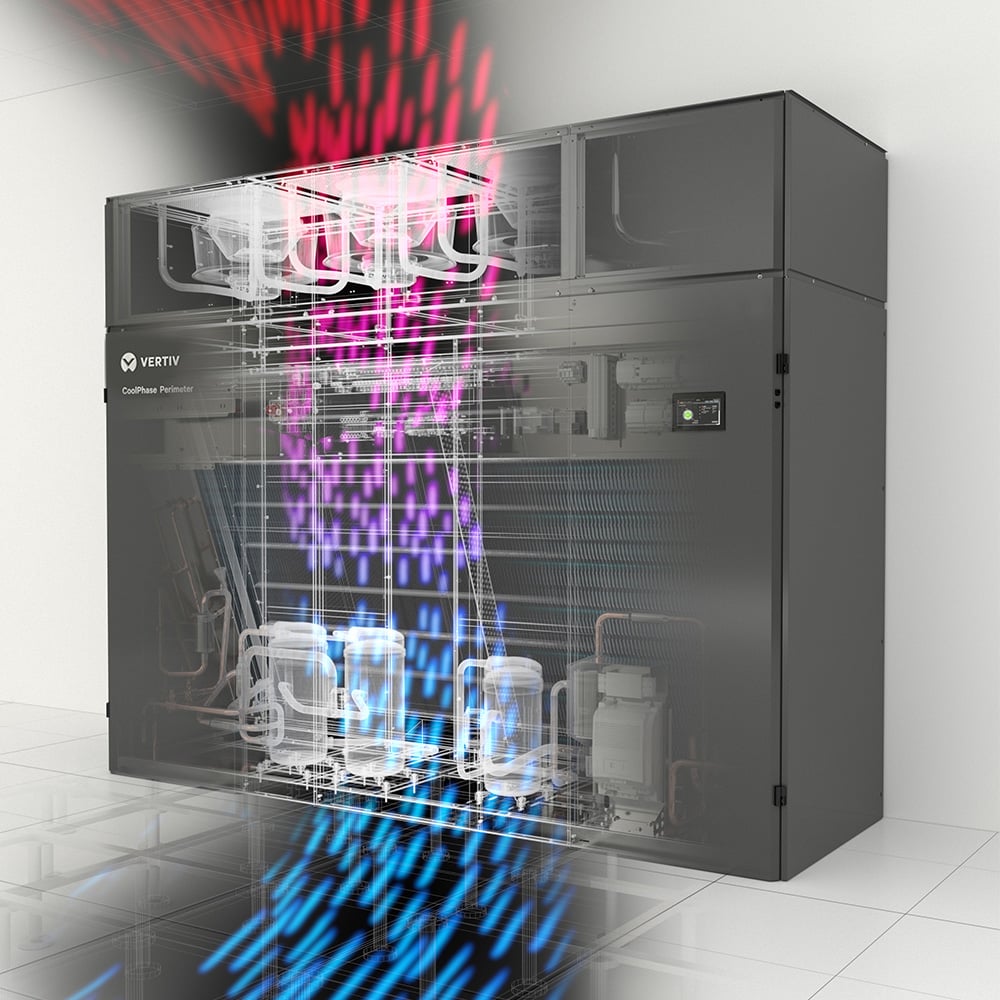

Vertiv™ CoolPhase Perimeter is the indoor floor-mounted unit designed to operate with inverter-driven compressors and optimized for the eco-friendly, non-flammable, low-toxicity R513A refrigerant (A1, GWP=633). Available in both air-cooled and water-cooled configurations, with the optional Vertiv™ EconoPhase free cooling function. In conjunction with the Vertiv CoolPhase Perimeter units, a wide choice of Vertiv™ CoolPhase Condenser solutions is available for managing heat rejection to the outside, depending on specific system configurations.
Specifications

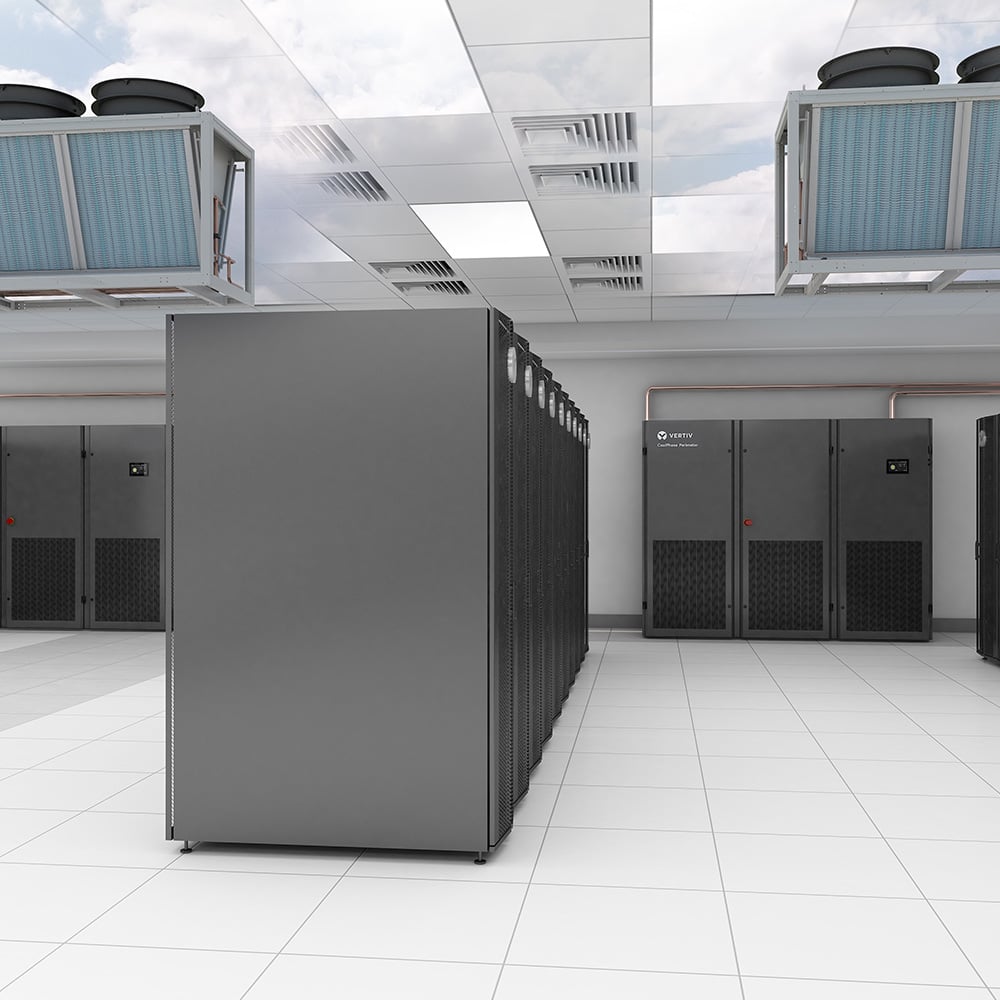

Deliver up to 160 kW of precision air cooling with the Vertiv™ CoolPhase Perimeter PAM range. These indoor, floor-mounted units use direct expansion technology and feature inverter-driven compressors for maximum efficiency. The design supports the eco-friendly, non-flammable R513A refrigerant and offers both air-cooled models, with the optional Vertiv™ EconoPhase free cooling, and water-cooled configurations. Each unit comes equipped with onboard compressors to ensure reliable performance in mission-critical environments.
Benefits
- EFFICIENCY: continuous performance modulation, max part-load efficiency, reduced operating costs and, with the patented Vertiv™ EconoPhase, lower TCO, enhanced efficiency enabling free cooling.
- ECO-FRIENDLY: ideal solution for a low carbon data center using a completely safe, low-GWP R513A refrigerant solution. The absence of flammability risks simplifies installation and limits costs increase.
- UNIQUE FLEXIBILITY: a wide range of airflow configurations and delivery options, versatile, compact and easy to install, engineered for long service lifetime performance.
- COOLING CONTINUITY: reliable cooling continuity through teamwork: units operate together yet independently to allow uninterrupted performance.
Features

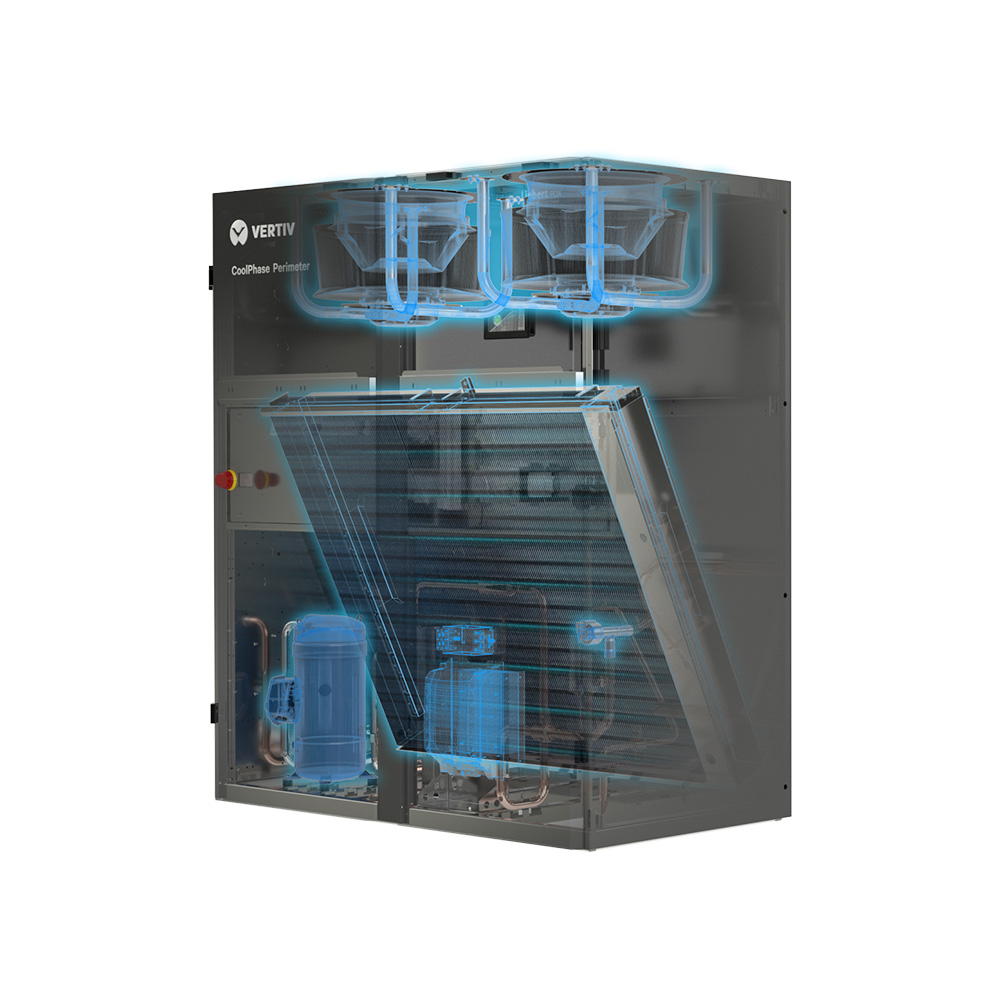

- INVERTER-DRIVEN BRUSHLESS MOTOR COMPRESSORS: with modulation capability down to 20% of maximum capacity allowing an optimum EER at part load conditions. Less compressor on/off cycles reducing starting current and improving power factor.

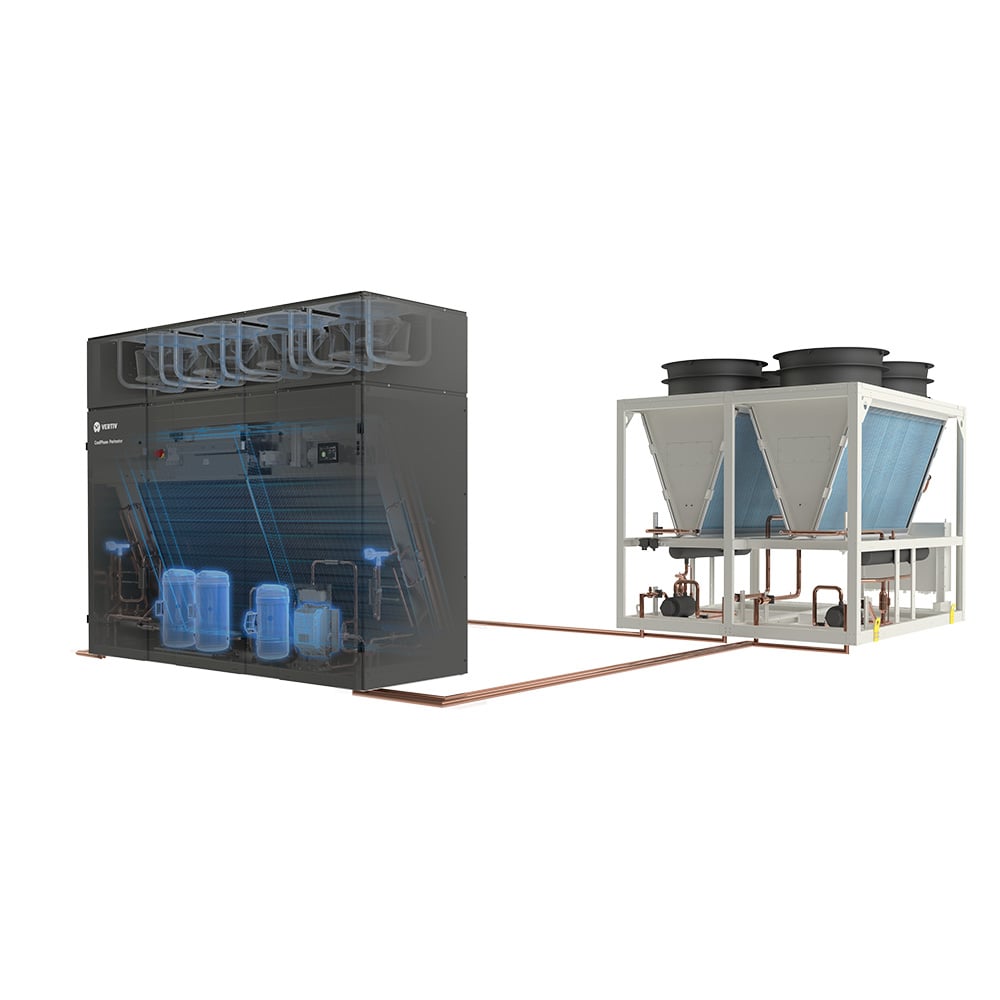

- VERTIV™ ECONOPHASE TECHNOLOGY: increases free cooling potential, delivering significant energy savings thus improving data center efficiency and lowering operating costs.
- LATEST GENERATION WITH LOW NOISE DESIGN CENTRIFUGAL EC FANS: with speed modulation down to 30% of maximum value.
- ELECTRONIC EXPANSION VALVE: allows precise control of the evaporator feeding permitting an increased evaporator efficiency thanks to an optimal superheat control.

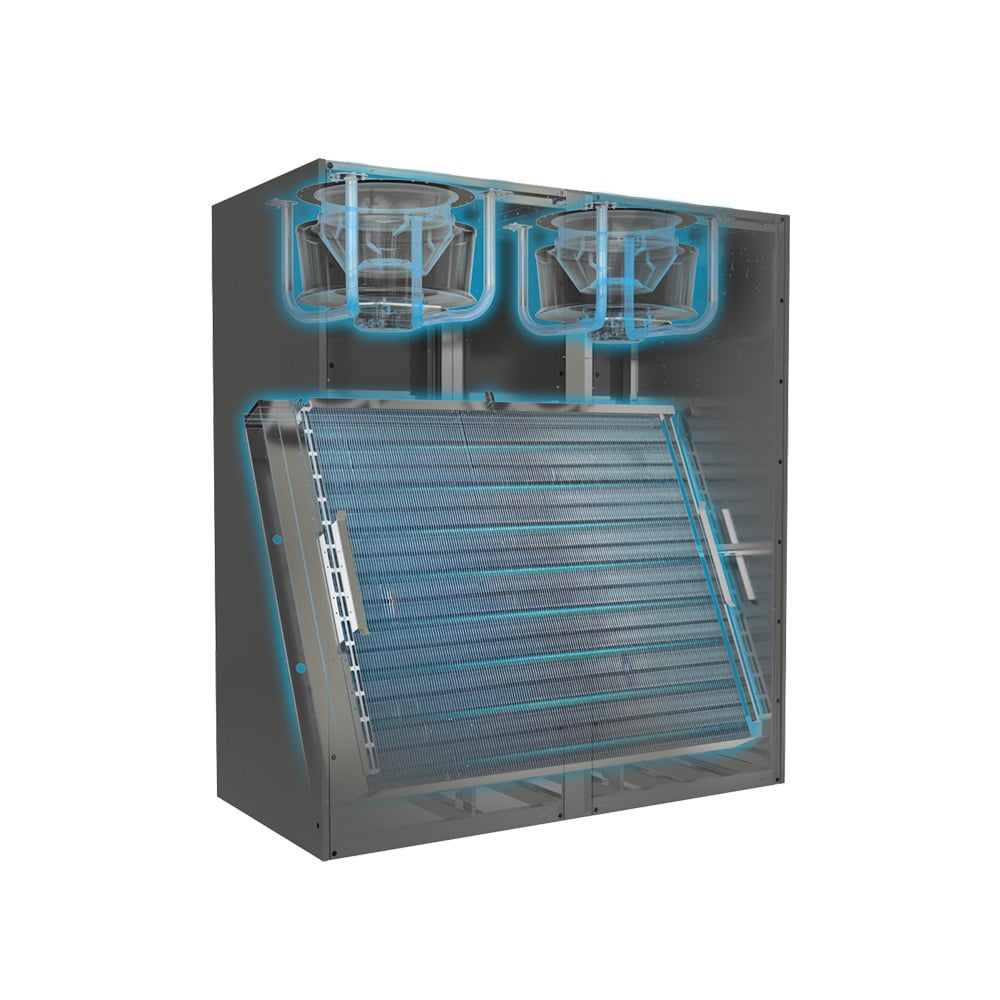

- STAGED COIL AND PATENTED FILTRATION: the extended and innovative filter surface allows for greater air flow, less air pressure drops and reduced fan consumption significantly improving ease of maintenance.
- VERTIV™ iCOM™ SMART CONTROL: the heart of the direct expansion cooling system, managing not only Vertiv™ CoolPhase Perimeter units, but also outdoor Vertiv™ CoolPhase Condensers.
