DS053, 53kW
- Banking
- Financial and Insurance
- Broadcast and Entertainment
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Benefits
- Highly energy efficient
- Exceeds the most stringent government efficiency requirements with NEMA premium efficiency motors
- Offers energy efficient variable speed EC fans on downflow configurations

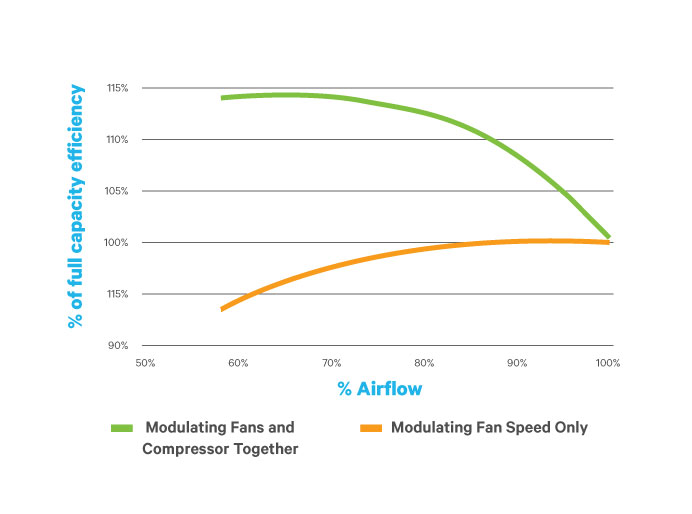

- Flexible cooling capacity via variable capacity compressors
- Requires only front access for service
- Installs easily due to modular frame construction
- Brings high-level supervision with Liebert® iCOM controls, allowing networking of multiple mission-critical cooling units
- Variable capacity control for ultimate control and reliability
- Redundancy through dual refrigeration circuits
Features
- R-454B low GWP refrigerant
- Precision cooling and humidity control
- Provides component redundancy compressors, motors and blowers
- Offers multiple configurations and sizes for flexible application
- Monitors and controls operation with Liebert® iCOM™
- Allows installation in upflow or downflow configurations, and in Air, Water, Glycol, GLYCOOL economizer models
- Offers ultra energy efficient GLYCOOL economizer and Dual Cool hybrid models
- Downflow models compatible with optional air economizer
- Available in 60Hz and 50Hz
Specifications

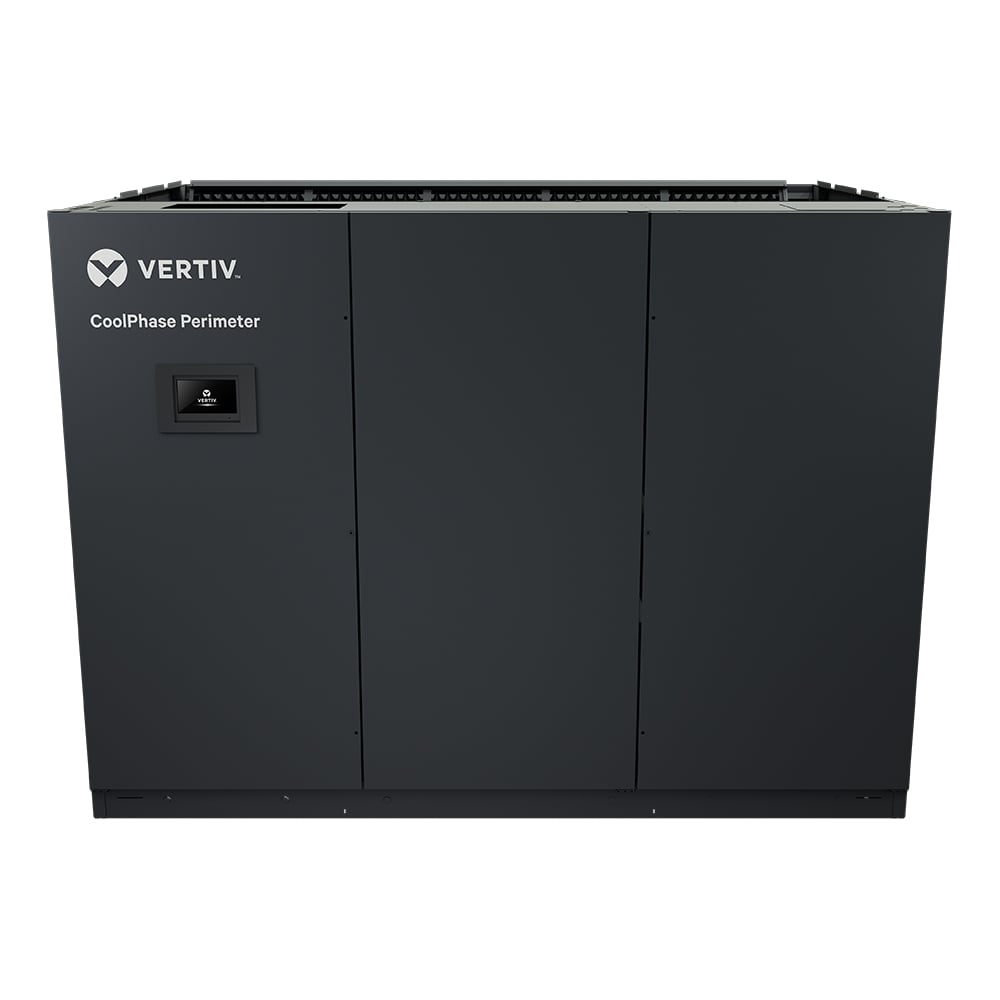

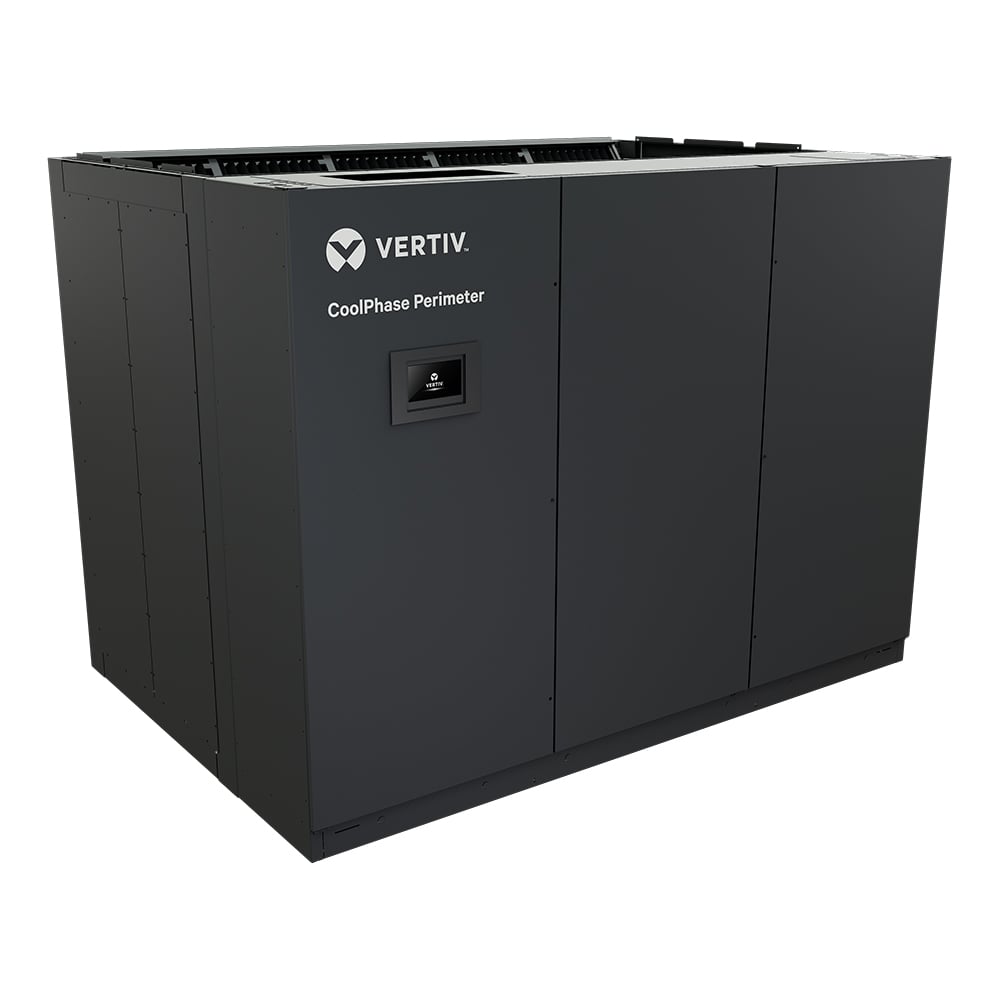

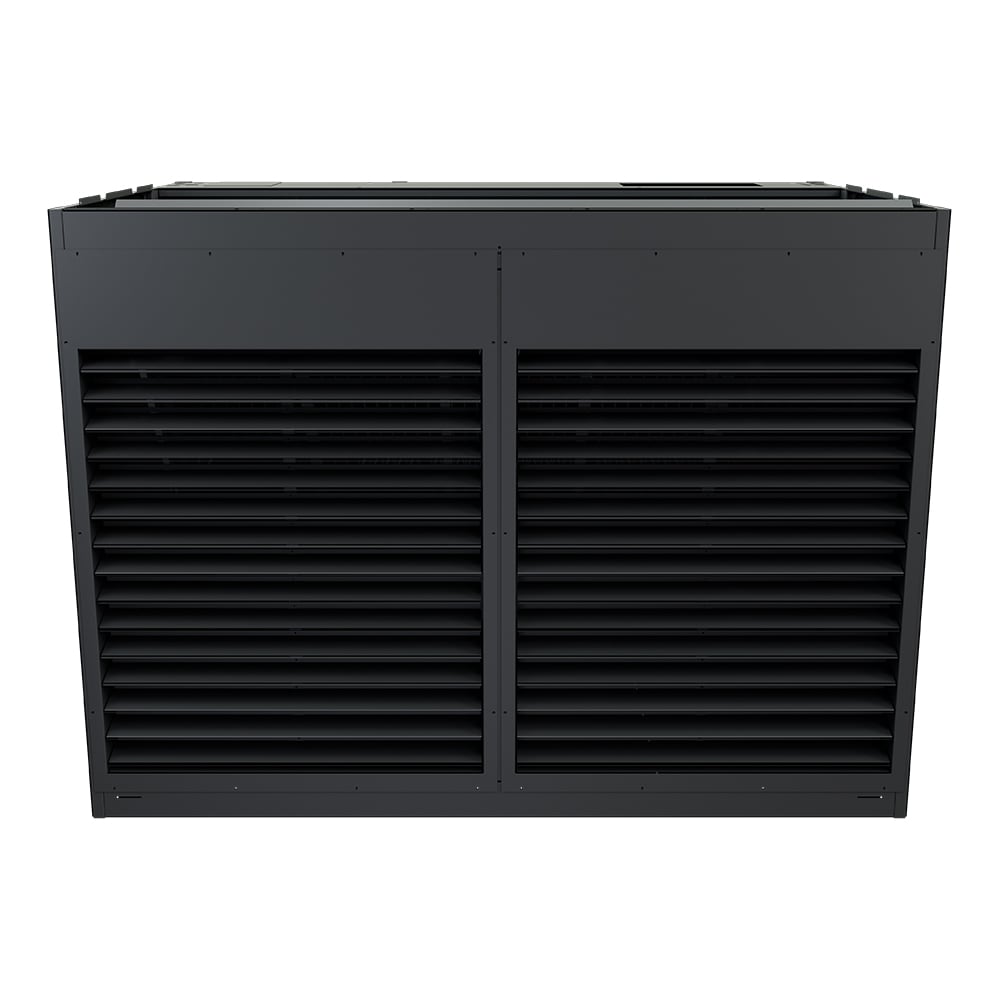

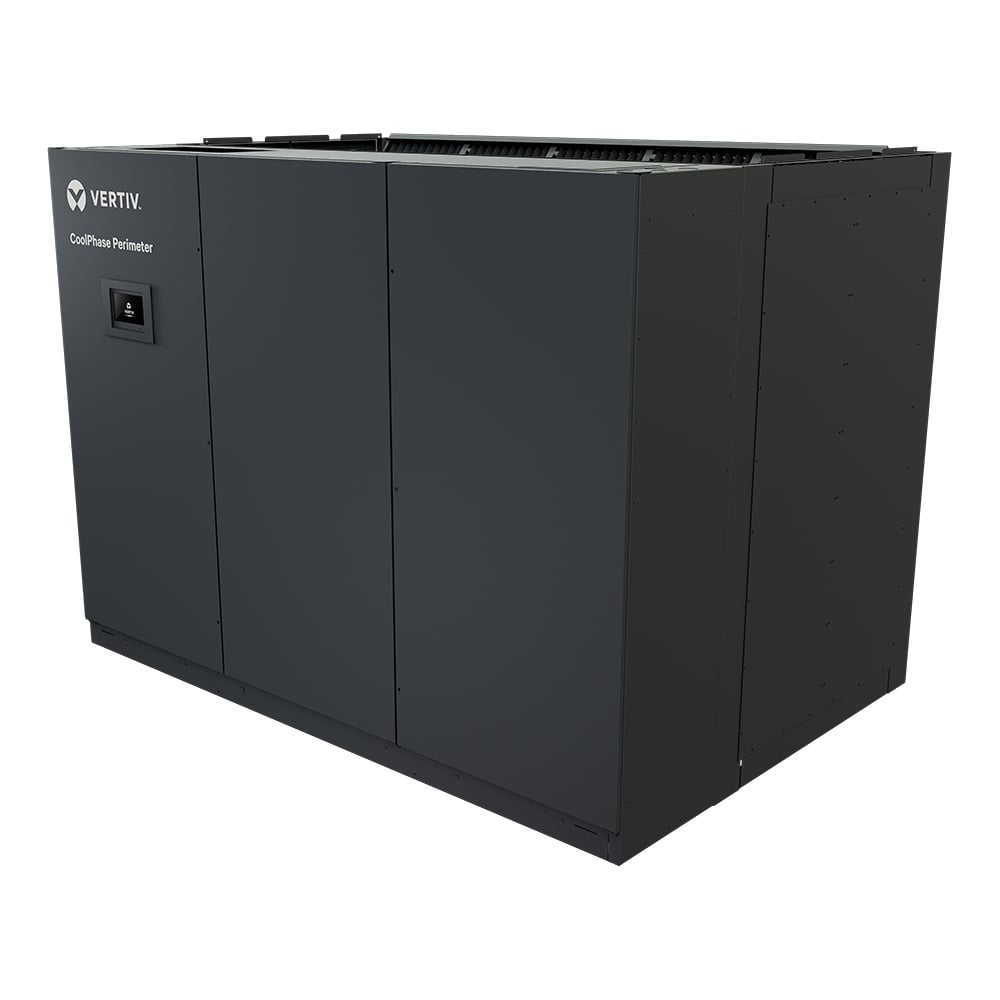

Vertiv™ CoolPhase Perimeter data center cooling system provides efficient, precise, reliable control of room temperature, humidity and airflow. The flexible unit offers high energy efficiency, user-friendly Vertiv™ Liebert® iCOM™ unit controls, a modular frame, front service access, and multiple compressor and fan options. Vertiv™ CoolPhase Perimeter is offered in both upflow and downflow models from 35-105kW (10-30 tons) capacities. Cooling types include air, water/glycol, and GLYCOOL™.
- Technical Specifications
- Total Nominal Capacity kBtuh [kW]
- 181 [53]
- Nominal Airflow [CFM]
- 8,000
- Total Capacity
- 181 kBTUh [53kW]
- Nominal Airflow
- 8,000 CFM
- Airflow Direction
- Front or Bottom Discharge
- Heat Rejection Medium
- Refrigerant, R454B
- Controls and Monitoring
- Vertiv™ Liebert® iCOM™
- Key Components
- CRAC, Packaged Condenser/Refrigerant Pump
- Physical Characteristics
- Weight
- 1920 lb
- Weight
- 871 kg
- Height
- 76 in
- Height
- 1930 mm
- Width
- 98 in
- Width
- 2489 mm
- Depth
- 35 in
- Depth
- 889 mm
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
