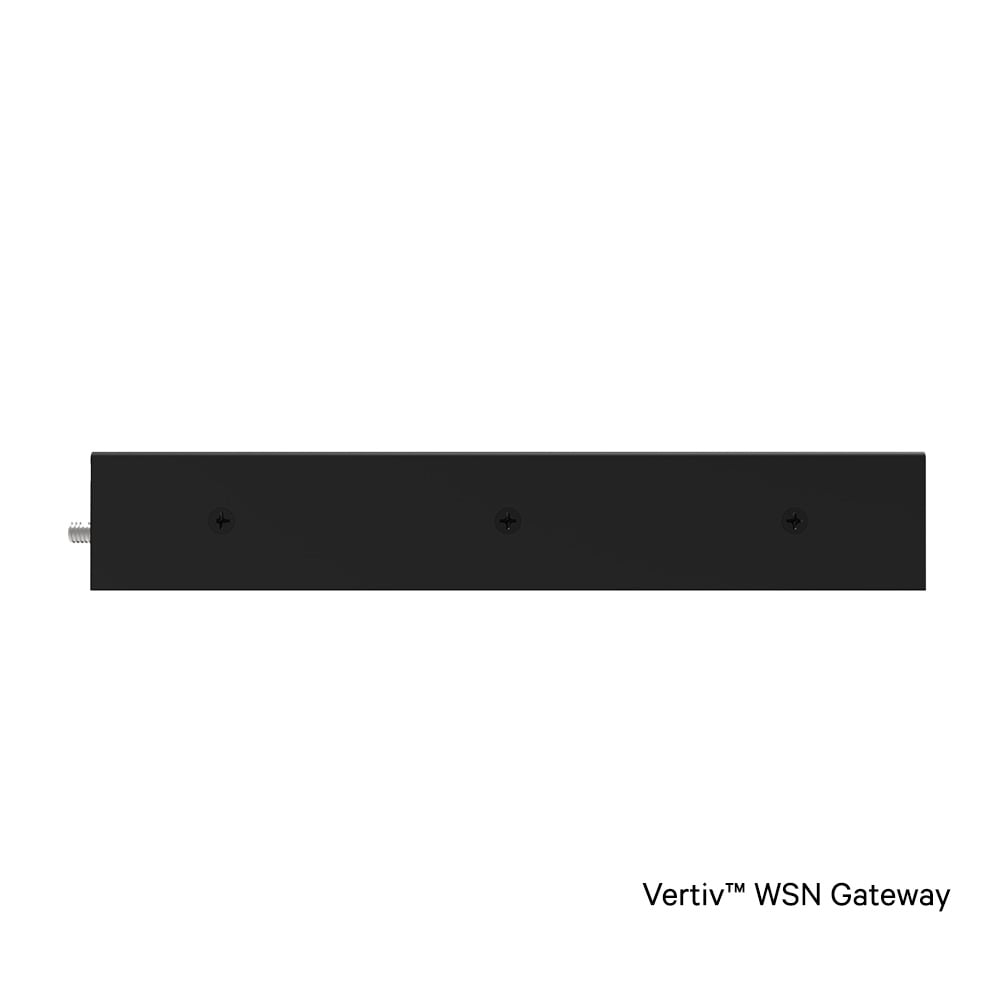

Vertiv™ WSN Gateway – Centralized Wireless Management
The Vertiv™ WSN Gateway serves as the central hub of the Vertiv™ Wireless Sensor Network, securely collecting data from wireless sensors and delivering it to monitoring systems through a unified web interface. It provides real‑time environmental visibility across data centers and critical facilities, supports sensor auto‑discovery, and integrates via SNMP or custom APIs. Together, these capabilities reduce installation complexity and enable scalable, efficient monitoring through a single interface.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking, Financial and Insurance
- Broadcast and Entertainment
- Data Center/Colocation/Hosting
- Construction and Engineering
- Education
- Government
- Healthcare
- Manufacturing
- Retail and Wholesale
- Telecom
- Transportation
Vertiv™ WSN Gateway – Centralized Wireless Management
The Vertiv™ WSN Gateway serves as the central hub of the Vertiv™ Wireless Sensor Network, securely collecting data from wireless sensors and delivering it to monitoring systems through a unified web interface. It provides real‑time environmental visibility across data centers and critical facilities, supports sensor auto‑discovery, and integrates via SNMP or custom APIs. Together, these capabilities reduce installation complexity and enable scalable, efficient monitoring through a single interface.
- Banking, Financial and Insurance
- Broadcast and Entertainment
- Data Center/Colocation/Hosting
- Construction and Engineering
- Education
- Government
- Healthcare
- Manufacturing
- Retail and Wholesale
- Telecom
- Transportation
Benefits
- LOWER DEPLOYMENT COSTS: The Vertiv™ WSN helps reduce deployment time and costs by minimizing materials, simplifying installs, and supporting fast sensor relocation.
- OPERATIONAL VISIBILITY: It provides centralized monitoring that enables faster identification of environmental issues.
- PRECISION MONITORING PLACEMENT: Flexible wireless placement enables more accurate, actionable environmental monitoring.
- BUILT-IN END-TO-END SECURITY: The built-in controlled device authentication and encrypted data help prevent unauthorized access and reduce security risks in wireless monitoring.
Features
- SCALABLE WIRELESS CONNECTIVITY: Wireless communication enables long‑range sensor coverage with simple onboarding through auto‑discovery or single‑button joining via the Vertiv™ WSN‑Gateway.
- SECURE CONTROL SAFEGUARDS: Multi‑layer encryption and controlled integration prevent unauthorized devices or sensor values from automatically influencing mission‑critical control systems.
- SEAMLESS PLATFORM INTEGRATION: Custom APIs support seamless integration with Vertiv and third‑party monitoring platforms.
- INTEGRATED SENSOR CAPABILITIES: Each wireless sensor includes temperature and humidity monitoring with an integrated beeper.
Specifications
The Vertiv™ WSN delivers improved environmental and data center thermal visibility while reducing deployment cost and network complexity. Using wireless technology, it supports long‑distance communication, extended sensor battery life, and scalable coverage from small rooms to large, multi‑room mission‑critical environments. A single gateway can connect to hundreds of sensors, simplifying expansion across larger areas.
- Technical Specifications
- Product Line
- Vertiv™ WSN
- Mounting
- 35mm Din Rail / Flat Surface
- User Interface
- Web UI
- Power Input
- Power Over Ethernet (PoE) on both LAN ports, Power draw from either source (IEC320-C14 AC Power Connection)
- Ports
- Dual 10/100/1000 base-TX RJ45 CAT5/6 Ethernet
- Operating Environment
- [Indoor] 0°C -> 60°C, non-condensing
- Web User Interface
- Yes
- SNMP
- Yes
- Notifications
- Refreshing data/notifications on Web UI
- Configuration Port
- via Web UI/Ethernet
- Environmental Sensors
- Receives Data from WSN-FLEX
- Direct Integration

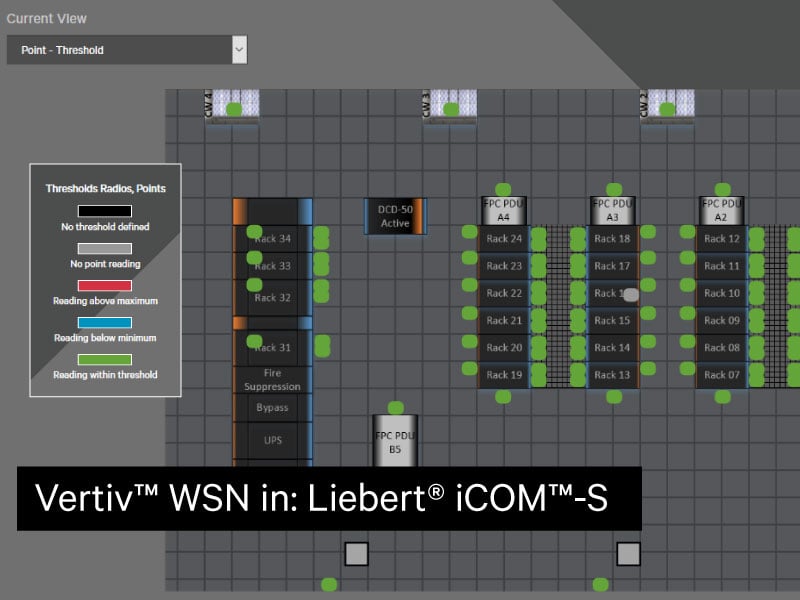

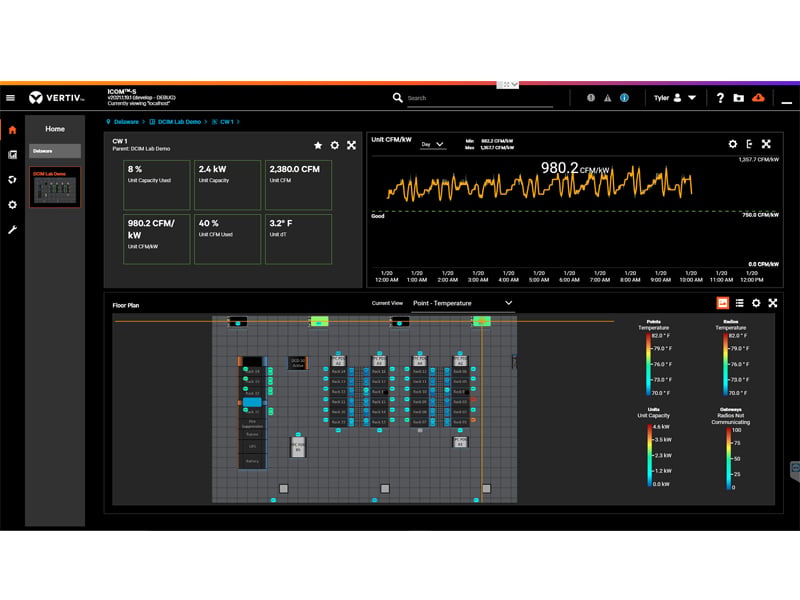

- BMS via SNMP, Vertiv™ Liebert® iCOM™-S via API
- Inputs
- via Ethernet / WSN-FLEX Sensors
- Networking
- Dual 10/100/1000 base-TX RJ45 CAT5/6 Ethernet
- Height
- 8.5 in
- Height
- 50.2 mm
- Width
- 9.6 in
- Width
- 89.7 mm
- Depth
- 1.6 in
- Depth
- 28.9 mm
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
