Product Model

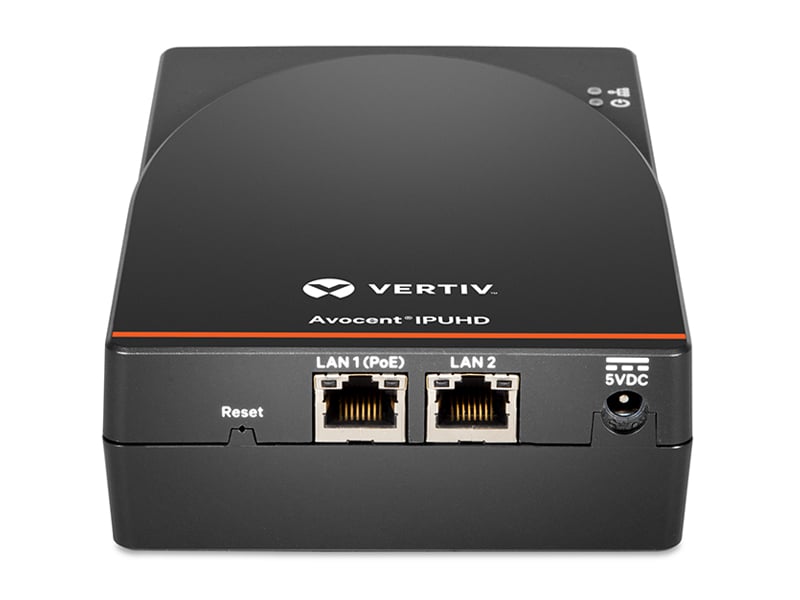

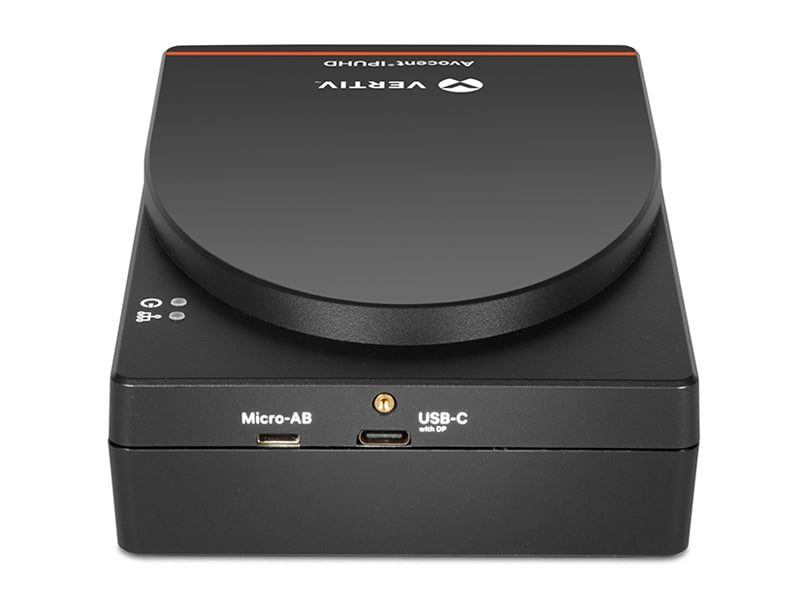

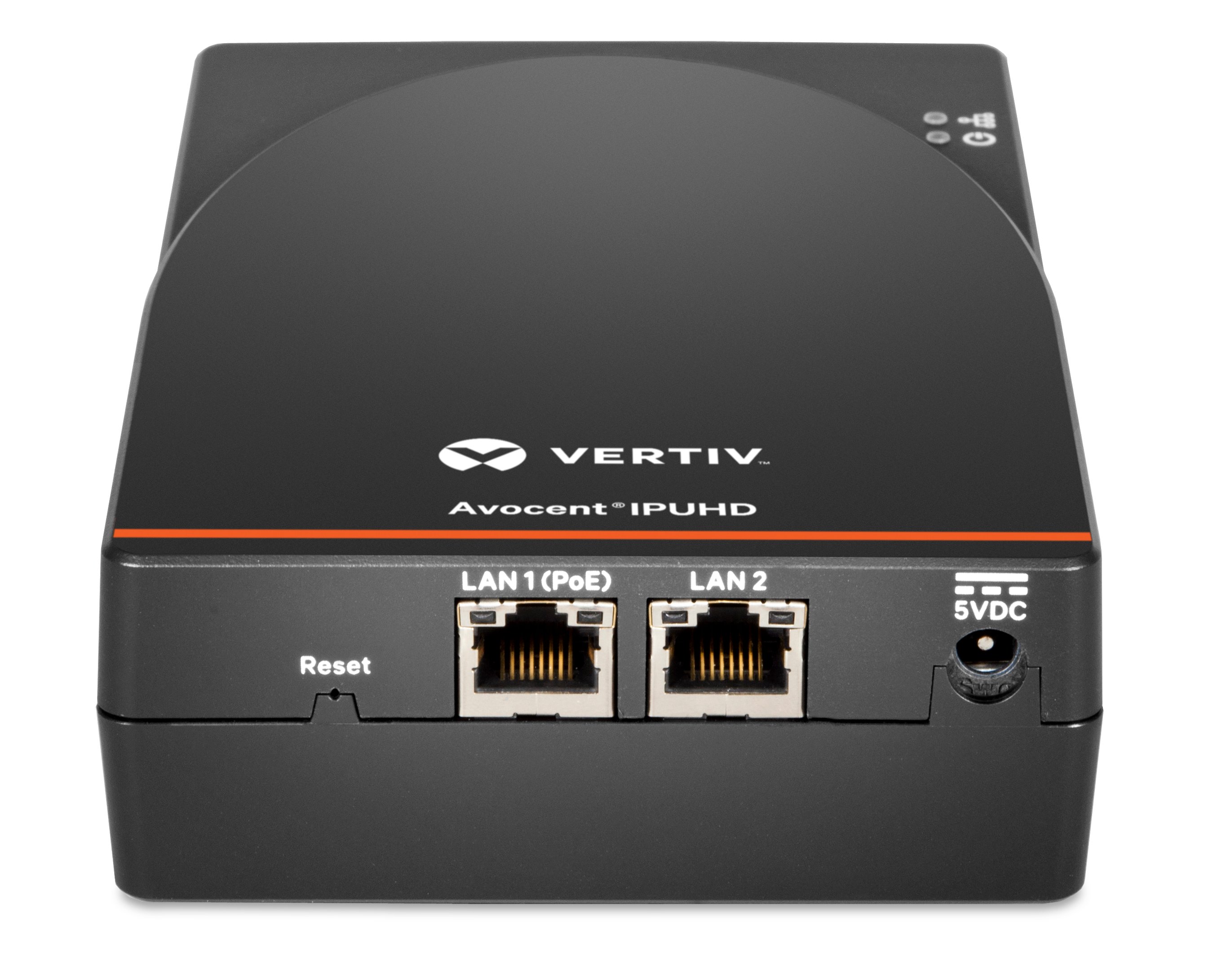

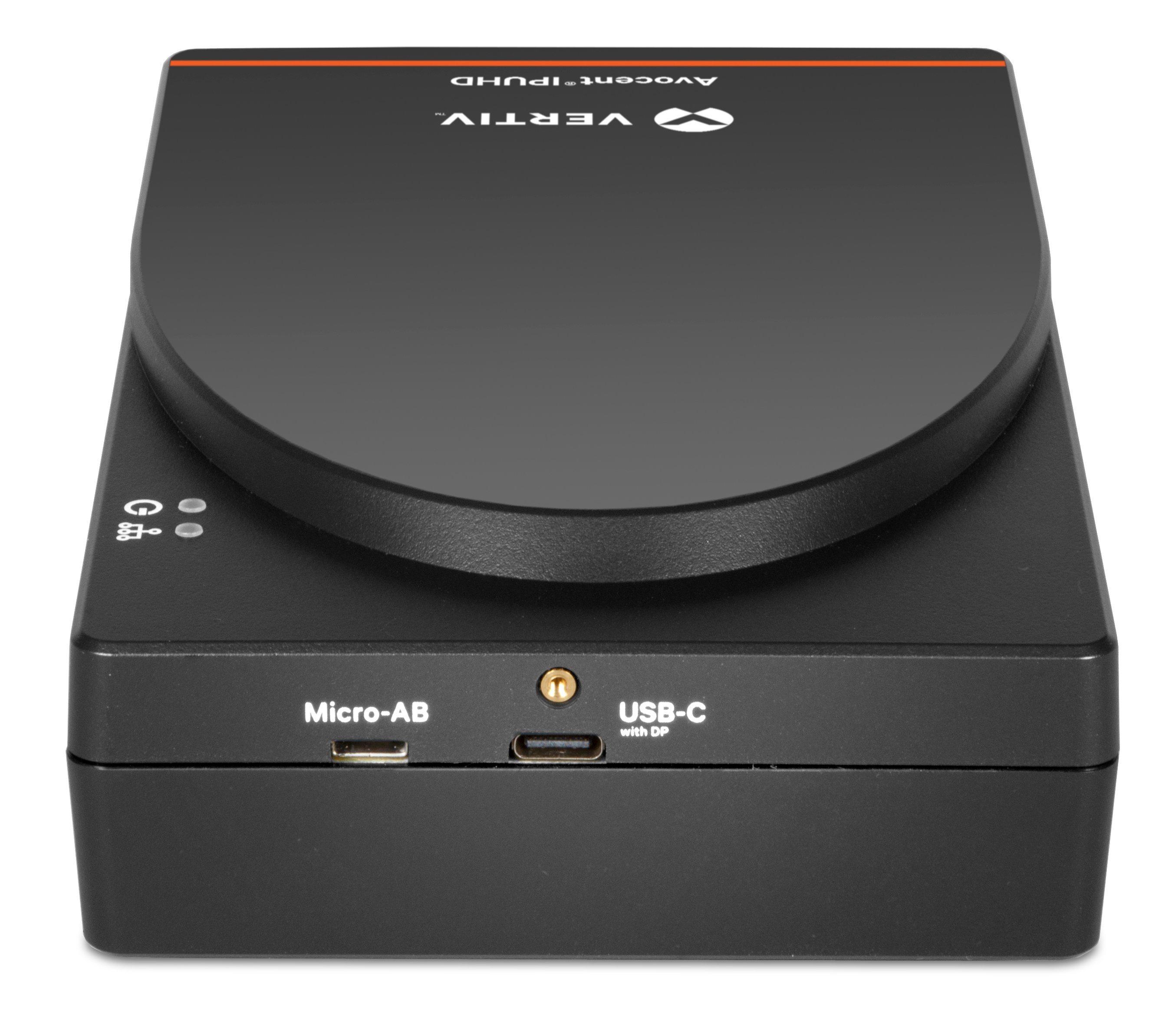

Vertiv™ Avocent® ADX IPUHD 4K IP KVM

The Vertiv™ Avocent® ADX IPUHD 4K IP KVM Device provides users with remote access to servers with 4K video resolution. Empower employees to do their best work by providing fast, seamless access to confidential on-premises and other business applications, increasing productivity and reducing work strain. The Avocent ADX IPUHD is flexible in that it can be used either as an integrated 4K IP KVM with the Avocent ADX Platform or as a standalone device with the Avocent ADX IPPS power supply.

Login to Save for Later
Key Benefits
Fastest and most feature rich KVM experience on a single device
All digital architecture for flexible and scalable deployments
Most expansive management of IT devices
Resilient and secure technology supporting 100+ simultaneous users
Common architecture with open standards, platforms and APIs
Best Suited For:
  • Banking, Financial and Insurance
  • Broadcast and Entertainment
  • Data Center/Colocation/Hosting
  • Education
  • Healthcare
  • Government
  • Manufacturing
  • Retail and Wholesale
  • Telecom
  • Transportation
Warranty: 2 Year Standard Warranty


Increased productivity for remote access and remote working
Scalable to meet diverse connectivity and resolution needs
Increased operational flexibility through native USB-C
Simplifies development and test cycles

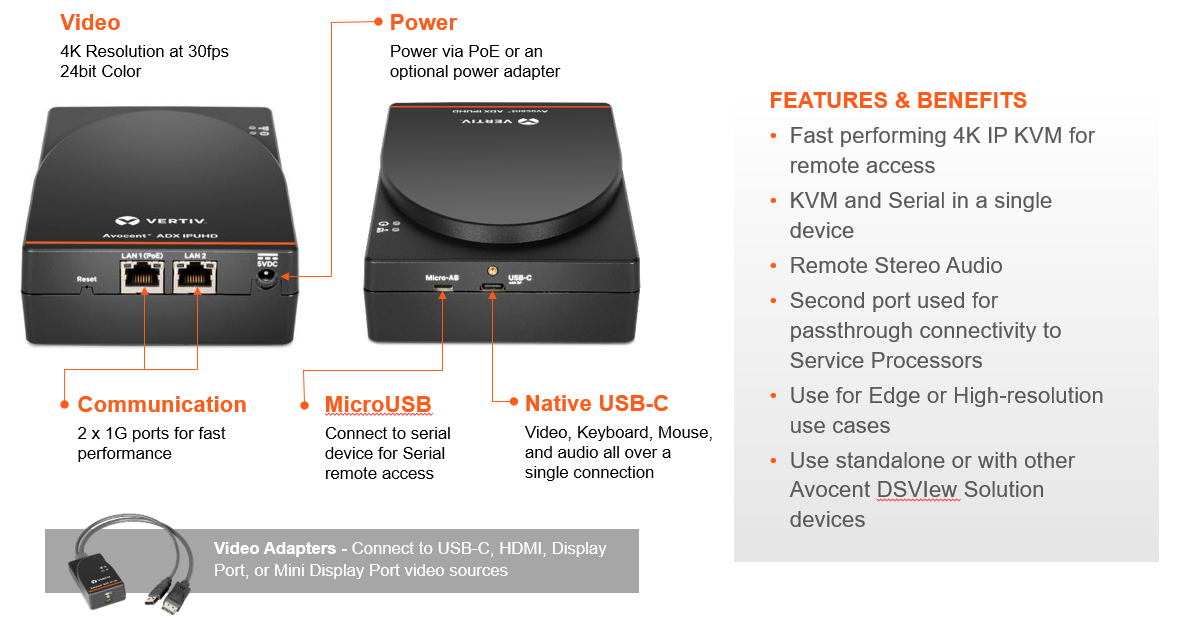

IP addressable 4K KVM device
4K (3840 x 2160) @ 30Hz, 1920 x 1200 @ 60HZ
24-bit color for rich user experience
USB-C connector cable
Powered over PoE via LAN1 port
Secure Boot
LAN2 for Service Processor connectivity
Video adapters for HDMI, DP, and MiniDP
Serial connections over MicroUSB

The Vertiv™ Avocent® ADX Platform is built upon a secure common architecture which seamlessly integrate and scale to create an open yet resilient IT management platform – from Enterprise to Edge configurations. Avocent ADX Platform provides the highest performance and agility, security, and enables automation, management, monitoring and control of all your devices like no other solution in the market. The Vertiv™ Avocent® ADX MP1000 Management Platform allows users to manage service processors, virtual machines, IP KVM modules and remote access appliances. It also provides centralized firmware update capability to IT devices and limits security risks. The Vertiv™ Avocent® ADX Rack Manager RM1048 uses a single IP to access devices, reduces power and cabling costs with PoE and can offer over 100+ user sessions without more hardware. The Vertiv™ Avocent® ADX IPUHD 4K IP KVM offers remote 4K KVM with fast and precise mouse synchronization and end to end encryption of all traffic. It offers HDMI, DP, MiniDP adapters along with native USB-C for plug and play connectivity. The Vertiv™ Avocent® ADX IPIQ IP KVM solution scales from edge to enterprise and increases productivity by simplifying remote access and troubleshooting of IT devices with enhanced video resolution.

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
