Product Model

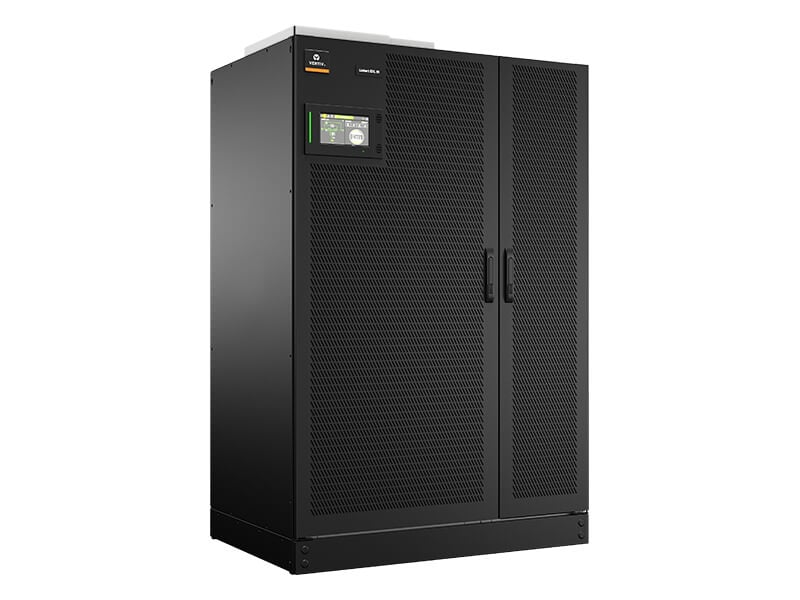

Liebert® EXL S1 250-400 kVA/kW

SPACE-SAVING DESIGN: Small footprint and high energy density allow optimal space.
MAXIMIZE ACTIVE POWER CAPACITY: Get more usable power at Unity power factor (1.0 PF).
REDUCE OPERATING EXPENSES: With high efficiency, this UPS reduces operating expenses and lowers Total Cost of Ownership (TCO).
EASY TO SERVICE AND INSTALL: Easy, top and front access to key components; no need to go into bypass or shutdown power to access.
SAFE CAPACITY MODE: Liebert EXL S1 safe capacity mode provides UPS load and battery discharge testing without an external load bank.
Technical Specifications
Liebert® EXL S1 250-400 kVA/kW
Interfaces/Ports
Control Panel
Liebert standard touchscreen control panel
Cable Access
Top or bottom
Service Access
Front and top only
Operational Conditions
Operating Temperature
32 F - 104 F / 0 C - 40 C
Miscellaneous
General
FCC Part 15, Class A, IEC 62040-2, ANSI C624.41
Listings
UL 1778 5th Edition, CSA 22.2 NO 107.3
Topology
Transformer Free

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.

Liebert® EXL S1 250-400 kVA/kW

The Vertiv Liebert EXL S1 UPS, with capacity of 250-1200kVA, is optimized for maximum efficiency and power density. It has a small footprint, lower than similar UPS in its class or in its kVA size range. It is ideal for customers who need every square foot to offer a positive ROI, such as colocation providers, hosting and cloud businesses. This UPS allows customers to either redeploy the saved space to implement more revenue generating IT equipment or reduce the actual design size of their equipment rooms, thus saving construction costs. At Dynamic Online mode, the UPS can have operating efficiency of up to 99% without sacrificing availability. Its touchscreen control panel ensures status-at-a-glance convenience, flexible views and multiple security options. With LIFE Services, get 24x7 remote monitoring by our expert staff to improve availability and lower labor costs.

Warranty : One Year Limited Warranty Against Defects in Material and Workmanship

Benefits

MORE SPACE: Minimized UPS footprint allows more space for revenue-generating IT equipment.
ROBUST POWER PROTECTION: The UPS provides high level of efficiency, power quality and availability.
UP TO 8 UNITS IN PARALLEL: It can support distributed and centralized parallel configurations. .
INSTALLATION FLEXIBILITY: It is compatible to VRLA and Lithium-Ion batteries.
PROACTIVE REMOTE SERVICES: Have options for remote diagnostics and preventive monitoring services for UPS.

Features

COMPACT SIZE: Smallest footprint among all competitors at this kVA size.
3 MODES OF OPPERATING EFFICIENCY: Double Conversion (97%), Dynamic Online (99%) and ECO Mode (>99%).
ADVANCED TOUCHSCREEN CONTROL PANEL: Customer can configure data and views.
2014 NEC COMPLIANCE: High Impedance DC Ground Fault detection for 2014 NEC compliance.
FLEXIBLE CONFIGURATIONS: Dual asynchronous source/dual input capable.
