Product Model

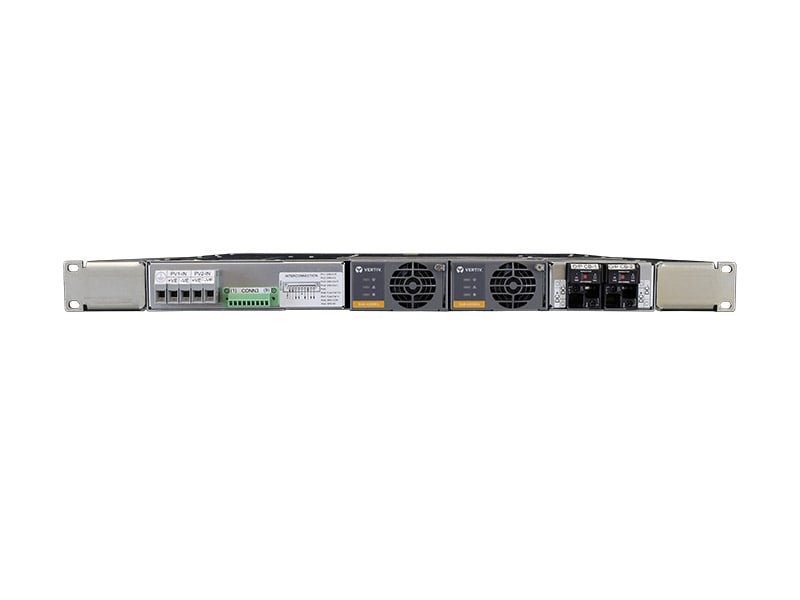

Solar Expansion Shelf
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Telecom
Product Model
Solar Expansion Shelf
Best Suited For:
- Telecom
Benefits
• Lower operating costs by supplementing grid or generator power at on-grid, off-grid, or bad-grid sites with Vertiv’s solar converter shelf.
• Easily integrate with most existing DC power systems while saving rack space.
• Maximize efficiency with high-density 4300W Vertiv™ eSure™ Solar Converters and MTTP technology, optimized for wide temperature ranges.
• Reduce site visits through remote access with the NetSure system controller.
• Ensure reliable performance with proven NetSure™ technology and expert Vertiv support.
Features
• Modular solar converters
• Up to 8.6 kW of power per 1RU 19" wide shelf
• Remote access
• Front access cable terminations
Specifications
The NetSure Solar Converter Shelf is a compact -48 VDC solution that can easily be added to an existing DC power plant. Built on the proven reliability of Vertiv's solar converter module architecture, the NetSure Solar Converter Shelf delivers industry-leading system density and full power up to 55°C.
Solar Expansion Shelf
- Product Overview
- Power Capacity
- 8.6 kw
- Current Capacity
- 70 VDC to 420 VDC
- Output Voltage, Nominal
- -20 VDC to -58.5 VDC
- Input Voltage, Nominal
- 97.3%
- System Type
- Single Row System
- Input
- Input Voltage, Nominal
- 97.3%
- Input Connections
- Terminal Block
- Equipment Dimensions (H x W x D)
- 44.45 mm / 1.75 in x 482.6 mm / 19 in x 425 mm / 16.73 in
- Access
- Front
- Output
- Output Voltage, Nominal
- -20 VDC to -58.5 VDC
- Load Circuit Breakers / Fuses
- High density - UL 1077
- Physical Characteristics
- Weight
- 8.98 kgs
- Height
- 44.45 mm
- Width
- 482.6 mm
- Depth
- 425 mm
- Environmetal & Standard Compliance
- Control and Monitoring
- From Host NetSure System
- Operating Temperature
- -40C to 75C /-40F to 167F
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
