Product Family

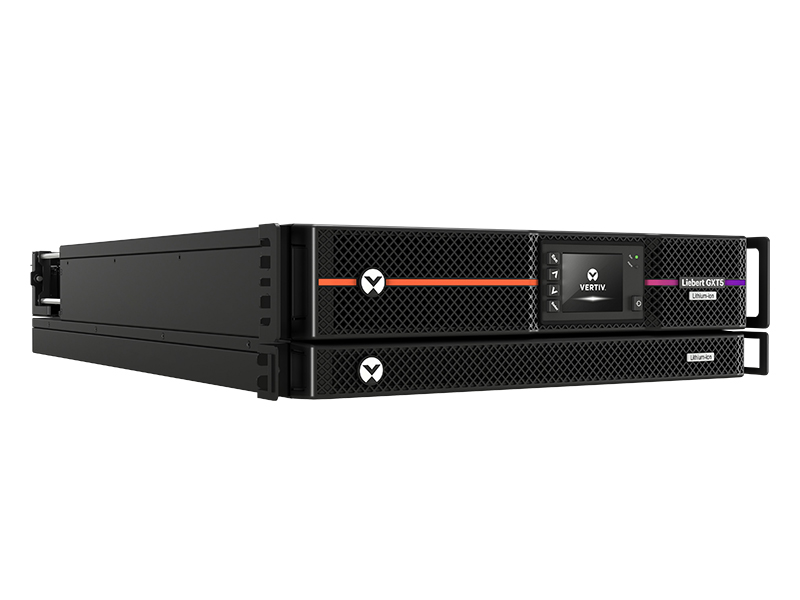

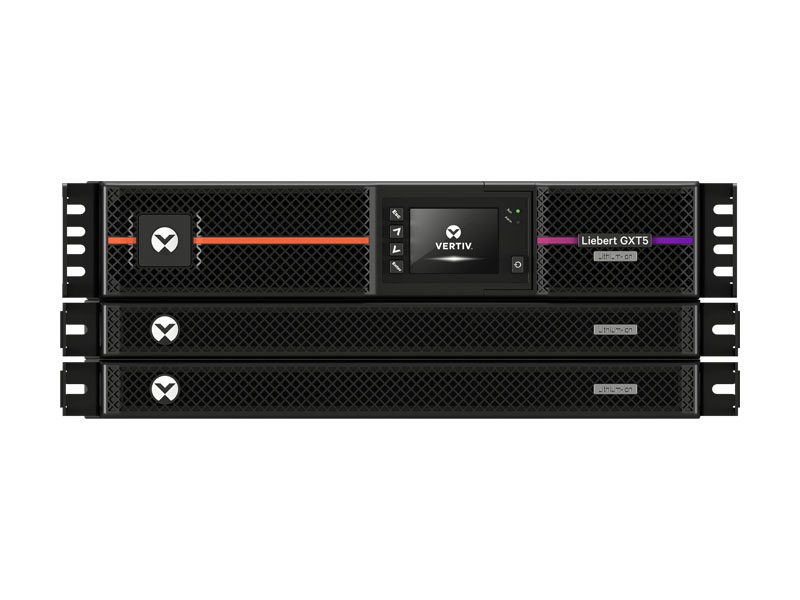

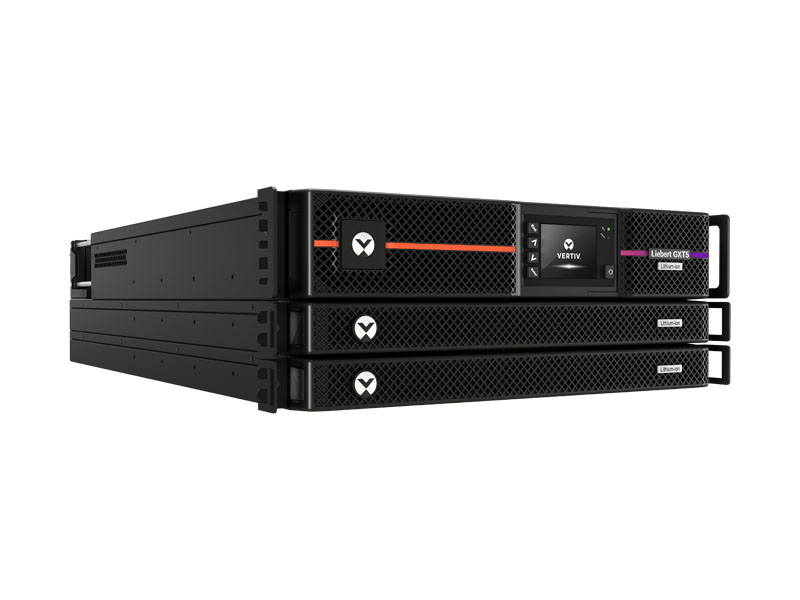

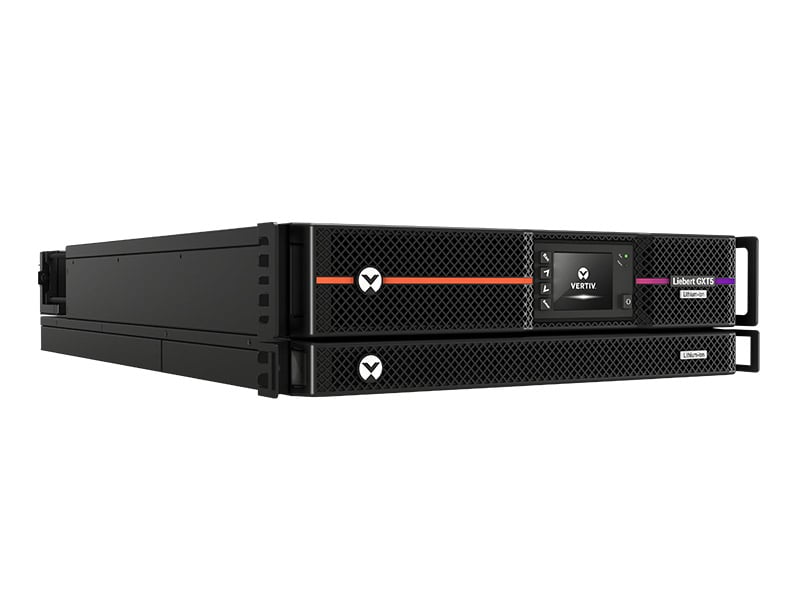

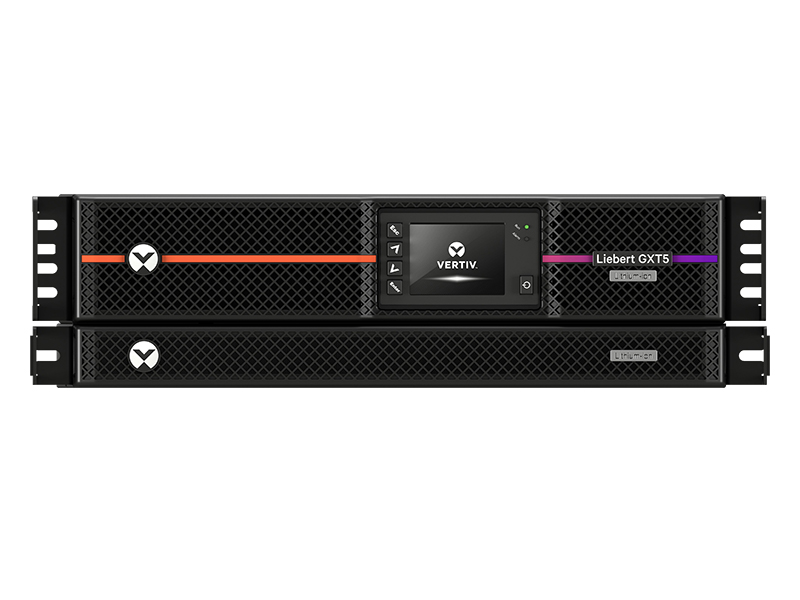

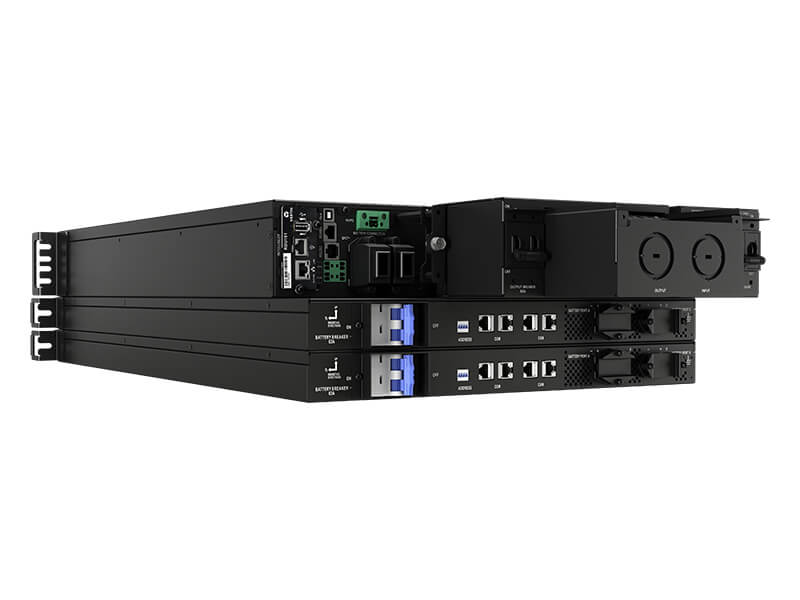

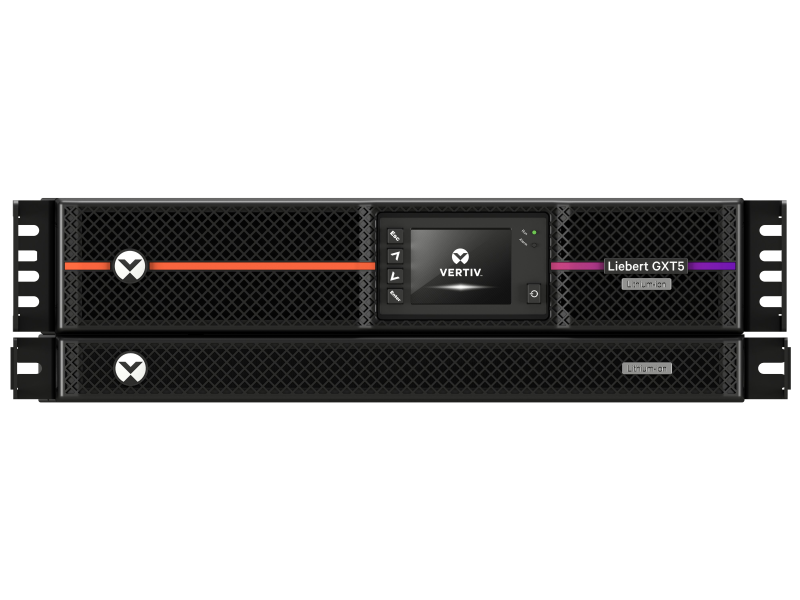

Vertiv™ Liebert® GXT5 Lithium-Ion UPS 5,000 - 10,000 VA

The Vertiv™ Liebert® GXT5 Lithium-Ion double-conversion online UPS provides the highest level of power conditioning and power protection for critical business IT systems such as network equipment and business servers. This ensures that your mission-critical systems and applications are protected in the event of any utility power problems such as power surges or a complete loss of power. The Liebert® GXT5 UPS protects against the widest range of power problems and seamlessly switches to battery backup if the quality of the input power is outside of acceptable operating levels.

Get Brochure Get Manual
Key Benefits
5kVA – 10kVA Rack/Tower optimized form factors
Online double conversion topology with pure sinewave output and zero transfer time
Lithium-Ion battery with an 8 to 10-Year design life
50% lower Total Cost of Ownership (TCO)
Intellislot with pre-installed network card
Free Power Assist™, Power Insight™ software
Best Suited For:
  • Banking
  • Financial and Insurance
  • Education
  • Government
  • Healthcare
  • Manufacturing
  • Retail and Wholesale
Warranty: Standard 5-year warranty including both electronics and batteries.

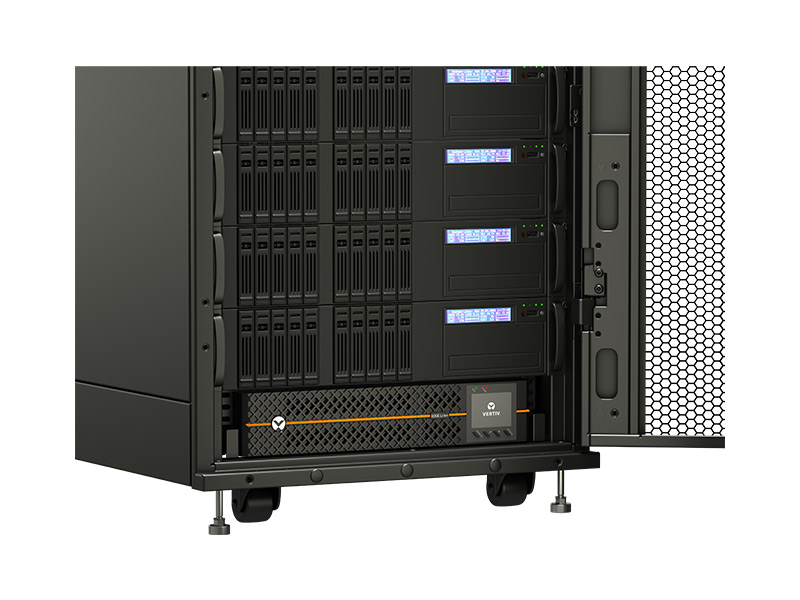

Vertiv™ Liebert® GXT5 Lithium-Ion online UPS protects critical IT applications against outages and power disturbances. It offers highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as VRLA batteries reducing maintenance, labor, and replacement costs (lower TCO). Hot-swappable, user-replaceable batteries increase the useable life of the UPS.

Model Specifications Overview
GXT5LI-5000MVRT3UXLN
5000VA / 5000W   120V/240V   120V/208V (120V/240V (User-Configurable))   NEMA L14-30P   5.2 in   16.9 in   35 in   104.9 lbs
GXT5LI-6000MVRT3UXLN
6000VA / 6000W   120V/240V   120V/208V (120V/240V (User-Configurable))   Hardwired (L1, L2, N, G)   5.2 in   16.9 in   35 in   100 lbs
GXT5LI-8000MVRT4UXLN
8000VA / 8000W   120V/240V   120V/208V (120V/240V (User-Configurable))   Hardwired (L1, L2, N, G)   6.9 in   16.9 in   35 in   156.3 lbs
GXT5LI-10KMVRT4UXLN
10000VA / 10000W   120V/240V   120V/208V (120V/240V (User-Configurable))   Hardwired (L1, L2, N, G)   6.9 in   16.9 in   35 in   156.3 lbs
VEBCLI-192VRT1U
  N/A   192V   N/A   1.7 in   17 in   31 in   48 lbs
GXT5LI-5KL630RT3UXLN
5000 VA / 4900 W   200V-240V   208VAC (Default); 200-240VAC (User-Configurable); ±1%   L6-30P   5.25 in   16.9 in   35 in   103 lbs
GXT5LI-6000GVRT3UXLN
6000 VA / 6000 W   200V-240V   230VAC (Default); 200-240VAC (User-Configurable); ±1%   Hardwired (L1-L2/N-G)   5.25 in   16.9 in   35 in   99 lbs
GXT5LI-8000GVRT3UXLN
8000 VA / 8000 W   200V-240V   230VAC (Default); 200-240VAC (User-Configurable); ±1%   Hardwired (L1-L2/N-G)   5.25 in   16.9 in   35 in   105 lbs
GXT5LI-10KGVRT3UXLN
10,000 VA / 10,000 W   200V-240V   230VAC (Default); 200-240VAC (User-Configurable); ±1%   Hardwired (L1-L2/N-G)   5.25 in   16.9 in   35 in   105 lbs

Benefits

Superior Battery Technology: Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). Internal batteries offer industry-leading runtime (up to 14 minutes at full load) to protect critical equipment during an unexpected power loss.
High Performance: Lithium-Ion battery technology offers better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times compared to VRLA batteries.
Easy Installation: Hot-swappable, user-replaceable batteries may increase the useable life of the UPS by allowing you to easily replace the batteries, if needed, without disrupting power to connected equipment.
Scalable Runtime: The UPS has an external battery connector, which is a scalable runtime solution for extended outage protection

Features

Lowest total cost of ownership lithium-ion batteries last up to 3 times as long as VRLA batteries, resulting in fewer battery replacements saving time and money
5-years standard warranty on the UPS and batteriesy
Longer battery runtime and quicker battery recharge times to ensure availability of your critical applications
Unity Output Power Factor delivers more usable power, saving space and cost
High efficiency, up to 95% in double-conversion online mode to deliver energy savings
Advanced User-Friendly Color Graphic LCD with gravity sensing orientation for simple local UPS configuration and management

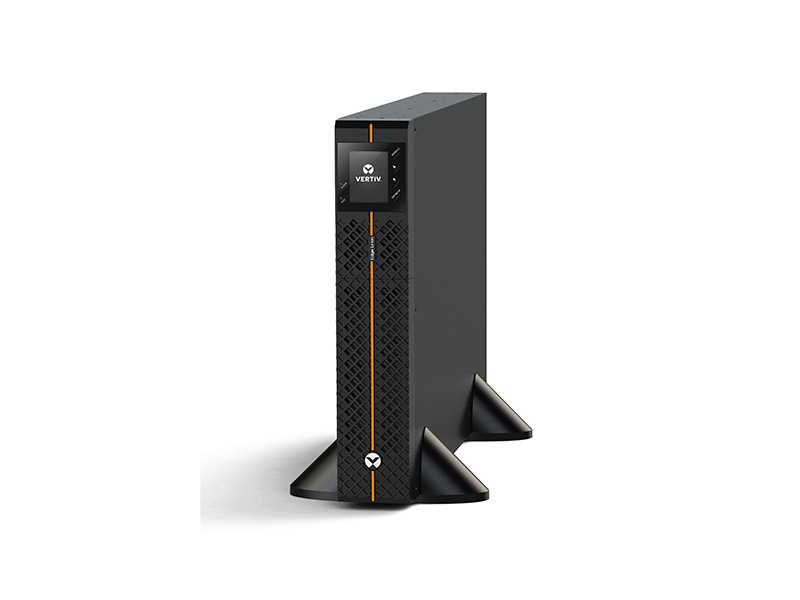

Flexible rack/tower convertible form factor

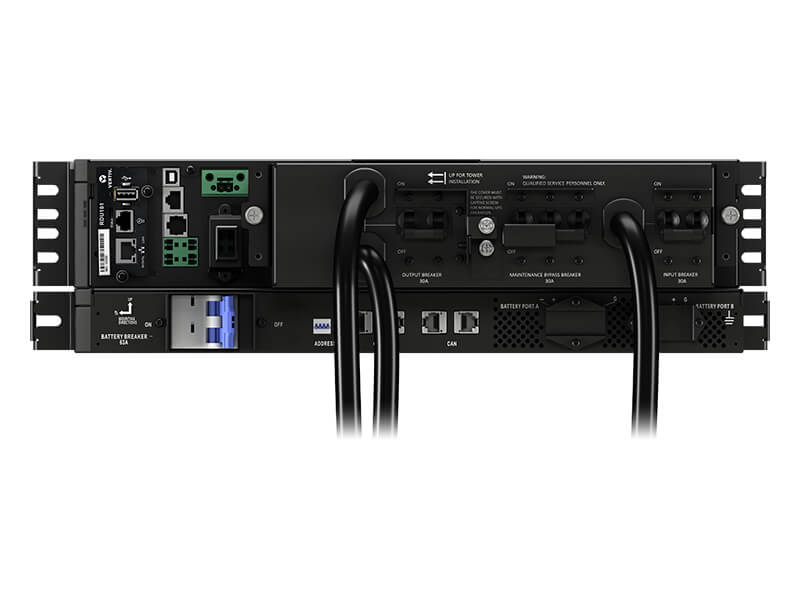

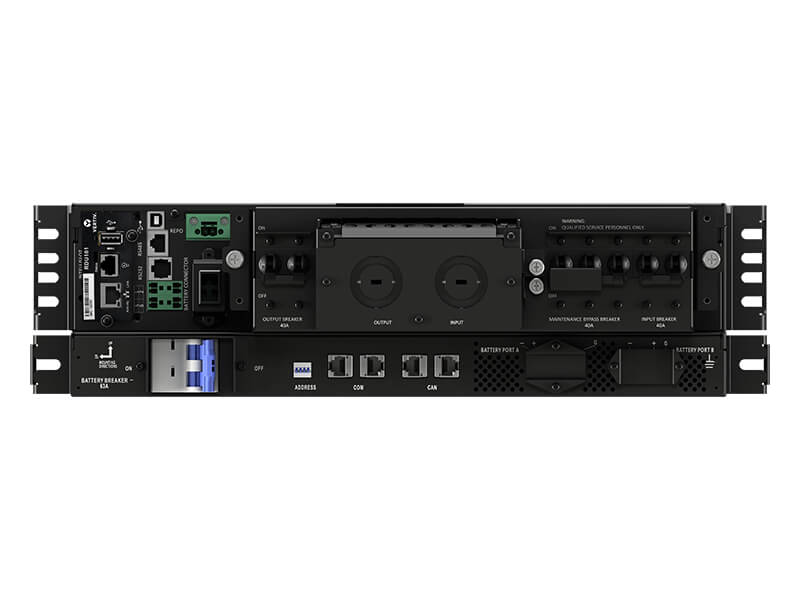

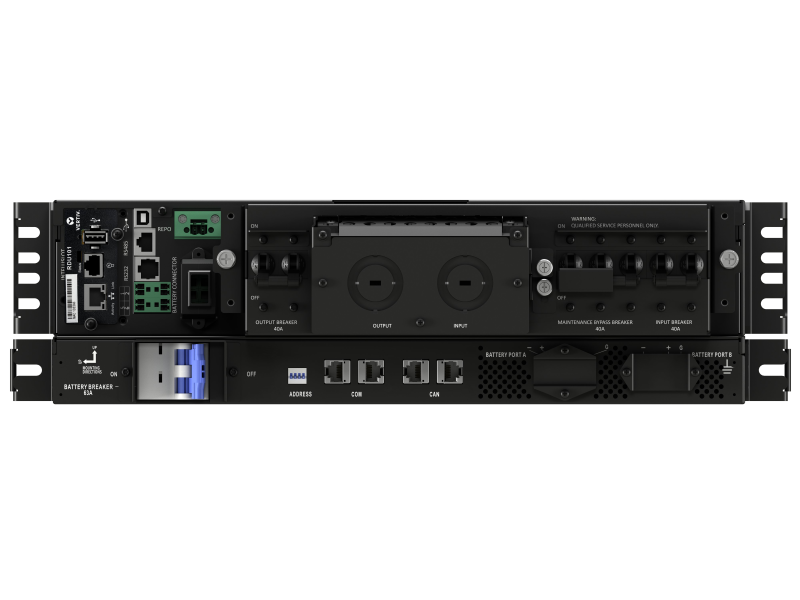

Input and output circuit breakers for additional protection of the equipment in the event of a worst-case failure
Remote Emergency Power Off (EPO) to turn off the UPS in the event of an emergency
Four (4) integrated programmable dry contacts for secure local UPS monitoring and management
Liebert® IntelliSlot™RDU101 network communications card included for remote monitoring, control and management of the UPS
Integrated Maintenance Bypass Cabinet (MBC) facilitates UPS service or replacement without having to disconnect or shutdown connected equipment
Environmentally Friendly RoHS and REACH compliant
