Product Model
Warranty:
One-Year Limited Warranty Against Defects in Material and Workmanship

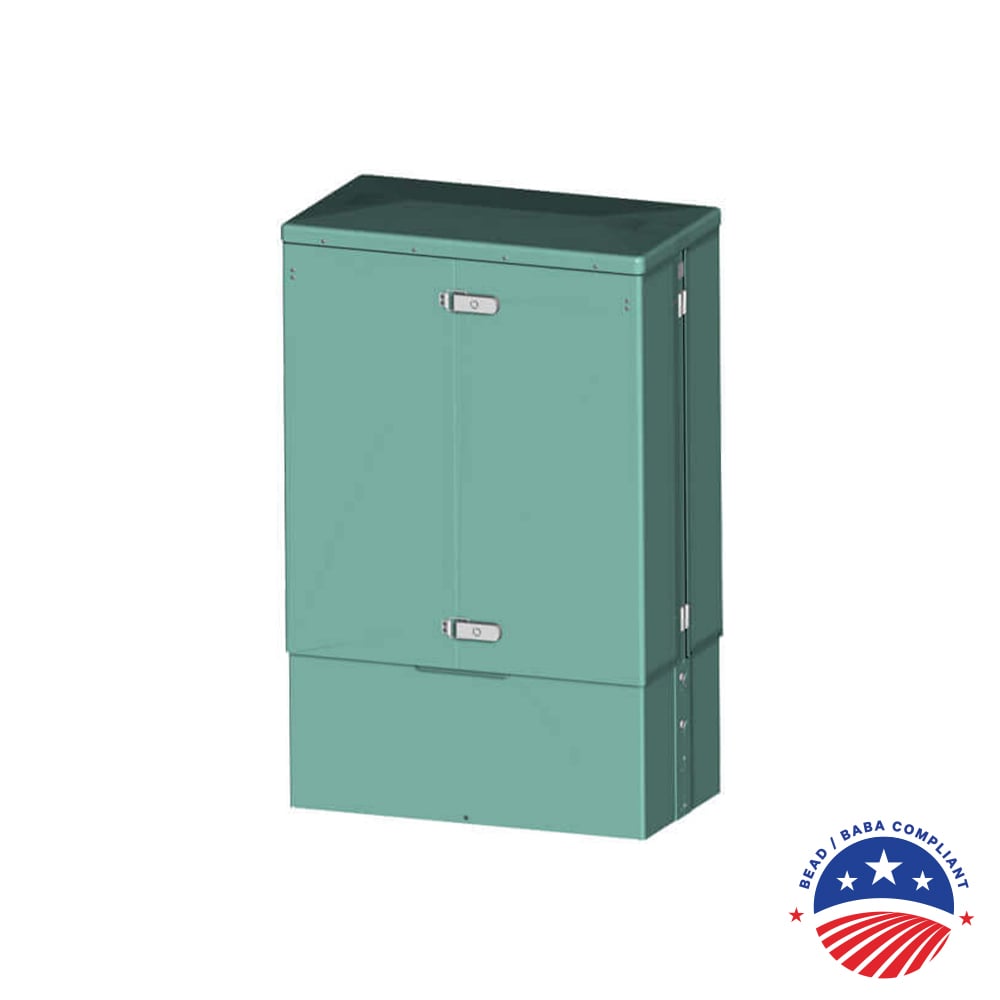

Vertiv BBE BD, UPCBD8000
Vertiv BBE BD Series UPCBD8000 units are round-cornered, rectangular-design enclosures that house large PIC cable splices, load coils, loop treatment devices, cross-connect, and combined connection applications.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Telecom
Product Model
Warranty:
One-Year Limited Warranty Against Defects in Material and Workmanship
Vertiv BBE BD, UPCBD8000
Vertiv BBE BD Series UPCBD8000 units are round-cornered, rectangular-design enclosures that house large PIC cable splices, load coils, loop treatment devices, cross-connect, and combined connection applications.
Best Suited For:
- Telecom
Benefits
Easily adapdable for copper to fiber applications.
Rugged mill-galvanized steel housing for durability and low maintenance costs
Tongue-in-groove fit of upper cover for better protection against environmental conditions
User-friendly, factory-installed dielectric shield with Velcro fasteners for ultraviolet protection of cable conductors
Features
BDSeries UPCBD3, UPCBD4, and UPCBD5 include a dielectric shield, cable ties, and a shield isolation bonding/grounding bracket assembly
These accommodate buried wires, cables, terminal blocks, Fiber optics, and load coil assemblies
Specific uses include termination of buried service wires and all types of splicing arrangements, grounding capability and shield isolation bonding/grounding bracket assembly
Unique multi-stage paint process meets or exceeds EPA standards and provides a tough corrosion-resistant finish for longer life
Three convenient sizes with four versions for easy access to cable conductors and flexible installations
*For fiber optic deployment, use of BDFOKIT (part no. F1007373) accessory is recommended.
For more information see the BDFOKIT the Accessories section
*For fiber optic deployment, use of BDFOKIT (part no. F1007373) accessory is recommended.
For more information see the BDFOKIT the Accessories section
