Vertiv NetSure Solar Converter Shelf
Achieve your sustainability targets and reduce operating costs by augmenting your existing DC power system with the exceptional solar power density of Vertiv’s NetSure Solar Converter Shelf utilizing Vertiv’s eSure 4300W solar converter modules .
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Telecom
Vertiv NetSure Solar Converter Shelf
Achieve your sustainability targets and reduce operating costs by augmenting your existing DC power system with the exceptional solar power density of Vertiv’s NetSure Solar Converter Shelf utilizing Vertiv’s eSure 4300W solar converter modules .
- Telecom
Specifications
The NetSure Solar Converter Shelf is a compact -48 VDC solution that can easily be added to an existing DC power plant. Built on the proven reliability of Vertiv's solar converter module architecture, the NetSure Solar Converter Shelf delivers industry-leading system density and full power up to 55°C.
|

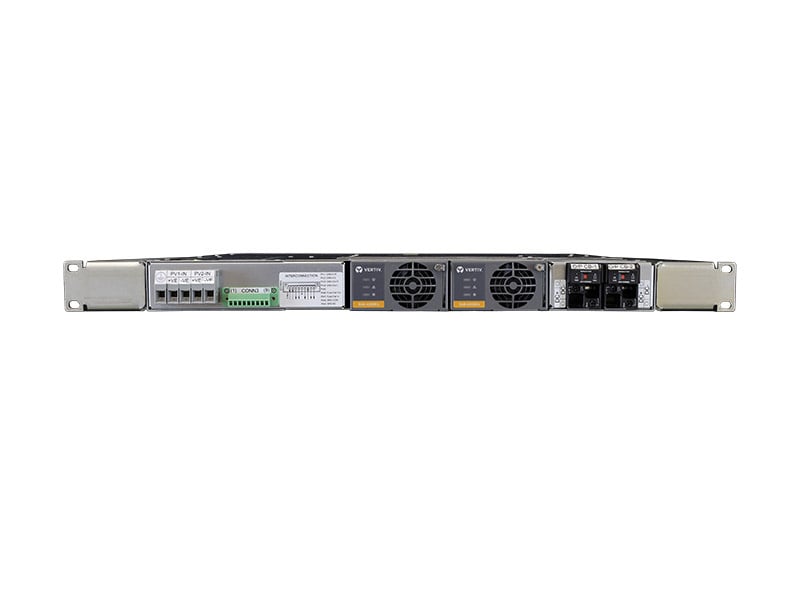

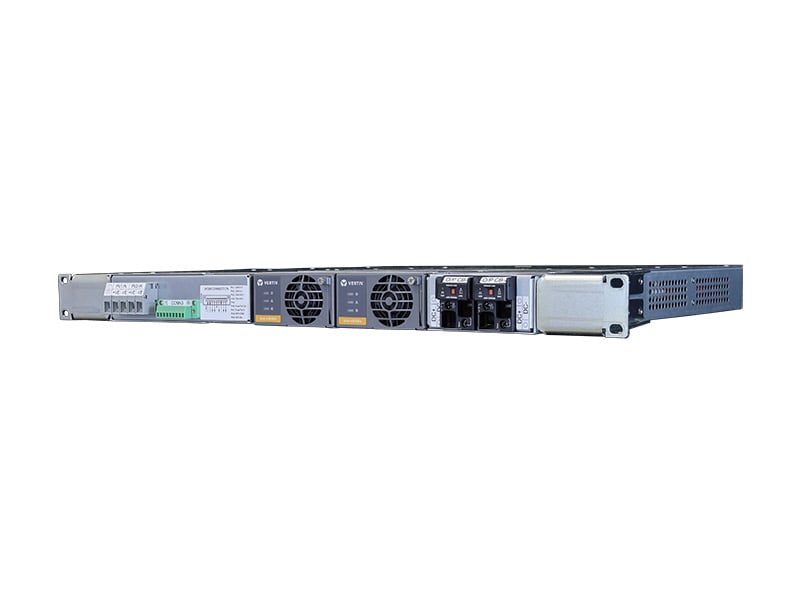

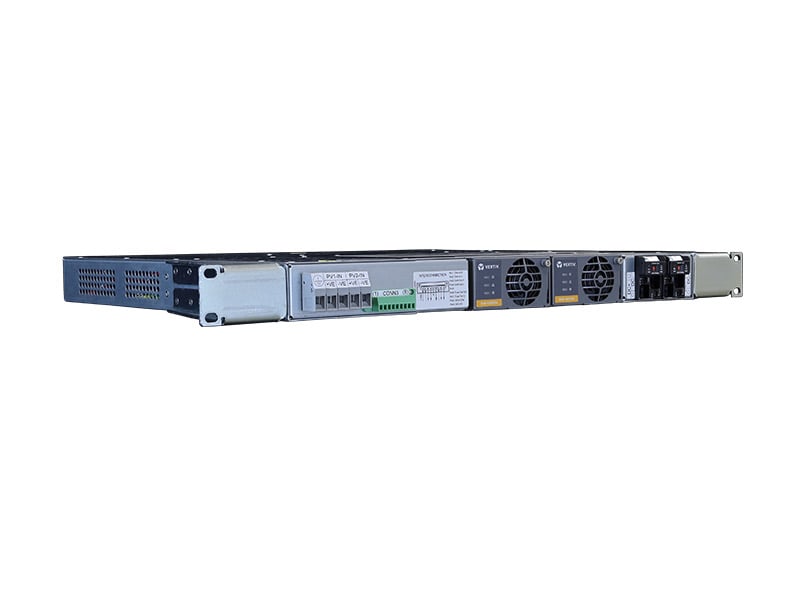

Solar Expansion Shelf
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 8.6 kw | 70 VDC to 420 VDC | -20 VDC to -58.5 VDC | 97.3% | Single Row System | 1.75 in | 19 in | 16.73 in | 19.8 lbs |
| See more product information | ||||||||
|

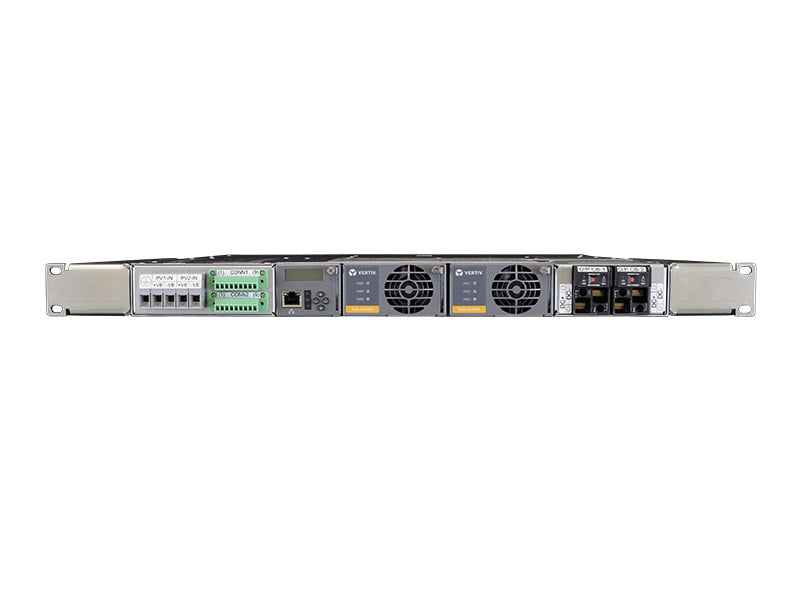

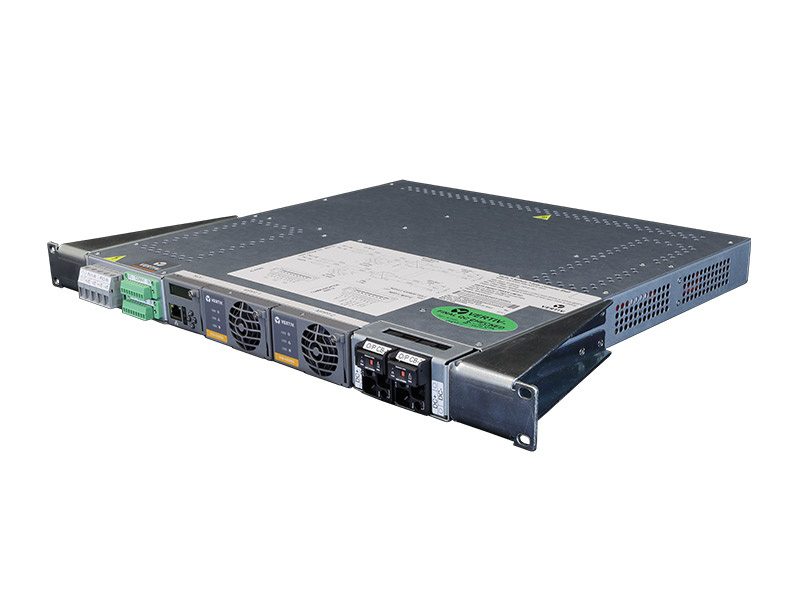

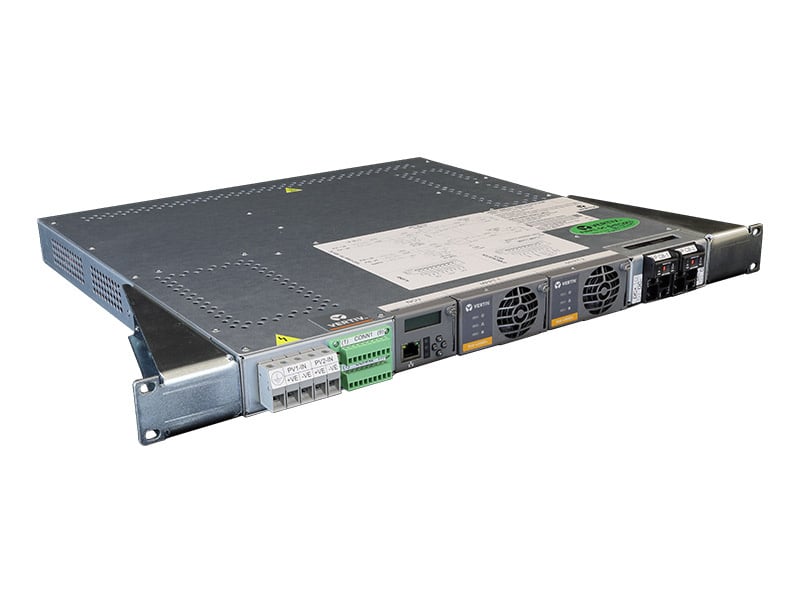

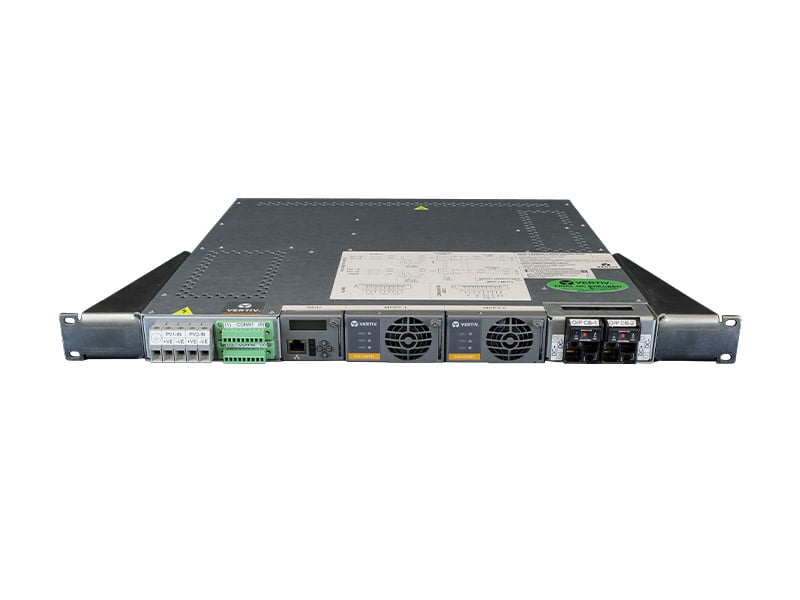

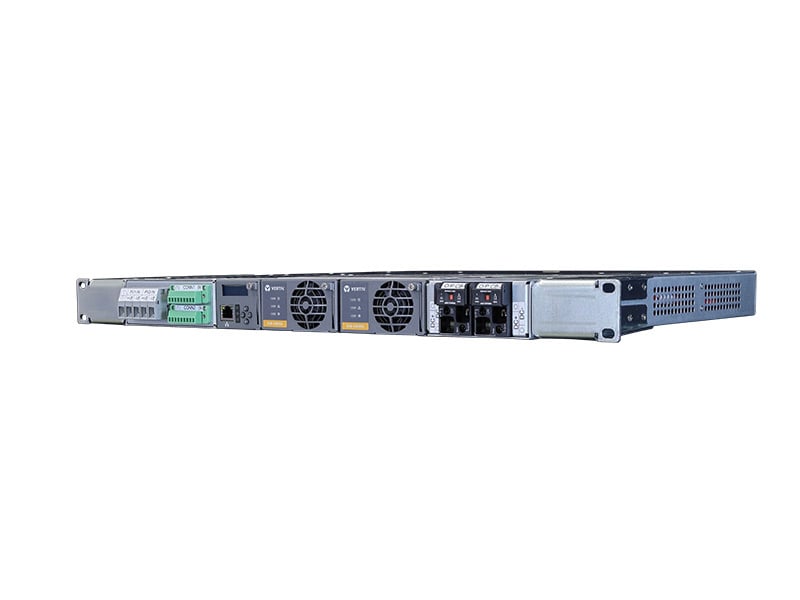

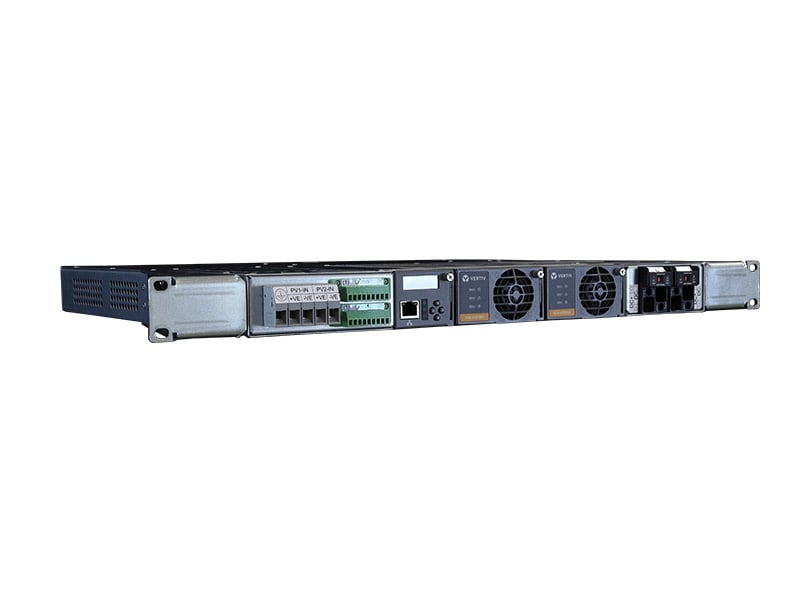

Solar Add-on Shelf
|
||||||||
| 8.6 kW | 70 VDC to 420 VDC | -20 VDC to -58.5 VDC | 97.3% | Single Row System | 1.75 in | 19 in | 16.73 in | 20.9 lbs |
| See more product information |
Benefits
- Lower operating costs by supplementing grid or generator power at on-grid, off-grid, or bad-grid sites with Vertiv’s solar converter shelf.
- Easily integrate with most existing DC power systems while saving rack space.
- Maximize efficiency with high-density 4300W Vertiv™ eSure™ Solar Converters and MTTP technology, optimized for wide temperature ranges.
- Reduce site visits through remote access with the NetSure system controller.
- Ensure reliable performance with proven NetSure™ technology and expert Vertiv support.
Features
- Modular solar converters
- Up to 8.6 kW of power per 1RU 19" wide shelf
- Remote access
- Front access cable terminations
