Product Model
Warranty:
2 Year Full Coverage Factory Warranty - Optional Extended Warranty Available

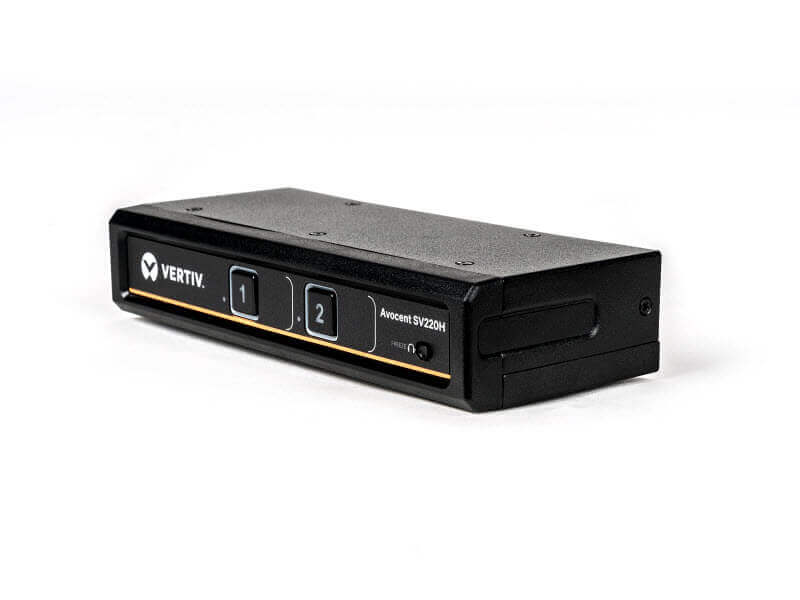

Avocent® SV220H KVM Switch
The Avocent® SV220H desktop KVM switch helps bring order to the desktop.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Banking, Financial and Insurance
- Broadcast and Entertainment
- Chemical/Petrochemical (excl. Oil & Gas)
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Manufacturing
- Military, Defense, Aerospace and Missile
- Nuclear Power
- Oil and Gas
- Transportation
Product Model
Warranty:
2 Year Full Coverage Factory Warranty - Optional Extended Warranty Available
Avocent® SV220H KVM Switch
The Avocent® SV220H desktop KVM switch helps bring order to the desktop.
Best Suited For:
- Banking, Financial and Insurance
- Broadcast and Entertainment
- Chemical/Petrochemical (excl. Oil & Gas)
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Manufacturing
- Military, Defense, Aerospace and Missile
- Nuclear Power
- Oil and Gas
- Transportation
Benefits
With Avocent® KVM switches, you can:
Increase productivity with simple, rapid access to systems and peripherals
Gain true image reproduction and display flexibility with support for ultra HD systems and mobile devices
Reduce costs with fewer peripheral purchases and easier IT maintenance
Features
Access from two to four computers using a single keyboard, monitor and mouse
Managed copy and paste of files and text between sources
Mobile High-Definition Link (available on 4-port HDMI models) enables viewing of media from mobile devices on connected HDMI monitors
Mobile High-Definition Link (available on 4-port HDMI models) enables viewing of media from mobile devices on connected HDMI monitors
Support for DVI-I, HDMI 1.4 and DP1.2 in single and dual head models supporting high resolutions up to UHD 4K
Mouse and keyboard switching via emulation assures zero delay in switching time between connected sources
Easily switch audio and USB 3.0 (select models) peripherals independently of KVM
Three USB 3.0 ports on the front of the 240 KVMs enable easy connectivity to external USB devices, quick data transfer and high speed charging of mobile devices
Specifications
Avocent® SV220H KVM Switch
- Product Overview
- Video Connection
- HDMI 1.4
- Video Resolution
- UHD 4K - resolutions up to 3840 x 2160 @ 30Hz
- Power Description
- Power Supply(s)
- Internal
- Input Power (Maximum)
- 35W
- Interfaces/Ports
- USB ports
- 2 (includes KeyB & Mouse)
- Operational Conditions
- Operating Temperature
- 32° to 104° F (0° to 40° C)
- Humidity
- 0-80% RH, non-condensing
- Storage Temperature
- -4° to 140° F (-20° to 60° C)
- Physical Characteristics
- Weight
- 1 lb
- Weight
- .5 kg
- Height
- 1.4 in
- Height
- 35 mm
- Width
- 7 in
- Width
- 177 mm
- Depth
- 2.4 in
- Depth
- 61 mm
- Miscellaneous
- Agency Approvals
- CE, RCM, FCC class B, VCCI, TUV US, TUV Canada
Manuals
Brochures and Data Sheets
Software
Warranties
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
