Product Model

VP4UV0A2

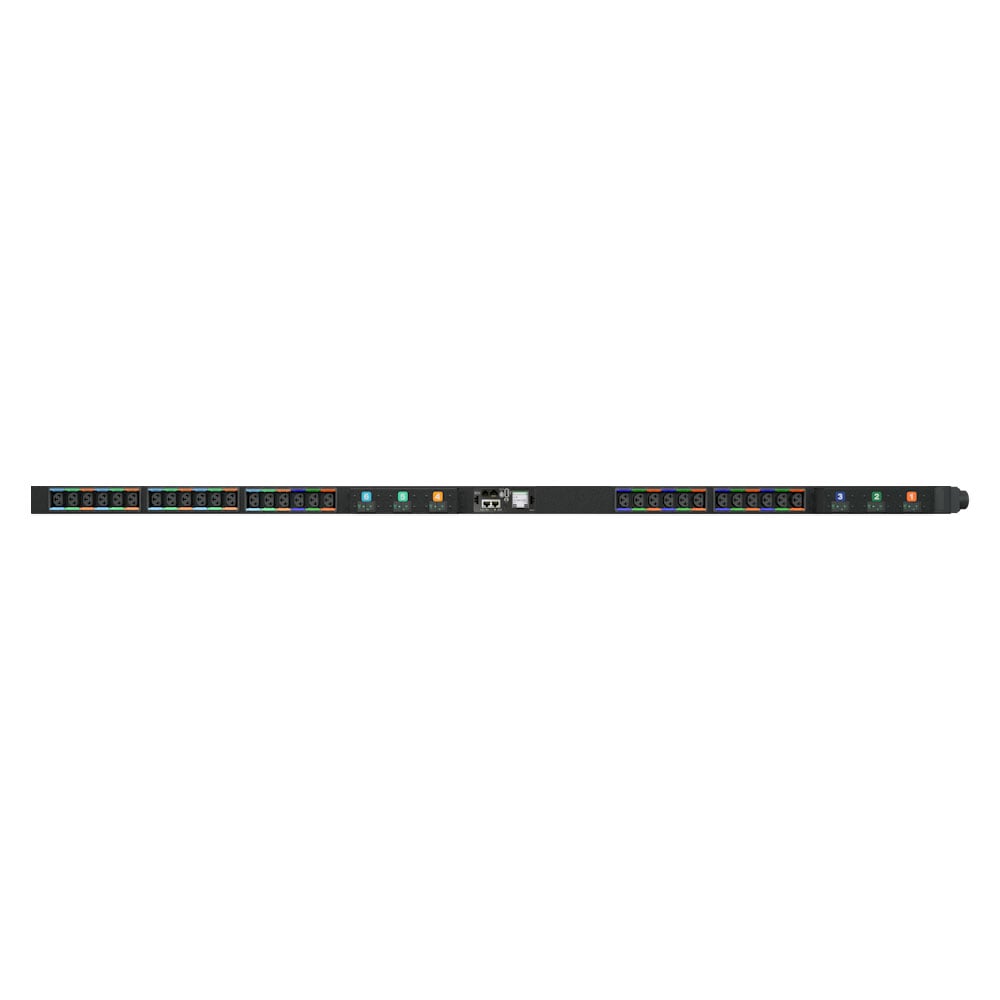

The Vertiv™ PowerIT VP4UV0A2 is a versatile rack power distribution unit with a universal input that supports common AC power configurations. It has (30) Combination C13/C19 outlets providing 22kW of power capacity. This unit can accommodate input power ranging from 32A-63A and 208V-415V in both single phase and three phase configurations. It is integrated with Vertiv PowerIT Next-Generation IMD that displays the power usage and secures your data and operations.

Find Sales Contact Get Brochure Get Manual

Key Benefits

UNIVERSAL PDU: The Vertiv™ PowerIT UPDU helps simplify the procurement process of rPDUs since users can use a single model model to work with different power sources. It supports input power of 16A-48A and 208V-415V in 1Phase and 3Phase configuration.
NEXT-GENERATION IMD: Easily see your data with the 128x128 high-contrast LCD. It has an internal orientation sensor that intelligently adjusts the screen based on horizontal or vertical installation.
SAFEGUARDS DATA: The enhanced security helps protect your data and operations. It features secure boot that utilizes a hardware-based trust anchor. It has a redundant power-sharing port that connects two IMDs in the rack and provides backup power.
Dual LISTED (UL/CE) & TAA-COMPLIANT: This Vertiv™ PowerIT rPDU is Dual Listed (UL/CE), TAA-compliant, and RoHS certified. It helps ensure smoother selection, procurement, and deployment process for those who are under the federal, state, and local governments.
100% TESTED: All Vertiv™ PowerIT RPDUs are individually tested for functionality and reliability.
FIVE-YEAR WARRANTY:This unit includes a standard five-year limited warranty.

Best Suited For:

Banking
Financial and Insurance
Data Center/Colocation/Hosting
Education
Government
Healthcare
Power/Gas Transmission and Distribution

Warranty: Vertiv™ PowerIT UPDU Rack PDU come with a standard five-year limited warranty.

Product Model

VP4UV0A2

Find Sales Contact Get Brochure Get Manual

Key Benefits

UNIVERSAL PDU: The Vertiv™ PowerIT UPDU helps simplify the procurement process of rPDUs since users can use a single model model to work with different power sources. It supports input power of 16A-48A and 208V-415V in 1Phase and 3Phase configuration.
NEXT-GENERATION IMD: Easily see your data with the 128x128 high-contrast LCD. It has an internal orientation sensor that intelligently adjusts the screen based on horizontal or vertical installation.
SAFEGUARDS DATA: The enhanced security helps protect your data and operations. It features secure boot that utilizes a hardware-based trust anchor. It has a redundant power-sharing port that connects two IMDs in the rack and provides backup power.
Dual LISTED (UL/CE) & TAA-COMPLIANT: This Vertiv™ PowerIT rPDU is Dual Listed (UL/CE), TAA-compliant, and RoHS certified. It helps ensure smoother selection, procurement, and deployment process for those who are under the federal, state, and local governments.
100% TESTED: All Vertiv™ PowerIT RPDUs are individually tested for functionality and reliability.
FIVE-YEAR WARRANTY:This unit includes a standard five-year limited warranty.

Best Suited For:

Banking
Financial and Insurance
Data Center/Colocation/Hosting
Education
Government
Healthcare
Power/Gas Transmission and Distribution

Warranty: Vertiv™ PowerIT UPDU Rack PDU come with a standard five-year limited warranty.

Benefits

• The Vertiv PowerIT Universal Rack PDUs are equipped with Universal Input that can handle all common AC power specs across the globe, simplifying inventory management and allowing users to adjust power supply configurations without buying another unit. • Use the appropriate Vertiv Facility Side Cable (sold separately) so you can use your rPDU on a specific power configuration.

Features

• Integrated with the Vertiv PowerIT Next Generation IMD with 128x128 high-visibility LCD that displays power data. • The touchscreen interface can set up PDUs locally without the need for a network connection. • It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation.

Vertiv™ PowerIT UPDUs are available in 11kW and 22kW max power load capacities in both vertical and horizontal form factors with various receptacle combinations and monitoring options. To view the full list of available models visit the rPDU Finder.

Print Download Email

VP4UV0A2

Product Overview

Capacity: 22kW max

Input Voltage Range: Variable

Output Voltage Range: Variable

Output Options: 30 Combination Outlets C13/C19

Location: Rack

Power Description

Frequency: 50/60Hz

Operational Conditions

Operating Temperature: 60C

Physical Characteristics

Weight: 21

Width: 2

Depth: 2.5

Manuals

Vertiv PowerIT Rack Power Distribution Unit Installer User Guide SL-71211

Brochures and Data Sheets

Software

Download Software and Firmware for PowerIT Devices

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
