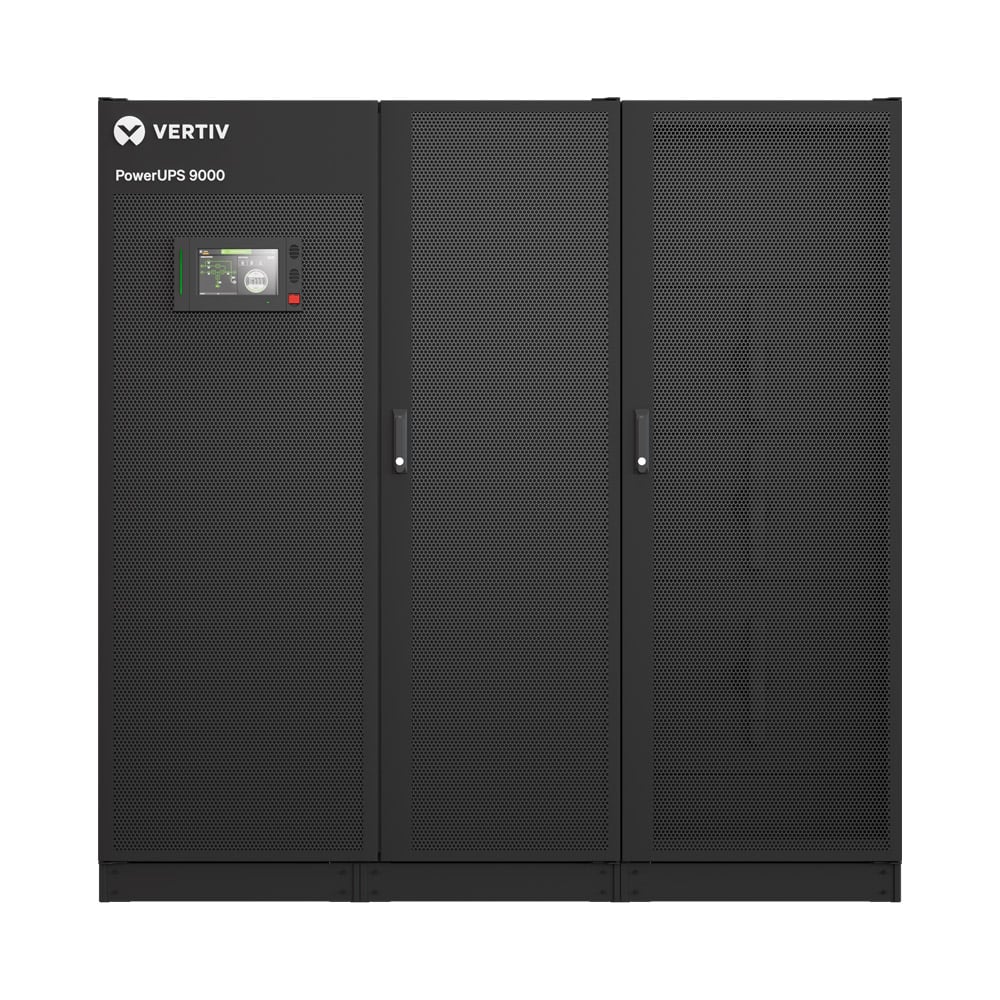

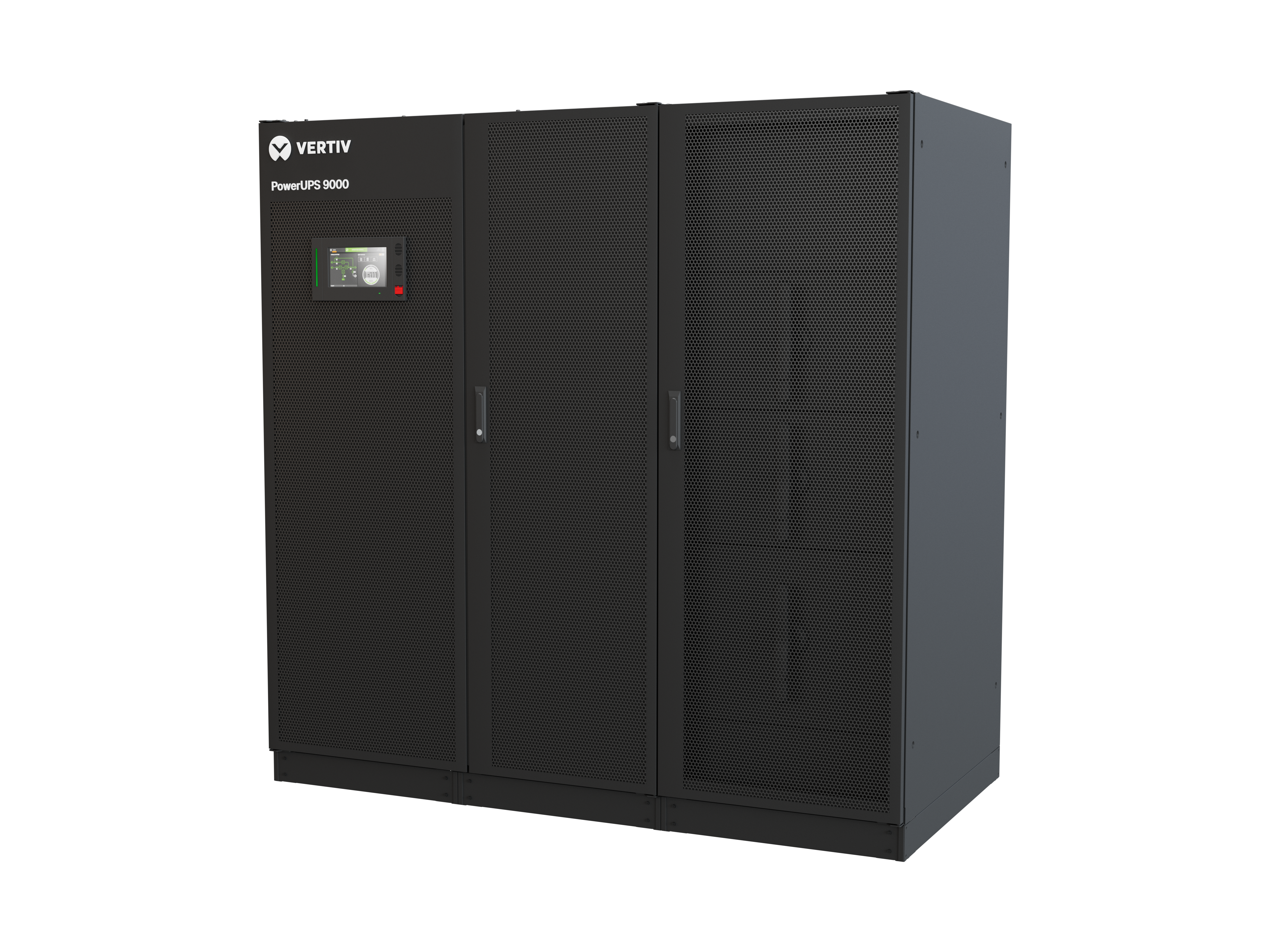

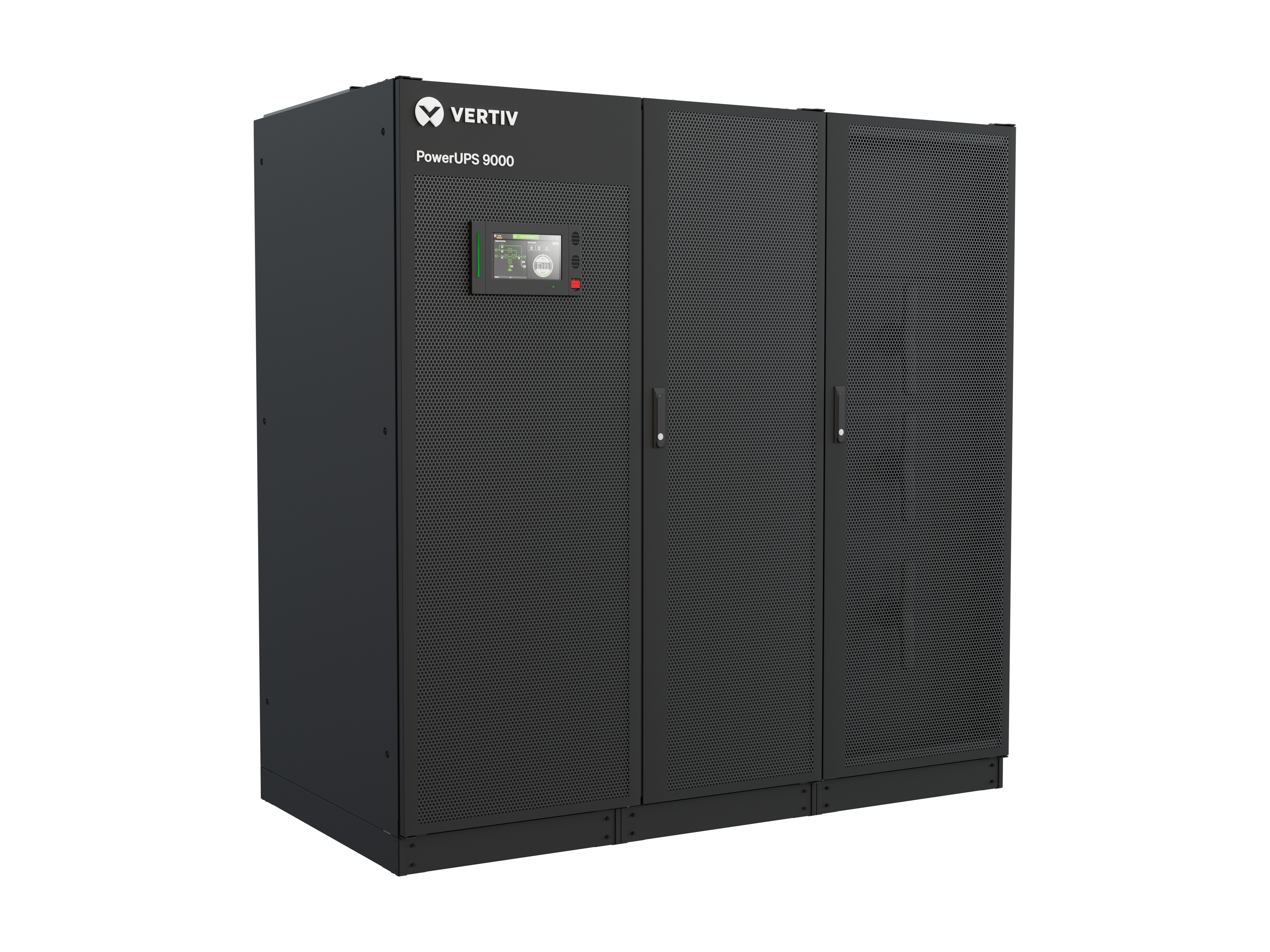

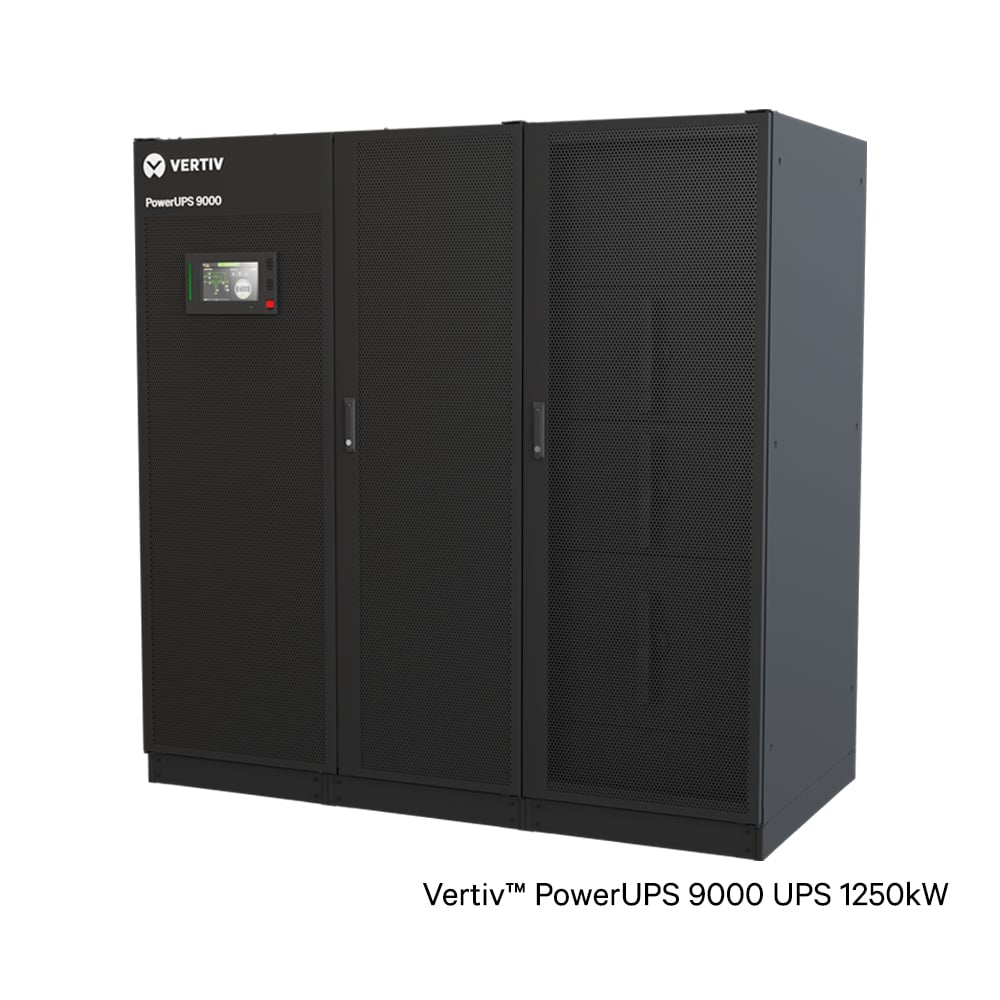

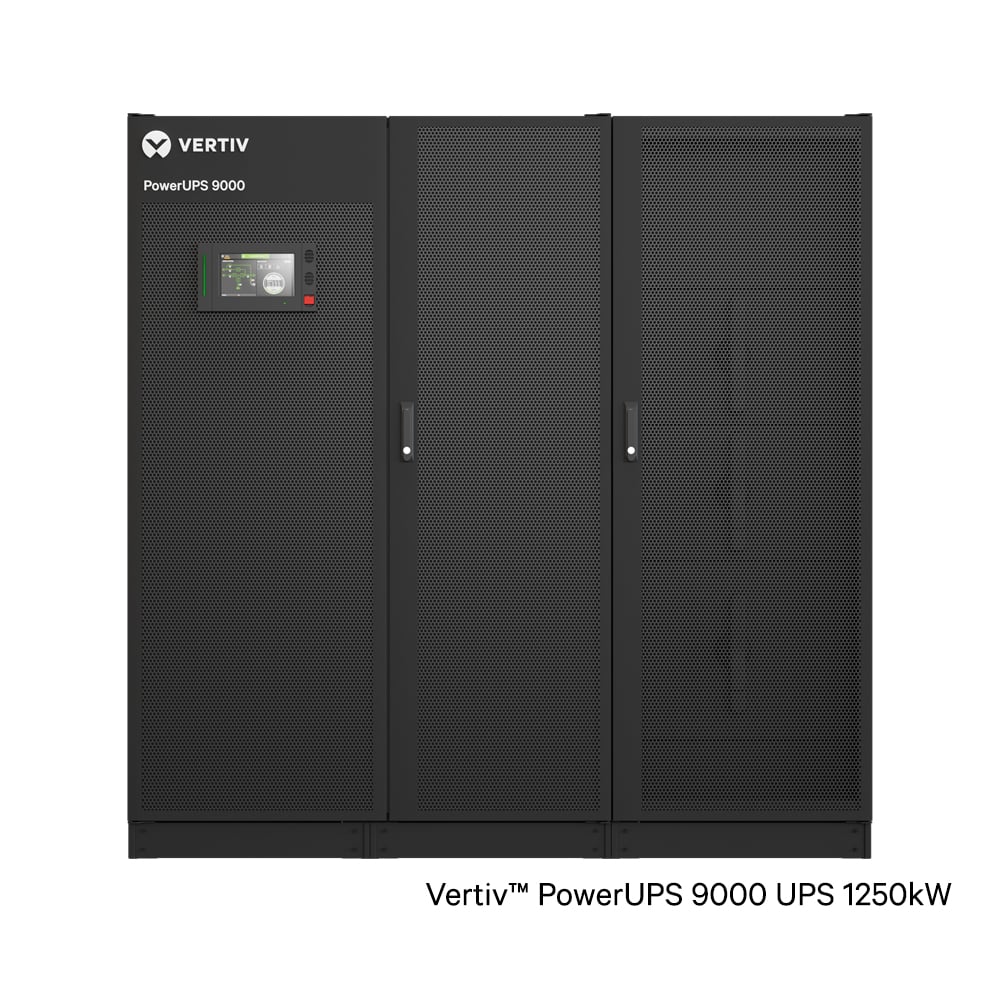

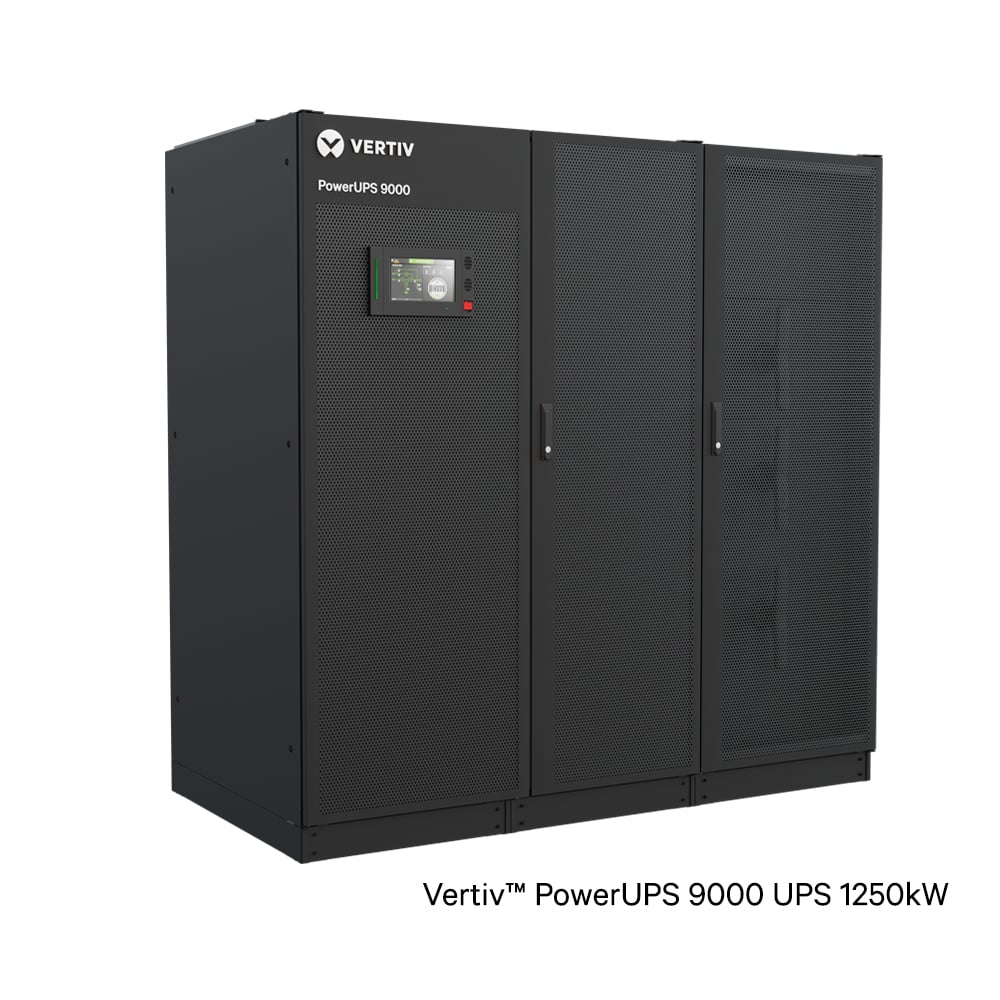

Vertiv™ PowerUPS 9000

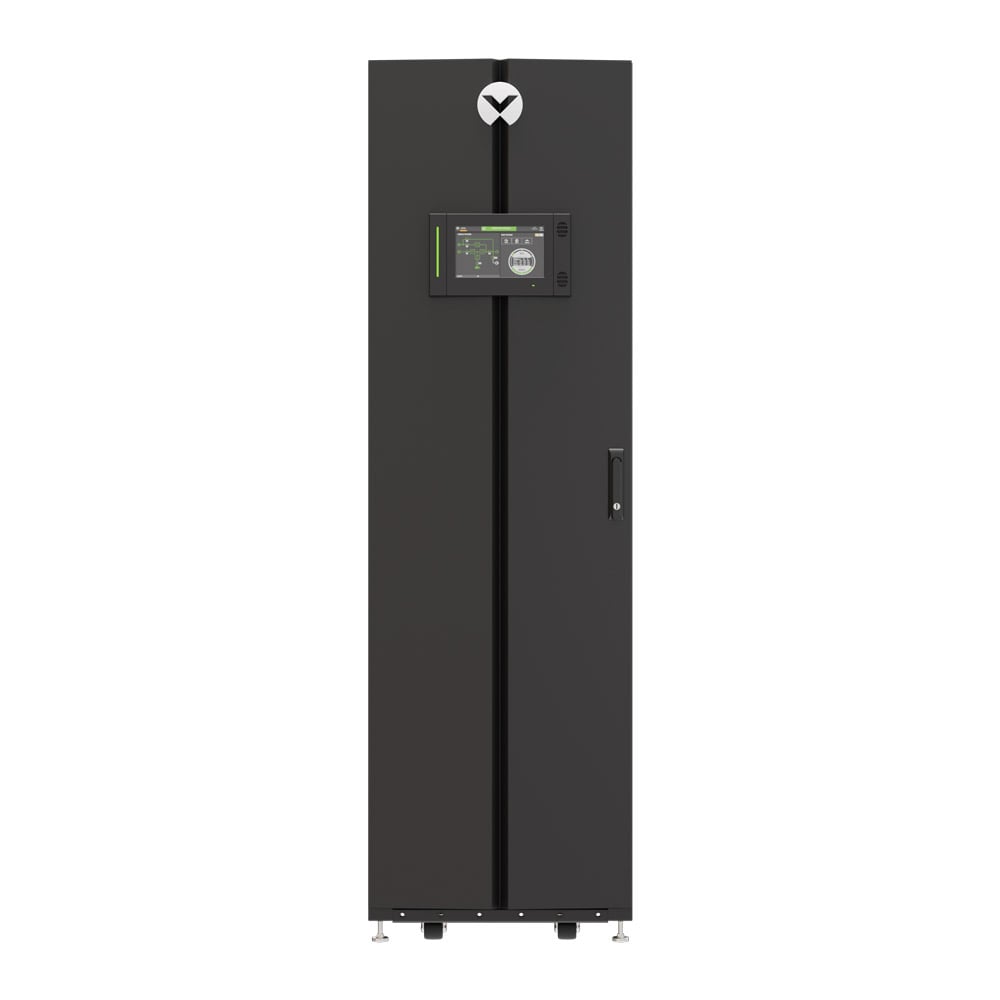

The Vertiv™ PowerUPS 9000 is a high-power density, energy-efficient, and compact uninterruptible power supply (UPS) system. It is designed to support IT applications from traditional computing to high-density applications, including space-constrained environments. It is available globally in UL and CE models, from 250 to 1250kVA/kW. It is Vertiv’s most efficient UPS in its product class, with a physical footprint 32% smaller than previous generations. This system offers double-conversion efficiency of up to 97.5% for superior reliability. It is compatible with Vertiv™ EnergyCore lithium battery cabinet, and other battery technologies, including Valve-Regulated Lead-Acid (VRLA) and Nickel-Zinc. It includes scalable 125kVA power modules to grow with your power needs with ease.
將此產品儲存到您的控制板
您已成功儲存此產品以便稍後查看；如需取消，可在控制板移除此產品。
請登錄或創建新帳戶以儲存此產品/服務
- 銀行、金融和保險
- 資料中心 / 託管
- 教育
- 政府
- 醫療
- 製造業
- 電信
Vertiv™ PowerUPS 9000
The Vertiv™ PowerUPS 9000 is a high-power density, energy-efficient, and compact uninterruptible power supply (UPS) system. It is designed to support IT applications from traditional computing to high-density applications, including space-constrained environments. It is available globally in UL and CE models, from 250 to 1250kVA/kW. It is Vertiv’s most efficient UPS in its product class, with a physical footprint 32% smaller than previous generations. This system offers double-conversion efficiency of up to 97.5% for superior reliability. It is compatible with Vertiv™ EnergyCore lithium battery cabinet, and other battery technologies, including Valve-Regulated Lead-Acid (VRLA) and Nickel-Zinc. It includes scalable 125kVA power modules to grow with your power needs with ease.
- 銀行、金融和保險
- 資料中心 / 託管
- 教育
- 政府
- 醫療
- 製造業
- 電信
技術規格
The Vertiv™ PowerUPS 9000 UPS System offers reliable, highly efficient, and scalable power protection for high-density applications. It effectively solves your mid and large-size power needs for three-phase UPS. It is available anywhere in the world, reducing potential procurement and service inconsistencies, delivery delays and downtime. It offers fast and easy installation, with top or bottom cable entry. The system is fully hot-service and hot-swappable, so maintenance and upgrades happen seamlessly without any downtime.
|
Vertiv™ PowerUPS 9000 480V
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 1250kW | 480Vac | 480Vac | 97.6% | 3Ph + PE | 82.6 in | 82.6 in | 39.3 in | 4321 lbs |
| See more product information | ||||||||
|
Vertiv™ PowerUPS 9000 415V
|
||||||||
| 1250kW | 415Vac | 415Vac | 97.6% | 3Ph+N+PE | 78.7 in | 106.3 in | 39.3 in | 4828 lbs |
| See more product information |
客戶價值
- NO INTERRUPTIONS: It offers hot and easy serviceability that leads to no interruptions even during maintenance or power upgrades.
- 125KVA POWER MODULES: Customizable power setup to scale with ease and speed depending on site construction progress and real load demand.

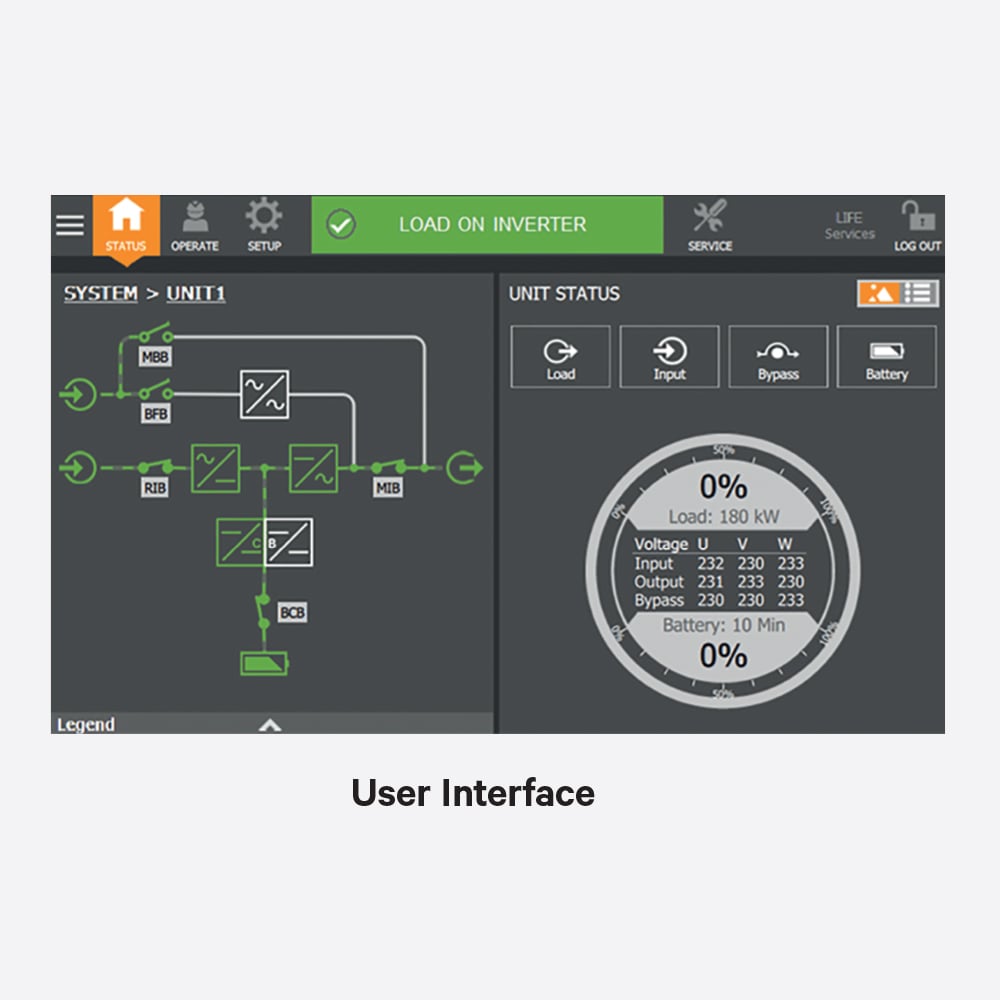

- RICH DIGITAL EXPERIENCE:Service empowered by data across entire life cycle with optional Vertiv Life monitoring system.
- ENERGY SOURCE INTEGRATION: It readily integrates different backup power sources, including lithium-ion and nickel-zinc.
特性
- WIDE INPUT VOLTAGE RANGE: This reduces battery usage and helps prevent premature replacement due to aging.
- HIGH-POWER FACTOR: This ensures you get maximum kW, for more usable power.
- HOTSWAPPABLE MODULES: Enable seamless maintenance and upgrades without downtime.

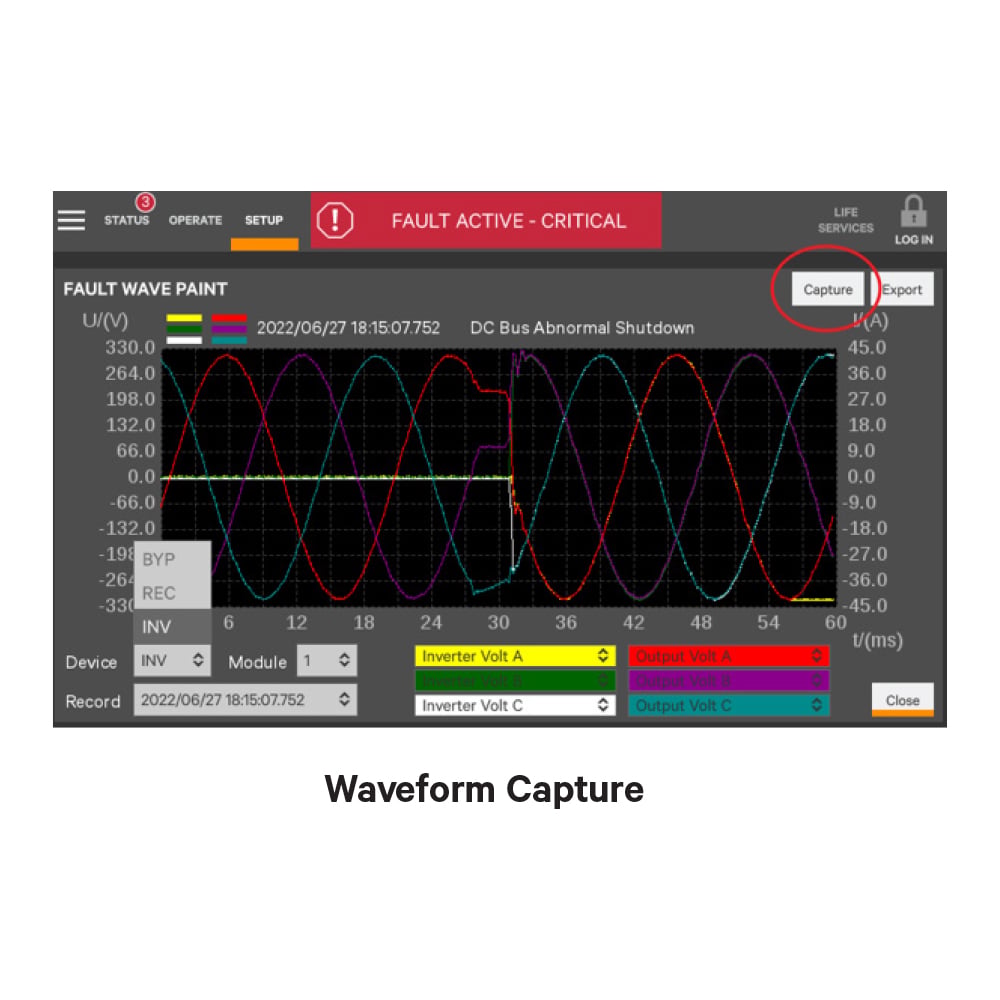

- DESIGN RELIABILITY: It includes dedicated segregated controls, enhanced diagnostic tools (Waveform Capture, History Log), and verification/validity tests.
- HIGH OPERATING EFFICIENCY: This reduces Total Cost of Ownership (TCO) and improves PUE (Power Usage Effectiveness).
- COMPLETE SERVICE PACKAGES: Complement this UPS system with complete and in-depth support throughout your UPS life for optimal performance.
*查看具體型號產品資料，請進入上方規格表具體型號的產品頁面。
