Product Model

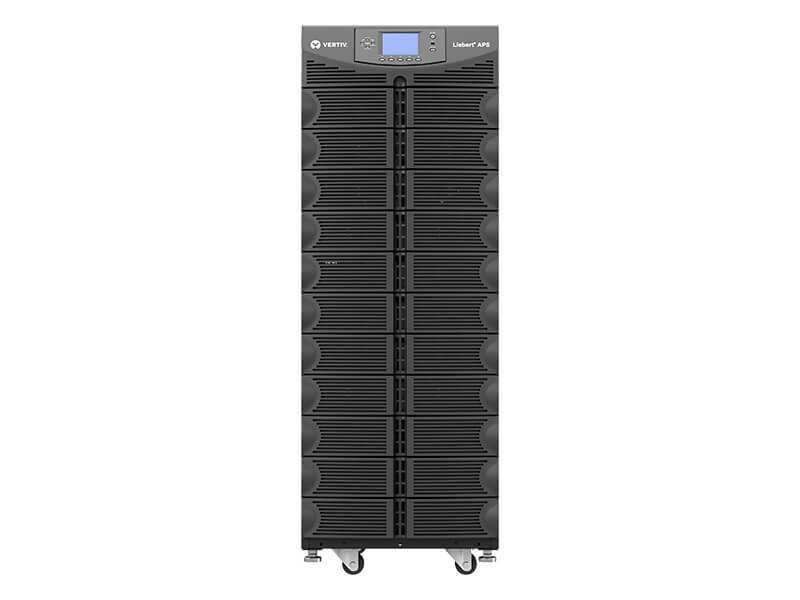

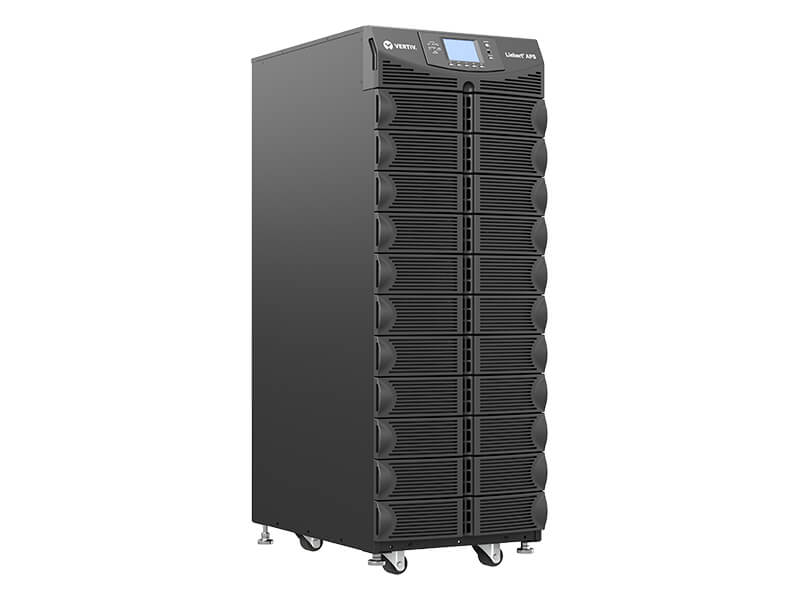

Liebert® APS AS4 Series

Find Sales Contact Liebert APS Selector View Performance Tables
Login to Save for Later
Best Suited For:
  • Government
  • Healthcare
  • Retail and Wholesale
  • Transportation
Warranty: TWO YEAR LIMITED WARRANTY AGAINST DEFECTS IN MATERIAL AND WORKMANSHIP

Benefits

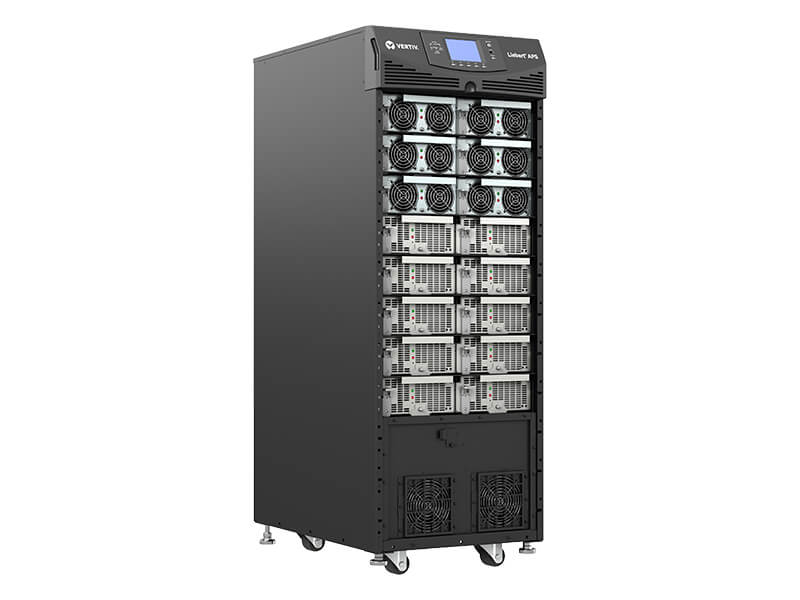

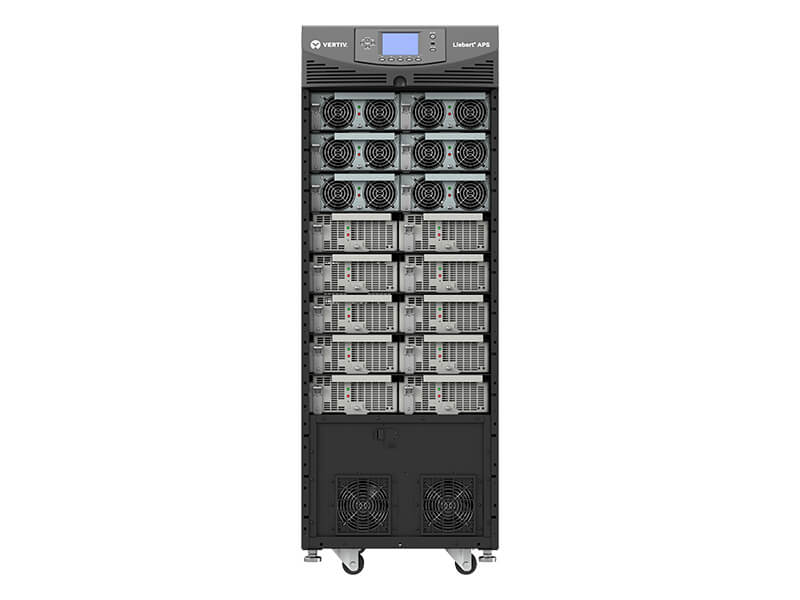

5 kVA/4.5 kW power modules deliver enhanced active power Scalable, pay as you growarchitecture optimizesinitial investment Integral battery monitoring and temperature compensated charging for extended battery life and fewer replacements Fault-tolerant design allows the critical load to run on conditioned power in the unlikely event of component failure. Hot-swappable power, control and battery modules allow replacement to be carried out without distrubingthe load. Intelligent Battery System provides continuous battery monitoring and protection Offers LIFE™ Services, real-time remote diagnosticsforproactive maintenance, decreasing the average Mean Time to Repair (MTTR) Upgradeable, even while operating in double conversion mode Configurable input: one or three phase Designed for standalone or rack mount installation Multiple Power Output Distribution (POD) boxes allows for specific application connections

Features

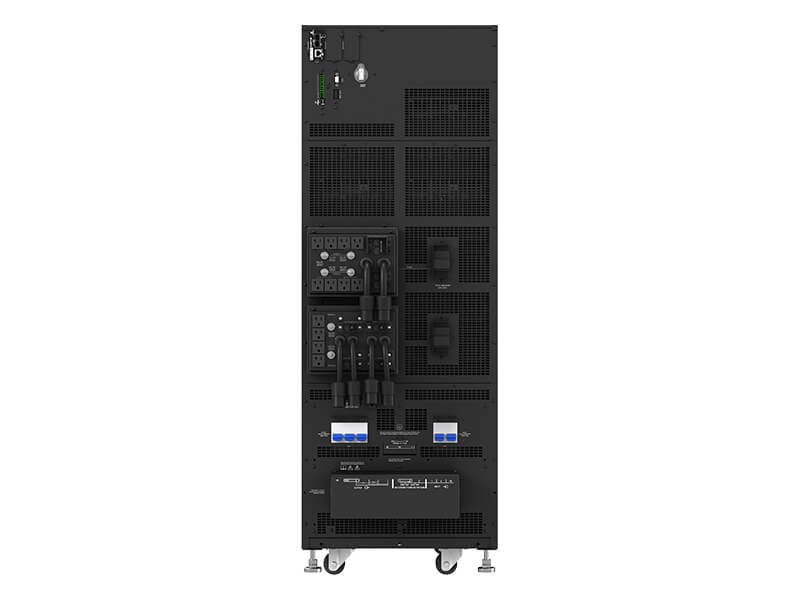

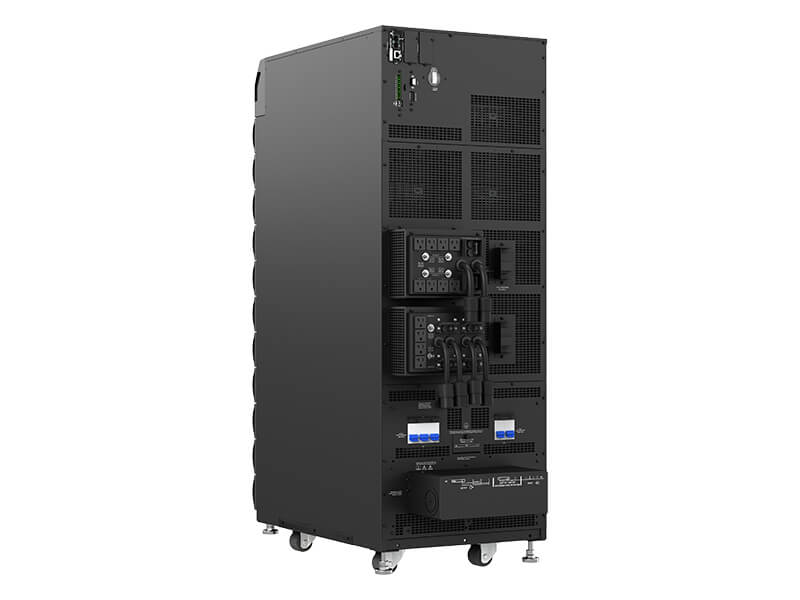

REMOTE MANAGEMENT & ENVIRONMENTAL MONITORING: Factory installed Intellislot Unity Card and three total intellislot ports for FREE remote management, and support for environmental sensors True on-line double conversion UPS Hot-swappable power and battery modules High power factor 5 kVA / 4.5 kW power modules Site configurable as single phase or three phase input Scalable up to 20 kVA N+1 Fully rated @ 40°C Stand alone or rack mountable Intelligent battery modules with automatic offline capability for anomalous events Optional 10 A charger module Terminal block or optional distribution moduleoutput socket

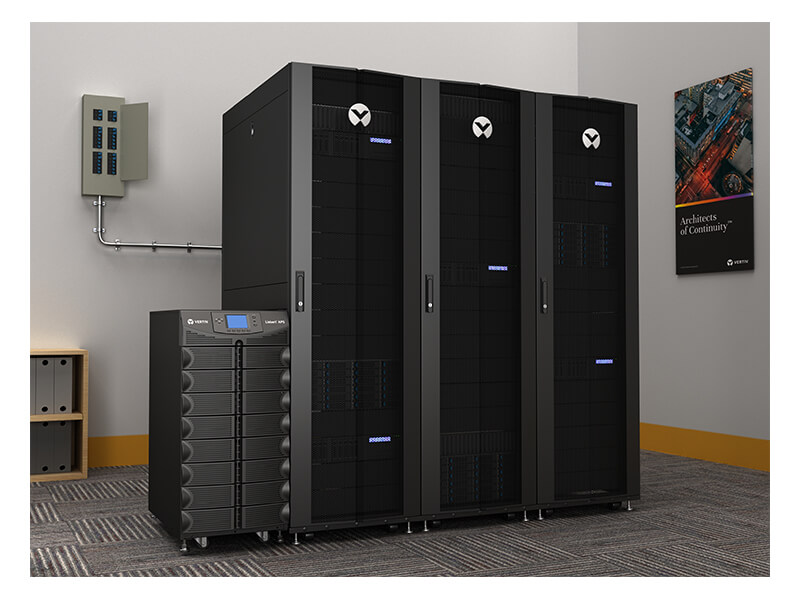

The Liebert APS is a modular, single phase output UPS, with both single and three phase input options to provide both high availability and flexibility. The Liebert APS adapts efficiently and effectively to both immediate and evolving power requirements, offering capacity on demand with flexible power modules which allow capacity upgrades in 5 kVA/4.5kW increments up to 20 kVA N+1.

Liebert® APS AS4 Series
Operational Conditions
Operating Temperature
0°C - 40°C (32°F - 104°F)
Tools & Selectors
Use the Liebert® APS Selector
Find the UPS required based on a variety of configurations

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.

Find Your Area Contact

Products Support Contacts

Showing contacts for USA Change
Vertiv (Liebert Services)
+1 800 543 2378
610 Executive Campus Drive Westerville Ohio 43082 USA
Product areas of focus: Uninterruptible Power Supplies (UPS), Power Distribution, Thermal Management, Integrated Solutions, Racks and Containment

AS3 & AS4 Series APS Performance Tables

Model

Power Capacity

Scalable To
(kVA/kW)

Input

Output

Full-Load
Runtime (min)

Half-Load
Runtime (min)

AS3A0NCUGNNXLKB

5kVA / 4.5kW

15 / 13.5

Hardwire (L-L-G)

Hardwire
Optional PODs

5.0

14

AS3A0NCVGNNXLKB

5kVA / 4.5kW

15 / 13.5

Hardwire (L-L-G)

Hardwire
Optional PODs

15

38

AS3B0NCVGNNXLKB

10kVA / 9.0kW

15 / 13.5

Hardwire (L-L-G)

Hardwire
Optional PODs

5.0

15

AS3B0NCYGNNXLKB

10kVA / 9.0kW

15 / 13.5

Hardwire (L-L-G)

Hardwire
Optional PODs

21

51

AS3C0NCWGNNXLKB

15kVA / 13.5kW

15 / 13.5

Hardwire (L-L-G)

Hardwire
Optional PODs

5.0

15

AS3C0NCXGNNXLKB

15kVA / 13.5kW

15 / 13.5

Hardwire (L-L-G)

Hardwire
Optional PODs

8.0

22

AS4A0NCUGNNXLKB

5kVA / 4.5kW

20 / 18.0

Hardwire (L-L-G)

Hardwire
Optional PODs

5.0

14

AS4A0NCVGNNXLKB

5kVA / 4.5kW

20 / 18.0

Hardwire (L-L-G)

Hardwire
Optional PODs

15

37

AS4B0NCVGNNXLKB

10kVA / 9.0kW

20 / 18.0

Hardwire (L-L-G)

Hardwire
Optional PODs

5.0

15

AS4B0NCYGNNXLKB

10kVA / 9.0kW

20 / 18.0

Hardwire (L-L-G)

Hardwire
Optional PODs

21

51

AS4C0NCWGNNXLKB

15kVA / 13.5kW

20 / 18.0

Hardwire (L-L-G)

Hardwire
Optional PODs

5.0

15

AS4C0NCJGNNXLKB

15kVA / 13.5kW

20 / 18.0

Hardwire (L-L-G)

Hardwire
Optional PODs

15

39

AS4D0NCXGNNXLKB

20kVA / 18.0kW

20 / 18.0

Hardwire (L-L-G)

Hardwire
Optional PODs

5.0

15

AS4D0NCJGNNXLKB

20kVA / 18.0kW

20 / 18.0

Hardwire (L-L-G)

Hardwire
Optional PODs

10

26


Notes

  • N+1 Power Redundancy can be achieved on any standard configuration by purchasing an extra power module.
  • Models 10kVA and up can be configured to N+1 redundancy with a 5kVA/4.5kW De-rate to unit capacity.
  • Scalable Runtime solutions are available, for details please contact your local Vertiv™ office and design your own solution with an expert on the product
