Vertiv™ Liebert® PSI5 Lithium-Ion UPS

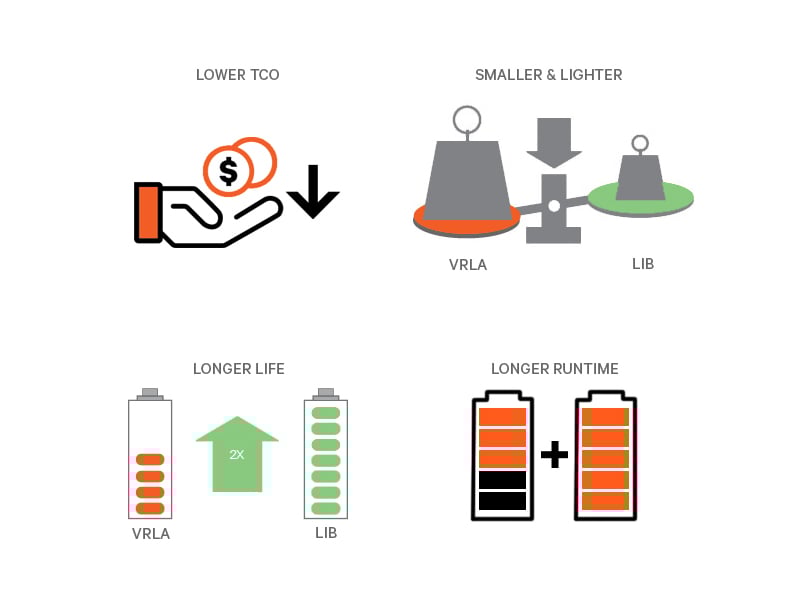

Liebert® PSI5 Lithium-Ion line-interactive UPSs are ideally suited to protect critical infrastructure in edge or distributed IT applications. When compared to traditional valve-regulated-lead-acid (VRLA) batteries, Lithium-Ion batteries have greater power density, last up to 3 times longer, recharge much more quickly, and can endure up to 10x more discharge cycles. With a 5-year standard warranty, more than double the useful life, and significantly more runtime, the Liebert PSI5 Lithium-Ion UPS is at the top of its class.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Education
- Banking, Financial and Insurance
- Government
- Healthcare
- Retail and Wholesale
Vertiv™ Liebert® PSI5 Lithium-Ion UPS
Liebert® PSI5 Lithium-Ion line-interactive UPSs are ideally suited to protect critical infrastructure in edge or distributed IT applications. When compared to traditional valve-regulated-lead-acid (VRLA) batteries, Lithium-Ion batteries have greater power density, last up to 3 times longer, recharge much more quickly, and can endure up to 10x more discharge cycles. With a 5-year standard warranty, more than double the useful life, and significantly more runtime, the Liebert PSI5 Lithium-Ion UPS is at the top of its class.
- Education
- Banking, Financial and Insurance
- Government
- Healthcare
- Retail and Wholesale
Specifications

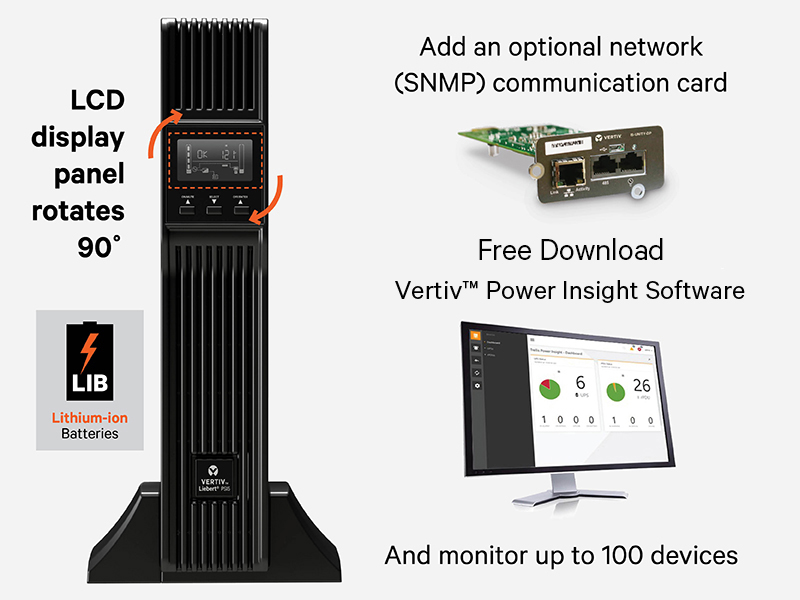

The Liebert® PSI5 Lithium-Ion UPS is ideally suited to protect critical infrastructure in edge or distributed IT applications. Lithium-ion batteries have a life expectancy of 8-10years, which is up to 3 times longer than VRLA batteries. That translates to fewer (if any) battery replacements over the lifespan of the UPS, which means savings on batteries as well as the labor to install them – an especially important issue at remote locations with few or no IT personnel on site. It adds up to more than 50% lower total cost of ownership vs. VLRA batteries. The Liebert PSI5 Lithium-Ion line interactive UPS includes automatic voltage regulation (AVR) technology, which protects against utility voltage fluctuation to extend battery life by maximizing time on utility power, and provides premium protection from power disturbances. In battery mode, the Liebert PSI5 UPS delivers pure sine wave output to protect sensitive servers and networking equipment. With up to 20 min. of runtime at half load and 9 min. at full load – more than comparable competing models – the Liebert PSI5 Lithium-Ion UPS provides plenty of runtime during an outage for an orderly shutdown. It comes with a rotating LCD display to allow both rack and tower configurations, provides real time information regarding UPS status and operating conditions, and supports remote monitoring. It's also highly energy efficient, delivering up to 97% efficiency at full load in normal operating mode. You can rest assured your business is protected with this Vertiv solution, which includes a 5-year full factory warranty. The Liebert PSI5 Lithium-Ion UPS is a true low-maintenance, set-it-and-forget-it solution.
|

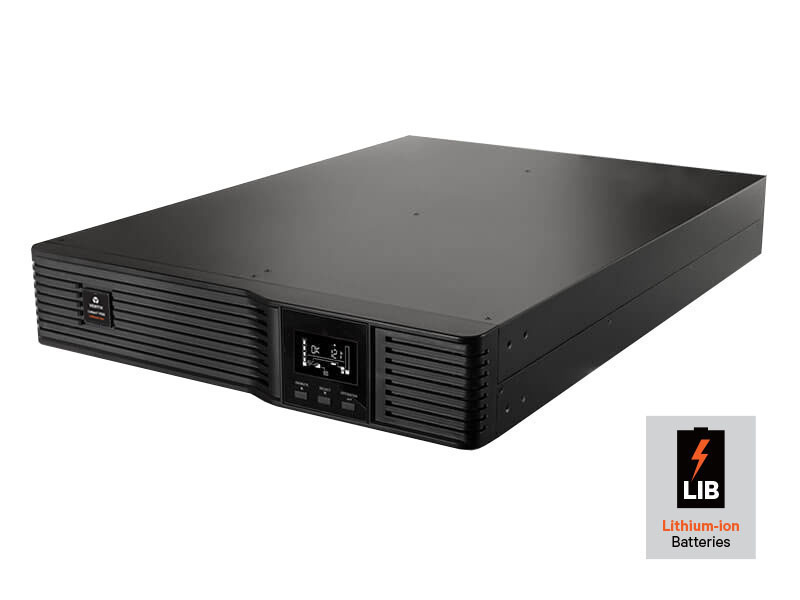

PSI5-1500RT120LI
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 1500VA / 1350W | Nominal: 120VAC / Range: 75-146VAC | 120VAC Default; 100/110/115/125VAC User Selectable | Up to 97.1% (Normal Mode) | Input: 5-15P; Ouput: 6 x 5-15R | 3.4 in | 17.2 in | 16.2 in | 28.3 lbs |
| See more product information | ||||||||
|
PSI5-2200RT120LI
|
||||||||
| 1920VA / 1920W | Nominal: 120VAC / Range: 75-146VAC | 120VAC Default; 100/110/115/125VAC User Selectable | Up to 97.1% (Normal Mode) | Input: 5-20P or L5-20P; Output: 6x5-20R, 1x L5-20R | 3.4 in | 17.2 in | 20.1 in | 39.5 lbs |
| See more product information | ||||||||
|

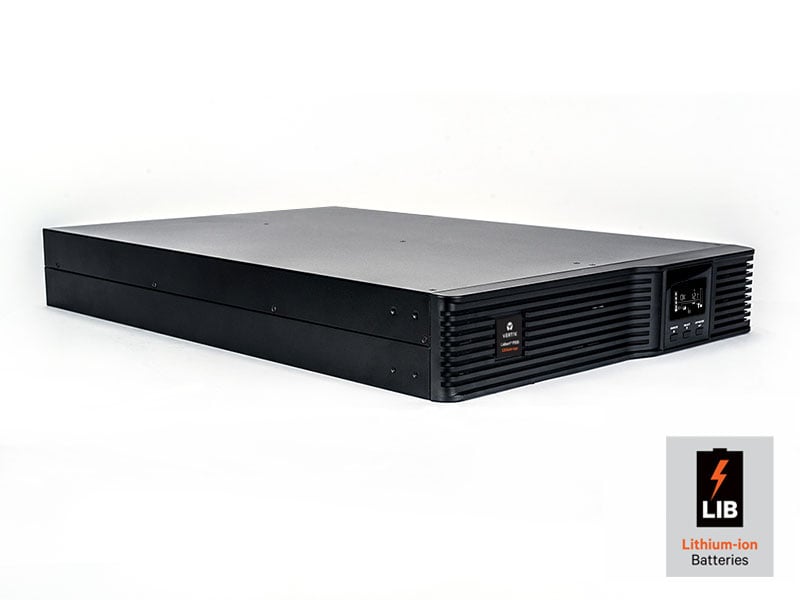

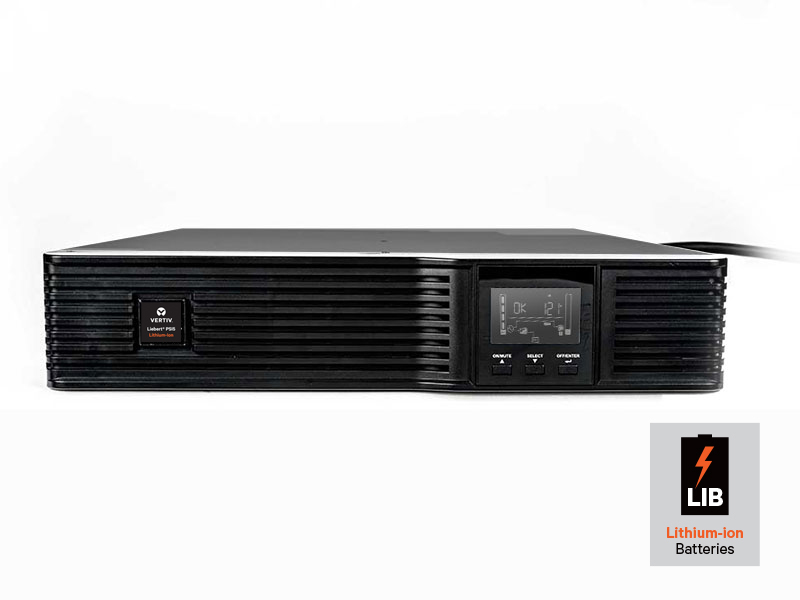

PSI5-3000RT120LI
|
||||||||
| 3000VA / 2700W | Nominal: 120VAC / Range: 75-146VAC | 120VAC Default; 100/110/115/125VAC User Selectable | Up to 97.3% (Normal Mode) | Input: L5-30P; Ouput: 6 x 5-20R, 1 x L5-30R | 3.4 in | 17.2 in | 24.8 in | 53.5 lbs |
| See more product information | ||||||||
|

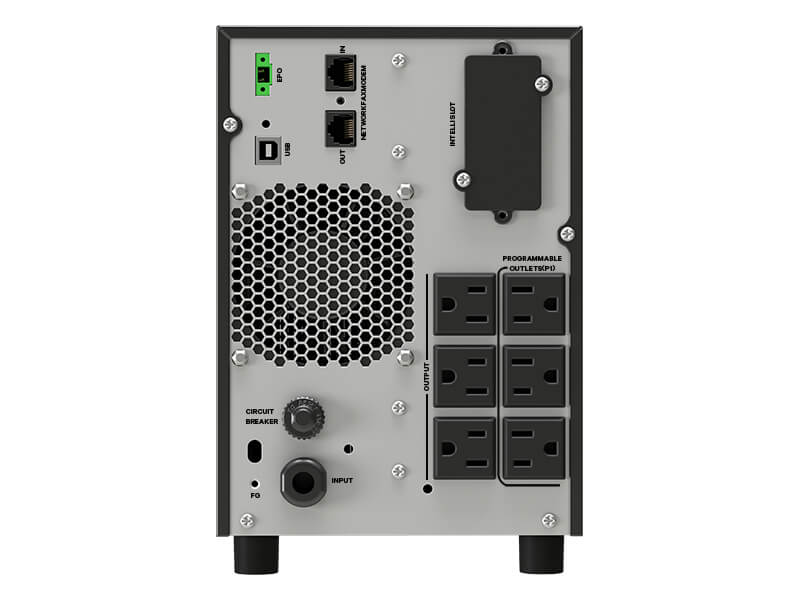

PSI5-1500MT120LI
|
||||||||
| 1500VA / 1350W | Nominal: 120VAC / Range: 75-146VAC | 120VAC Default; 100/110/115/125VAC User Selectable | Up to 97.1% (Normal Mode) | Input: 5-15P; Output: 6 x 5-15R | 8.7 in | 6.3 in | 15.6 in | 27.9 lbs |
| See more product information | ||||||||
|

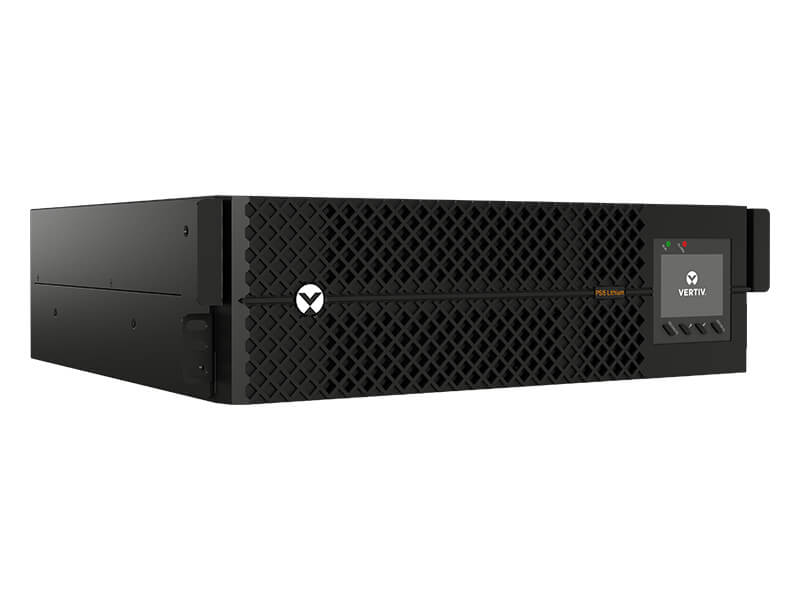

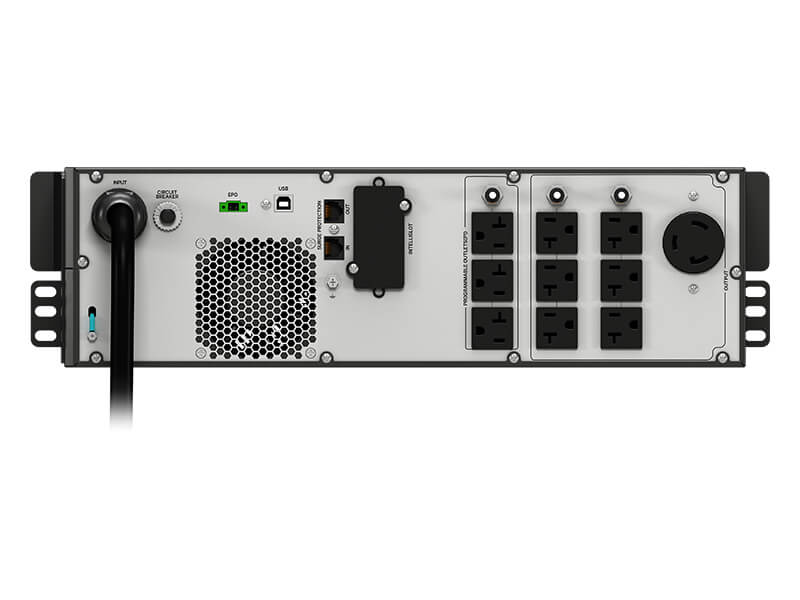

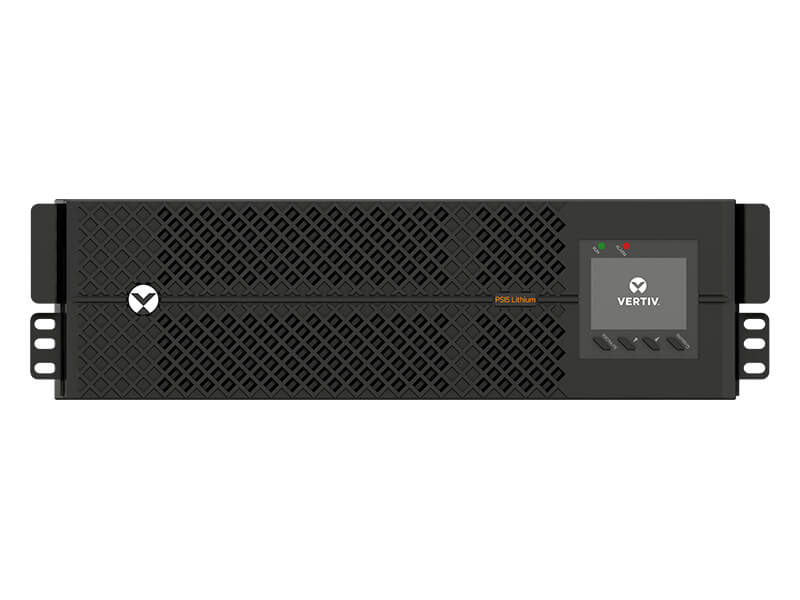

PSI5-3000SRT120LI
|
||||||||
| 3000VA / 2700W | Nominal: 120VAC / Range: 75-146VAC | 120VAC Default; 100/110/115/125VAC User Selectable | Up to 97.3% (Normal Mode) | Input: L5-30P; Output: 9 x 5-20R, 1 x L5-30R | 5.4 in | 17.3 in | 16.9 in | 56 lbs |
| See more product information |
- Vertiv Liebert PSI5 Lithium Ion Data Sheet
- Liebert® PSI5 Lithium-Ion UPS Brochure (SL-70585)
- Vertiv Liebert PSI5 3kVA Short Depth Lithium Ion Data Sheet
- Vertiv Liebert Lithium-Ion UPS Catalog SL-71049
- Vertiv-PSI5-Lithium-Ion-FAQ-SS-EN-NA-SL-70768-WEB.pdf
- Vertiv-Equipment-Protection-Plan-Information-DS-EN-NA-SL-70771-WEB.pdf
- Data Center Infrastructure Solutions-Channel Products Catalog VR-01407
- Vertiv™ E-Rate Eligible Brochure.pdf
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
